Thunderbolt audio interface
Gutschein
Vom 1. bis 31. Dezember 2025: beim Kauf eines ANTELOPE AUDIO Synergy Core Interface = 25 Studio-Plugins gratis. Mehr erfahren.

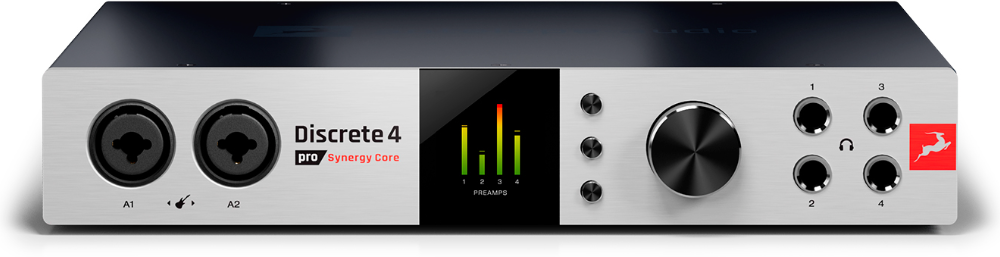

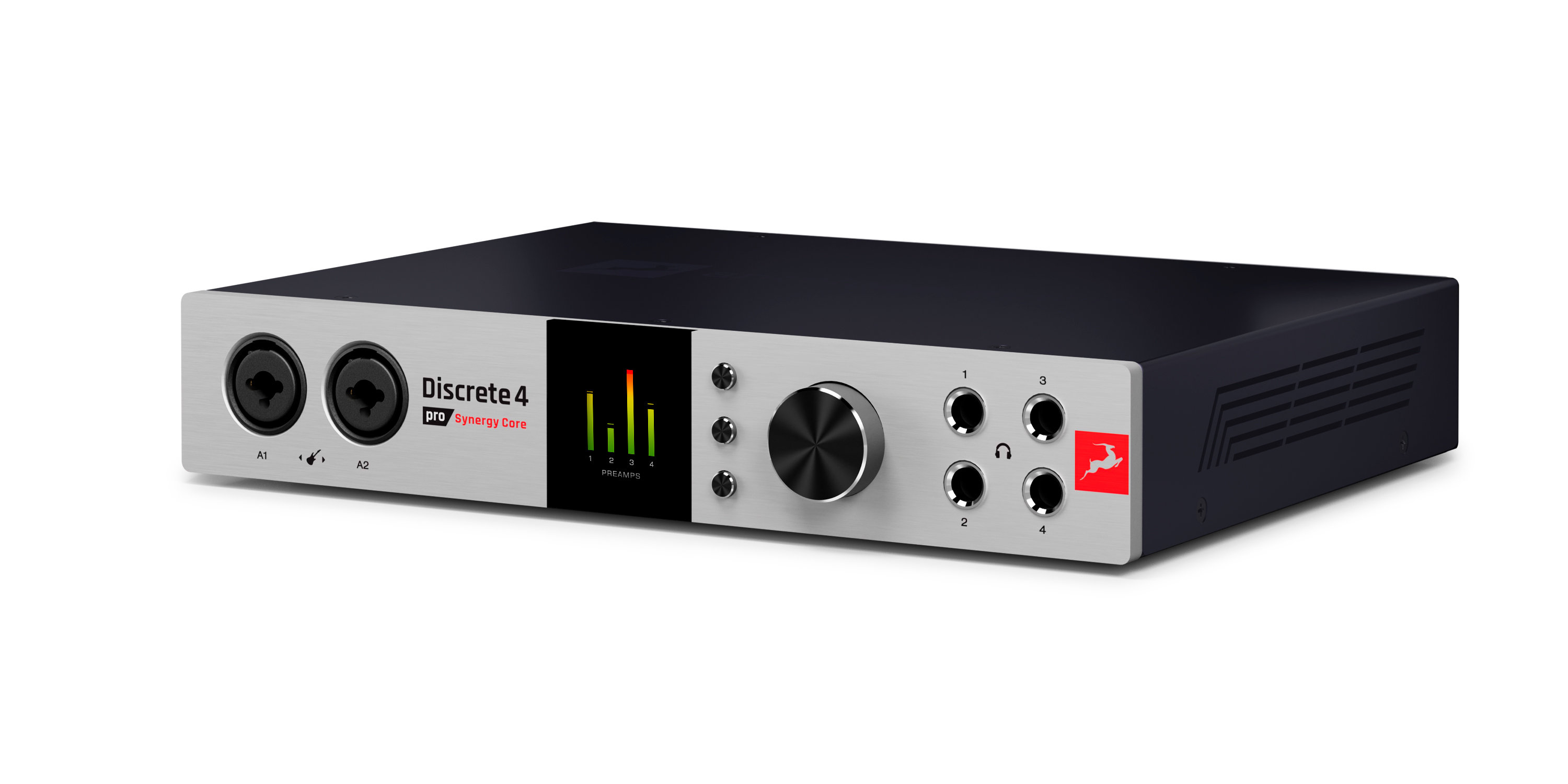

The Discrete 4 Pro SC is a direct descendant of the Antelope Audio Discrete range. It retains its strengths but inherits the latest generation of AN/NA converters and enhanced software features. With ultra-fast Thunderbolt 3 and universal USB 2.0, extremely low latency and enhanced effects processing capabilities, this audio interface meets the needs of both desktop and recording studio setups.
High-fidelity conversion for detailed sound in recording and playback based on 64-bit AFC™ clock technology provides a spacious stereo image with extreme separation of each instrument.
- Four console-quality mic preamps featuring six transistors on XLR jack combos for professional recordings. Inputs are mic and line compatible and two of them accept high impedance instruments.
- Four DC-coupled analogue outputs on TRS connectors, four independent headphone outputs, ADAT & S/PDIF I/O. All inputs/outputs can be used simultaneously in real time.
- 37 analogue modelled Synergy Core effects included and over 60 more available as options. Real-time processing with imperceptible latency.
- Two routing options - standard routing that lets you choose the audio source for each channel via a drop-down menu and virtual patching that allows for sophisticated drag-and-drop input/output configurations.
Translated with www.DeepL.com/Translator (free version)
High-fidelity conversion for detailed sound in recording and playback based on 64-bit AFC™ clock technology provides a spacious stereo image with extreme separation of each instrument.
- Four console-quality mic preamps featuring six transistors on XLR jack combos for professional recordings. Inputs are mic and line compatible and two of them accept high impedance instruments.
- Four DC-coupled analogue outputs on TRS connectors, four independent headphone outputs, ADAT & S/PDIF I/O. All inputs/outputs can be used simultaneously in real time.
- 37 analogue modelled Synergy Core effects included and over 60 more available as options. Real-time processing with imperceptible latency.
- Two routing options - standard routing that lets you choose the audio source for each channel via a drop-down menu and virtual patching that allows for sophisticated drag-and-drop input/output configurations.
Translated with www.DeepL.com/Translator (free version)
Lire la suite
Technisches Arbeitsblatt
- DSP Ja
- Analogue inputs
- 2 Mic / Line inputs
- 2 Mic / Line / Instrument inputs
- Analogue Outputs
- 1 stereo output Monitor TRS Jacks, +20 dBu max
- 4 Line outputs on TRS, +20 dBu max
- 4 stereo headphone outputs
- Mic preamps
- EIN: -128 dBu (A-weighted)
- Dynamic range: -122 dB (A-weighted)
- THD: -116 dB
- Max input level: +18 dBu
- Max gain: 65 dB
- Monitor D/A converter
- Dynamic range: 130 dB
- THD + N: -115 dB
- A/D Converters
- Dynamic range: 122 dB
- THD + N: -116 dB
- D/A converters (line outputs)
- Dynamic range: 121 dB
- THD + N: - 100dB
- DC coupled
- DIGITAL
- Digital inputs
- 1 ADAT (up to 8 channels)
- 1 S/PDIF
- Digital Outputs
- 1 ADAT (up to 8 channels)
- 1 S/PDIF
- USB 2.0 I/O
- USB 2.0 Type B connector
- Thunderbolt connector 3 SUR USB-C
- Clock
- Word Clock outputs
- 2 x outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz
- Clock system
- Fourth generation Acoustically Focused Clocking 64-bit
- Sampling frequencies (kHz)
- 32, 44.1, 48, 88.2, 96, 176.4, 192
- OTHER
- Operating temperature
- 0-50°C, 32-122°F
- Weight (Approx)
- 1.7 kg/ 3.7 lbs
- Dimensions (Approx)
- Width: 261 mm / 10.2"
- Height: 44 mm / 1.7"
- Depth: 208 mm / 8.2"
- Power Consumption
- 15 Watts
- Translated with www.DeepL.com/Translator (free version)
