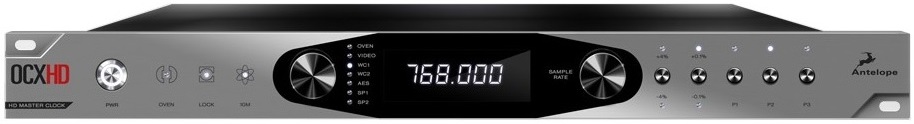

Antelope audio OCX-HD
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
VIDEO
VIDEO
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 66388
Lieferbar
3-5 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Antelope audio
Erfahren Sie mehr über die Marke Antelope audio und entdecken Sie den gesamten Katalog.
Das größte Filialnetz in Frankreich
Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Effektprozessor
Effektprozessor für studio & pa ANTELOPE AUDIO Ocx-hd.
Lire la suite
Technisches Arbeitsblatt
- Sync System
- 4th generation Acoustically Focused Clocking (AFC)
- 64-bit DDS
- Thermo-controlled crystal oscillator
- Clock stability: +/- 0.02 ppm, thermo-controlled at 64.5 C/148.1 F
- Clock aging: 1 ppm per year
- Clock calibration: +/- 0.001 ppm
- Atomic clock input: 10 MHz
- Generated sampling frequencies: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz
- Master Clock Outputs
- 10x WC outputs up to 768kHz
- 4x AES/EBU outputs up to 192kHz
- 2x S/PDIF outputs up to 192kHz
- Inputs
- 2x WC inputs up to 768 kHz
- 1x video input supporting various SD and HD video signal formats
- 1x atomic input
- 2x S/PDIF inputs up to 192kHz
- 1x AES/EBU input up to 192kHz
- 1x USB port for control
- Power Supply
- Universal AC Input~95-245V, 20 Watts Maximum
- Operating Temperature
- 0-50 C / 32-122 F
- Weight
- 2.65 kg/ 5.84 lb
- Dimensions (per unit)
- Width: 482.6 mm / 19"
- Height: 44 mm / 1.75"
- Depth: 230 mm / 9.05"
- In the Package
- Isochrone OCX HD
- Warranty Card
- User Manual
- 1x USB Cable
- 1x Power Cable
