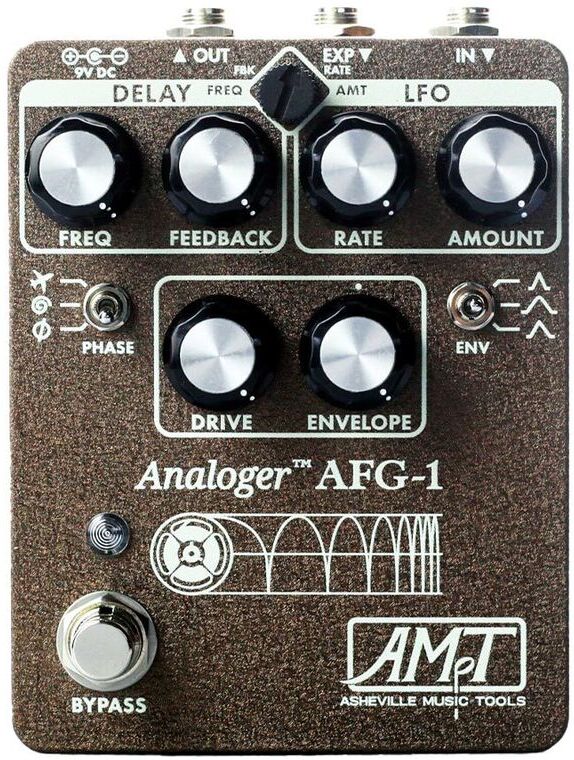

Asheville music tools AFG-1 Analog Flanger
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
Die Marke Asheville music tools
Erfahren Sie mehr über die Marke Asheville music tools und entdecken Sie den gesamten Katalog.
Kaufberatung für Bassgitarren-Effekte
Wie navigiert man durch die Fülle der auf dem Markt erhältlichen Effektpedale? Star's Music zieht Bilanz, folgen Sie dieser Kaufberatung!
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Modulation/chorus/flanger/phaser & tremolo effektpedal
The ACV-1 Analog Flanger is a pedal offered by the Asheville Music Tools brand.
The Analoger™ Series ACV-1 Chorus/Vibrato/Slapback is the latest creation in their 100% analog effects series. The ACV-1 consists of a modulated BBD delay line with a flexible set of synthesizer-inspired controls. On the surface, the ACV-1 is simply a classic, highly editable chorus. In reality, it's a veritable powerhouse of time warp modulation effects: swirls of shimmering comb filters, real luscious vibrato, glitchy textures, metal pipe sounds, and even fake reverb.
The Analoger™ Series ACV-1 Chorus/Vibrato/Slapback is the latest creation in their 100% analog effects series. The ACV-1 consists of a modulated BBD delay line with a flexible set of synthesizer-inspired controls. On the surface, the ACV-1 is simply a classic, highly editable chorus. In reality, it's a veritable powerhouse of time warp modulation effects: swirls of shimmering comb filters, real luscious vibrato, glitchy textures, metal pipe sounds, and even fake reverb.
Lire la suite
Technisches Arbeitsblatt
- Type: 100% analog signal and control path.
- Footswitch Bypass: user selectable on/off effect True Bypass or JFET Buffered (accessible by removing the ACV-1 cover)
- Power supply: 9 V DC @ <150 mA. 70-90 mA typical. Up to 250 mA at start-up. Standard negative pedal center, 2.1mm x 5.5mm barrel.
- Delay time: 3.1ms - 59ms. 1.9 ms - 95 ms with LFO and up to 155 ms with external CV
- Feedback: 0 to almost infinity. Capable of self-oscillation using tone or EXP/CV input coupled to knob position.
- Frequency: LFO RATE, 0.1 Hz to 14 Hz (28 Hz with CV control)
- Amount: LFO depth control from OFF to 60% of TIME sweep
- Mixture: Center 50%. Adjust from completely damp to completely dry
- Tone: Center tilt filter ~740 Hz. Center = Flat at 0.3 dB, High +5 dB to -10 dB, Low +4 dB to -7 dB.
- Phase switch: 180° phase shift of wet signal and return signal.
- LFO: selectable triangle, sine or square wave
- Expression Switch: 4-position rotary selects external control of time, feedback, rate or quantity. All controls add to the front panel button, adding extended reach. TRS jack usable with a CV or Expression pedal (CV range is 0 to 5 V). 5 V output limited to current supplied by the ring. Control input on tip.
- Input impedance: > 1 MΩ
- Output impedance: 1 KΩ maximum (5 k maximum for buffered bypass)
- Maximum input level: +14.25 dBµ (4.0 V RMS)
- Maximum output level: +14dBµ (3.9V RMS)
- Noise reduction: 2:1 broadband with 10 dB high frequency boost
