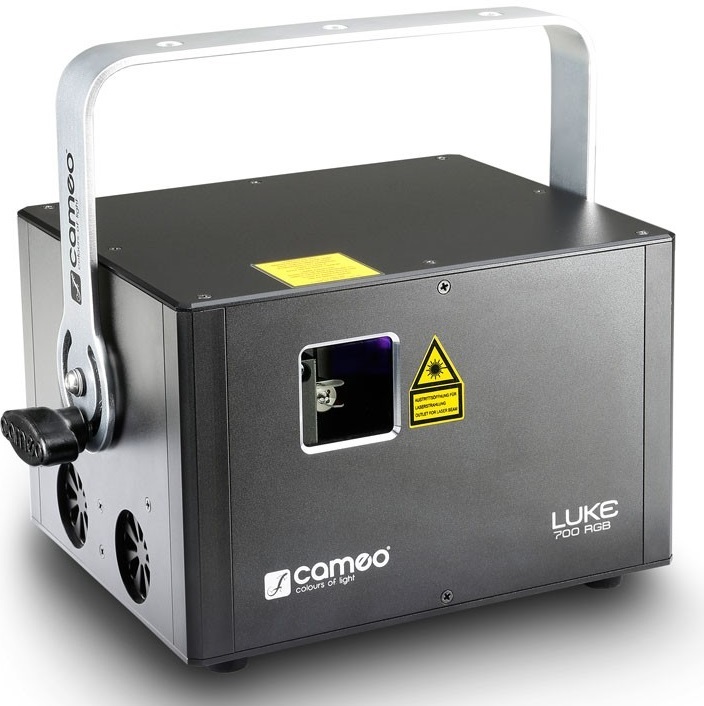

Cameo Luke 700 RGB - noir
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
VIDEO
VIDEO
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 77745
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Cameo
Erfahren Sie mehr über die Marke Cameo und entdecken Sie den gesamten Katalog.
Shopping Guide Licht Equipment
Theaterscheinwerfer Dies ist der klassische Scheinwerfer für die Bühne, den in der Lage ist, viele Situationen zu beantworten.
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Beschreibung
The LUKE 700 RGB is equipped with diode lasers and DPSS with its red, green and blue colors, for a power of 700 mW.
The diameter of the radius is 3 mm, with a maximum divergence of only 2 mrad.
It consists of two separate parts for optimal performance:
It isolates the power supply / fan portion of the optical components. It is equipped with ultra-fast galvanometers with 30 Kpps at 8 ° ILDA, 128 presets and a Scan angle of 60 °, which ensures spectacular graphic projections, thanks to precise laser beams and crystal clarity.

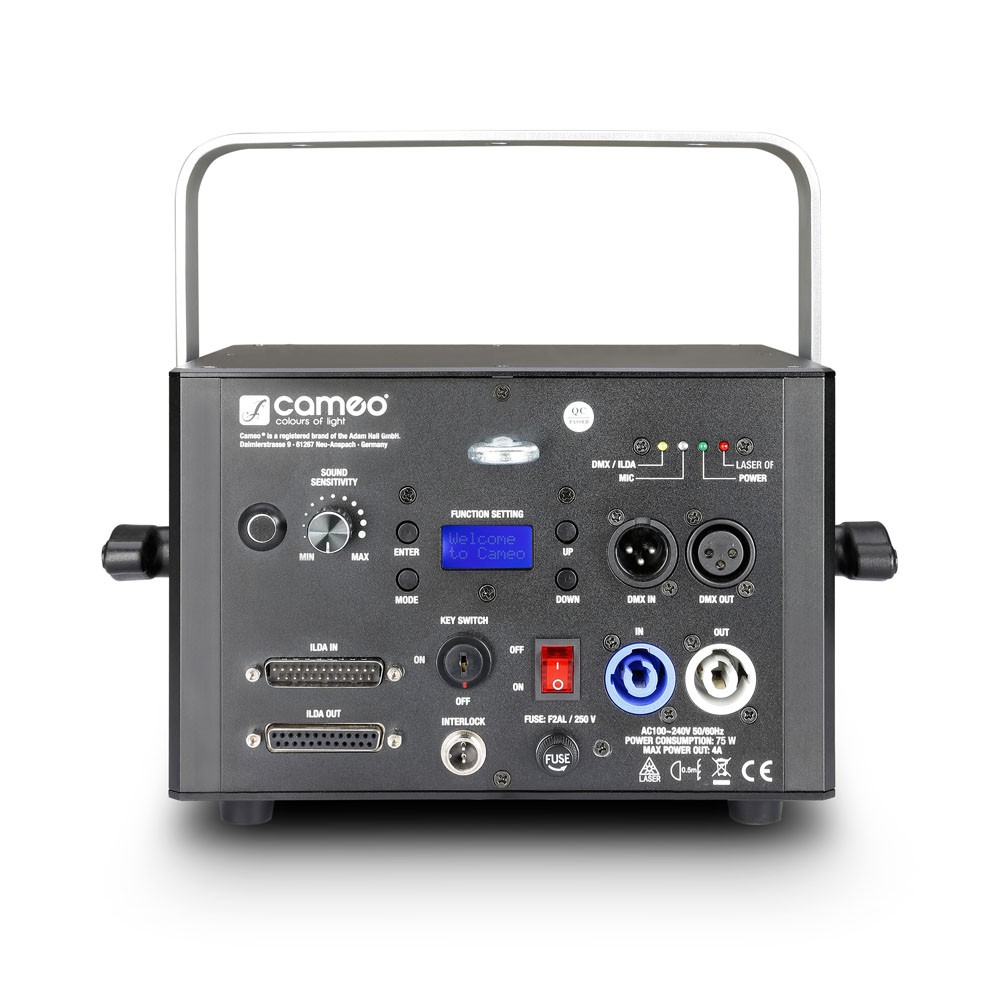

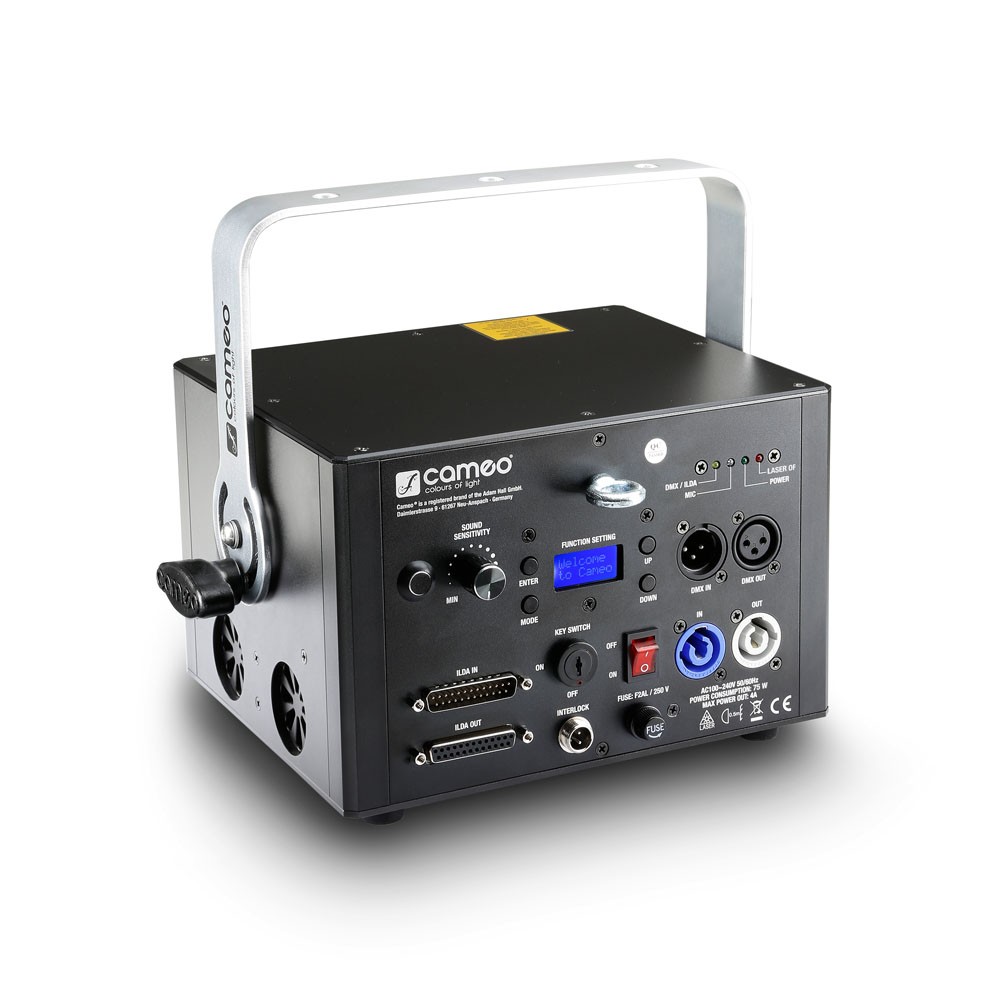

Luke lasers have an International Laser Display Association (ILDA) interface on a 25-pin D-sub port for computer control, an input / output on XLR 3-pin connectors for DMX control (4-channel and 11-channel modes), and the built-in microphone allows control by music (sensitivity adjustable). They can also be used in Master, Slave and Standalone modes. The aluminum box, combining strength and lightness, is equipped with a key switch, avoiding any unauthorized use; the display, completed with 4 user keys, is very bright, to facilitate manual use; the mains connection is made on the Neutrik powerCON connector. A quiet fan ensures a moderate operating temperature, and to protect the public, the Luke Series lasers have a security system in case of Scan system failure.
Important note: The Luke Series and Ioda Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more dramatic laser effects can be achieved.
The diameter of the radius is 3 mm, with a maximum divergence of only 2 mrad.
It consists of two separate parts for optimal performance:
It isolates the power supply / fan portion of the optical components. It is equipped with ultra-fast galvanometers with 30 Kpps at 8 ° ILDA, 128 presets and a Scan angle of 60 °, which ensures spectacular graphic projections, thanks to precise laser beams and crystal clarity.
Luke lasers have an International Laser Display Association (ILDA) interface on a 25-pin D-sub port for computer control, an input / output on XLR 3-pin connectors for DMX control (4-channel and 11-channel modes), and the built-in microphone allows control by music (sensitivity adjustable). They can also be used in Master, Slave and Standalone modes. The aluminum box, combining strength and lightness, is equipped with a key switch, avoiding any unauthorized use; the display, completed with 4 user keys, is very bright, to facilitate manual use; the mains connection is made on the Neutrik powerCON connector. A quiet fan ensures a moderate operating temperature, and to protect the public, the Luke Series lasers have a security system in case of Scan system failure.
Important note: The Luke Series and Ioda Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more dramatic laser effects can be achieved.
Lire la suite
Technisches Arbeitsblatt
- Laserfarbe Multi-Kolor
- Multipoint & gobo Ja
- -Type of laser product
- Total power 700 mW
- -RGB color spectrum
- -Wavelength 447 nm, 532 nm, 650 nm
- -Features Radius diameter 3 mm / divergence 2 mrad
- Laser diode laser sources, DPSS
- -Laser class 4
- -Scanner galvanometer, high power, 30 kpps at 8 ° ILDA
- -Maximum Scan Angle 60 °
- -Isd User Modes, Auto Programs, DMX 512 Protocol, Sound Control
- -DMX input 3-pin male XLR connector
- -DMX output 3-pin female XLR connector
- -Input ILDA 25-pin Sub-D connector male
- -Index output 25-pin female D-sub connector
- DMX 11 channels, 4 channels
- -Entry Settings, Mode, Value Down, Value Up
- -Mains voltage 100 - 240 V, 50 - 60 Hz
- -Electric power consumption 75 W
- -Embase sector Neutrik powerCON
- -Aluminium case material
- -Color black box
- -Width 215 mm
- -Height (mm) 157 mm
- -Depth 225 mm
- -Weight 5.5 kg
