Reverb/delay/echo effektpedal
For over 44 years the Deluxe Memory Man has been the gold standard for analog delay and modulation. The EHX Nano Deluxe Memory Man compact delivers EHX’s signature analog delay, chorus and vibrato plus some updates added including both Rate and Depth knobs for enhanced modulation control.
It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9Volt power supply.
It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9Volt power supply.
Lire la suite
Technisches Arbeitsblatt
- EHX Nano Deluxe Memory Man
- SKU Electro-Harmonix EHXNDLXMM
- Delay, chorus, vibrato
- For electric guitar
- Compact effect pedal
- 2022
- Analog signal path
- Adjustable delay times from 30mS up to 550mS
- Full control over the number of echo repeats right up to runaway oscillation with the Feedback knob
- Adjustable input gain via the Level knob
- An overload LED which lights when the signal going into the analog delay block is too hot
- Wet/Dry mix control over the dry and delayed signals via the Blend knob
- Depth knob which sets the amount of modulation that’s added to the delay to produce vibrato and chorus type effects
- Rate controls the modulation speed
- Tails Switch that sets whether the echoes decay naturally when the pedal is switched to bypass or if they are instantly muted

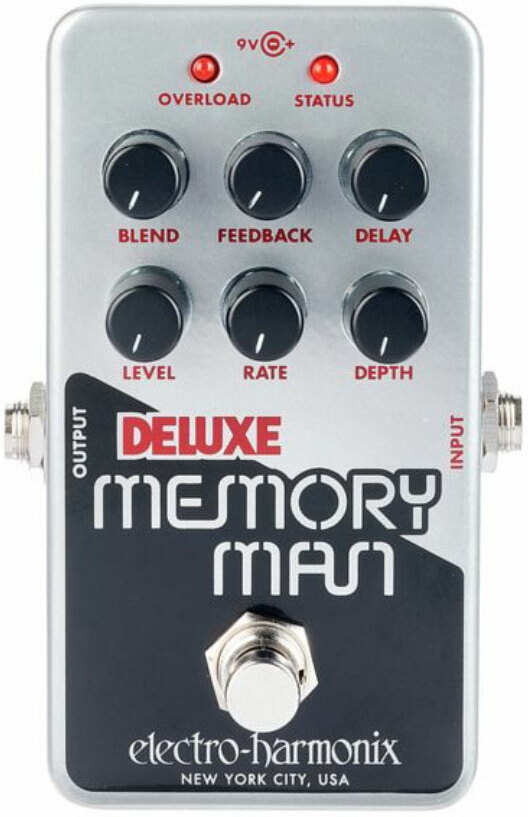

- Controls : see pictures
- Connections : see pictures
- True bypass
- Powered via battery or included 9VDC power supply (150 mA, center negative)
- Dimensions (mm) 70 x 114 x 53
- Dimensions (in) 4.5 x 2.75 x 2.1
- 635 g- Manual : https://docs.google.com/gview?url=https://www.ehx.com/wp-content/uploads/2021/09/nano-deluxe-memory-man-manual.pdf&embedded=true
