Fairfield circuitry 20% More Distortion
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
VIDEO
VIDEO
Die Marke Fairfield circuitry
Erfahren Sie mehr über die Marke Fairfield circuitry und entdecken Sie den gesamten Katalog.
Kaufberatung für Bassgitarren-Effekte
Wie navigiert man durch die Fülle der auf dem Markt erhältlichen Effektpedale? Star's Music zieht Bilanz, folgen Sie dieser Kaufberatung!
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Overdrive/distortion/fuzz effektpedal
FAIRFIELD CIRCUITRY 20% More Slew Limiting Distortion offers jfet clipping, sub and upper octaves, envelope follower, low pass gate and more...
Explorations around a schematic found among old papers of mysterious origin, suspiciously similar to a datasheet sq/tri oscillator. All that was needed was to connect the dots.
A slew limiter smoothes out how quickly incoming voltage can change, limiting it to a fixed v/sec. slope. Since time and frequency are intrinsically linked, this acts as a steep, somewhat distorted low pass filter.
When it resonates, these fixed slopes become triangle wave oscillations, giving 20% more its unique sound. Input signals can overwhelm this oscillation, making for pseudo-wavefolding and synthetic distortion artifacts.
Explorations around a schematic found among old papers of mysterious origin, suspiciously similar to a datasheet sq/tri oscillator. All that was needed was to connect the dots.
A slew limiter smoothes out how quickly incoming voltage can change, limiting it to a fixed v/sec. slope. Since time and frequency are intrinsically linked, this acts as a steep, somewhat distorted low pass filter.
When it resonates, these fixed slopes become triangle wave oscillations, giving 20% more its unique sound. Input signals can overwhelm this oscillation, making for pseudo-wavefolding and synthetic distortion artifacts.
Lire la suite
Technisches Arbeitsblatt
- FAIRFIELD CIRCUITRY 20% More Slew Limiting Distortion
- SKU Fairfield Circuitry 20% MORE
- JFET clipping, sub and upper octaves, envelope follower, low pass gate
- Made in Quebec

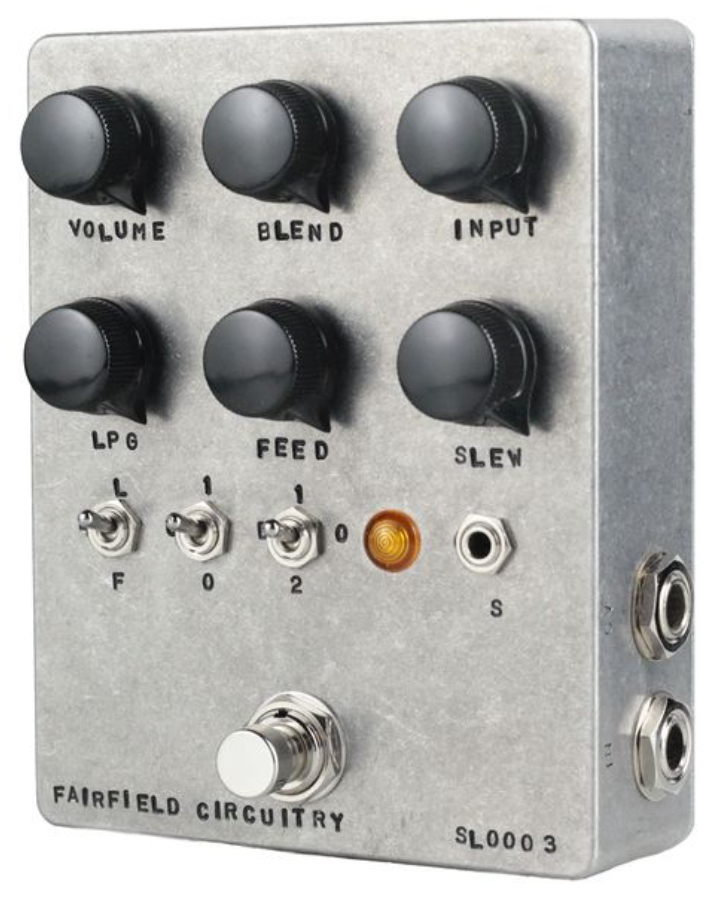

- Controls & connections : see pictures & manual
- True bypass
- Powered via optional 9VDC, negative center, conso. mini. 20 mA
- Battery not supported
- 119.38 x 96.52 x 48.26 mm
- Manual : https://cdn.shopify.com/s/files/1/0234/8231/files/SL_User_manual.pdf?v=1741034876
