Modor NF-1

Name: NF-1
Brand: Modor
SKU: 73647
Availability: LimitedAvailability

1259,00 €

Letzter

1 Zimmer frei.

2-3 Tage Versand

Lagerbestand

Siehe Verfügbarkeit. Speichern

•

Star's Music Paris

Die Marke Modor

Erfahren Sie mehr über die Marke Modor und entdecken Sie den gesamten Katalog.

Entdecken

Der ultimative Kaufratgeber für die Auswahl Ihres neuen Synthesizers oder Ihres neuen Drum maschines.

Konsultieren

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

+33 181 930 900 email

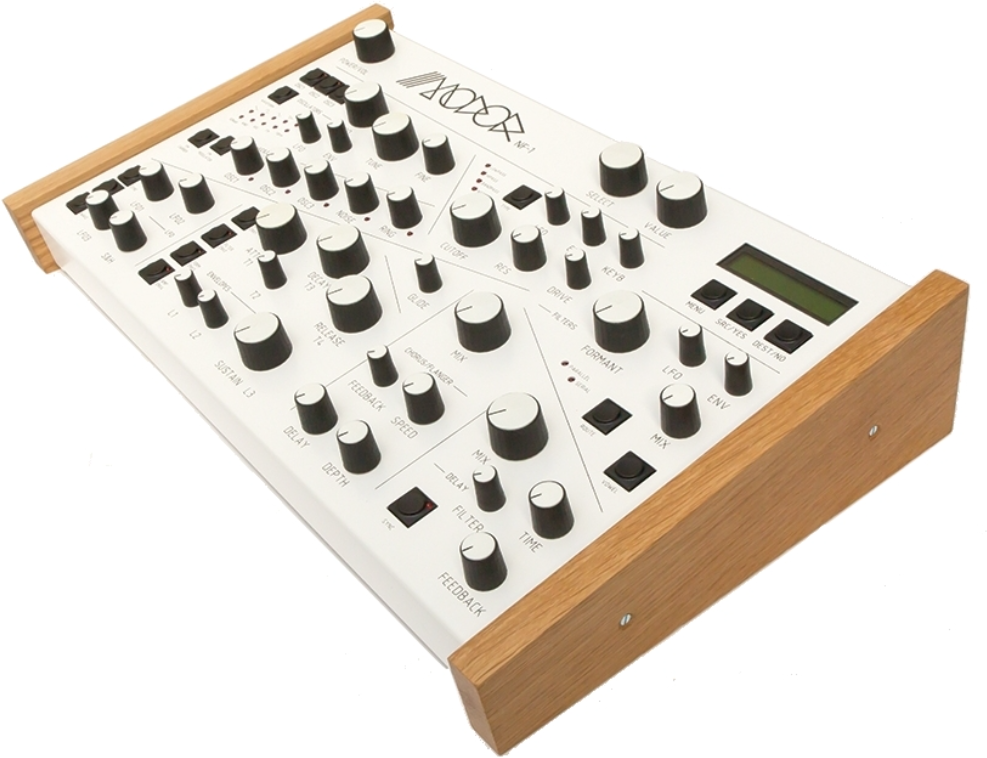

Expander MODOR Nf-1.

POLYPHONY
8 voices
Poly, Mono and Mono-legato modes
MEMORY
448 patches, 14 banks [A-N] of 32 patches
All factory presets overwritable
CONNECTIONS
9V, 600mA adapter connection, positive voltage on center pin
MIDI IN/THRU/OUT connections, 3x 5-pin DIN connection
Audio Left and Right outputs, 6.35mm mono jack
Sustain switch, 6.35mm mono jack
Volume/modulation pedal, 6.35mm stereo jack
FRONT PANEL CONTROLS
42 rotary knobs
20 pushbuttons
1 rotary encoder
1 Power switch/volume knob
DISPLAY
16x2 green backlit LCD display
MIDI
Full realtime MIDI control of all sound parameters
Pitch Bend, Modwheel (CTRL#1), Expression pedal (CTRL#7), Velocity and Aftertouch can be used as modulation sources
MEASUREMENTS
Width: 440mm without rack ears, 480mm with rack ears (19")
Height: 267mm (10.5"/ 6U)
Depth: 40mm (front) - 80mm (back)
RACKMOUNTABLE
Height: 6 rackunits
Recessed backside connections to ease rack mounting (no lost rackspace above)
Rack mounting ears included
UPDATE
Use of less 'wobbly', more stable feeling potentiometers
Improved DAC gives a 12dB lower noise-floor
Improved EMC-design (CE and FCC approval should follow soon)
Line out is now capable of driving a headphone (Left line output doubles as stereo headphone out)
A Midi USB connector has been added
