Mikrofon kapsel

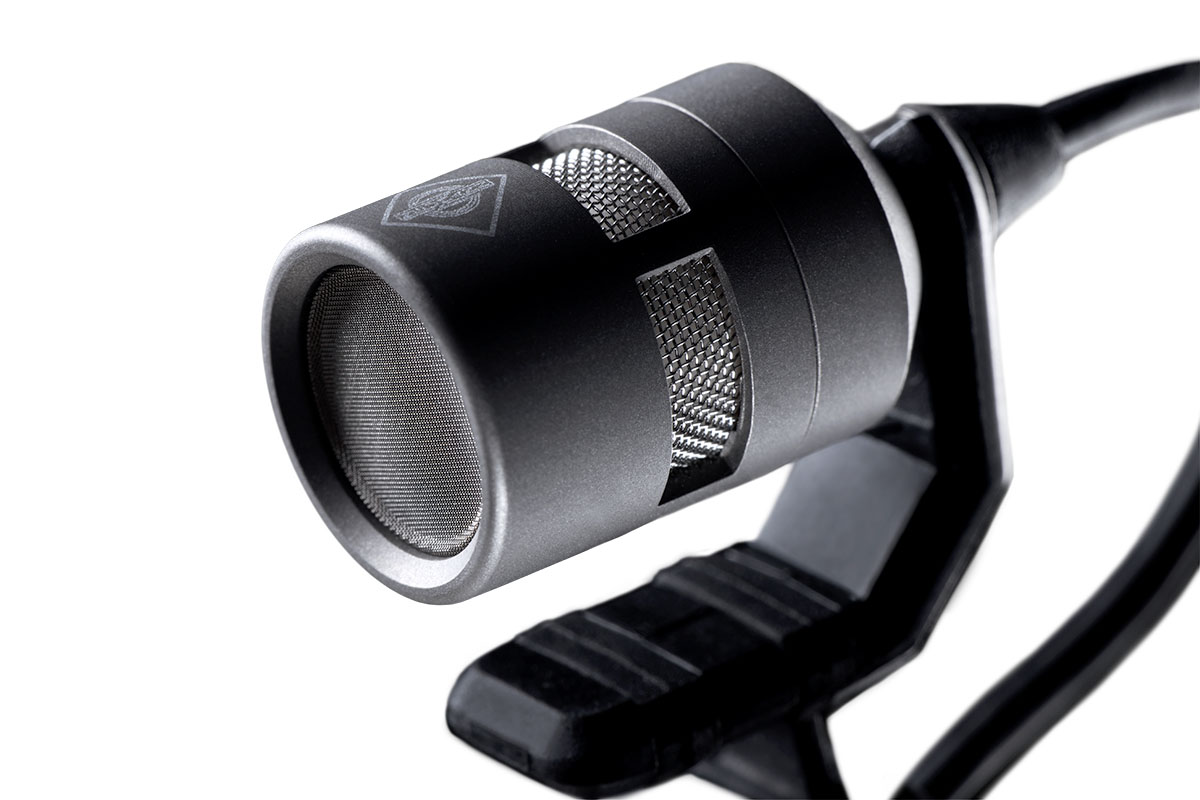

The Neumann KK14 is a capsule for instrument recording.
As part of the Neumann Miniature Clip Mic MCM System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications.
- Layered capsule design overcomes former electret restrictions
- Enhanced clarity across critical frequency ranges
- Cardiod pattern
- Unmatched tonal consistency
- Road-tough and long-lasting design
RAISING THE ELECTRET PRINCIPLE TO A NEW LEVEL
The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.As part of the Neumann Miniature Clip Mic MCM System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications.
- Layered capsule design overcomes former electret restrictions
- Enhanced clarity across critical frequency ranges
- Cardiod pattern
- Unmatched tonal consistency
- Road-tough and long-lasting design
RAISING THE ELECTRET PRINCIPLE TO A NEW LEVEL
The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.
As part of the Neumann Miniature Clip Mic MCM System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications.
- Layered capsule design overcomes former electret restrictions
- Enhanced clarity across critical frequency ranges
- Cardiod pattern
- Unmatched tonal consistency
- Road-tough and long-lasting design
RAISING THE ELECTRET PRINCIPLE TO A NEW LEVEL
The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.As part of the Neumann Miniature Clip Mic MCM System, the KK 14 capsule delivers unmatched perfection and acoustic consistency for close miking applications.
- Layered capsule design overcomes former electret restrictions
- Enhanced clarity across critical frequency ranges
- Cardiod pattern
- Unmatched tonal consistency
- Road-tough and long-lasting design
RAISING THE ELECTRET PRINCIPLE TO A NEW LEVEL
The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.
Lire la suite
Technisches Arbeitsblatt
- Acoustical operating principle Pressure gradient transducer
- Polar pattern Cardioid
- Frequency response 20 Hz...20 kHz
- Sensitivity (2) 3.6 mV/Pa ? -49 dBV (4)
- Rated impedance 10 ohms
- Signal-to-noise ratio (4), CCIR (5) 63 dB
- Signal-to-noise ratio (4), A-weighted (5) 71 dB
- Equivalent noise level, CCIR (5) 31 dB
- Equivalent noise level, A-weighted (5) 23 dB-A
- Max. SPL (6) for THD < 0.5 %
- with Usupply = 10V, Rfeed = 20 kohms with Usupply = 10V, Rfeed = 20 kohms 153 dB SPL
- with Usupply = 5V, Rfeed = 8.25 kohms with Usupply = 5V, Rfeed = 8.25 kohms 147 dB SPL
- Dynamic range of the amplifier, A-weighted (6) for THD < 0.5 % 130 dB
- Max. output voltage 12 dBu
- Power supply max. 10 V, with Rfeed = 20 kohmsmax. 10 V, with Rfeed = 20 kohms
- Current consumption 0.22 mA
- Weight 2.3 g
- Diameter 12 mm
- Length 11 mm
- Permissible atmospheric conditions (1)
- Operating temperature range 0 °C … +40 °C
- Operating Humidity range 0 %…90 % rel. hum
- Storage temperature range –20 °C … +70 °C
- Storage Humidity range 0 %…95 % rel. hum
