Ortofon 2M MONO
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 109675
Lieferbar
5-7 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Andere Version(en) oder zugehörige(s) Produkt(e)
Die Marke Ortofon
Erfahren Sie mehr über die Marke Ortofon und entdecken Sie den gesamten Katalog.
Kaufberatung für DJ-Tonabnehmer
Folgen Sie unserem Kaufratgeber für DJ-Cartridges, um eine Referenz zu finden, die Ihren Erwartungen entspricht: audiophiles Hören, Mixen, Scratchen
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Tonabnehmeraufnahme

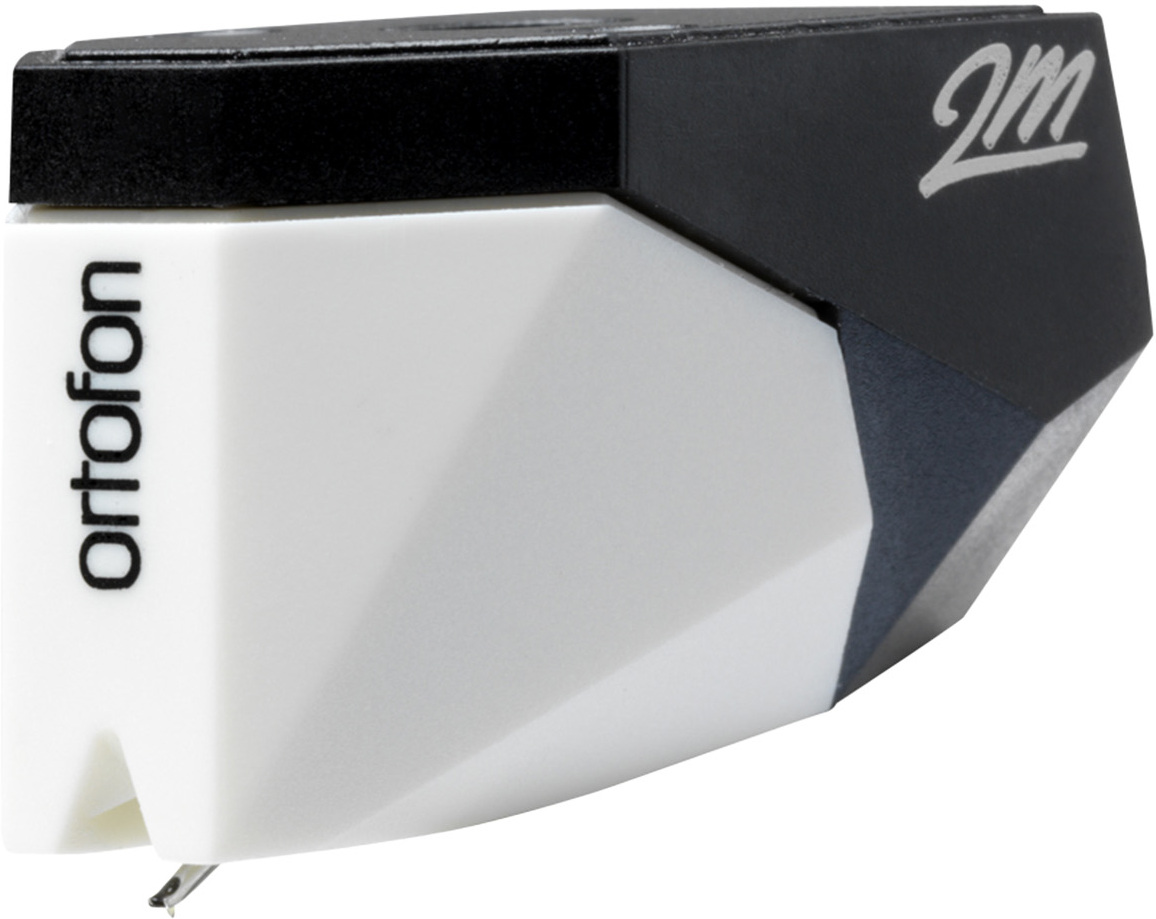

The Ortofon 2M mono is a 2M MONO cell with spherical diamond.
The 2M Mono is equipped with an improved motor, offering exceptional sonic precision. Its tip is fitted with an 18?m R Spherical Diamond, an optimal solution for playing LP mono LP records. The body of the cell is made of Hopelex, ensuring great rigidity while eliminating unwanted resonances.
The 2M Mono is equipped with an improved motor, offering exceptional sonic precision. Its tip is fitted with an 18?m R Spherical Diamond, an optimal solution for playing LP mono LP records. The body of the cell is made of Hopelex, ensuring great rigidity while eliminating unwanted resonances.
Lire la suite
Technisches Arbeitsblatt
- Type: MM (Moving magnet)
- Diamond : Spherical
- Output voltage at 1000 Hz, 5 cm/sec. : 4 mV
- Frequency response : 20-20,000 Hz (+3 / -1 dB)
- Readability (315 Hz at recommended hold force): 70 ?m
- Compliance, dynamic, lateral: 18 ?m/mN
- Pen tip radius: R18 ?m
- Bearing force range: 1.6-2.0 g (16-20 mN)
- Recommended holding force: 1.8 g (18 mN)
- Reading angle: 20
- Internal impedance: 700 Ohms
- Internal inductance: 350 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Colour of sensor and pen: Black/White
- 2MR cell weight: 6 g
- Weight of 2M and 2M Verso cells: 7.2 g
- Weight of 2M pre-mounted cell: 16.7 g
- Replacement pen: 2M Mono (interchangeable with 2M 78)
- Diamond life : With proper care, up to 1,000 hours can be achieved without any degradation in performance.
