Tonabnehmeraufnahme

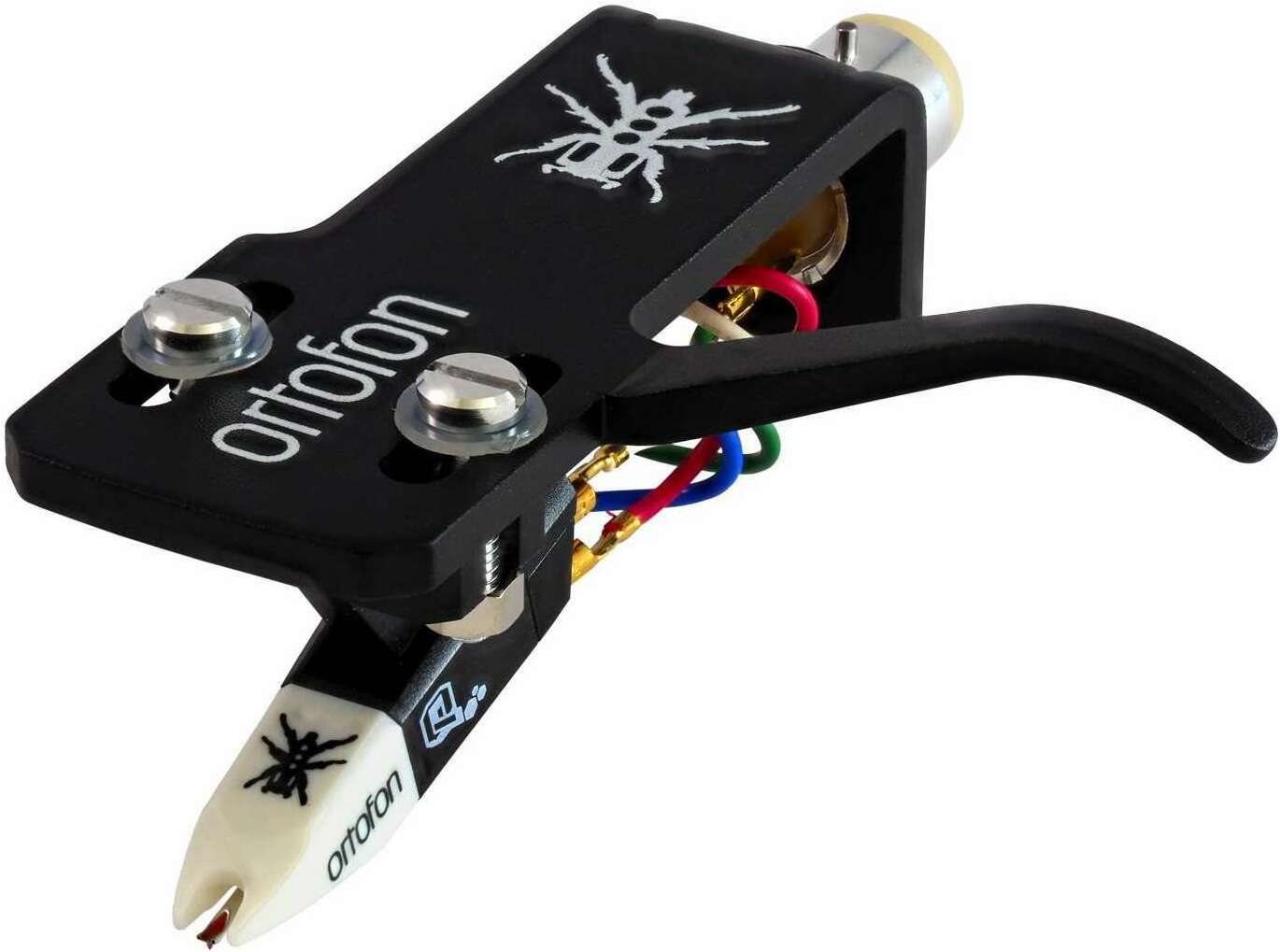

The OM Qbert on Sh-4 black is an Om q.bert cell with a cell door.
DJ cell in OM format mounted on a door with the Q.Bert logo. This latest generation cell has been fully developed in collaboration with DJ Q. Bert. This cell has a very high output level and remarkable sound quality to satisfy the most demanding DJs.
DJ cell in OM format mounted on a door with the Q.Bert logo. This latest generation cell has been fully developed in collaboration with DJ Q. Bert. This cell has a very high output level and remarkable sound quality to satisfy the most demanding DJs.
Lire la suite
Technisches Arbeitsblatt
- OM Q series cell. Bert mounted on cell door and signed Q.Bert
- Ideal for scratching
- Color: white
- Output level: 1000 Hz 5cm/sec. 11 mV: 11 mV
- Channel symmetry: 1 kHz 1.5 dB
- Channel separation: 1 kHz 22 dB
- Frequency response: 3dB 20-18000 Hz
- Intermodulation distortion of the recommended bearing force, DIN 45.542 < 1%
- Readability: 315Hz the recommended bearing force 90 µm
- Diamond type: spherical
- Compliance, lateral dynamics: 12 µm/mN
- Equivalent mass of the diamond: 0.6 mg
- Recommended load resistance: 47 kOhm
- Recommended load capacity: 200-400 pF
- Possible weight: 2-4 g
- Recommended weight: 3 g
- Reading angle 20°.
- Spare diamond: Q-Bert
- Weight: 18.5 g
