Numerisches mischpult

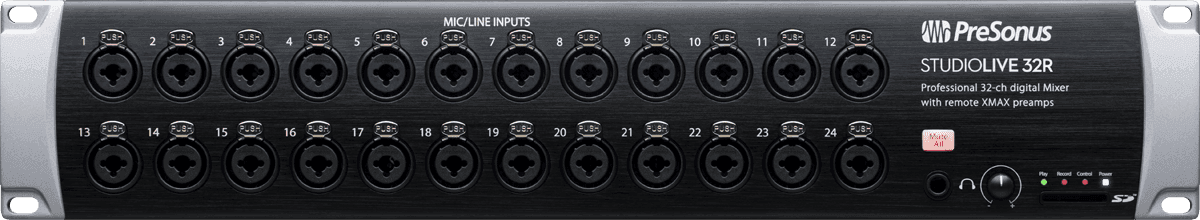

The Presonus StudioLive 32R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 32R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 32R’s preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 32R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class—all packed into just two rackspaces (2U).

Technisches Arbeitsblatt

Anzahl von Kanal des Mischpults 24 Kanäle und mehr

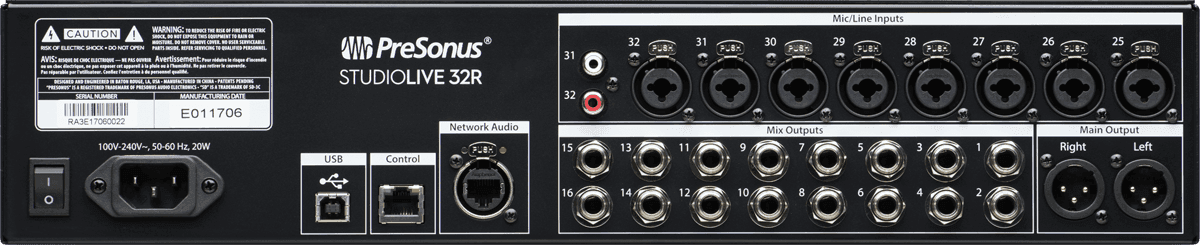

Local Inputs and Outputs
34 total inputs
32 min/line channel inputs + 2 RCA inputs
16 ¼-inch TRS FlexMix outputs
2 XLR (L/R) Main outputs
Stereo headphone output
Channels and Buses
32 input channels
2 stereo aux inputs (AVB or USB)
1 stereo digital return (SD Card, AVB, or USB)
26 buses:
16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
4 dedicated subgroups
4 internal effects sends
Stereo main bus
24 Filter DCAs for easily and flexibly controlling groups of channels
Networking Connections
1 Ethernet control network port
Dynamic, Self Assigned, and Manual IP address modes
1 Locking XLR Ethernet AVB audio network port
Recording
Onboard stereo SD recorder
40x40 USB recording interface
55x55 AVB recording interface
Signal Processing
Intuitive Fat Channel signal processing on every channel with:
A/B settings comparison
Highpass filter and polarity reverse
Gate/expander with sidechain
Compressor with sidechain
4-band parametric EQ on inputs
6-band parametric EQ on outputs
Limiter
Delay on every input
Delay on every output
Professionally programmed library of presets
Vintage EQ and compressor models available on every input
Passive EQ
Vintage EQ
Tube compressor
FET compressor
8 31-band graphic EQs
4 internal effects buses: combination of reverbs and delays with modern and vintage options
Built-in real-time analyzer
Scenes and Presets
Create, save, and edit up to 100 scenes
Scene management with:
Scene Safe—prevents a scene change from affecting designated “safe” channels
Create, save, and edit channel settings and copy/paste between channels
Advanced channel preset options can save and recall:
Channel type and name
Input settings (preamp, +48V phantom power, polarity, pan)
Fat Channel A & B settings
Bus assignments
Aux and effects send levels and pan
Select button color
8 Quick Scenes
8 Mute groups
Digital
Studio-quality converters with 115 dB dynamic range
48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)
Actively Integrated Software
UC Surface touch control software for Mac®, Windows®, iPad®, and Android ™
Studio One® Artist digital audio workstation software for Mac and Windows
Capture™ multitrack recording software for Mac and Windows
QMix®-UC aux-control software for iOS® and Android™ available free from Apple App Store and Google Play
