Beschreibung

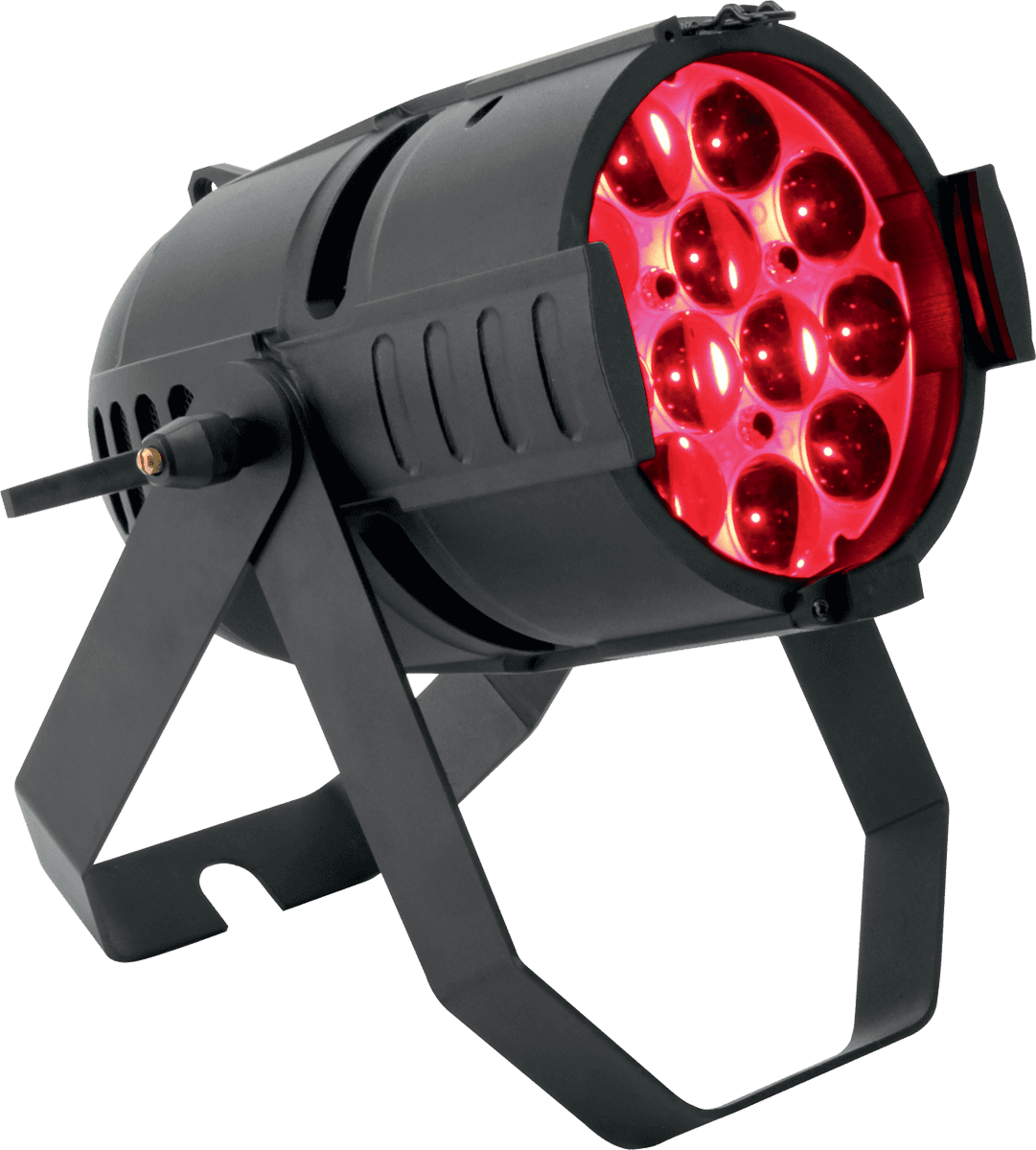

The Par2-Rgbw is a led par from Martin by Harman.
Lire la suite
Technisches Arbeitsblatt
- Physical data
- Dimensions: 266 x 287 x 329 mm
- Weight: 5.5 kg
- Dynamic effects
- Color composition: RGBW
- Color selection: 36 pre-programmed colors plus white, color wheel effect
- Electronic dimmer: 0 - 100%, 4 dimming curves
- Stroboscope and pulsation effects: Adjustable speed and random mode
- Electronic shutter: Black and full dry fire
- Zoom: Motorized
- Control and programming
- Control options: DMX, standalone mode
- DMX channels: 5/9
- White balance: RGB correction
- Settings, addressing: Control panel with LCD display
- Programming autonomous mode: Control panel with LCD display
- Music mode: Built-in microphone with adjustable sensitivity
- Protocol: DMX 512/1990 USITT
- Optics and photometry
- Sources: 12 LEDs 10 W RGBW Osram Ostar
- Minimum service life*: 50,000 h (flow >70% of the original)*
- Opening: 10-60°.
- *Manufacturer data obtained under manufacturer test conditions
- Construction
- Color: Black
- Body: Aluminium
- Protection class: IP20
- Installation
- Mounting: Adjustable and foldable bracket, installation or suspension
- Orientation: All
- Investment: Indoor only
- Minimum distance to illuminated surfaces: 0.2 m
- Minimum distance to combustible materials: 0.2 m
- Connections
- AC power supply, input: Neutrik PowerCon
- AC power supply, copy: Neutrik PowerCon
- DMX, input and copy: XLR 5-pin locking XLR
- Electricity
- AC power supply: 100-240 V, 50/60 Hz
- Power consumption: 151 W
- Fuse: T 6.3 A
- Power supply module: Auto adaptive switching
- Typical current and power
- 110 V, 60 Hz : 1.3 A, 151 W, FP 0.993
- 230 V, 50 Hz : 0.7 A, 148 W, FP 0.961
- Measurements made under nominal voltage, all LEDs at full power. Consider a variation of +/-10%.
- Thermal data
- Cooling : Forced air (temperature controlled, low noise)
- Maximum ambient temperature (Ta max): 40° C
- Minimum ambient temperature (Ta min): 0°C
- Total dissipation* : 520 BTU/h
- *Calculated, +/-10% at full intensity, in white
- Approvals
- EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015, EN 55103-1, EN a55103-2, EN 61000-3-2, EN 61000-3-3-3, EN 61547
- Supplied accessories
- Power cable, 6 A, 18 AWG, 0.75 mm2, UL approved, H05VV-F, 1.5 m, without mains plug
- Hook bracket
- Accessories Accessories
- 16 A power supply cables for cascade power supply
- Power cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3 m (98 ft) with PowerCon P/N connector 11541508
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 1.4 m (46 ft) with PowerCon P/N 11541509 connectors
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 2.25 m (74 ft) with PowerCon P/N connector 11541510
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3.25 m (107 ft) with PowerCon P/N connector 11541511
- Power supply connectors
- Neutrik PowerCon NAC3FCA Neutrik PowerCon connector for cable mounting, power supply, blue P/N 05342804
- Neutrik PowerCon NAC3FCB Neutrik PowerCon connector cable mount, power output, grey P/N 05342805
- Mounting material
- Jaw hook P/N 91602005
- G hook (shower suspension only) P/N 91602003
- Quick-trigger hook (shower suspension only) P/N 91602007
- Safety sling, CMU 50 kg P/N 91604003
