Beschreibung

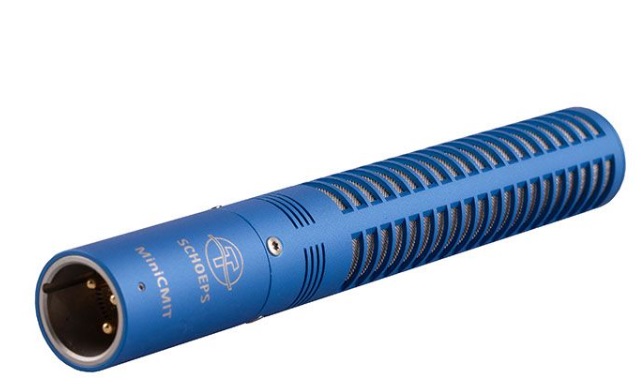

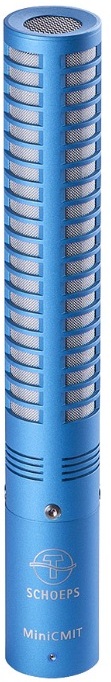

The Schoeps Mini CMIT Blue is a miniature shotgun microphone.
The MiniCMIT shotgun microphone offers the characteristics of a CMIT 5 in a more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. In addition, the MiniCMIT and CMIT 5 have similar circuitry characteristics, so the microphones can be interchanged without affecting the sound.
It is recommended that the MiniCMIT be used with digital transmitters such as the Audio Ltd. A10-TX for two reasons:
The MiniCMIT can use the P12, which is more energy efficient.
The MiniCMIT has the latest version of the Schoeps RFI shield, which has been specially developed and tested for this type of application.
The MiniCMIT shotgun microphone offers the characteristics of a CMIT 5 in a more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. In addition, the MiniCMIT and CMIT 5 have similar circuitry characteristics, so the microphones can be interchanged without affecting the sound.
It is recommended that the MiniCMIT be used with digital transmitters such as the Audio Ltd. A10-TX for two reasons:
The MiniCMIT can use the P12, which is more energy efficient.
The MiniCMIT has the latest version of the Schoeps RFI shield, which has been specially developed and tested for this type of application.
Lire la suite
Technisches Arbeitsblatt
- Sensor type
- Supercardioid / lobe
- Frequency range
- 60 Hz - 20 kHz
- Sensitivity
- -35 dB (V/Pa), 17 mV/Pa
- Equivalent noise level (A-weighted)
- 14 dB
- Equivalent noise level (CCIR)
- 24 dB
- Signal-to-noise ratio (A-weighted)
- 80 dB
- Maximum sound pressure level (THD < 0.5%)
- 130 dB-SPL (P48)
- 115 dB-SPL (P12)
- Maximum output voltage
- 1 V (0 dBV) with 2 kΩ load
- Low-cut filter
- fixed, 70 Hz, 24 dB/oct.
- Minimum recommended load impedance
- 2 kΩ
- Output impedance
- 100 Ω
- Maximum cable length
- >100 m
- SCHOEPS RFI shielding
- Yes
- Power supply standard / validity range
- P48 / >24 V
- P12 / >11 V
- Current consumption
- 2.3 mA (P48)
- Common mode rejection ratio (at 1 kHz)
- > 55 dB
- Output
- XLR-3M, analogue, 1 channel
- Length
- 151 mm
- Diameter
- 21 mm (0.6 in)
- Weight
- 78 g
- Surface finish
- blue
- custom colour :
- anthracite grey, chromatic green
