Sennheiser XSW IEM SR (B)
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 101739
Lieferbar
5-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Sennheiser
Erfahren Sie mehr über die Marke Sennheiser und entdecken Sie den gesamten Katalog.
Das größte Filialnetz in Frankreich
Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Wireless audiosender

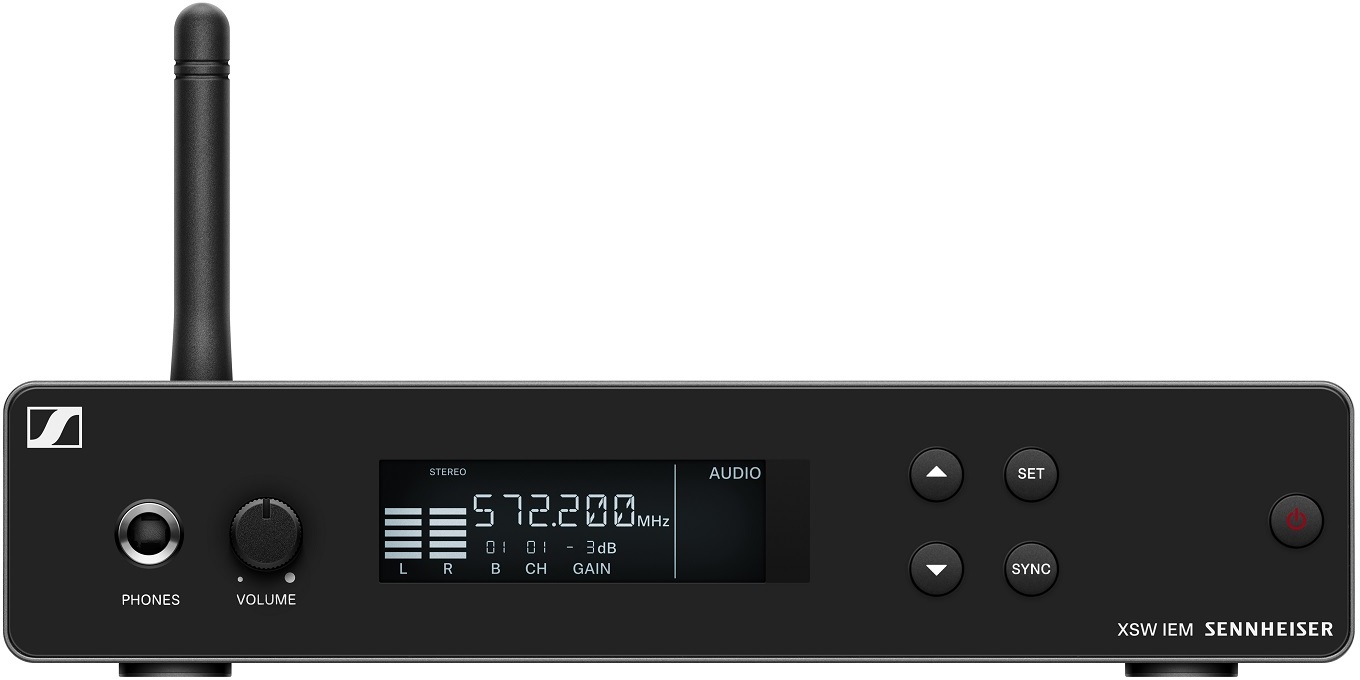

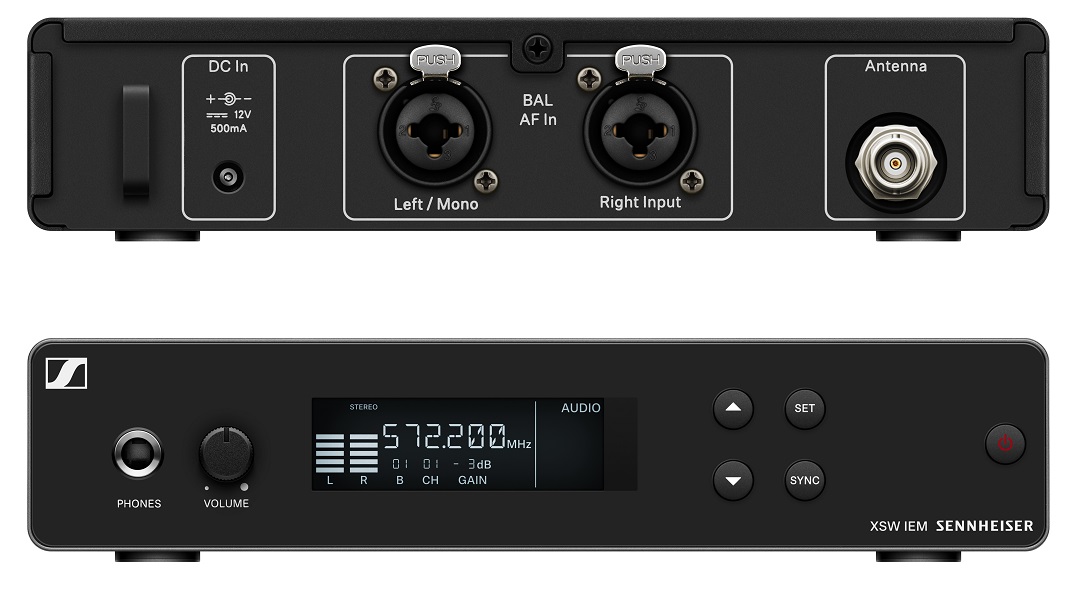

The Sennheiser XSW IEM SR is a stereo transmitter.
Single UHF stereo half-rack transmitter, robust metal housing - part of the XS Wireless IEM series. The XS Wireless IEM
transmitter has a durable metal housing and can be used as part of a rack-mounted system or as a stand-alone transmitter.
The clear, backlit menu allows for easy setup, even in dark scenes.
XLR combo inputs provide flexible cabling options.
You can connect anything with an XLR or 6.3 mm (1/4 inch) plug.
You can preview your mix locally through the front-panel headphone output.
Adjusting gain, mono or stereo options, input sensitivity or frequency channels takes only seconds thanks to a clear and simple menu.
seconds thanks to a clear and simple menu.
Mono stereo UHF transmitter for XS Wireless IEM systems
Rugged metal housing in a standard half-rack format
Backlit front panel for access to all key parameters

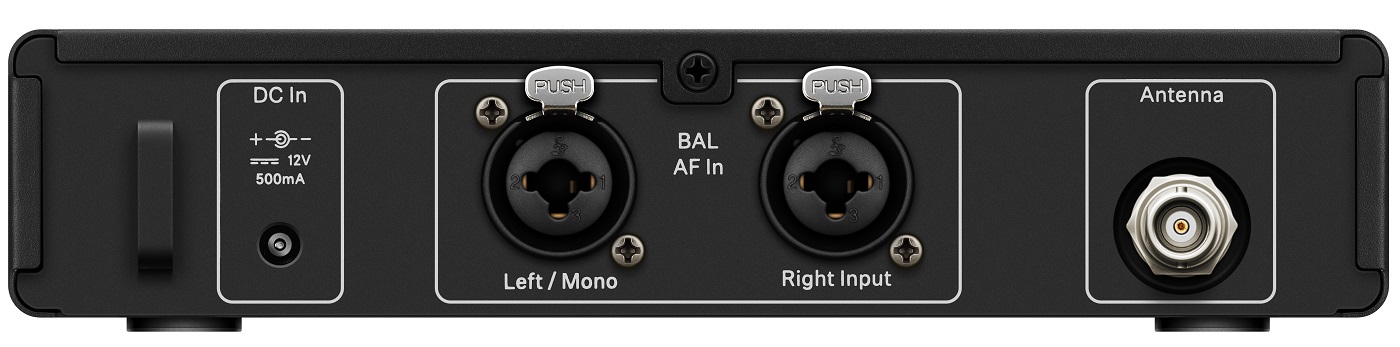

2 XLR and TRS 6.3 mm (1/4 inch) combo inputs
Additional headphone output (6.3 mm / ¼ inch) on front panel
Removable BNC antenna for optimal positioning options
8 frequency banks with 12 pre-calculated channels each.
Single UHF stereo half-rack transmitter, robust metal housing - part of the XS Wireless IEM series. The XS Wireless IEM
transmitter has a durable metal housing and can be used as part of a rack-mounted system or as a stand-alone transmitter.
The clear, backlit menu allows for easy setup, even in dark scenes.
XLR combo inputs provide flexible cabling options.
You can connect anything with an XLR or 6.3 mm (1/4 inch) plug.
You can preview your mix locally through the front-panel headphone output.
Adjusting gain, mono or stereo options, input sensitivity or frequency channels takes only seconds thanks to a clear and simple menu.
seconds thanks to a clear and simple menu.
Mono stereo UHF transmitter for XS Wireless IEM systems
Rugged metal housing in a standard half-rack format
Backlit front panel for access to all key parameters
2 XLR and TRS 6.3 mm (1/4 inch) combo inputs
Additional headphone output (6.3 mm / ¼ inch) on front panel
Removable BNC antenna for optimal positioning options
8 frequency banks with 12 pre-calculated channels each.
Lire la suite
Technisches Arbeitsblatt
- Digitale Übertragungssystem Nein
- HF Frequenzen Automatische Frequenzwahl
- Included
- XSW IEM SR Stereo Transmitter
- XSW BNC Antenna
- NT 12-5CW Power Supply + Country Adapter
- Quick Guide
- Safety Guide
- Compliance Sheet
- Frequency Table
- Overall device
- Temperature range
- 0 °C to +40 °C
- Input rating
- +12 V DC
- Current consumption
- Approx. 400mA
- (depending on volume level)
- Dimensions
- Approx. 200 x 128 x 42 mm
- Weight
- Approx. 700 g
- RF characteristics
- Modulation :FM stereo
- Frequency ranges
- A: 476 - 500 MHz (30 mW)
- (max. RF output power)
- B: 572 - 596 MHz (30 mW)
- C: 662 - 686 MHz (30 mW)
- E: 823.2 - 831.8 MHz (30 mW)
- K: 925.2 - 937.3 MHz (10 mW)
- Switching bandwidth :up to 24 MHz
- Nominal/peak deviation :±15 kHz / ±24 kHz
- Antenna output BNC socket, 50 O
- AF characteristics
- AF frequency response 45 Hz to 15 kHz
- AF input 2x XLR-3/¼" (6.3 mm) jack
- BAL AF IN L (I) + MONO/ combo socket, electronically
- BAL AF IN R (II) balanced
- Total harmonic distortion <0.9 %
- (THD)
- Overall device
- Temperature range 0 °C to +40 °C
- Input rating +12 V DC
- Current consumption Approx. 400mA
- (depending on volume level)
- Dimensions Approx. 200 x 128 x 42 mm
- Weight Approx. 700 g
- Signal-to-noise ratio =88 dB
- (at nominal load and peak
- deviation)
