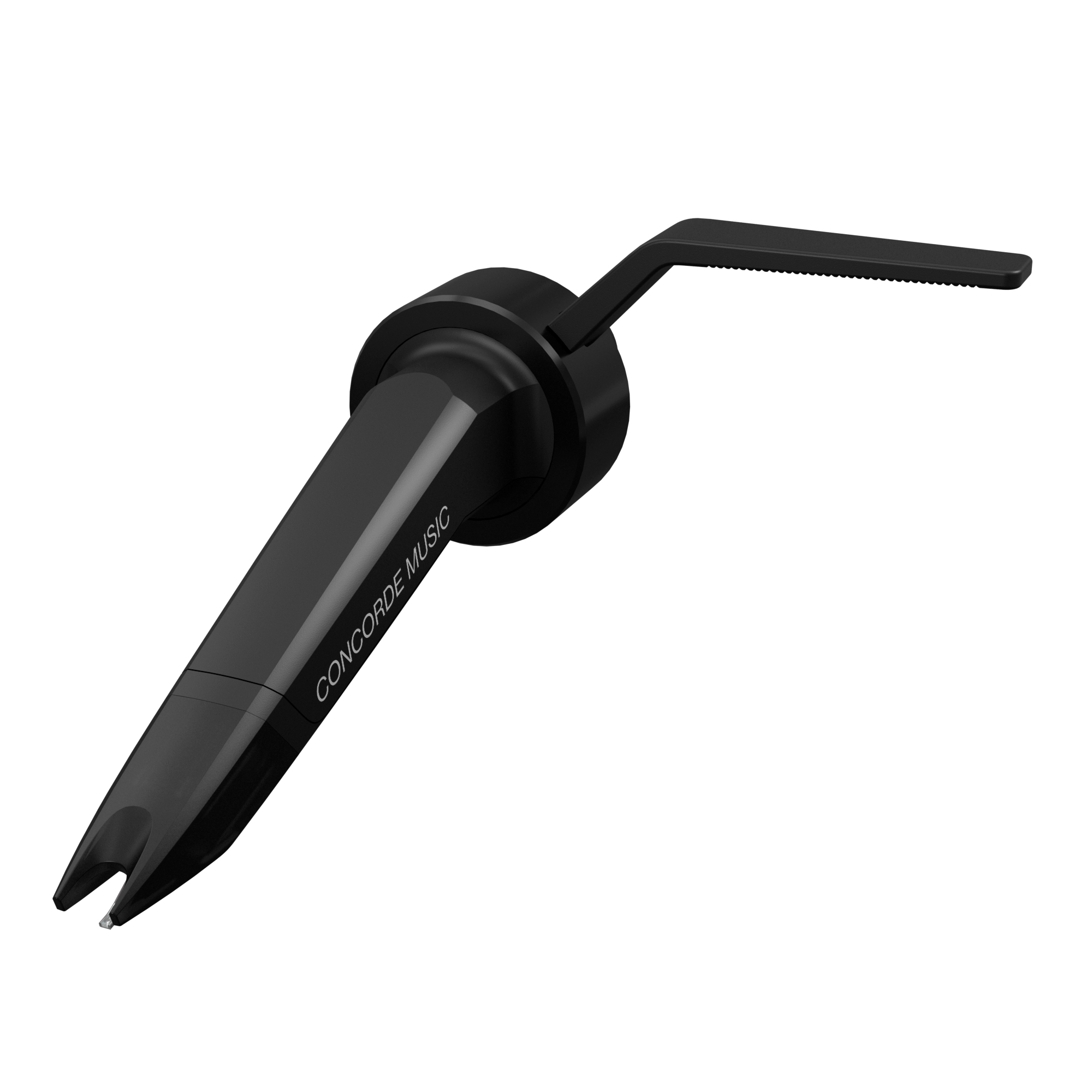

  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Main picture

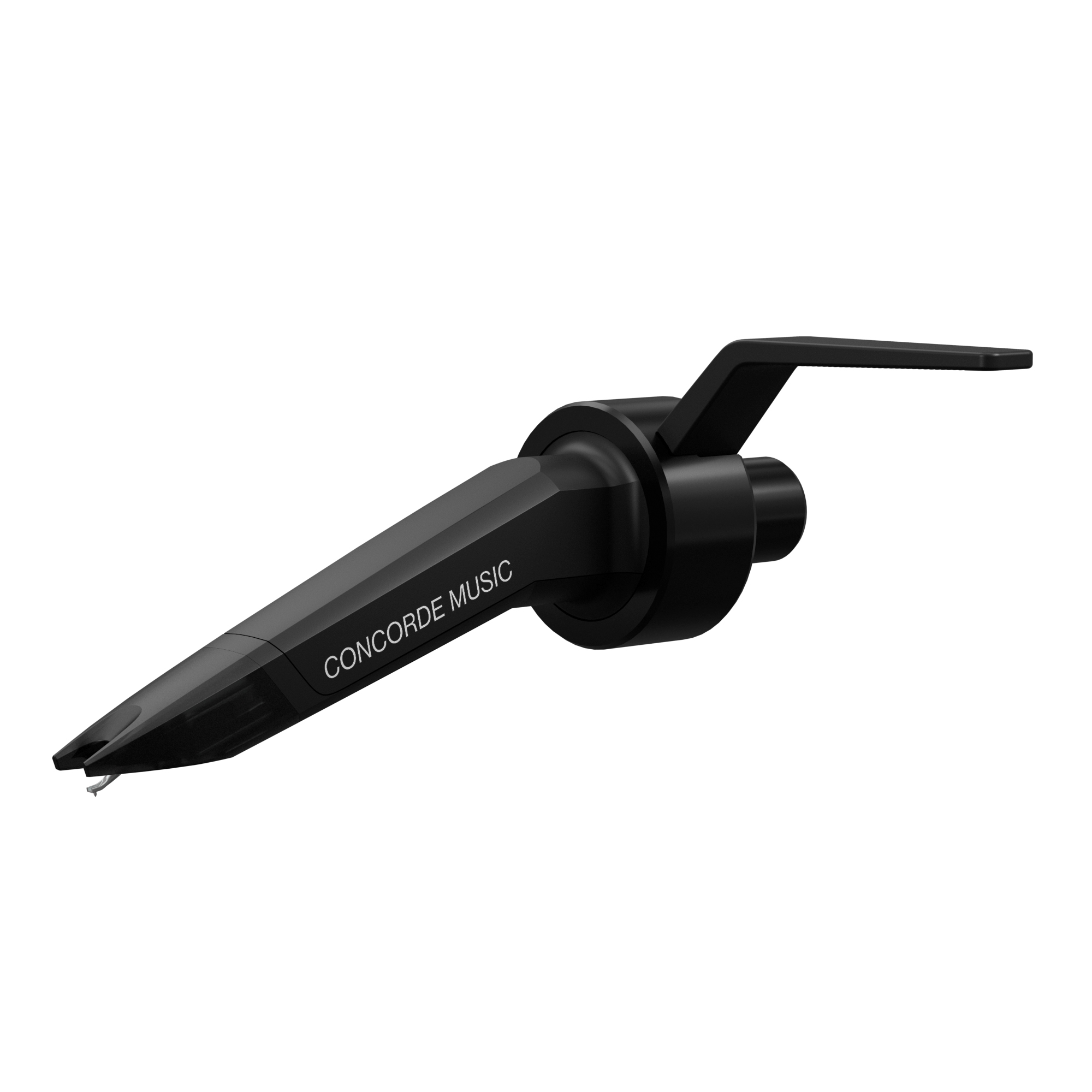

  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 1

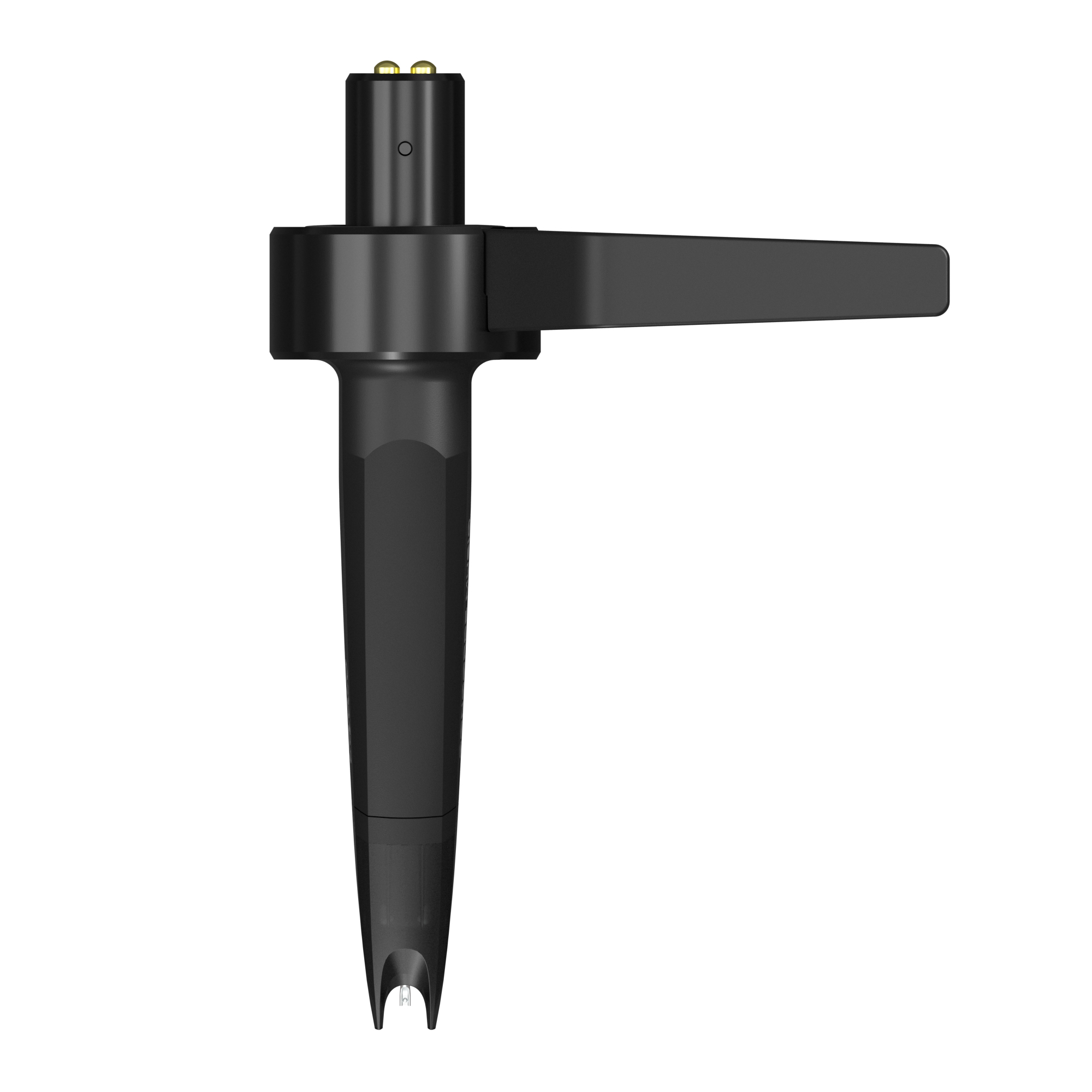

  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 2

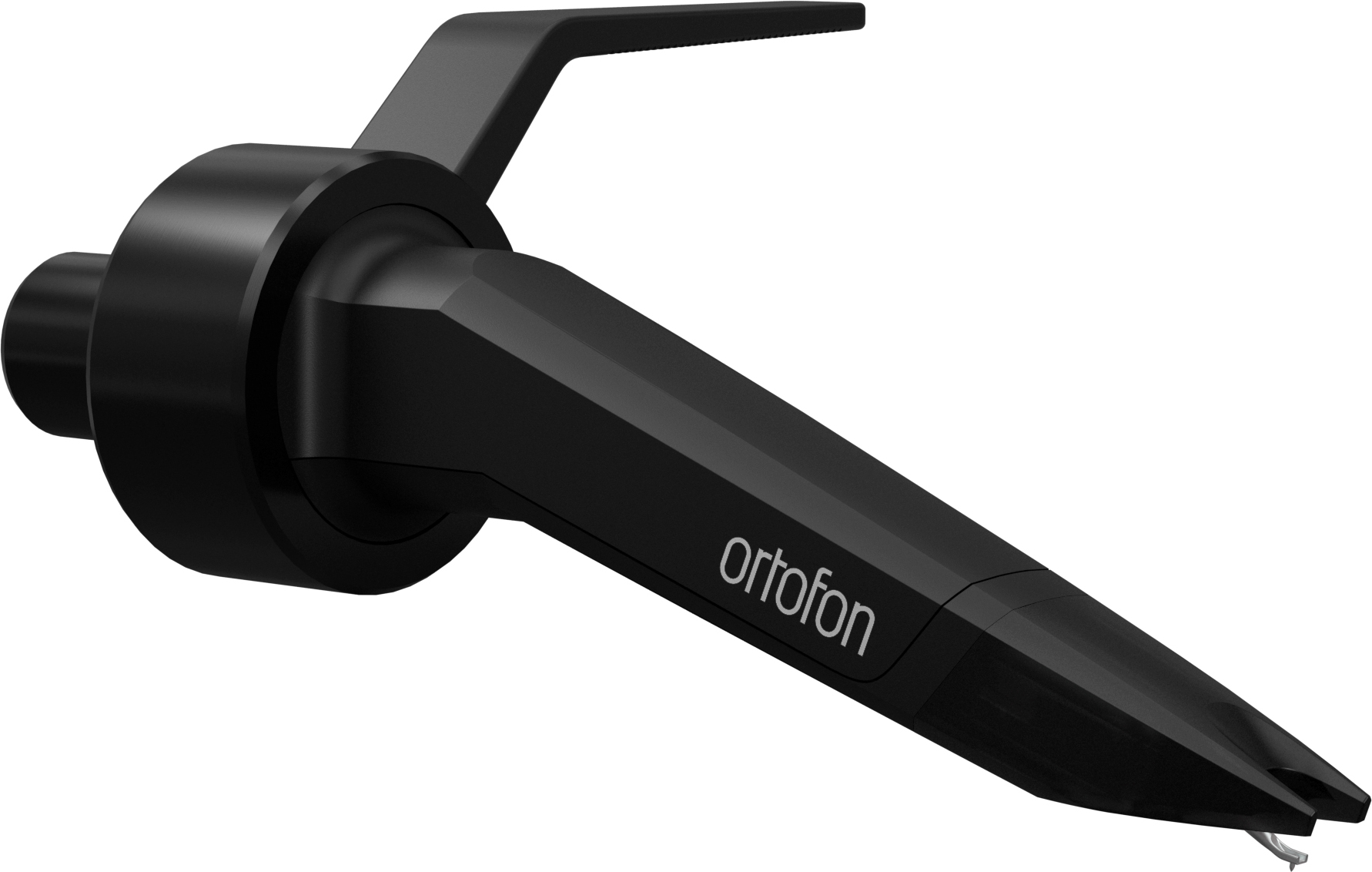

  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 3
  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 4
  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 5
  • Sogetronic Concorde Music Black - Tonabnehmeraufnahme - Variation 6
705,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 111389
5-7 Tage Versand
Nicht im Geschäft erhältlich

Die Marke Ortofon

Erfahren Sie mehr über die Marke Ortofon und entdecken Sie den gesamten Katalog.

Kaufberatung für DJ-Tonabnehmer

Folgen Sie unserem Kaufratgeber für DJ-Cartridges, um eine Referenz zu finden, die Ihren Erwartungen entspricht: audiophiles Hören, Mixen, Scratchen

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.


The CONCORDE MUSIC BLACK is a concorde offered by the Sogetronic brand.

Designed by music lovers, for music lovers, Concorde Music cartridges combine high-end performance and iconic design. Concorde Music is a dedication to the profound impact of music on our lives, transforming each listen into a captivating journey. Building on a rich heritage that began when the very first original Concorde was launched, they hold a rich history, some of the most famous in the audio world.

This highly appreciated concert in the field of DJ is now duplicated in the world of HIFI.

Originally developed as the easy solution for mounting to a tonearm without screws or wires, the Concorde's unique shape won the Danish Industrial Design Award and became an icon in the audio industry.

Diamond: Each Concorde Music stylus features a diamond polished to the highest industry standards. Ranging from an elliptical diamond on the Concorde Music Red to a Nue Shibata tip on Concorde Music Black LVB 250.

Cantilever: All Concorde Music models are equipped with a premium or high-end cantilever in aluminum or even boron (on the LVB 250 model) for the best possible transmission of the modulations of the groove of the vinyl record captured by the diamonds.

Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, sourced from the brand's own rubber production and developed by Ortofon's research and engineering team for brilliant performance.

Coil System: Silver-plated, oxygen-free copper is chosen for the four-coil system, along with four Ortofon split-pole pins delivering a 6mV output of dynamic, lifelike sound with exceptional clarity and fidelity, capturing every detail .

Upgradability: All Concorde Music styluses are compatible with all Concorde Music cartridges allowing an upgrade from Concorde Music Red to Black LVB 250.

Tool-free installation: installing a Concorde Music cartridge on a vinyl turntable is simple and straightforward thanks to its SME connector compatible with most standard tonearm connections.
Lire la suite

Technisches Arbeitsblatt

  • Diamond: Bare tip / Line Contact Shibata
  • Cantilever: Aluminum
  • Output voltage: 6mV
  • Suspension: Rubber designed and manufactured by Ortofon
  • Coils: 4 coils on split pole supports (2+ and 2-)
  • Copper: Oxygen-free silver
  • Frequency response: +2 / -0 dB
  • Channel balance at 1 kHz: 1 dB
  • Channel separation at 1 kHz: 26 dB
  • Internal impedance, DC resistance: 1.27 kΩ
  • Reading capacity (315 Hz with recommended tracking force): 80 ?m
  • Compliance, dynamic, lateral: 15 ?m/mN
  • Stylus tip radius: r/R 6/50 ?m
  • Recommended support force: 1.8 g
  • Internal inductance: 815 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacity: 150-300 pF
  • Cell weight: 1.8 g
