Tascam MZ-223

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte

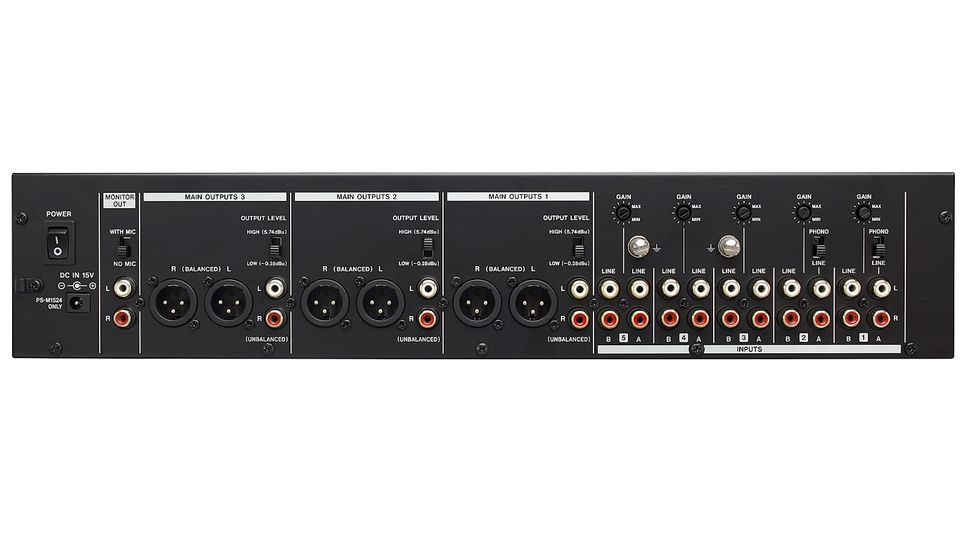

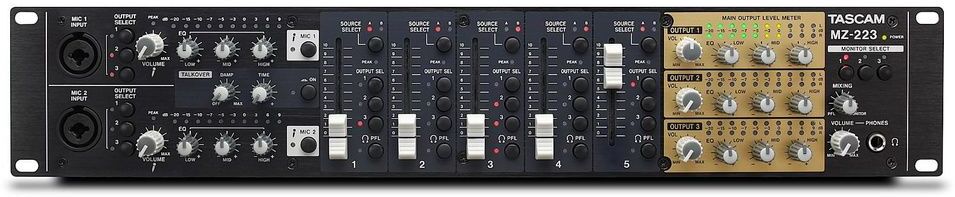

  • Tascam Mz-223 - Analoges Mischpult - Main picture
  • Tascam Mz-223 - Analoges Mischpult - Variation 1
  • Tascam Mz-223 - Analoges Mischpult - Variation 2
  • Ref : 116468
426,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Tascam

Erfahren Sie mehr über die Marke Tascam und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Analoges mischpult

The MZ-223 is a rack-mount mixer designed for permanent installation in stores, public facilities, restaurants, bars, theme parks, and hotels. It allows you to distribute voice announcements and background music from different sources to three zones. Each of the seven inputs (five stereo, two mono) can be assigned to one or all of the three zones.

The mixer offers five stereo inputs for line-level signals from analog sources: media players, tuner, cassette decks, and more. Two of these inputs can be switched to phono mode for connecting a turntable. Each stereo input has its own gain control, peak indicator, and fader. Two additional microphone inputs, also equipped with level controls, LED level indicators, and 3-band EQs, are available for voice announcements, PA, karaoke, or any other application (dynamic microphones only). When used for announcements, for example, the built-in Talkover function automatically lowers the music volume based on the voice level.

Each of the three main output zones is equipped with a level control, an LED level indicator, and a 3-band equalizer. There is also an independent monitoring output for the control room and a headphone output with level control for pre-fader monitoring of the selected input or one of the main outputs.
Lire la suite

Technisches Arbeitsblatt

  • Anzahl der Kanäle 5 Kanäle
  • Anzahl von Kanal des Mischpults 6/8 Kanäle
  • Mischpult-Konnektivität Ohne Computerverbindung
  • Offers 2 mono and 5 stereo channels that can be distributed and mixed to 3 stereo outputs
  • 2 microphone inputs with 3-band EQ: XLR/jack combo
  • Level meter and talkover function
  • 5 stereo line inputs with two selectable input sources: RCA
  • Volume faders and PFL function
  • 2 switchable phono inputs
  • 3 separate master outputs with 3-band EQ and level meters: XLR/RCA
  • Stereo monitor output: RCA
  • Headphone output: 6.3 mm jack
  • Dimensions: 482 x 88 x 93 mm
  • Weight: 2.5 kg
