Turntables hifi

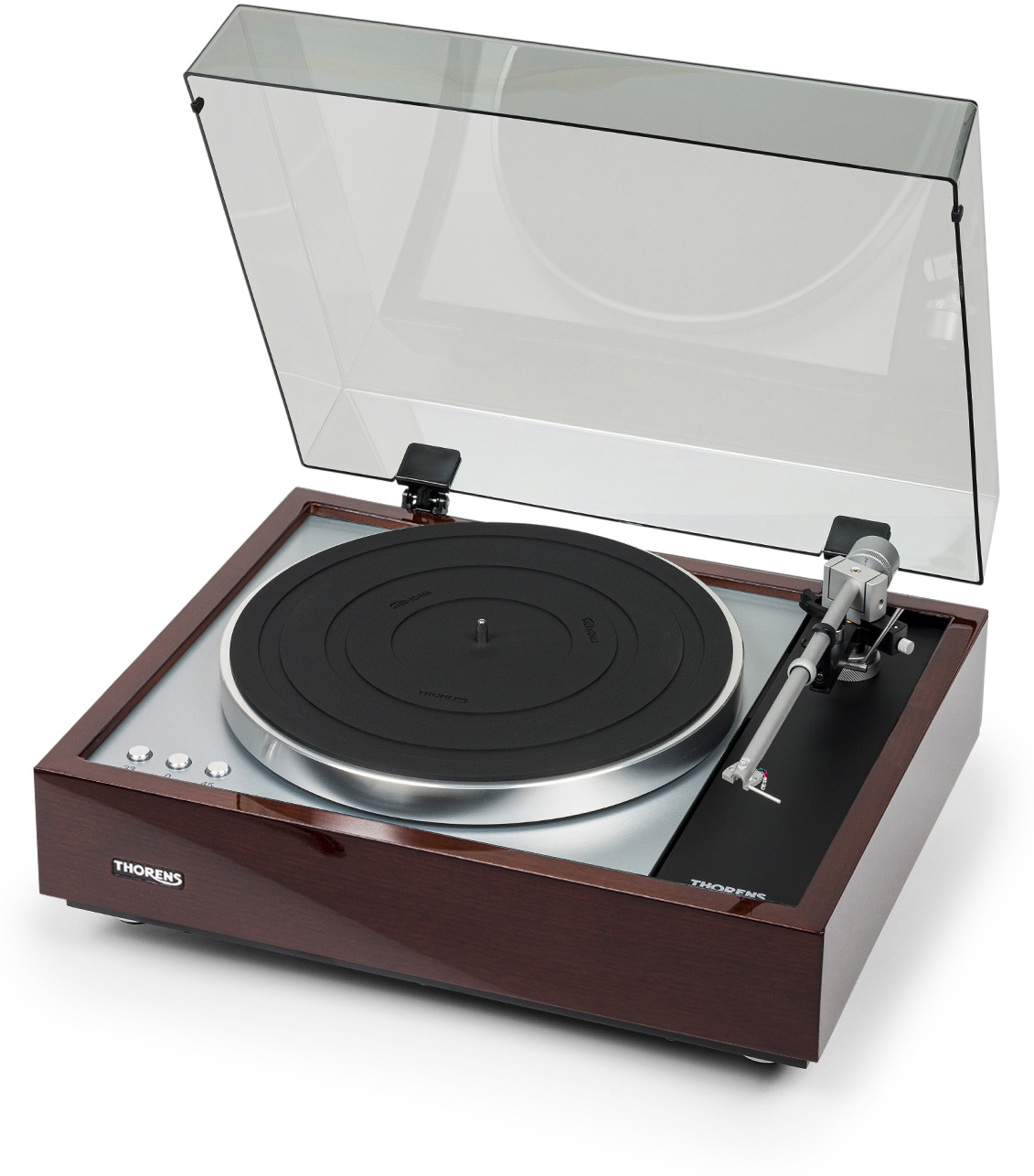

The Thorens TD 1601 Walnut Including TAS 1600 is a Belt Drive Vinyl Turntable + Cartridge - Walnut Finish.
The ultimate in sound quality in a timeless design
A manual belt-driven turntable inspired by the famous Thorens TD 160 from 1972. It differs from the Thorens 1600 with its electronic tone arm control, automatic standby function and balanced XLR output. With its suspension chassis, a technology characteristic of the Swiss brand, this model is designed to absorb unwanted vibrations and guarantee optimal playback quality for the full enjoyment of music on vinyl.
Minimising vibrations for perfect sound
Like the TD 160, the 1601 has a suspension chassis designed to minimise vibration and avoid sound distortion caused by mechanical interference. The chassis is mounted on three springs and covered with a wooden frame, giving the turntable the classic, elegant Thorens design.
Great features
The Thorens TD 1601 turntable has an aluminium platter with a thick rubber mat that ensures high inertia and effective vibration absorption, allowing for excellent record and platter coupling. It is equipped with a thick rubber belt drive, which connects the turntable motor to the sub-platter, and whose tension can be adjusted to eliminate fluctuations in platter rotation smoothness. The platter is rotated by an electronically controlled motor, which allows the playback speed to be changed by simply pressing one of the two buttons on the bottom left of the chassis to select between 33 and 45 rpm. The Thorens TD 1601 is also equipped with an auto-sleep function, which stops the platter rotation and automatically lifts the arm at the end of the record.
A high-precision tone arm for demanding users
The tone arm installed on this complaint is the famous Thorens TP 92 9" (232.8 mm), which is equipped with a high-precision ball bearing for better support and a decoupled counterweight for better stability. The tone arm tube is made of high quality cold forged aluminium and has been designed using a laser vibrometer to ensure no unwanted vibrations. The arm is ½" compatible and can be adjusted in height (VTA) by loosening the locknut and raising or lowering the arm. Anti-skating is provided by two ferrite magnets and can be adjusted with a set screw. The tone arm is electronically controlled, allowing it to be lowered or raised by simply pressing the button on the bottom right of the platter.
For unforgettable musical moments
The Thorens TD 1601 is special
The ultimate in sound quality in a timeless design
A manual belt-driven turntable inspired by the famous Thorens TD 160 from 1972. It differs from the Thorens 1600 with its electronic tone arm control, automatic standby function and balanced XLR output. With its suspension chassis, a technology characteristic of the Swiss brand, this model is designed to absorb unwanted vibrations and guarantee optimal playback quality for the full enjoyment of music on vinyl.
Minimising vibrations for perfect sound
Like the TD 160, the 1601 has a suspension chassis designed to minimise vibration and avoid sound distortion caused by mechanical interference. The chassis is mounted on three springs and covered with a wooden frame, giving the turntable the classic, elegant Thorens design.
Great features
The Thorens TD 1601 turntable has an aluminium platter with a thick rubber mat that ensures high inertia and effective vibration absorption, allowing for excellent record and platter coupling. It is equipped with a thick rubber belt drive, which connects the turntable motor to the sub-platter, and whose tension can be adjusted to eliminate fluctuations in platter rotation smoothness. The platter is rotated by an electronically controlled motor, which allows the playback speed to be changed by simply pressing one of the two buttons on the bottom left of the chassis to select between 33 and 45 rpm. The Thorens TD 1601 is also equipped with an auto-sleep function, which stops the platter rotation and automatically lifts the arm at the end of the record.
A high-precision tone arm for demanding users
The tone arm installed on this complaint is the famous Thorens TP 92 9" (232.8 mm), which is equipped with a high-precision ball bearing for better support and a decoupled counterweight for better stability. The tone arm tube is made of high quality cold forged aluminium and has been designed using a laser vibrometer to ensure no unwanted vibrations. The arm is ½" compatible and can be adjusted in height (VTA) by loosening the locknut and raising or lowering the arm. Anti-skating is provided by two ferrite magnets and can be adjusted with a set screw. The tone arm is electronically controlled, allowing it to be lowered or raised by simply pressing the button on the bottom right of the platter.
For unforgettable musical moments
The Thorens TD 1601 is special
Lire la suite
Technisches Arbeitsblatt
- General
- Manual turntable with automatic stop
- Adjustable belt drive
- Suspended frame
- Electronic tone arm control
- Automatic standby function
- Platter size and weight: 30.5 cm (12") / 4.2 kg, aluminium
- Speed: 33 rpm 1/3, 45 rpm
- AC synchronous motor with electronic control and stabilisation
- Speed control: manual (switch on front)
- Colour: Black wooden plinths and Silver body
- tone arm
- Arm type: Thorens TP 92
- Arm length: 232.8 mm
- Overhang: 17.8 mm
- Elbow angle: 23.6
- Effective weight (11 g)
- Magnetic anti-skating
- TAS 1600 sensor
- Moving coil sensor
- Diamond Line Bare Contact
- 1/2" mounting format
- Frequency response: 20 - 50,000 Hz
- PCOCC coil (Ohno Continuous Cast Copper)
- Aluminium body
- Brass connection pins
- Channel separation: 28 dB (1 kHz)
- Output channel balance: 0.5 dB (1 kHz)
- Output voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Vertical tracking angle: 20 degrees
- Recommended contact force: 1.8 to 2.2 g (standard 2.0 g)
- Diamond size: 1.5 x 0.28 mil
- 0.28 mm boron cantilever
- Coil Impedance: 12 Ohms (1 kHz)
- Coil inductance: 25 ?H (1 kHz)
- DC resistance: 12 Ohms
- Static compliance: 22 x 10 - 6 cm / dyne
- Dynamic compliance: 18 x 10 - 6 cm / dyne (100 Hz)
- Recommended load impedance: min 100 Ohms
- Cell weight: 8.2 g

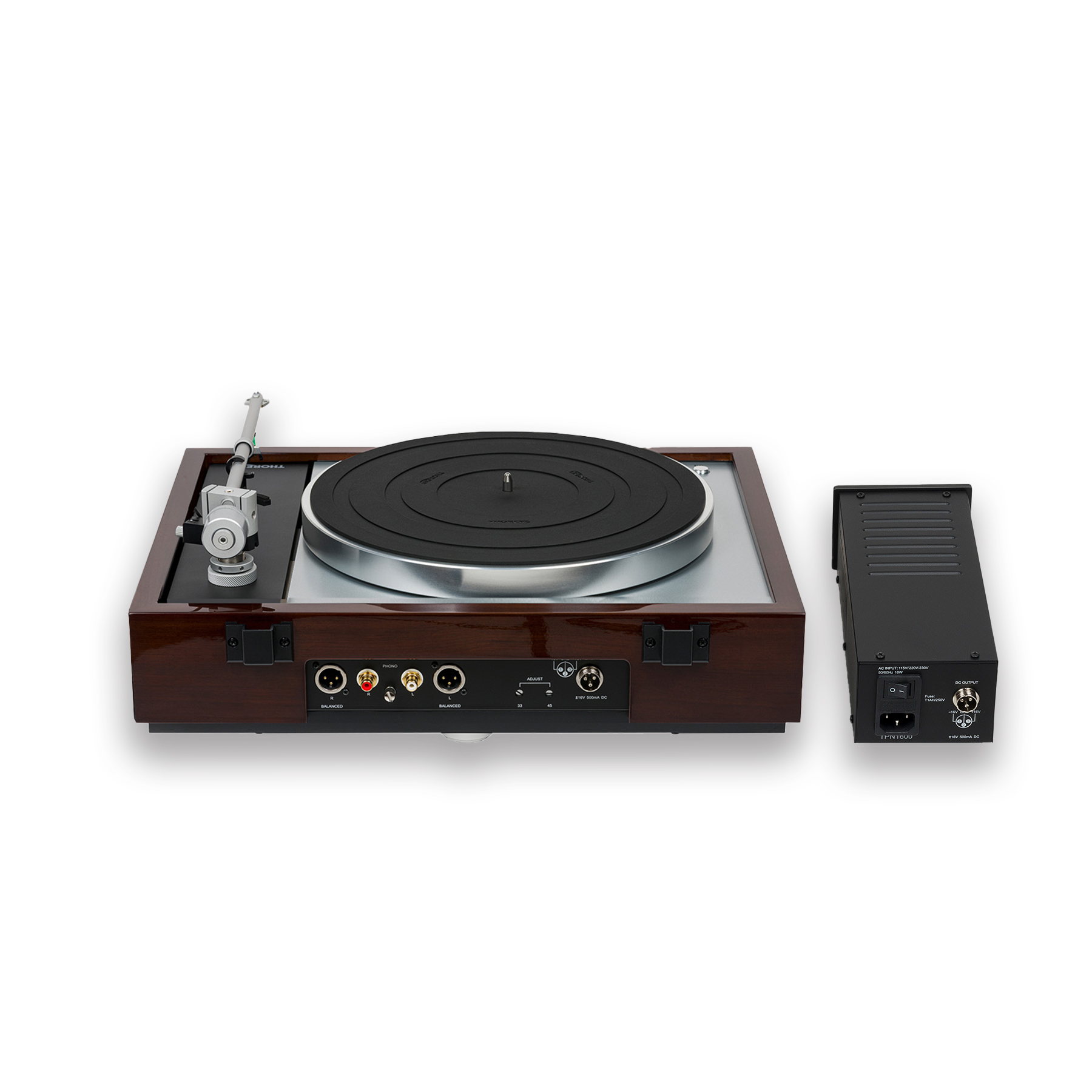

- Connections
- 1 stereo RCA
- 1 balanced XLR output
- 1 ground socket
- Supplied accessories
- 1 power cable
- 1 rubber mat
- 1 mains transformer
- 1 protective acrylic cover

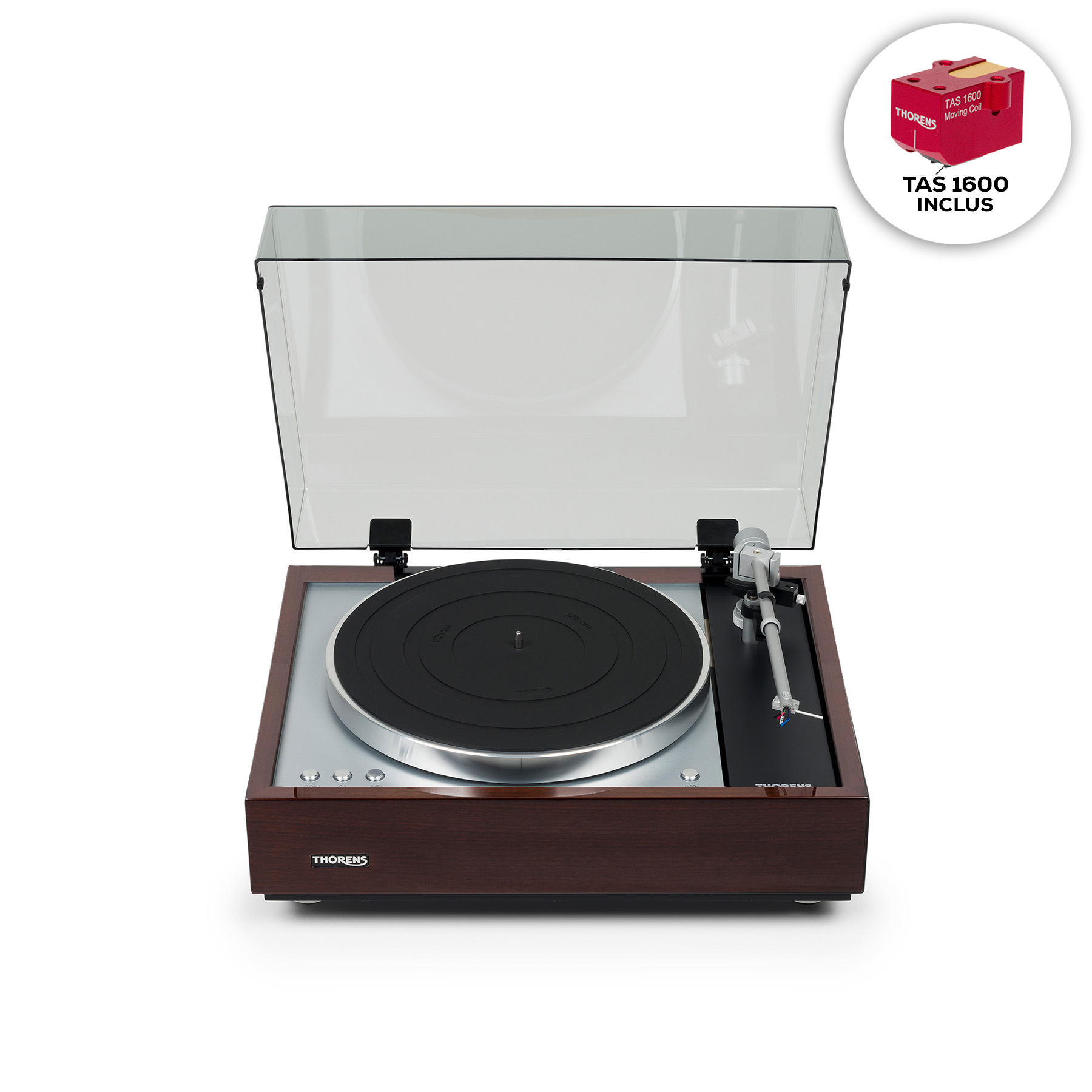

- This turntable is supplied with the TAS 1600 cartridge. A cartridge designed for optimum performance in combination with a Thorens TD 1600 or Thorens 1601 turntable.
- Logistic data
- Dimensions (W x H x D) : 454 x 180 x 369 mm
- Weight : 11 kg
