Antelope audio ZEN GO SYNERGY CORE TB3

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör

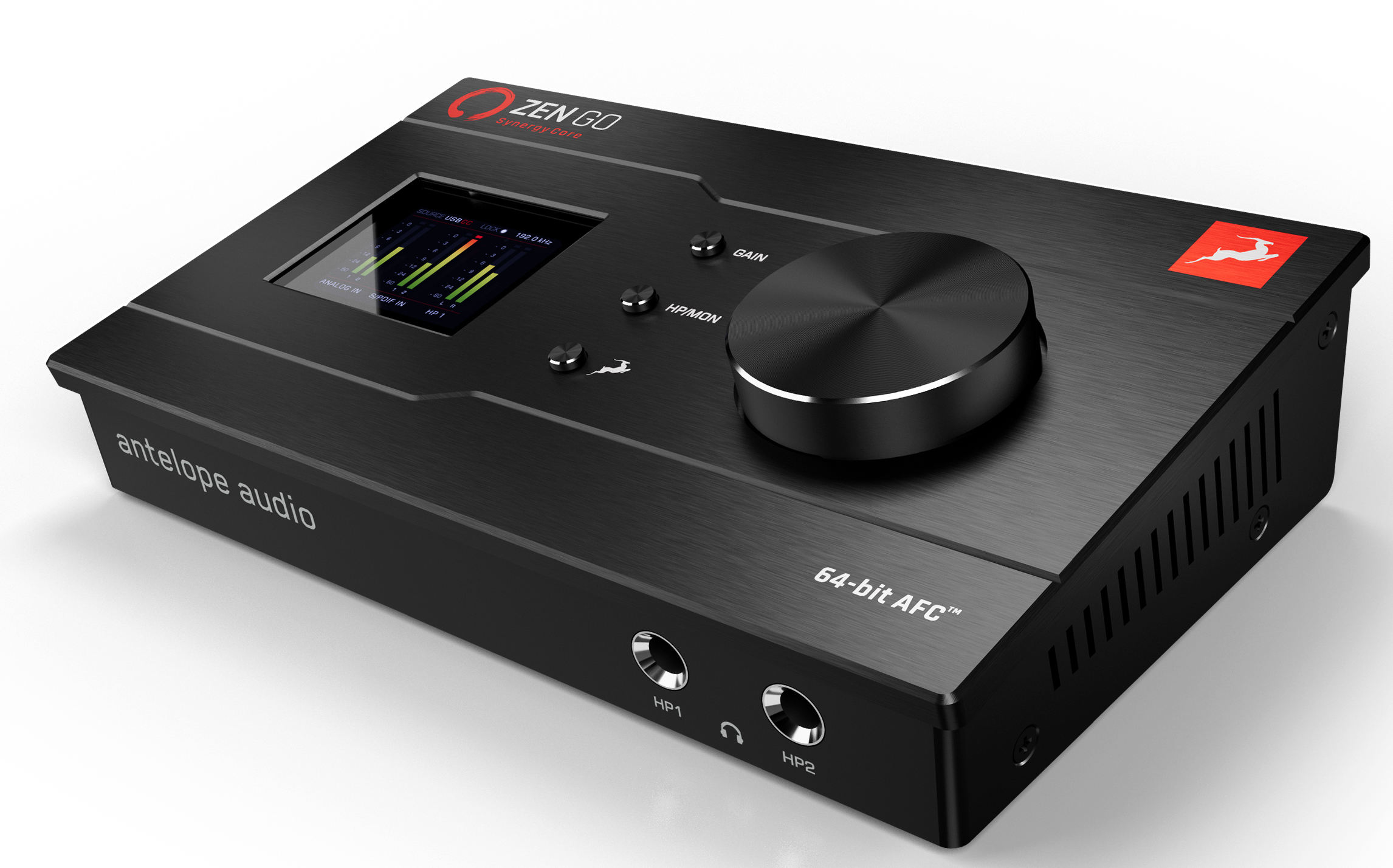

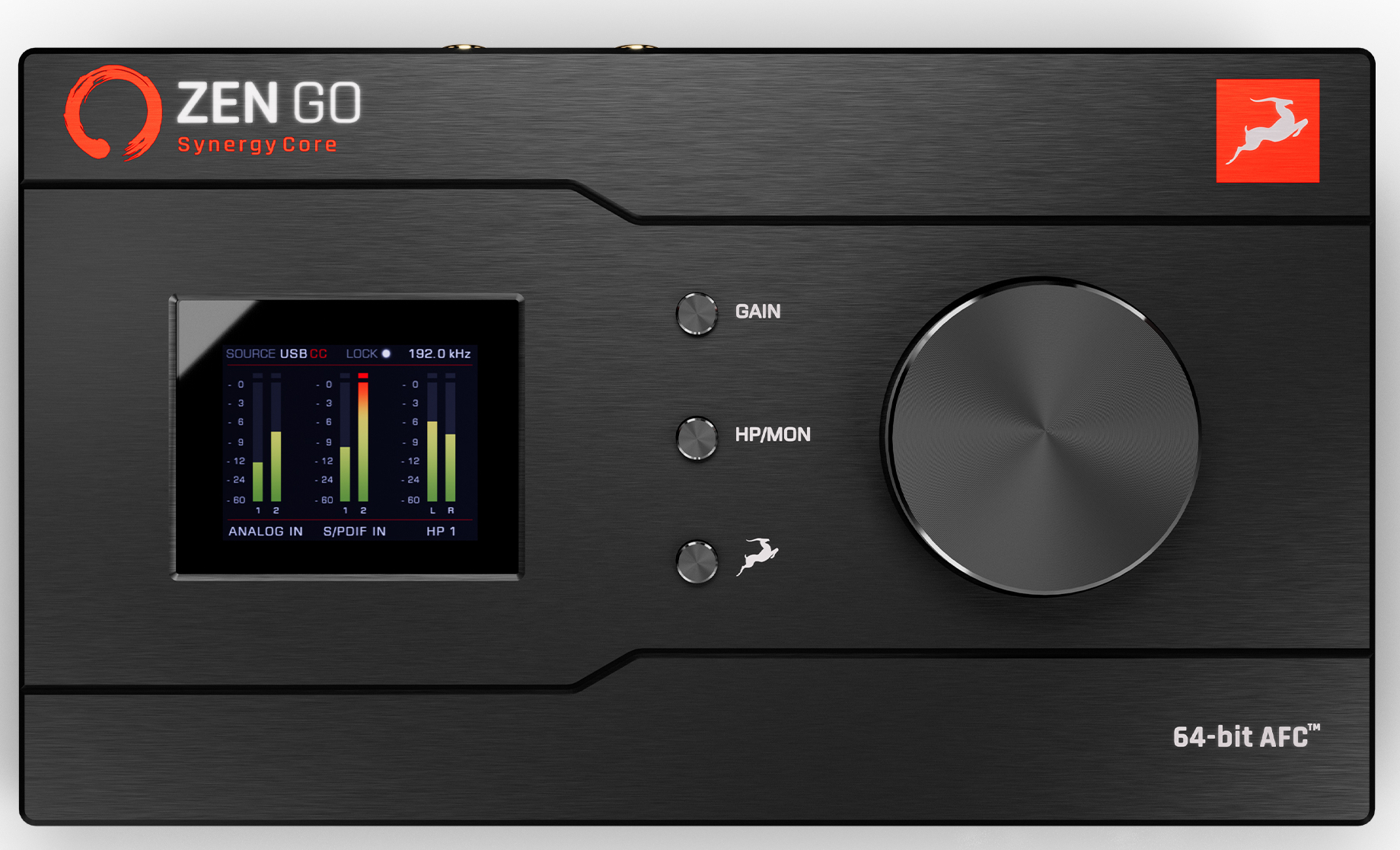

  • Antelope Audio Zen Go Synergy Core Tb3 - Thunderbolt audio interface - Main picture
  • Antelope Audio Zen Go Synergy Core Tb3 - Thunderbolt audio interface - Variation 1
  • Antelope Audio Zen Go Synergy Core Tb3 - Thunderbolt audio interface - Variation 2
  • Antelope Audio Zen Go Synergy Core Tb3 - Thunderbolt audio interface - Variation 3
  • Antelope Audio Zen Go Synergy Core Tb3 - Thunderbolt audio interface - Variation 4
649.00 €
570,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 103523
Lieferbar
2-3 Tage Versand
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Lyon
Star's Music Toulouse

Die Marke Antelope audio

Erfahren Sie mehr über die Marke Antelope audio und entdecken Sie den gesamten Katalog.

Kaufberatung für Soundkarten Audio-Interface

In dieser Kaufberatung finden Sie alle Informationen, die Sie für Ihren ersten Kauf eines Audio-Interfaces benötigen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Thunderbolt audio interface

The Zen Go Synergy Core is a portable audio interface that allows self-taught artists to record from anywhere.

This audio card incorporates the same Antelope Audio technology employed by award-winning producers, from our renowned 64-bit AFC™ clock technology to the powerful, effects-rich Synergy Core onboard platform. Simply put, the resulting sound quality and processing capabilities are in a class of their own, making it ideal for any home studio.
Bus-powered Thunderbolt 3 audio interface with advanced audio driver for low-latency streaming, playback and recording optimized for Mac/Windows.
Two ultra-linear discrete preamps with 65dB gain and switchable mic/line/Hi-Z modes deliver console-level performance and low noise when recording.
Premium AD/DA conversion aided by 64-bit Acoustically-Focused Clocking (AFC™) technology that provides increased sonic width and separation for recording and streaming audio.
37 Synergy Core analog modeled effects included, plus over 50 optional extensions available. Processed in real time with imperceptible latency.
User-friendly software control includes onboard effects processing, direct monitoring, signal routing, and volume controls.
Lire la suite

Technisches Arbeitsblatt

  • DSP Ja
  • Class-leading AD/DA conversion with up to 127dB of headroom
  • • Recording, mixing, & playback up to 24-bit/192kHz
  • • Proprietary 64-bit Acoustically Focused Clocking (AFC™) technology
  • • Jitter Management algorithm delivers increased width, separation, & detail in musical performances
  • Connectivity
  • • 2x discrete ultra-linear preamps with 65dB of gain for studio-quality recordings, all functioning as microphone/line/Hi-Z inputs on combo XLR jacks
  • • Thunderbolt 3 port carries up to 16 input and 16 output channels in any popular DAW with custom macOS & Windows drivers
  • • Digitally expandable over S/PDIF
  • • Analog monitor outputs including 1x stereo output over RCA and 1x stereo output over TRS (mirrored)
  • • 2x stereo headphone outputs with separate gain control & independent mixes
  • Analog Inputs
  • 2 × Mic / Line Inputs / Hi-Z Inputs
  • 48V phantom power and independent preamp gain for each input
  • ? Analog Outputs
  • 1 × Primary Monitor Out on TRS 1/4 Jacks, +20 dBu max, signal balanced, DC-coupled
  • 1 × Secondary Monitor Out on RCA mirrored from the primary out
  • 2 × Stereo Headphone Outputs
  • Mic Preamp
  • EIN: -128 dBu (A-weighted)
  • Dynamic Range: -121 dB (A-weighted)
  • THD: -106 dB
  • Max input level: +20 dBu
  • Max Gain: 65 dB
  • ? Monitor
  • Max output level +20 dBu
  • ? D/A Monitor Converter
  • Dynamic Range: 127 dB (A-Weighed)
  • THD + N: -115 dB
  • ? A/D Converter
  • Dynamic Range: 120 dB
  • THD + N: -100 dB
  • ? DIGITAL
  • Digital Inputs
  • 1 × S/PDIF
  • ? Digital Outputs
  • 1 × S/PDIF
  • ? Computer I/O
  • 1 × Thunderbolt 3
  • ? Power
  • Bus-powered through Thunderbolt 3
  • ? CLOCKING
  • Clocking System
  • 4th Generation Acoustically Focused Clocking (AFC™)
  • 64-bit DDS
  • Sample Rates (kHz)
  • 44.1, 48, 88.2, 96, 176.4, 192
  • Physical Dimensions:
  • 198 ? 117 ? 57.5 mm (7.8 x 4.6 x 2.3 in)
  • Weight: 700 g (1.54 lbs) (approx.)
  • 1.77? IPS Screen on a 2.5? Display Filter
  • In-the-Box Content
  • Zen Go Synergy Core
  • Getting Started leaflet
  • *Thunderbolt cable not included
