Tonabnehmeraufnahme

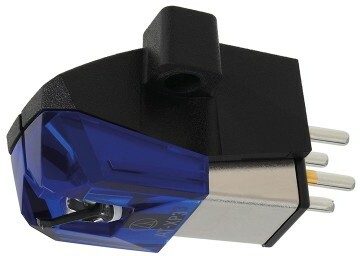

The At-Xp3 is a DJ board cell from Audio -technica.
Mobile Dual Magnet Stereo Cell
The XP Series cells provide high quality sound for DJs using vinyl discs. Offering all the features of a DJ cell, combined with Hi-Fi sound, the XP series is ideal for DJs who want to focus on sound quality.
Audiophile DJ cell equipped with a conical reading tip
VM Dual Magnet construction
Rigid and reliable design for high quality DJ playback
Output level and output impedance characteristics suitable for DJ use
Cantilever made of carbon fibre reinforced ABS and suspension of the links to ensure precise support
Compatible with ATN-XP5 and ATN-XP7 read peaks
Available configurations: cell (AT-XP3), read tip (ATN-XP3) and combined cell mounted on the AT-HS6BK cell holder (AT-XP3/H).
Mobile Dual Magnet Stereo Cell
The XP Series cells provide high quality sound for DJs using vinyl discs. Offering all the features of a DJ cell, combined with Hi-Fi sound, the XP series is ideal for DJs who want to focus on sound quality.
Audiophile DJ cell equipped with a conical reading tip
VM Dual Magnet construction
Rigid and reliable design for high quality DJ playback
Output level and output impedance characteristics suitable for DJ use
Cantilever made of carbon fibre reinforced ABS and suspension of the links to ensure precise support
Compatible with ATN-XP5 and ATN-XP7 read peaks
Available configurations: cell (AT-XP3), read tip (ATN-XP3) and combined cell mounted on the AT-HS6BK cell holder (AT-XP3/H).
Lire la suite
Technisches Arbeitsblatt
- Model AT-XP3
- Half-inch assembly
- Frequency Response 20 to 18,000 Hz
- Channel Separation 20 dB (1 kHz)
- Output Channel Balance 2.0 dB (1 kHz)
- Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
- Vertical Track Angle 20 degrees
- Vertical Support Force 2.0 to 4.0g (standard 3.0 g)
- Conical Diamond Type
- Diamond Cutting 0.6 mil
- Bonded Round Shank Diamond Mounting
- Cantilever Carbon reinforced ABS
- Coil Impedance 6,700 ohms (1 kHz)
- Coil inductance 550 mH (1 kHz)
- Static Compliance 20 x 10 - 6 cm / dyne
- Dynamic Compliance 6.0 x 10 - 6 cm / dyne (100 Hz)
- Recommended Load Impedance 47,000 Ω
- Recommended Load Capacity 100-200 pF
- Cell Weight 6.2g
- Dimensions 17.2 x 17.8 x 28.3 ( H x W x D mm)
- Replacement Reading Point ATN-XP3
- Accessories Supplied Two 11 mm installation screws;
- Two 8 mm installation screws;
- Two washers
- Two Nut
- Non-magnetic screwdriver
