Cicognani engineering Boutique JMH Amplifier MKII
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
Die Marke Cicognani engineering
Erfahren Sie mehr über die Marke Cicognani engineering und entdecken Sie den gesamten Katalog.
Kaufberatung für Gitarrenverstärker
Röhrenverstärker, Transistorverstärker, wie wählen Sie Ihren E-Gitarrenverstärker aus? Folgen Sie der Kaufberatung von Star's Music!
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Mini-verstärker für gitarre

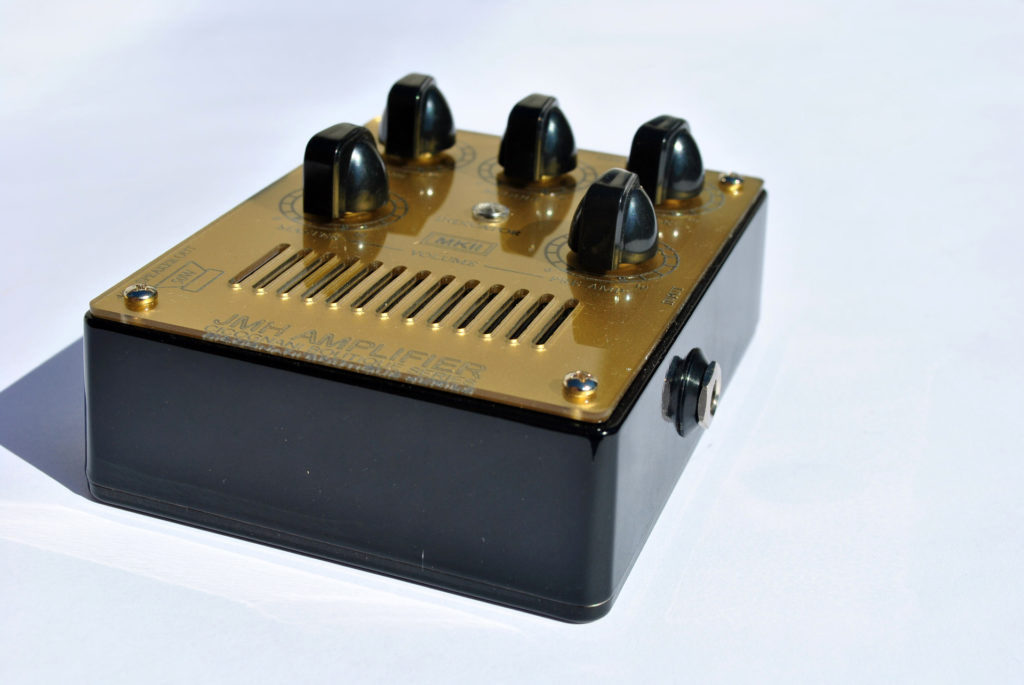

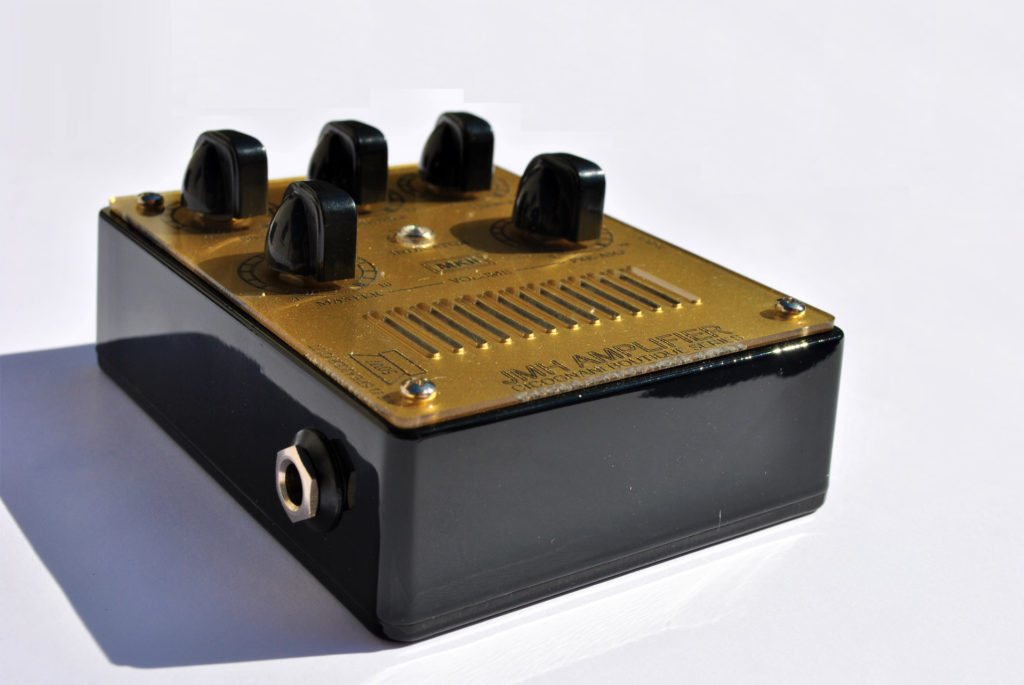

CICOGNANI ENGINEEERING Boutique Series JMH Amplifier MKII pedal is a class D amplifier with a final stage that offers a maximum power of 60W RMS on impedance of 4Ohm. Small, light, compact, it integrates a pre-amplifier in JFET technology.
The Pre-Amplifier in “cascode” technique proposes an amazing linearity of signal useful to guarantee great benefits of interfacing and transparency of the signal to other units. Tone Control includes three passive filters that act on the frequencies: 80Hz (low), 560Hz (middle), 5500Hz (high).
Power Stage employs a class D digital module with PBTL configuration. Although the connection of a speaker with an impedance of 4 to 8Ohm is possible. The best performance of power and linearity can be identified in 4Ohm.
The Pre-Amplifier in “cascode” technique proposes an amazing linearity of signal useful to guarantee great benefits of interfacing and transparency of the signal to other units. Tone Control includes three passive filters that act on the frequencies: 80Hz (low), 560Hz (middle), 5500Hz (high).
Power Stage employs a class D digital module with PBTL configuration. Although the connection of a speaker with an impedance of 4 to 8Ohm is possible. The best performance of power and linearity can be identified in 4Ohm.
Lire la suite
Technisches Arbeitsblatt
- Custom shop Nicht
- Gitarrenverstärker Leistung 50 bis 99 watts
- Lautsprecher Konfiguration Sonstige Lautsprecher Konfiguration
- Leistung in Watt 60 watts
- Technologie Transistor
- Typ custom shop Nein
- CICOGNANI ENGINEEERING Boutique Series JMH Amplifier MKII
- SKU Cicognani Engineering CICJMHA
- Electric guitare amplifier in a stompbox format
- Hand made in Italy
- 2023
- Class D JFET circuit
- 60 watts maxi under 4 ohms
- 4 or 8 ohms outputs

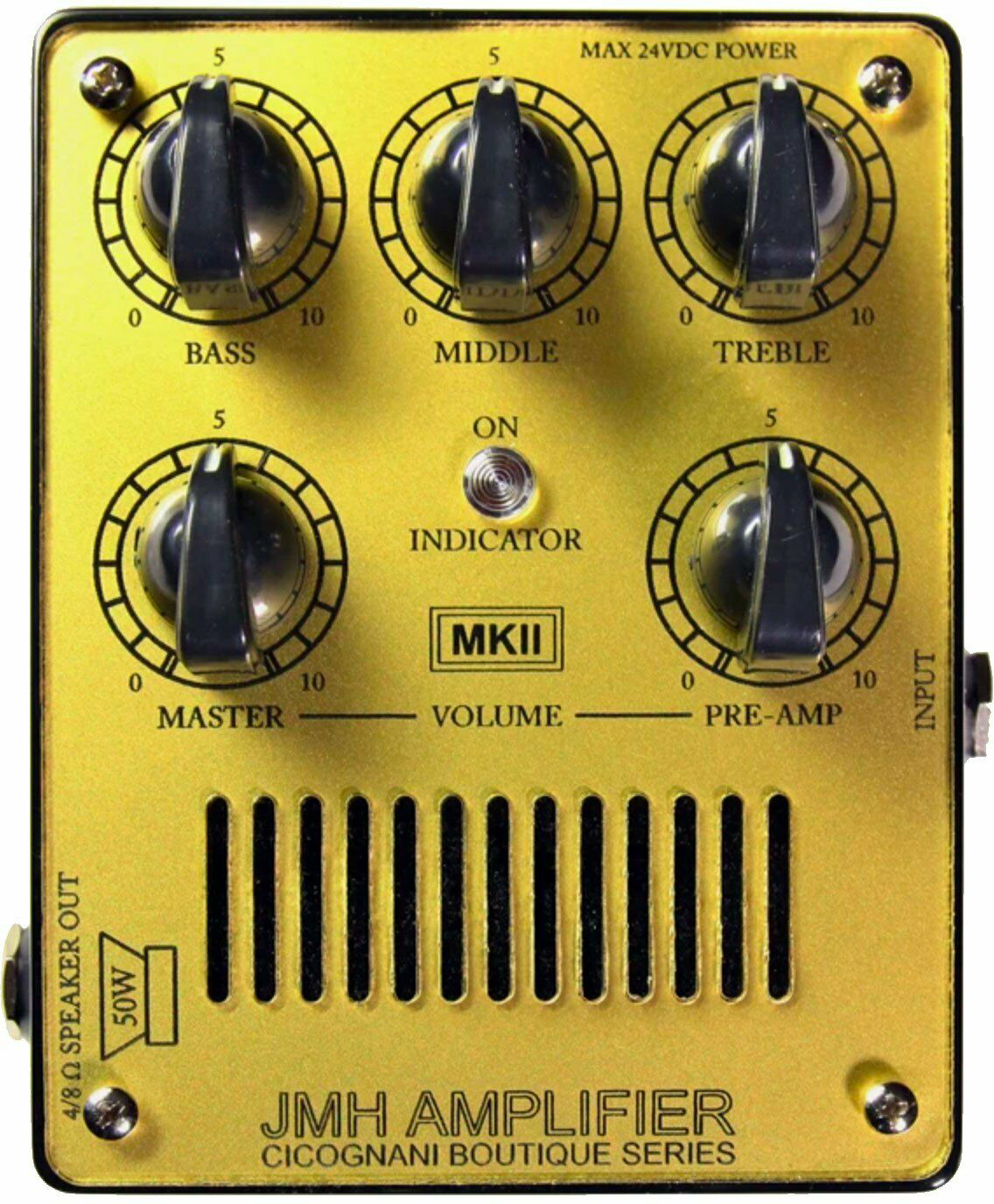

- Controls : see pictures
- Connections : see pictures
- 1V or 24V circuit, optional power supply (barrel 2.1 mm plug, negative center)
- Doesn't work on batteries
- 120 x 94 x 45 mm
- 300 g
- Manual : https://urlz.fr/kUjh
