Vorverstärker
The Camden EC2 is more than just a 2-channel preamp: it's a powerhouse of high-precision audio technology, derived from the renowned Camden 500. Designed by Cranborne Audio, it combines exceptional sonic transparency with vintage analog warmth, all in a robust 1U rackmount format, ideal for the most demanding studio setups.
This preamp delivers reference-level audio performance with proprietary "Camden" topology, Mojo variable analog saturation (Thump and Cream), and two built-in professional headphone amps for zero-latency direct monitoring. It also integrates with C.A.S.T. technology for extensive and flexible connectivity.
The Camden EC2 is the ultimate tool for capturing the most faithful recordings or adding analog character on demand.
This preamp delivers reference-level audio performance with proprietary "Camden" topology, Mojo variable analog saturation (Thump and Cream), and two built-in professional headphone amps for zero-latency direct monitoring. It also integrates with C.A.S.T. technology for extensive and flexible connectivity.
The Camden EC2 is the ultimate tool for capturing the most faithful recordings or adding analog character on demand.
Lire la suite
Technisches Arbeitsblatt
- Vorverstärkungtyp Transistor
- Mic / Line / Hi-Z Preamps
- Low-noise, low-distortion Camden topology with exceptional linearity
- 2 independent channels
- Gain up to 68.5 dB
- Equivalent Input Noise (EIN):
- <-129.5 dBu (150 ohm source, unweighted)
- <-135.5 dBu (common inputs)
- THD+N: < 0.00025% (1 kHz, 35 dB gain, +24 dBu output)
- Intermodulation Distortion: < 0.0006%
- Frequency Response:
- ±0.7 dB from <1 Hz to >1000 kHz (35 dB gain)
- ±1 dB from <5 Hz to >200 kHz (full gain)
- Phase Shift:
- <2.75° from 20 Hz to 20 kHz (full gain) 40 dB)
- <6° at maximum gain
- Mojo Analog Overdrive
- Two modes: Thump and Cream
- Variable overdrive control with true bypass
- Thump: Boosts low frequencies (160 Hz and below)
- Cream: Gentle compression effect, reduces fundamentals
- Built-in headphone mixers
- Two channels with independent control (CH1, CH2, AUX)
- Zero-latency direct preamp monitoring
- Rear-mounted auxiliary inputs for mixing with interface return
- Stereo mode: Pan left/right
- Studio-quality headphone amplifiers
- Frequency response: <±1 dB from <1 Hz to >100 kHz
- Output impedance: 0.33 ohms
- THD: 0.0003%
- Power:
- 2 × 250 mW into 600 ohms
- 2 × 450 mW into 220 ohms
- 2 × 250 mW into 100 ohms

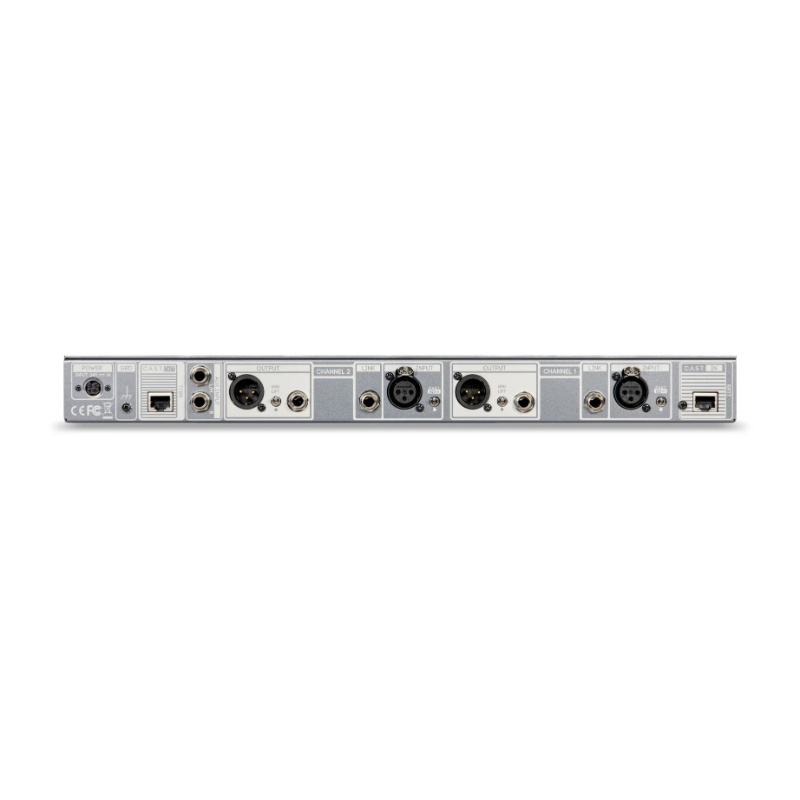

- Connectivity
- Balanced XLR outputs
- Balanced 1/4" jack outputs
- Link jack output for DI use or parallel routing
- 48V LED indicators:
- Orange: charging or dissipation
- Red: ready for use
- CAST compatibility
- CAST IN and OUT ports
- Direct connection with 500R8, 500ADAT, N22, and N22H modules
- Audio signal transfer and headphone return via a single RJ45 cable (Cat 5e/6/7)
- Power supply
- External 24V / 1.25A power supply
- Secure connector
