Ear monitor
The Definitive Audio Inear 100 is a UHF Mono EAR-Monitor system.
The INEAR100 system consists of a rack-mountable 1U transmitter, a compact beltpack receiver and in-ear monitors that allow singers, musicians or speakers to have high quality audio feedback on stage with complete freedom of movement. Up to 16 systems can be used simultaneously.
The INEAR100 system consists of a rack-mountable 1U transmitter, a compact beltpack receiver and in-ear monitors that allow singers, musicians or speakers to have high quality audio feedback on stage with complete freedom of movement. Up to 16 systems can be used simultaneously.
Lire la suite
Technisches Arbeitsblatt

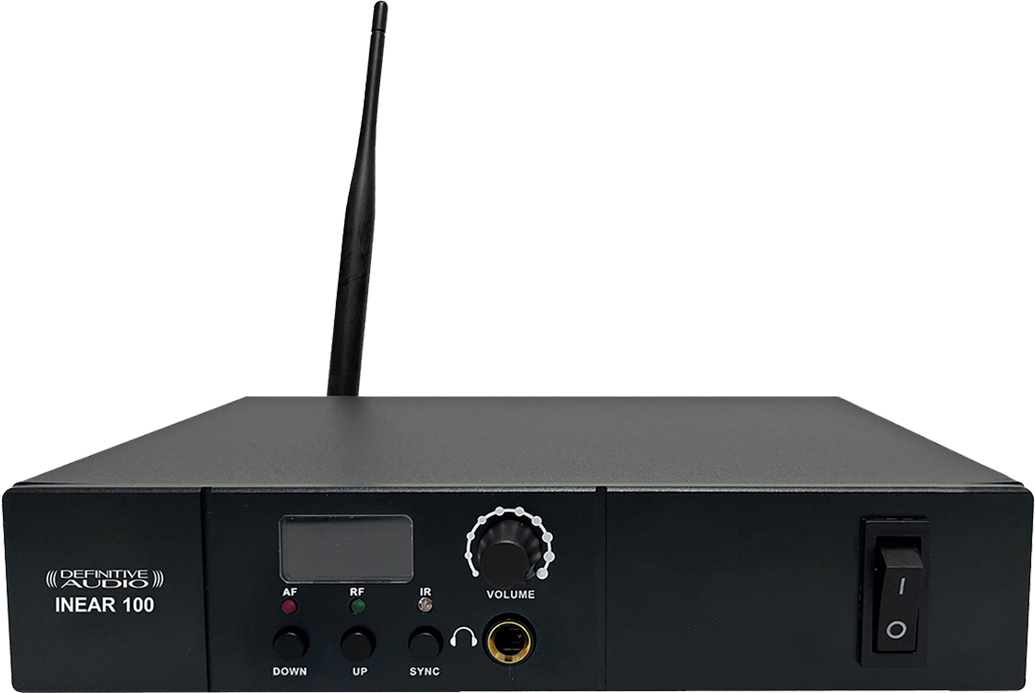

- Transmitter box characteristics :
- UHF frequency range: 600-937 MHz - mono transmission
- Number of channels: 16
- Output power: 10 mW
- Bandwidth: 60 Hz - 17 kHz ± 3dB
- THD: <0.5% at 1 kHz

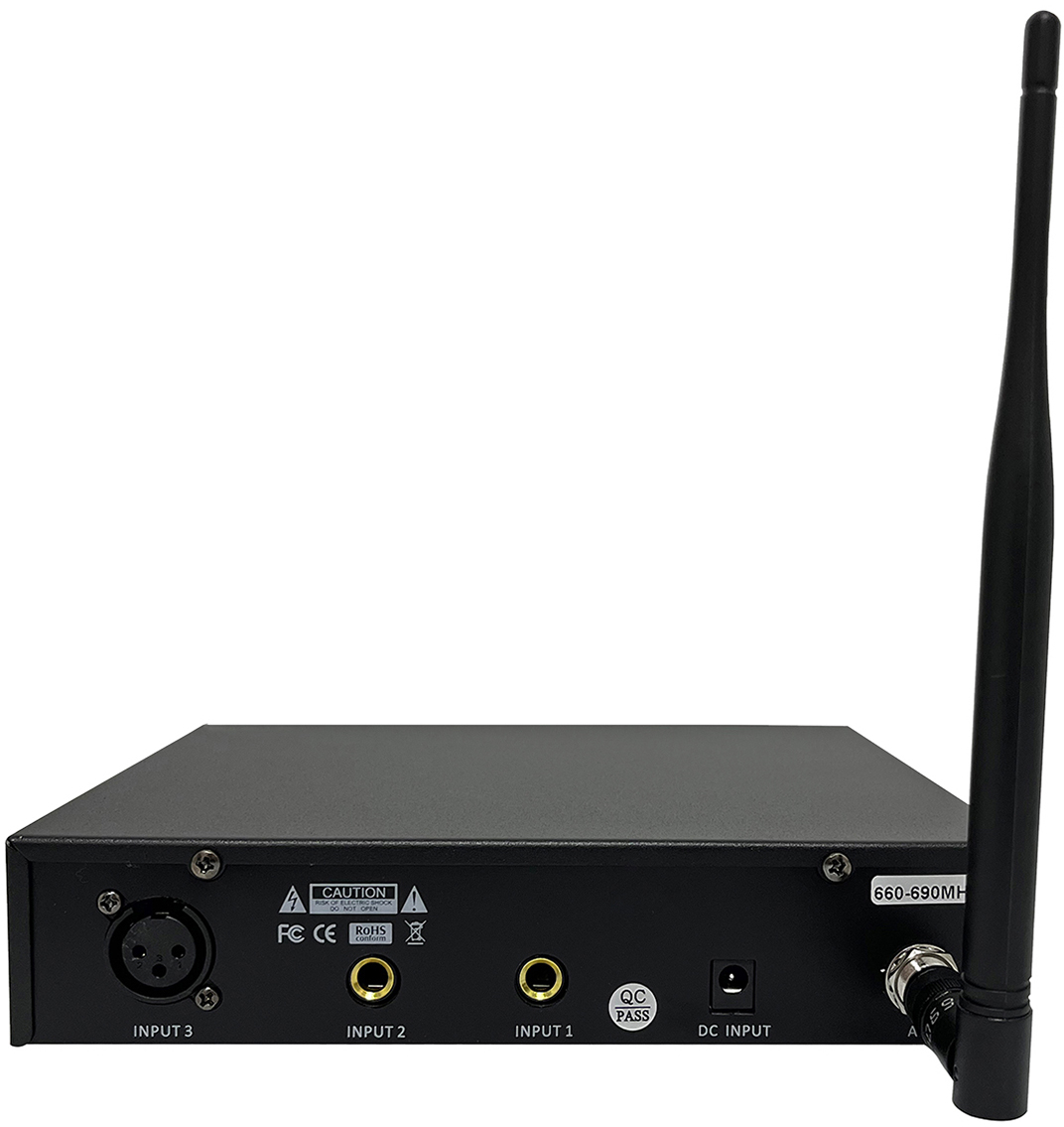

- Audio input: 2 x 6.35mm unbalanced jack or 1 x XLR balanced
- Audio output: 1 x 6.35mm stereo front panel jack
- Backlit LDC display
- TNC antenna
- Range: up to 50m in free field
- Rack mounting bracket included
- Power supply DC 12-18 V / 1 A
- Dimensions: 212 x 177 x 44 mm
- Weight : 1 kg

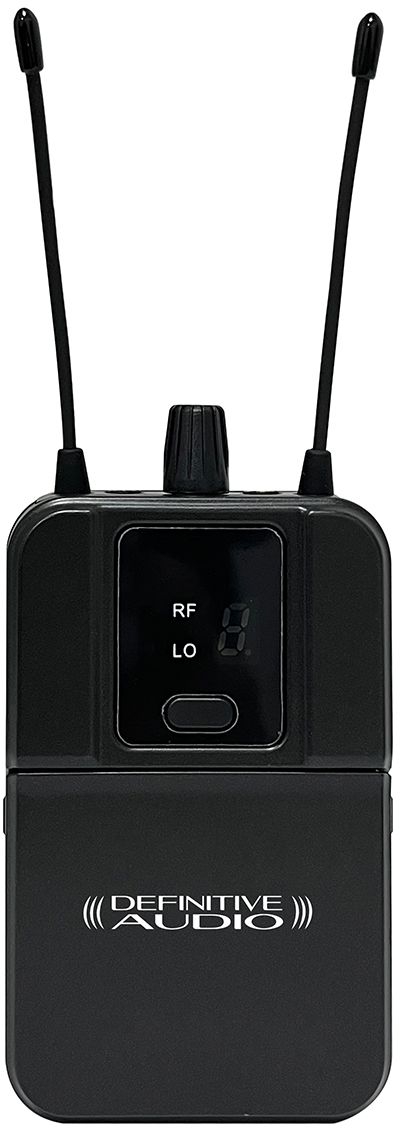

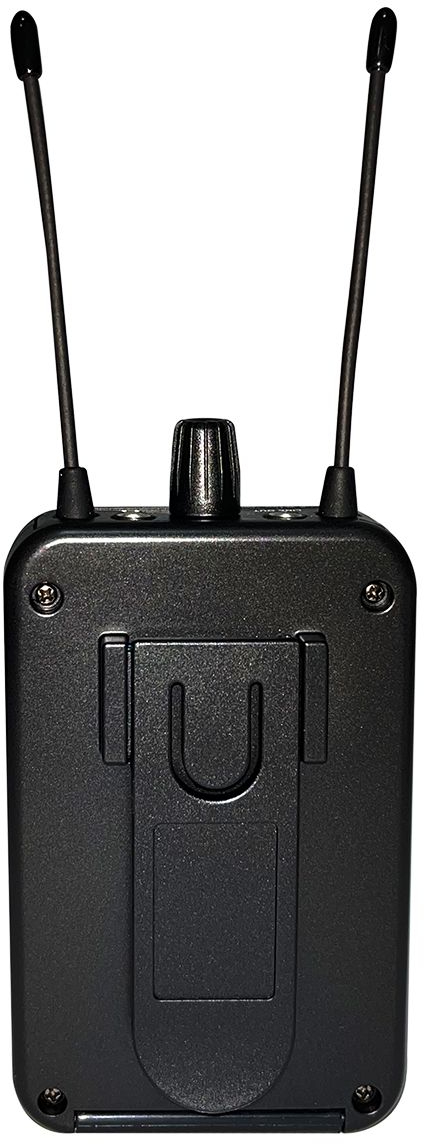

- Belt receiver characteristics :
- UHF frequency range: 600-937 MHz - mono reception
- Number of channels: 16
- Audio output: 1 x 3.5mm stereo jack
- IR synchronization
- LED display of selected channel
- Power supply: 2 x AA batteries
- Battery life: about 8 hours
- Dimensions: 96 x 62 x 21 mm
- Weight: 50 g (without batteries)
- Headphone features :
- Earphone diameter: 10MM
- Impedance: 16 Ω
- Sensitivity: 102 ±3 dB
- Bandwidth: 20-20K HZ
- Cable length: 1.1M
- Connector: 3.5mm stereo jack
