Lavalier-mikrofon
the Dpa 4061 is an omnidirectional miniature microphone.
The d:screet™ 4061 is a "Lo-Sense" variant of the 4060.
It has a sensitivity of less than 10dB, allowing it to handle sound pressure levels 10dB higher, i.e. 144dB SPL before clipping.

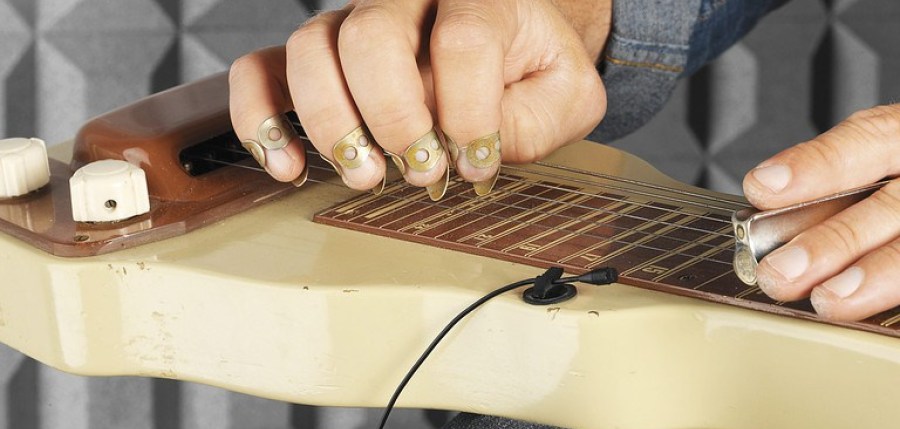

The 4061 is perfect for recording close to singers or loud instruments.
Its linear and natural response respects the original personality of each sound source. The 4061 is delivered with "High Boost" and "Soft Boost" grids for modifying the frequency response, by more or less marked and targeted accentuation in the treble.
The d:screet™ 4061 is a "Lo-Sense" variant of the 4060.
It has a sensitivity of less than 10dB, allowing it to handle sound pressure levels 10dB higher, i.e. 144dB SPL before clipping.
The 4061 is perfect for recording close to singers or loud instruments.
Its linear and natural response respects the original personality of each sound source. The 4061 is delivered with "High Boost" and "Soft Boost" grids for modifying the frequency response, by more or less marked and targeted accentuation in the treble.
Lire la suite
Technisches Arbeitsblatt
- Mikrofonanschluss Sonstige Anschlüsse
- Mikrofontyp Kondensator
- Directivity :
- Omnidirectional
- Frequency response, ± 2 dB :
- Soft Boost grid: 20 Hz - 20 kHz, 3 dB bump from 8 to 20 kHz.
- High Boost" grille: 20 Hz - 20 kHz, 10 dB hump from 10 dB to 12 kHz.
- Sensitivity at 1 kHz, nominal value ±3 dB :
- 6 mV/Pa, i.e. -44 dB (ref. 1 V/Pa)
- Equivalent noise level, weight. A :
- Typ. 26 dB(A) ref. 20 ?Pa (max. 28 dB(A))
- S/N ratio, ref. 1 kHz at 1 Pa (94 dB SPL) :
- 68 dB(A)
- Max SPL level (peak) before clipping :
- 144 dB
- (Legacy) Total Harmonic Distortion (THD):
- < 1% THD up to 123 dB peak SPL
- (Legacy) Dynamic range :
- Typ. 97 dB
- (Core) Total Harmonic Distortion (THD) :
- < 1% THD up to 137 dB peak SPL
- (Core) Dynamic range :
- Typ. 111 dB
- Supply voltage :
- HF systems: 5 V mini, via DPA adapter. With DAD6001-BC/DAD6024/
- DAD4099-BC: 48 ±4 V phantom power for nominal performance.
- Cable length :
- 1,8 m
