Golden age PRE-73 JR PREMIER

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Golden Age Pre-73 Jr Premier - Vorverstärker - Main picture
  • Golden Age Pre-73 Jr Premier - Vorverstärker - Variation 1
  • Golden Age Pre-73 Jr Premier - Vorverstärker - Variation 2
  • 499.00 €
  • Ref : 110103
433,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 2 Jahre Garantie
Lieferbar
3-5 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Golden age

Erfahren Sie mehr über die Marke Golden age und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Vorverstärker

The PREQ-73 PREMIER is a microphone preamplifier offered by the Golden Age brand.

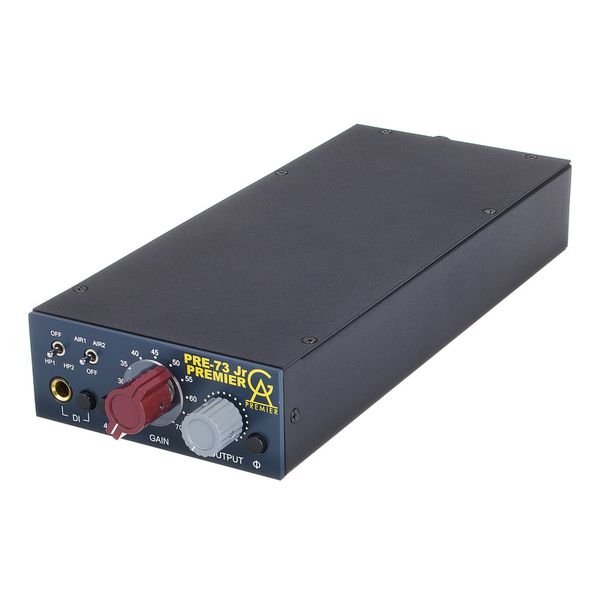

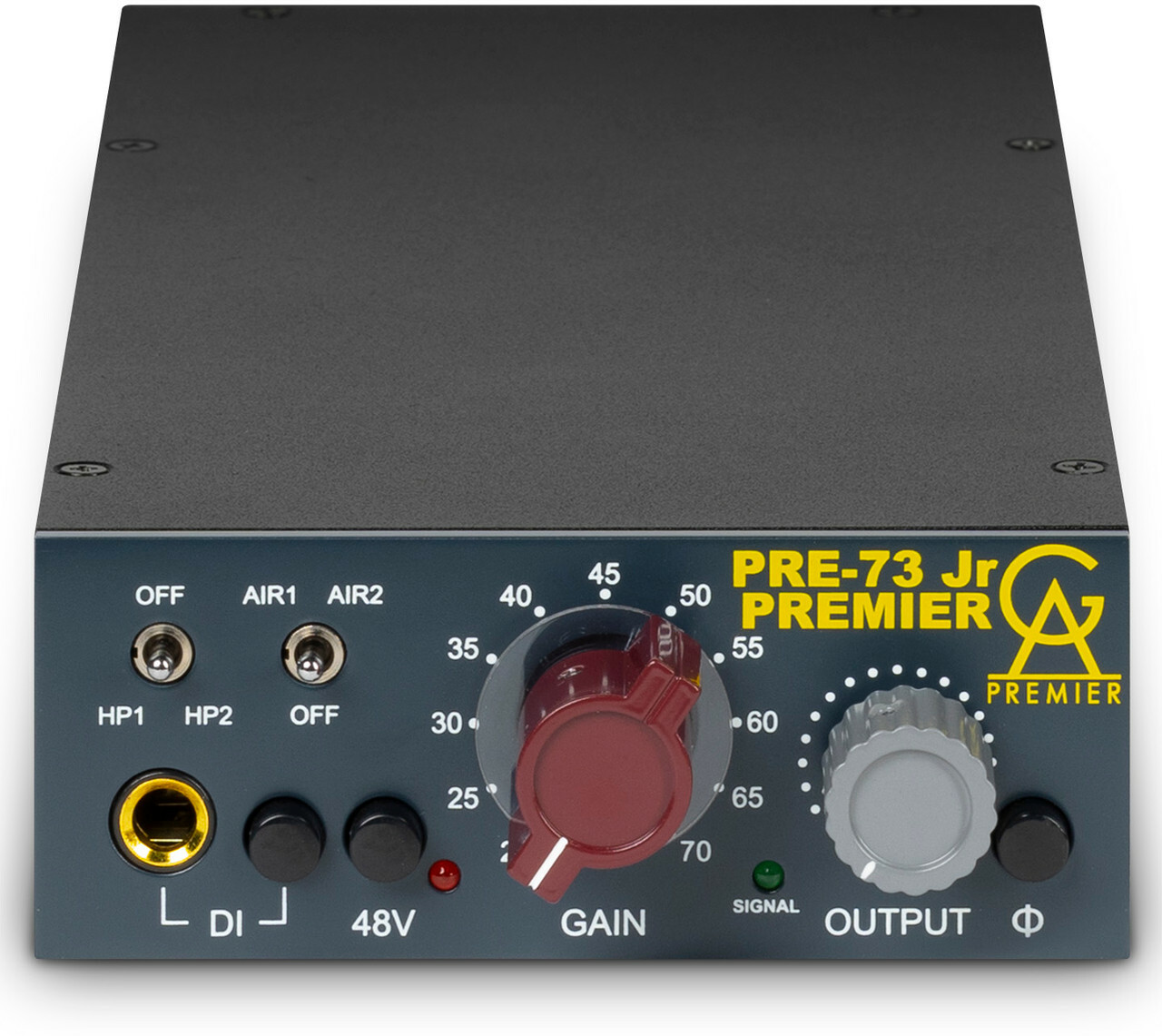

The PRE-73jr PREMIER is a vintage mono mic/DI preamplifier inherited from the topology of the classic Neve 1073 console module.
Equipped with a "discrete" class A analog circuit with two Carnhill (UK) transformers at input and output, it also doubles as a line-level preamplifier.
Bring the warmth, punch and musicality of a 70’s English console to all your mics and instruments. The greatest artists have passed through its famous circuits and today you can continue to experience this tradition of “English” sound.

With 70dB of clean mic gain, you have generous headroom that allows you to use even your low-output passive ribbon mics. Get vintage color and punch by cranking up the gain knob, thanks to a dedicated output control that lets you attenuate the signal to push the preamp without saturating your interface's inputs. Further sculpt your sound by using the low-cut filter to eliminate unwanted low-frequency resonances right out of the box, and use the 'Air' function to add sparkle and presence to your high frequencies.

Faithful to classic preamps, the PRE-73jr PREMIER has been designed with careful attention to component selection and manufacturing quality, which is unheard of at this price level. No surface mounted components or integrated circuits are used, and all inputs and outputs are fitted with Carnhill (UK) transformers. Its external power supply eliminates any risk of parasitic noise, and its half-rack metal chassis is both robust and portable.
Lire la suite

Technisches Arbeitsblatt

  • Vorverstärkungtyp Transistor
  • Topology
    • Analog Class A discrete with Carnhill input/output transformers (UK)
  • Max Gain
    • 70 dB
  • Input Gain
    • 20 – 70 dB, stepped in 11 positions
  • Adjustable Impedance (mic mode)
    • 1200 or 300 Ohm
  • Input Impedance (line mode)
    • 10 kOhm
  • Input Impedance (DI mode)
    • 100 kOhm
  • Low Cut Filter
    • 40Hz/150Hz at 6 dB/octave
  • ‘Air’ Boost
    • +3/+6 dB @ 30 kHz
  • Phantom Power
    • +48V
  • Phase Inversion
    • Yes
  • DI Input jack 6.35 mm high impedance
    • Yes
  • Level Meter
    • 4 LEDs

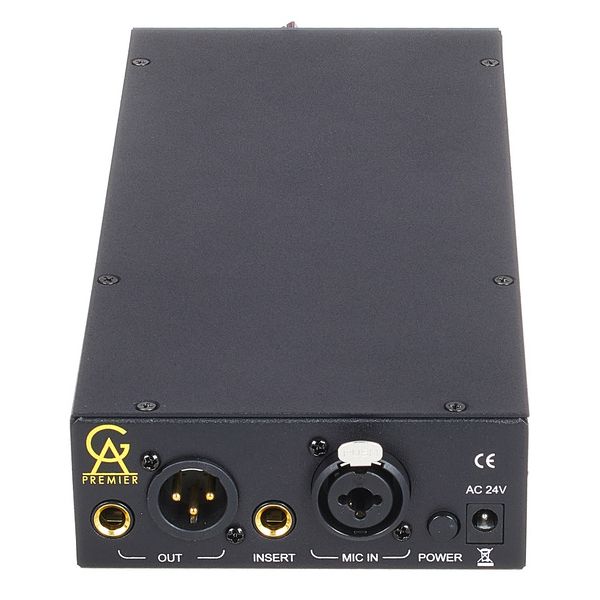

  • Connections
    • Input: Combo XLR/jack TRS 6.35 mmOutput: XLR and jack TRSInsert jack TRS 6.35 mm
  • Output Impedance Selector
    • 600 Ohm
  • Format
    • 1/4 rack, rackable with UNITE PREMIER or UNITE rack
  • Power Supply
    • 240-24V - Max 10VA
  • Dimensions (LxWxH)
    • 255 mm x 110 mm x 43 mm
  • Weight
    • 1.45 kg
Weitere Spezifikationen
Weniger Spezifikationen

Erfahrungsberichte
