Dj-mixer

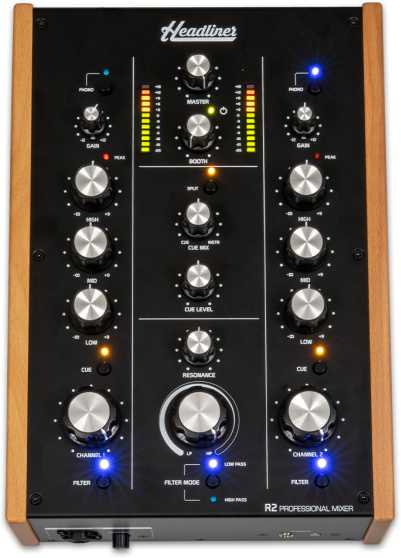

The R2 is a 2-channel rotary mixer offered by Headliner.
Highlights of the Healiner R2
- Authentic ALPS potentiometers for superior control quality.
- Modular internal construction for superior audio performance.
- Ideal for DJs seeking precise control and warm sound at a good value.
- Sturdy metal chassis with stained wood side panels for a classic look.
Features of the Headliner R2
Precise Sound Control:
The Headliner R2 DJ mixer offers precise sound control with its high-pass and low-pass filters, as well as its 3-band isolator EQ on each channel.
Quality Potentiometers:
Equipped with authentic ALPS potentiometers, the Headliner R2 ensures precise and reliable handling.
Versatile Outputs:

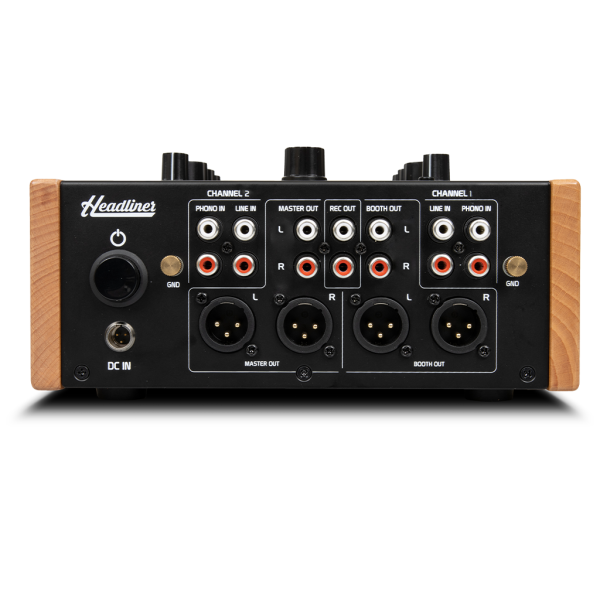

Featuring independent Master and Booth outputs with volume controls, this mixer offers balanced XLR outputs and unbalanced RCA outputs, providing flexibility in connecting to any audio system.
Advanced Headphone Control:
The headphone control section includes headphone volume control, headphone mix control (Cue/Master), and a split monitoring switch, offering a personalized listening experience.
Powerful Headphone Amplifier:
With a high-current headphone amplifier and dual 1/4” and 1/8” jacks, the Headliner R2 supports all types of headphones for comfortable listening.
Conclusion:
Designed for house, techno DJs, or any fan of classic funk, soul, or disco, the Headliner R2 adapts to all styles of music.
Lire la suite
Technisches Arbeitsblatt
- Anzahl der Kanäle 2 Kanäle
- Microphone Input
- Nominal Input Level: -50 dBu
- Frequency Response: 20 Hz – 20 kHz (+/- 0.1 dB)
- THD + N: Less than 0.1 %
- Input Impedance: 1.2 kOhm
- Line Inputs
- Nominal Input Level: -10 dBV (-7.8 dBu)
- Gain Range: -12 dB to +12 dB
- Frequency Response: 20 Hz – 20 kHz (+0/- 0.5 dB)
- THD + N: Less than 0.05 %
- Input Impedance: 10 kOhm
- Phono Inputs
- Nominal Input Level: -40 dBu (@1kHz)
- Gain Range: -12 dB to +12 dB
- Active RIAA Equalization
- THD + N: Less than 0.05 %
- Input Impedance: 47 kOhm
- Input Capacitance: 100pF
- Single Stage Phono Preamplifier
- Ceramic Capacitors
- Main Outputs
- Nominal Output Levels, Balanced: +4 dBu
- Maximum Output Level, Balanced: +20 dBu
- Nominal Output Levels, Unbalanced: -10 dBV (-7.8 dBu)
- Maximum Output Level, Unbalanced: +12 dBu
- Frequency Response: 20 Hz - 20 kHz (+0/-1.5 dB)
- Residual Noise: Less than -86 dBu (Line to Master) (A-weighted)
- Dynamic Range: Greater than 100 dB (A-weighted)
- Crosstalk: Less than -65 dB
- THD + N: Less than 0.05 %
- Headphone Output
- Maximum Output Level: 70 mA/channel into 150Ω
- Minimum Load Impedance: 32 Ohms/channel
- Power Supply
- Type: External with Lockable mini-XLR Connector
- Input Voltage: 100-240 V ~ 50/60 Hz
- Output Voltage: +/-15V ; 500mA
