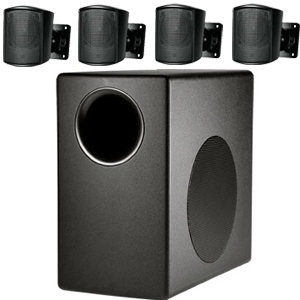

Jbl Control 50 Pack C50Pack
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 49662
Lieferbar
2-3 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Jbl
Erfahren Sie mehr über die Marke Jbl und entdecken Sie den gesamten Katalog.
Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Installationslautsprecher
The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low-distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low-distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
Lire la suite
Technisches Arbeitsblatt
- Innen / Außen Nur Innennutzung
- Installationtyp Wandanbau
- Control 50S/T
- Stylish, unobtrusive design fits into a wide variety of decors
- High fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Ability to mix and match with Control Contractor 40 Series in-ceiling models
- Wall-mount brackets included
- Black finish
- Specifications
- Frequency Range (-10 dB) : 32 Hz - 200 Hz
- Frequency Response (±3 dB) : 50 Hz - 150 Hz
- Power Capacity:
- 300 Watts Continuous
- Program Power (2 hrs)
- 150 Watts Continuous
- Pink Noise (2 hrs)
- 200 Watts Continuous
- Program Power (100 hrs)
- 100 Watts Continuous
- Pink Noise (100 hrs)
- Nominal Sensitivity (2.83V, 1m) : 95 dB (near corner), 89 dB (center of wall)
- Rated Maximum SPL (1m) :
- 115 dB average, 121 dB peak (near corner)
- 109 dB average, 115 dB peak (center of wall)
- Nominal Impedance : 8 ohms (in bypass/thru mode)
- Transformer Taps : 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
- Transducer Driver : 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
- Input Connectors : Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Material : Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
- Dimensions (H x W x D) :
- Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)
- Wall Bracket: 15 mm (0.6 in) deep
- Wall Bracket : 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
- Net Weight : 9.0 kg (20 lbs)
- Shipping Weight : 10.2 kg (23 lbs)
- Included Accessories : Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
- Control 52
- Stylish, unobtrusive design fits into a wide variety of decors
- High fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Ability to mix and match with Control Contractor 40 Series in-ceiling models
- Wall-mount brackets included
- Black finish
- Specifications
- Frequency Range (-10 dB) : 140 Hz - 20 kHz
- Frequency Response (±3 dB) : 180 Hz - 17 kHz
- Power Capacity:
- 50 Watts Continuous Program Power (2 hrs)
- 25 Watts Continuous Pink Noise (2 hrs)
- 30 Watts Continuous Program Power (100 hrs)
- 15 Watts Continuous Pink Noise (100 hrs)
- Nominal Sensitivity:
- 85 dB (4.0V/1m = 1W)
- 82 dB (2.83V, 1m)
- Nominal Coverage Angle : 150° x 150° (omnidirectional)
- Rated Maximum SPL (1m) : 94 dB average, 100 dB peak
- Nominal Impedance : 16 ohms
- Transducer Driver : 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
- Input Connector : Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Material : High impact polystyrene, painted zinc-plated metal grille.
- Dimensions (H x W x D) :
- Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)
- Wall bracket: 51 mm (2.0 in)
- Net Weight : 0.7 kg (1.5 lbs)
- Shipping Weight : 0.8 kg (1.8 lbs)
- Included Accessories : Wall bracket (both speaker and wall parts), 2-pin locking connector.
