Ld systems SAT 102 G2 W
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 78789
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Ld systems
Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.
Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Installationslautsprecher
LD Systems SAT 102 G2 W is a white passive installation enclosure.
The 2-way passive loudspeaker is thus equipped for both vertical and horizontal use, it is ideally suited as a fixed installation and fits well in all environments, and includes a custom 10 "woofer and compression chamber motor. 1 "Celestion, connected to a CD rotary tweeter with an angle of dispersion 80 ° x 60 °.

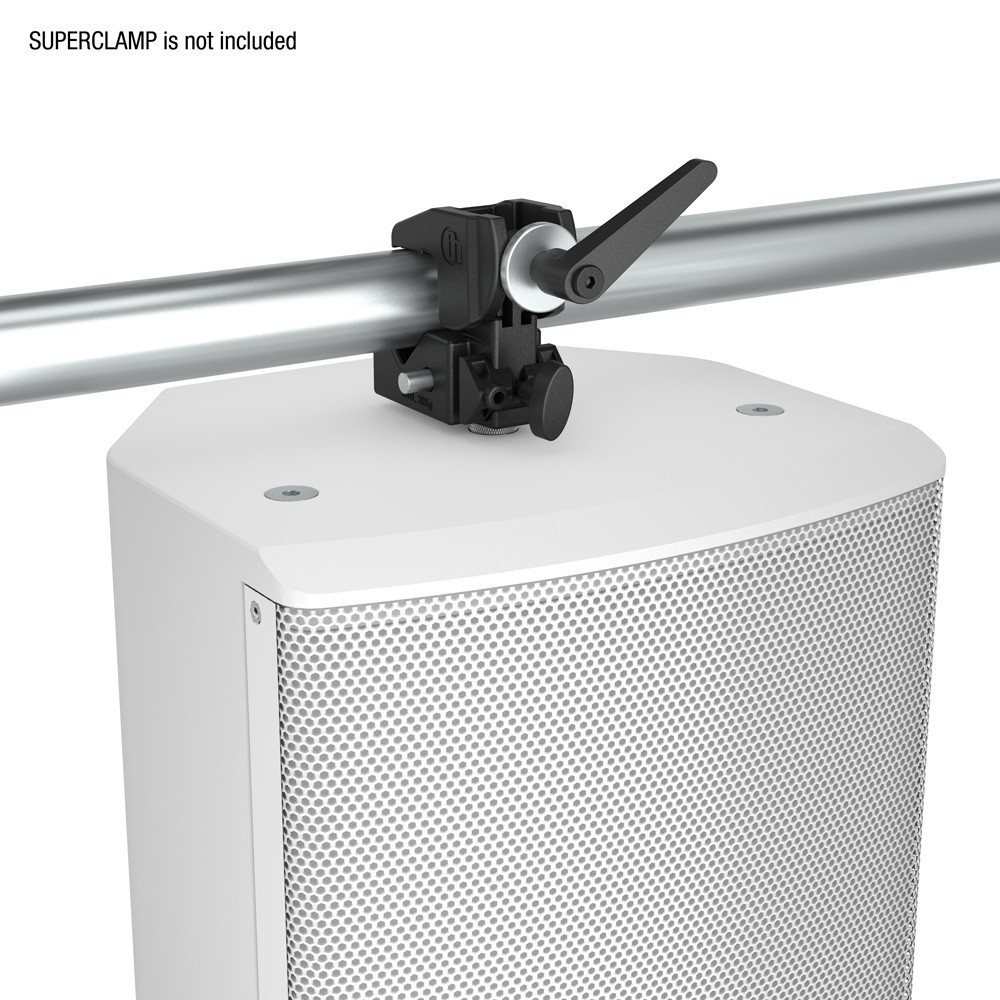

The SAT 102 G2 achieves a maximum sound pressure of 118 dB, its frequency response ranges from 65 Hz to 19 kHz for a maximum load of 200 watts. The SLR camera is made of 15 mm thick MDF panels and has four M8 suspension points, one input with a speakON-compatible female connector and one terminal block, while another terminal block serves as an output for a parallel connection with ease. .

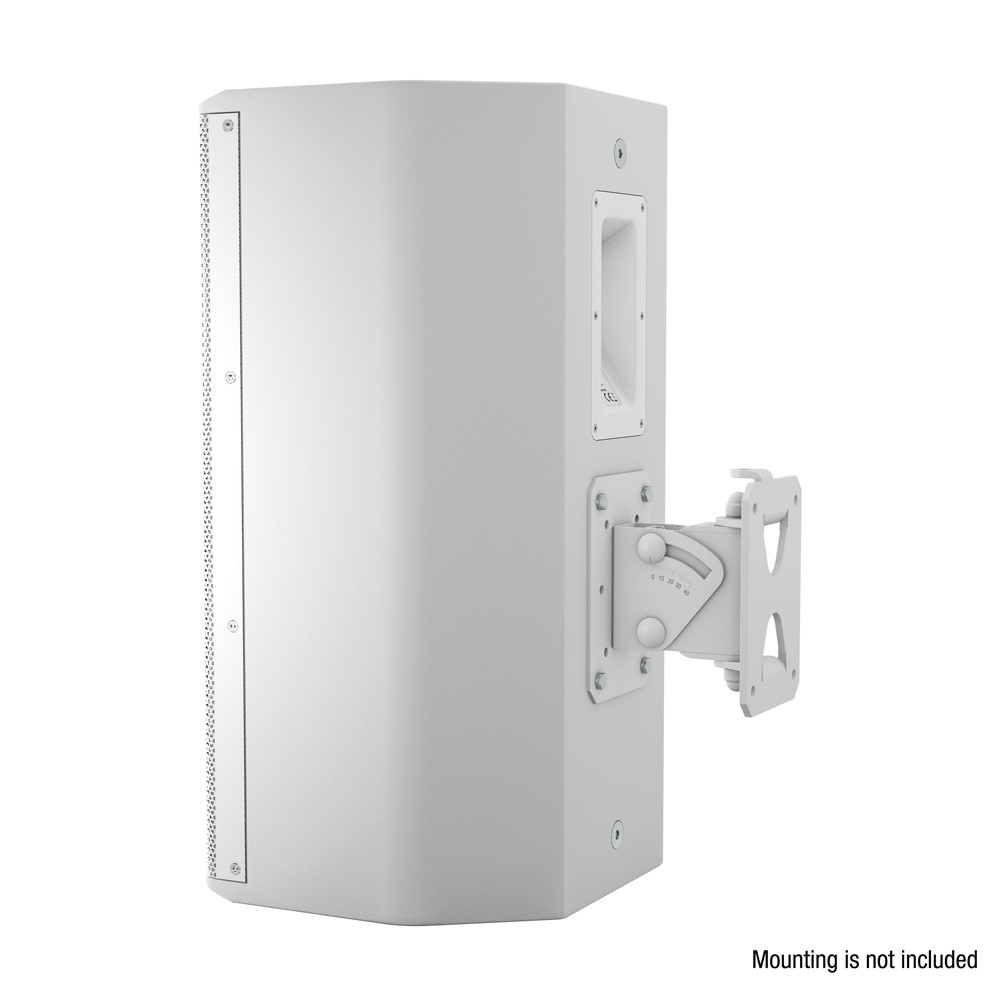

Optional special wall mounts make it easy to mount the speaker. The SAT 102 G2 is available with black finishing lacquer (code LDSAT102G2) or white (code LDSAT102G2W).
The 2-way passive loudspeaker is thus equipped for both vertical and horizontal use, it is ideally suited as a fixed installation and fits well in all environments, and includes a custom 10 "woofer and compression chamber motor. 1 "Celestion, connected to a CD rotary tweeter with an angle of dispersion 80 ° x 60 °.
The SAT 102 G2 achieves a maximum sound pressure of 118 dB, its frequency response ranges from 65 Hz to 19 kHz for a maximum load of 200 watts. The SLR camera is made of 15 mm thick MDF panels and has four M8 suspension points, one input with a speakON-compatible female connector and one terminal block, while another terminal block serves as an output for a parallel connection with ease. .
Optional special wall mounts make it easy to mount the speaker. The SAT 102 G2 is available with black finishing lacquer (code LDSAT102G2) or white (code LDSAT102G2W).
Lire la suite
Technisches Arbeitsblatt
- Innen / Außen Nur Innennutzung
- Installationtyp Wandanbau
- Product type Fixed installation loudspeakers
- Type Wall Speakers
- Boomer diameter / medium 10 "
- Boomer diameter 254 mm
- Ferrite Boom Magnet
- Custom made boomer brand
- Boomer coil (mm) 50,8 mm
- Constant directivity pavilion (CD)
- Diameter tweeter 1 "
- Tweeter diameter 25.4 mm
- Ferrite tweeter magnet
- Brand tweeter Celestion
- Dispersion angle (H x V) 80 x 60 °
- Power (effective) 200 W
- Power (peak) 400 W
- Frequency response 65 - 19000 Hz
- Sound pressure level (for 1 W to 1 m) 95 dB
- Maximum sound pressure level 118 dB
- Impedance 8 Ohm (s)
- Tweeter protection circuits
- Speaker Inputs 2
- Speakon Compatible Speaker Input Connectors,
- Eurobloc
- Speaker Outputs 1
- Eurobloc speaker output connectors
- Material cabinet MDF panel 15 mm
- Surface of the box Painted structured paint
- Color white box
- Bass Reflex cabinet finish
- Width 300 mm
- Height (mm) 550 mm
- Depth 270 mm
- Weight 12.2 kg
