Wireless handmikrofon

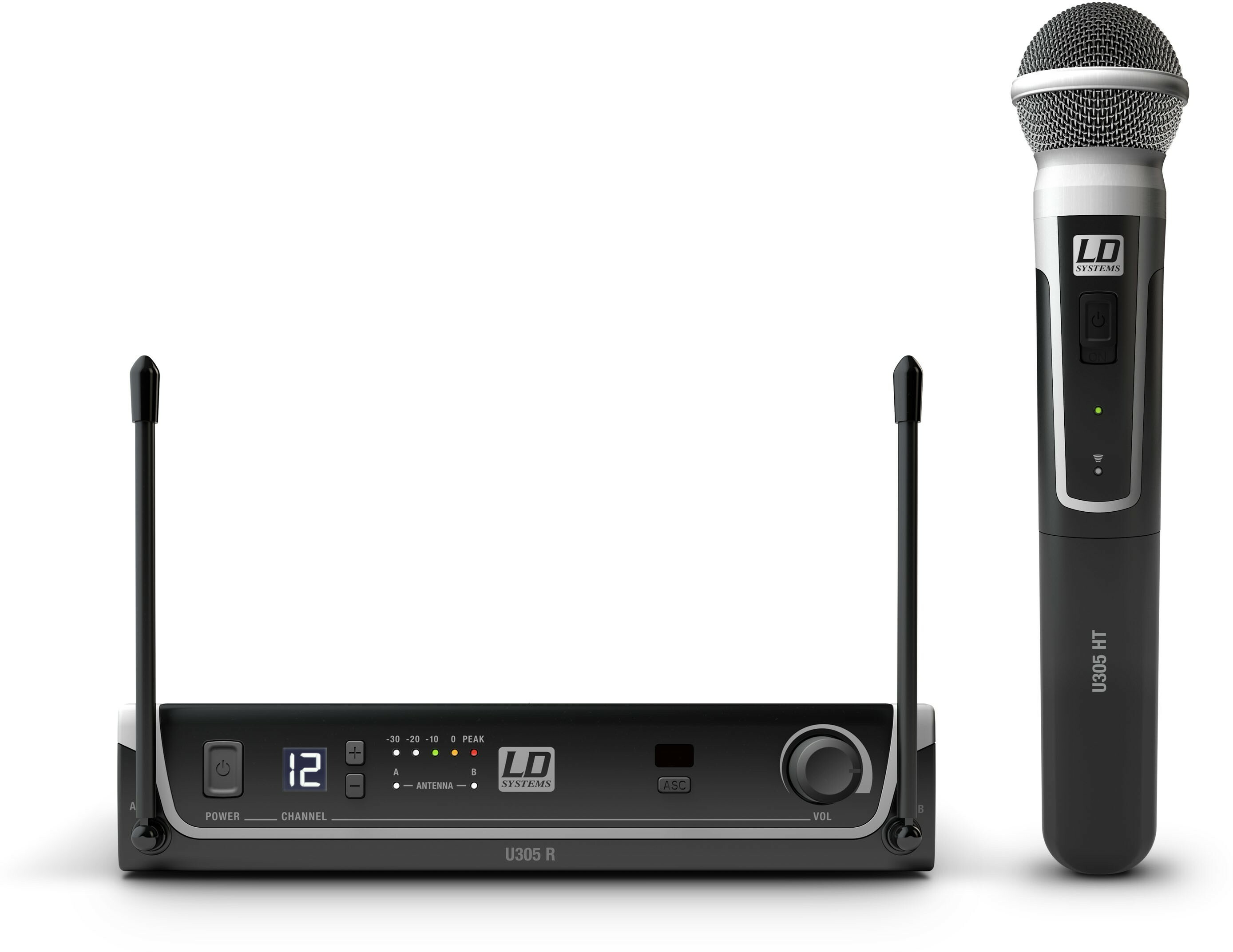

The Ld Systems U305 HHd is a wireless microphone system with handheld microphone.

UHF Diversity wireless systems with FM technology
12 selectable channels
Range of 100 meters under ideal conditions
Up to 6 systems can be used simultaneously
Synchronization of transmitter and receiver frequencies by ASC infrared
Pilot signal managed squelch circuit
10-hour transmitter life with two AA batteries
Receiver in a solid metal housing
Optional rack mounting kit as an accessory
Interchangeable U500 capsules also suitable for the U300 handheld microphone

Technisches Arbeitsblatt

Digitale Übertragungssystem Nein
HF Frequenzen Automatische Frequenzwahl

Product type Wireless microphone systems
Type Set
Frequency range HF 584 - 608 MHz
Weight 0.94 kg

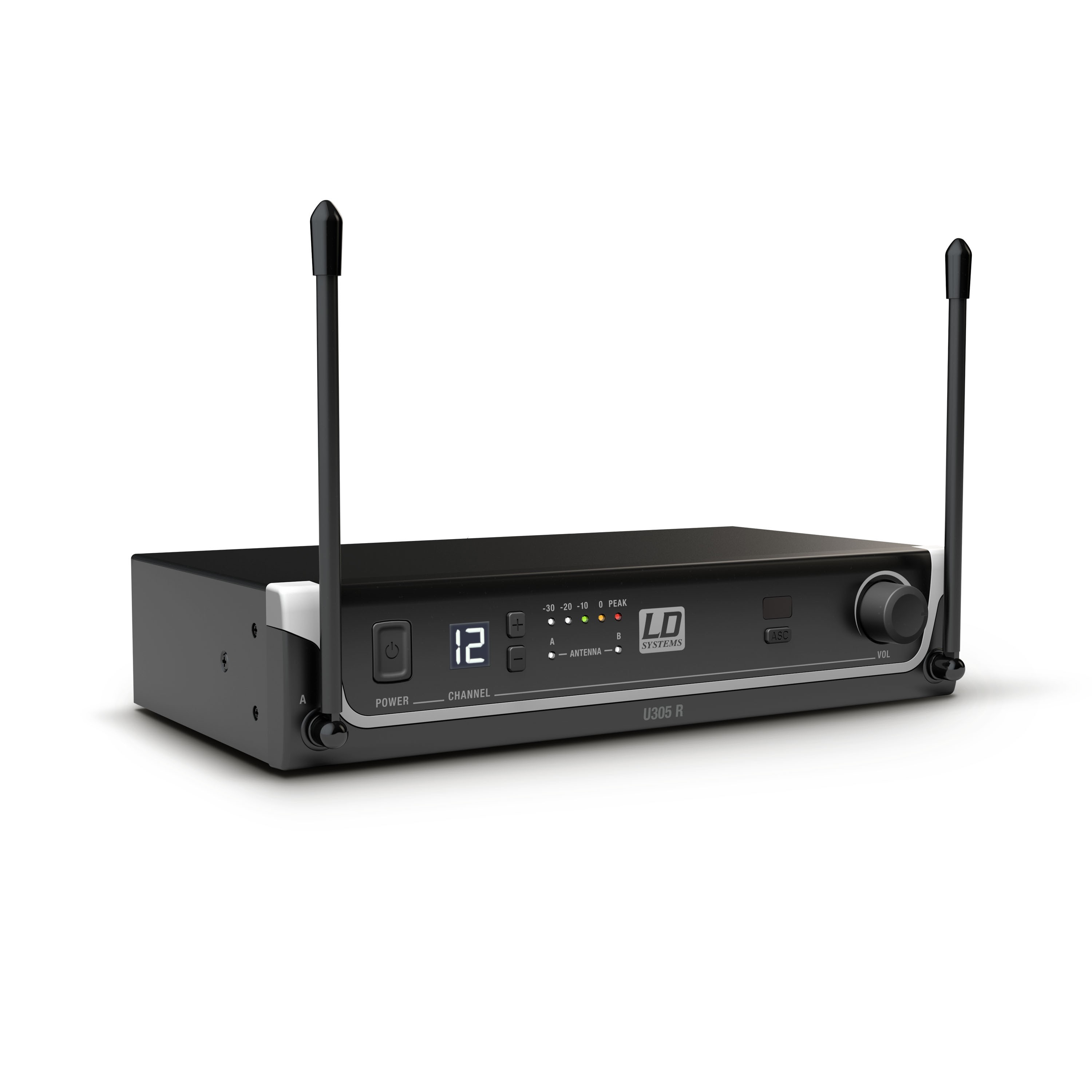

LDU305R - LD Systems U305 R Empfänger
Product type Accessories for wireless microphone systems
Type Receivers
FM modulation type
Channels 12
Groups 1
Antenna inputs 2 x fixed antenna inputs
Frequency response 25 - 16 000 Hz
Squelch noise reduction
Transmission optimization Pilot signal
Distortion rate (THD) < 0.3% < 0.3
Signal-to-noise ratio 104 dB
Channel down, Channel up, - Line/instrument level, Power, ASC synchronization, Volume
XLR balanced audio output
Antenna A/B indicators, LCD display, 5 LED VU meter
Unbalanced audio output 6.3 mm jack (level of - - - unbalanced switchable output)
Mains voltage 12 V DC - 18 V DC (500 mA), external
Maximum output level +10 dBu (balanced), +7 dBV (unbalanced, line), +2.5 dBV (unbalanced, instr.) dBu
Weight 0.7 kg
Other properties Synchronization of RF frequencies by infrared
Width 211 mm
Height (mm) 43 mm
Depth 120 mm
Accessories (included) 2 batteries LR06 (AA), Power supply unit, Audio cables
LDU305MD - LD Systems U305 MD Handmikrofon dynamisch
Microphone type Microphones
Microphone type Dynamic
Cardioid Directivity
Frequency response 55 - 16 000 Hz
HF output power 10 mW
Power On/Off settings
Battery LED indicators (battery to be changed: red), - Power (Power ON: green), IR ASC synchronization (green LED, flashing yellow)
Mains voltage 2 batteries LR06 (AA)
Battery life >10 hours
Length (mm) 257 mm
Diameter 50 mm
Weight 0.235 kg
Other properties Pilot signal
