Dj-mixer

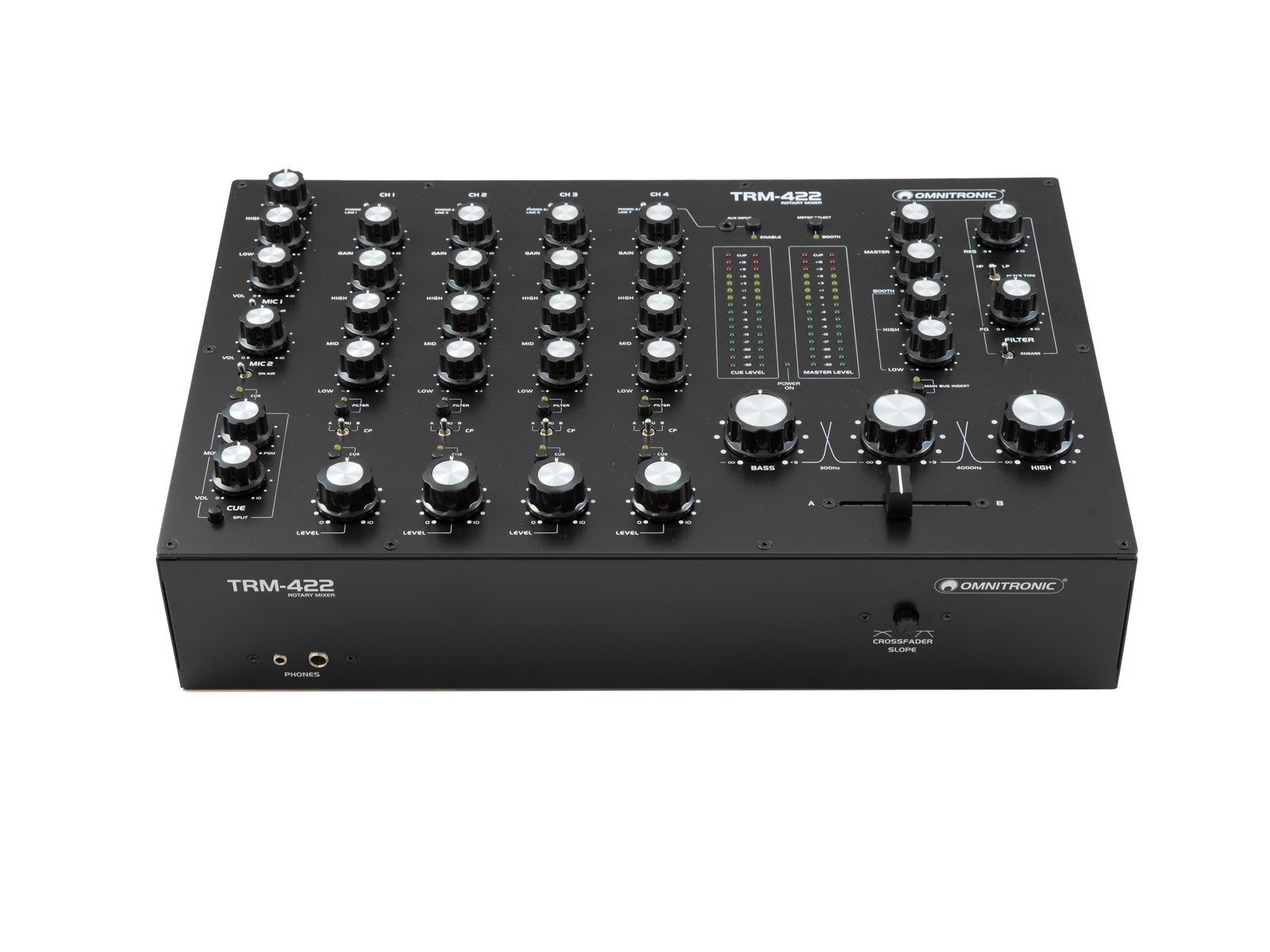

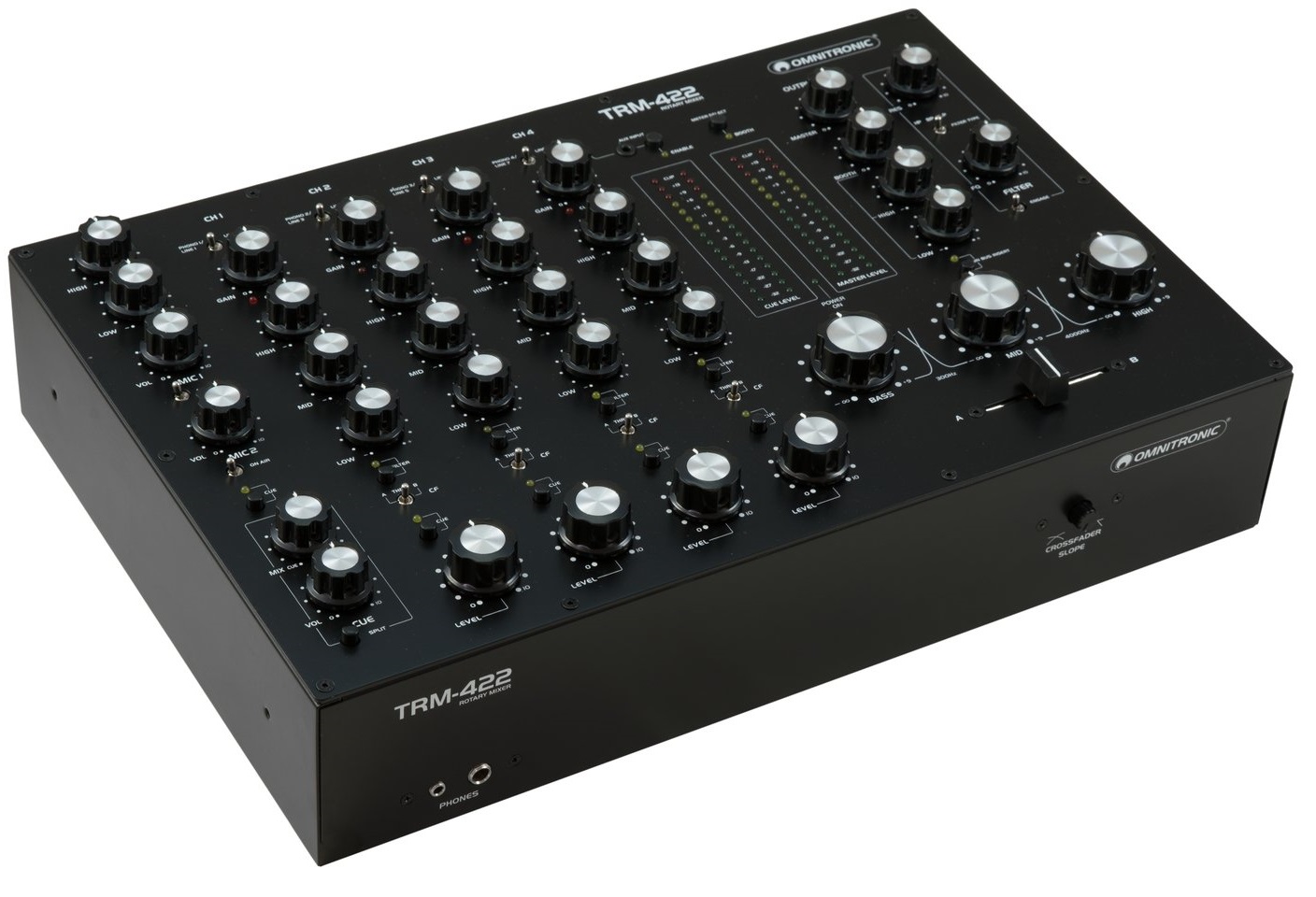

The Omnitronic TRM 422 is a 4-channel DJ mixer.
4-channel rotary mixer with 3-band frequency isolator and filter section for DJs.
3-band master frequency isolator with vintage ALPS knobs (Blue Velvet RK27)
Kill Cut function allows DJs to completely remove low, mid and high frequencies for an exceptional mix.
Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
4 stereo input channels with gain control, LED clipping, 3-way EQ and phono/line switching
2 microphone input channels with gain control, 2-way EQ and air switch
High-quality components for long life and excellent sound quality
16-digit stereo LED level meter, switchable between master and booth outputs
Booth output with separate 2-way equalizer and level control
PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/segment option
Fully assignable VCA crossfader with adjustable curve
2 effects sends/returns
4 direct outputs for timecode applications
Inputs: 8 x line and 4 x phono (RCA L/R), 1 x front aux (mini jack)
Outputs: master and cab (XLR/RCA L/R), recording (RCA L/R), master insert send/return (RCA L/R), FX input/output (stereo jack)
483 mm rackmount possible with supplied mounting brackets
4-channel rotary mixer with 3-band frequency isolator and filter section for DJs.
3-band master frequency isolator with vintage ALPS knobs (Blue Velvet RK27)
Kill Cut function allows DJs to completely remove low, mid and high frequencies for an exceptional mix.
Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
4 stereo input channels with gain control, LED clipping, 3-way EQ and phono/line switching
2 microphone input channels with gain control, 2-way EQ and air switch
High-quality components for long life and excellent sound quality
16-digit stereo LED level meter, switchable between master and booth outputs
Booth output with separate 2-way equalizer and level control
PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/segment option
Fully assignable VCA crossfader with adjustable curve
2 effects sends/returns
4 direct outputs for timecode applications
Inputs: 8 x line and 4 x phono (RCA L/R), 1 x front aux (mini jack)
Outputs: master and cab (XLR/RCA L/R), recording (RCA L/R), master insert send/return (RCA L/R), FX input/output (stereo jack)
483 mm rackmount possible with supplied mounting brackets
Lire la suite
Technisches Arbeitsblatt
- Anzahl der Kanäle 4 Kanäle und mehr
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 24 W
- Protection class: Class I
- Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
- Frequency range: Microphone 20 - 20000 Hz
- Line 20 - 20000 Hz
- Phono 40 - 18000 Hz
- S/N ratio: >97,2 dB line
- >91,7 dB Microphone
- THD: Line <0,04 % at 1 kHz
- Phono <0,13 % at 1 kHz
- Microphone <0,008 % at 1 kHz
- Gain: Microphone 44 dB
- Line -16,5 dB to +8,5 dB
- Phono -48,5 dB to +23,5 dB
- Isolators: Master Gain:- ∞ bis +9
- Low/mid 300 Hz, 18db/oct , Butterworth
- Mid/high 4000 Hz, 18db/oct , Butterworth
- Crosstalk: >-68 dB
- Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls
- Status LED: Power, master level meter, clip, CUE

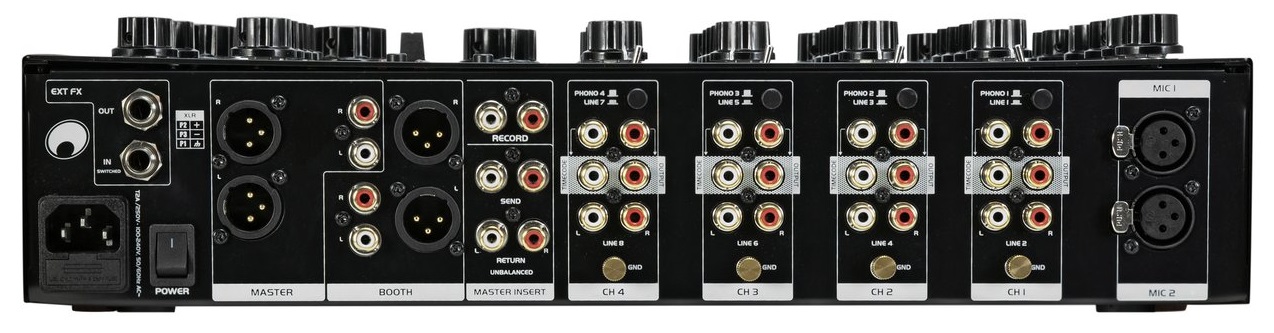

- Connections: Input: 4 x line via stereo RCA
- Input: 4 x line/phono via stereo RCA
- Input: 2 x Microphone via 3-pin XLR
- Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
- Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
- Output: 1 x rec. via stereo RCA
- Output: 2 x booth via 3-pin XLR
- Output: 1 x booth via stereo RCA
- Output: 2 x master via 3-pin XLR
- Output: 1 x master via stereo RCA
- Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version
- Output: 1 x AUX returns via 6.3 mm jack socket (stereo) mounting version
- Chanals: Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,
- Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch,
- Master output: 2 x stereo via XLR, channel control via Rotary
- Booth output: 2 x stereo via XLR, channel control via Rotary
- Rec. output: 1 x stereo via RCA
- Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
- Max. level: Output: +18 dBu
- Material: Metal
- Housing design: Desktop console housing
- Dimensions: Width: 41 cm
- Depth: 28,5 cm
- Height: 10,5 cm
- Weight: 5,74 kg
