Sennheiser XSW IEM EK (B)

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Sennheiser Xsw Iem Ek (b) - Wireless Empfänger - Main picture
  • Sennheiser Xsw Iem Ek (b) - Wireless Empfänger - Variation 1
  • Sennheiser Xsw Iem Ek (b) - Wireless Empfänger - Variation 2
  • Sennheiser Xsw Iem Ek (b) - Wireless Empfänger - Variation 3
348,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 101741
Lieferbar
innerhalb von 24 Stunden lieferbar
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Paris

Die Marke Sennheiser

Erfahren Sie mehr über die Marke Sennheiser und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Wireless empfänger

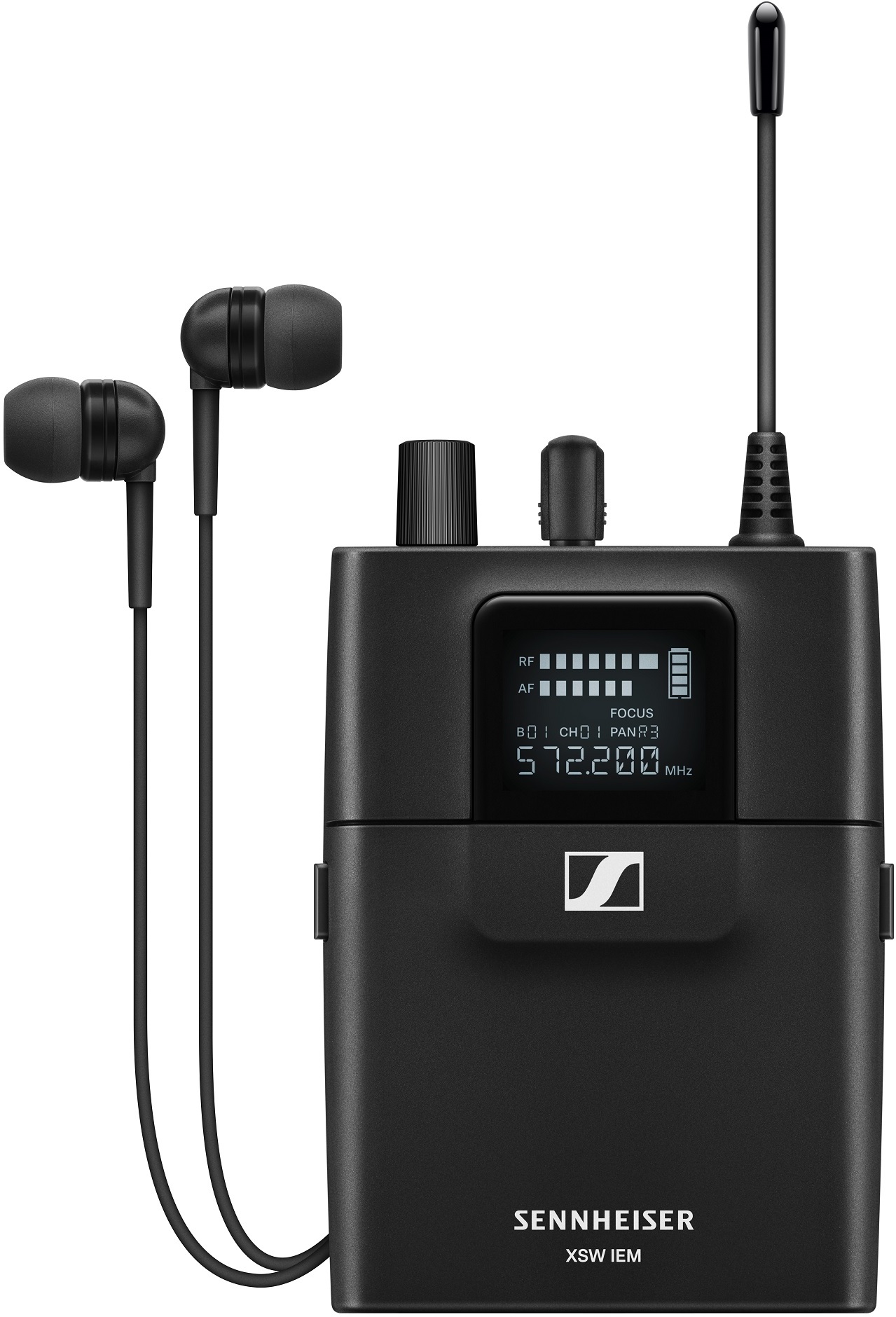

The XSW IEM EK is an ultra-lightweight, pocket-sized in-ear monitor for expanding existing XS Wireless IEM kit configurations.

With the XS Wireless IEM kit, you can easily combine additional receivers with a transmitter, providing a new level of detail to more band members.
level of detail to more members of the group.
When attached to clothing or your belt, the ultra-lightweight pocket receiver remains discreet. You can connect it to the supplied IE 4 headphones or the IE PRO series with the 3.5 mm output. The LED keeps an eye on battery and link status, while the front panel offers options for fine-tuning individual settings, from balance and focus modes to EQ and limiter.
Pocket-sized UHF receiver to expand existing XS Wireless IEM setups
- Ultra-lightweight pocket receiver with rear clip and
control panel ideal for the stage
- Standard 3.5 mm jack for the supplied IE 4
earphones or optional in-ear kits

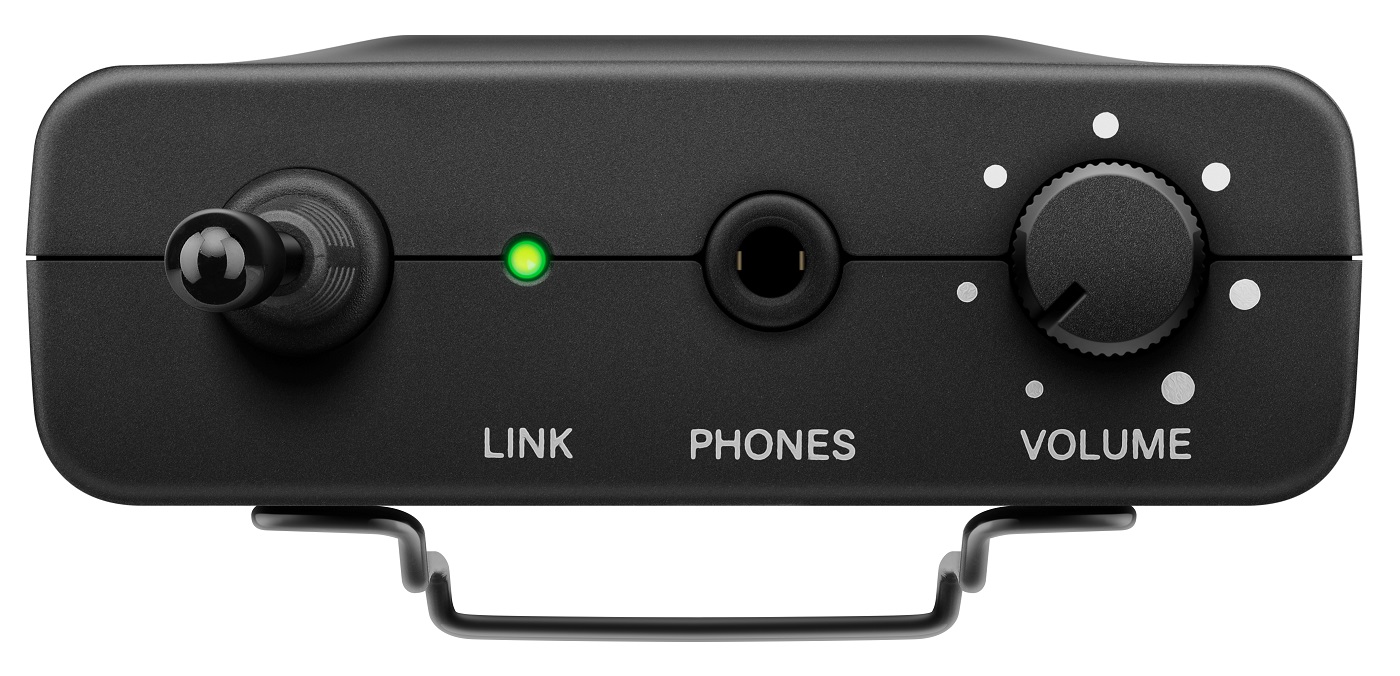

- Backlit front panel and LEDs to display battery and link status
- Menu-driven access to receiver audio settings
receiver audio settings such as focus modes, volume control, limiter and EQ
- Pan control for individual balancing of input
input channels
- Operation with two AA primary batteries or rechargeable
rechargeable batteries
Lire la suite

Technisches Arbeitsblatt

  • Digitale Übertragungssystem Nein
  • HF Frequenzen Automatische Frequenzwahl
  • XSW IEM EK Stereo Receiver
  • High frequency features
  • Wide band FM modulation
  • Frequency range :
  • 572 - 596 MHz
  • Frequency band switching up to 24 MHz
  • Normal/peak deviation ±15 kHz / ±24 kHz
  • Squelch 10 µV, fixed
  • Audio-frequency characteristics
  • "Signal-to-noise ratio
  • (1 mV, peak deviation)"
  • ? 88 dB
  • Total harmonic distortion
  • (THD)
  • ? 1 %
  • AF output level at 3.5 mm 2 x 1.25 Veff at 16 Ω
  • Treble boost (equalization)
  • +10 dB at 13 kHz
  • Limiter -10 dB
  • AF frequency response 45 Hz to 15 kHz
  • Crosstalk (50 Hz - 10 kHz) approx. 45 dB
  • Global device
  • Temperature range 0°C to +40°C
  • Power supply 2 x AA, 1.5 V batteries
  • Nominal voltage 3 V battery / 2.4 V rechargeable battery
  • Operating time approx. 6 hours
  • Dimensions approx. 95 x 70 x 26 mm
  • Weight (including batteries) approx. 110 g

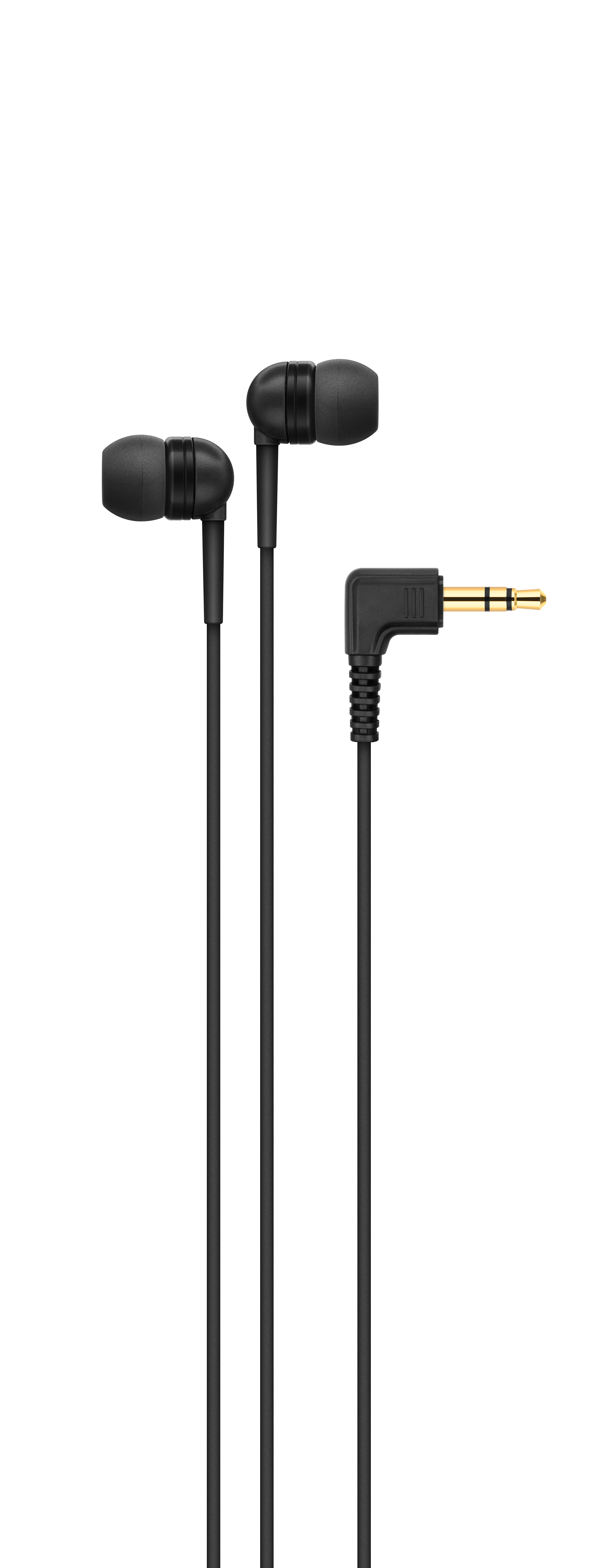

  • IE 4 in-ear headphones
  • Dynamic transducer
  • Frequency response 40-20,000 Hz
  • SPL (1 kHz, 1 mW) 106 dB
  • Nominal impedance 6 Ω
  • Cable length 1.4 m
  • Plug 3.5 mm stereo plug
  • (1/8"), gold-plated
  • Temperature range -5°C to +50°C
