Numerisches mischpult

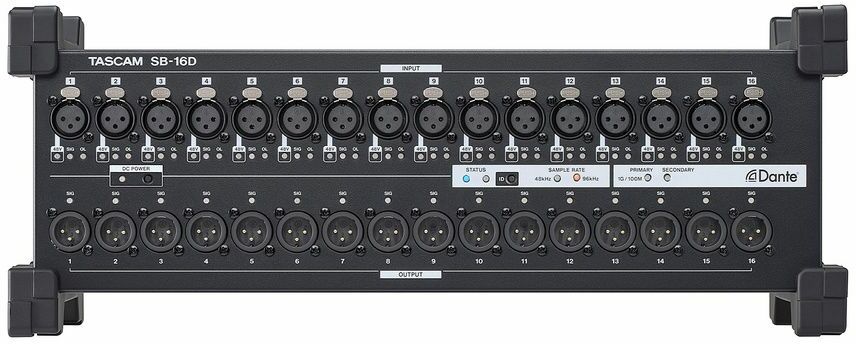

The Tascam SB-16d is a Dante stagebox with 16 inputs/16 outputs.

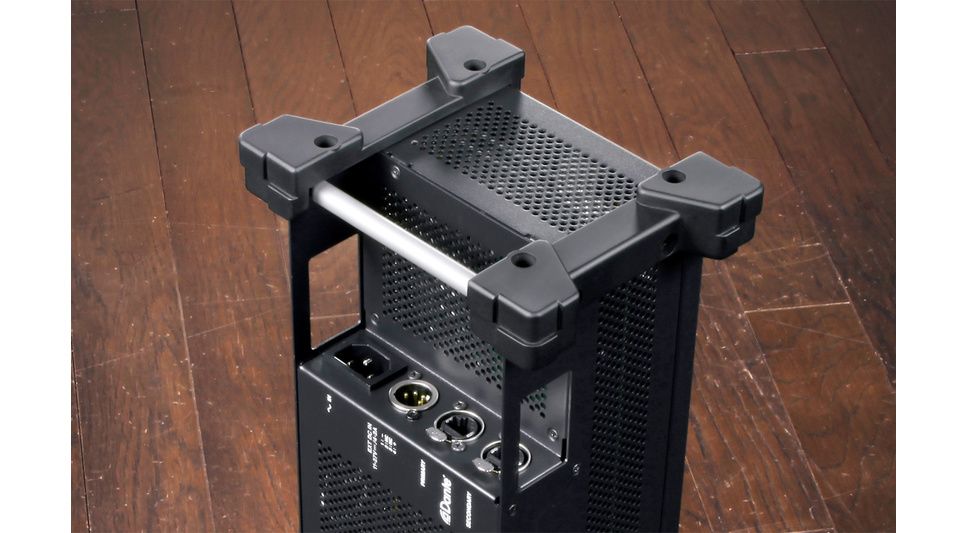

The SB-16D is an active Dante stagebox with 16 analog inputs and 16 analog outputs. Thanks to its 32-bit A/D converters and Class 1 HDIA mic preamps, the SB-16D captures audio signals with the best possible audio quality, right at the origin of the signal path. You can use several simultaneously in a single Dante network - floor-standing or rack-mounted.
Offering the same performance and build quality as Tascam Sonicview live sound consoles, the SB-16D lets you enjoy all the benefits of Dante audio networking, plus easy integration with Sonicview consoles and other Dante products from Tascam - and other manufacturers.

Technisches Arbeitsblatt

Anzahl von Kanal des Mischpults 10 zu 22 Kanäle

Analog audio inputs and outputs
Mic/line inputs (balanced, INPUT 1-16) XLR-3-31 (1: ground, 2: hot spot, 3: cold spot)
Maximum input level +12 dBu (TRIM on minimum, PAD off)
+32 dBu (TRIM on minimum, PAD on)
Minimum input level -62 dBu (TRIM on maximum, PAD off)
-42 dBu (TRIM to maximum, PAD on)
Input impedance ?5 kΩ
Line outputs (balanced, OUPUT 1-16) XLR-3-32 (1: ground, 2: hot spot, 3: cold spot)
Maximum output level (switchable) +15 dBu (Ref(D) : -9 dBFS, Ref(A) : +6 dBu)
+18 dBu (Ref(D) : -14 dBFS, Ref(A) : +4 dBu)
+20 dBu (Ref(D) : -16 dBFS, Ref(A) : +4 dBu)
+18 dBu (Ref(D) : -18 dBFS, Ref(A) : 0 dBu)
+20 dBu (Ref(D) : -20 dBFS, Ref(A) : 0 dBu)
+22 dBu (Ref(D) : -18 dBFS, Ref(A) : +4 dBu)
+24 dBu (Ref(D) : -20 dBFS, Ref(A) : +4 dBu)
Maximum output level (switchable) +6 dBu (Ref(D) : -9 dBFS)
+4 dBu (Ref(D) : -14 dBFS, -16 dBFS
+4 dBu or 0 dBu (Ref(D) : -18 dBFS, -20 dBFS)
Output impedance ? 100 Ω.
digital audio inputs and outputs
Dante PRIMARY/SECONDARY etherCON, CAT5e compatible
Number of audio channels 64 channels (48 kHz)
32 channels (96 kHz)
Supported modes Redundant mode, switched mode
Gigabit Ethernet-compatible standard (1000BASE-T (IEEE 802.3ab))
Recommended cable Cat5e (shielded twisted pair) or higher

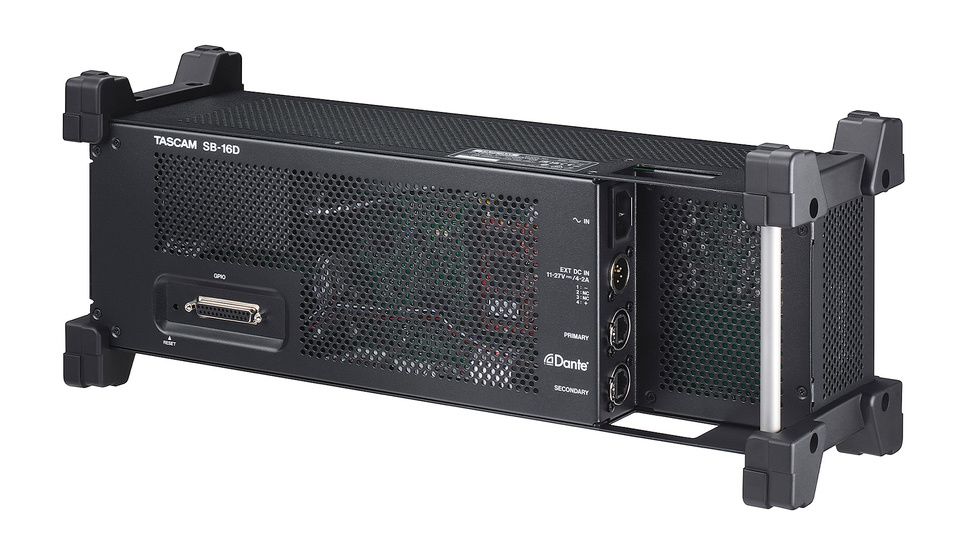

Other inputs and outputs
25-pin D-sub GPIO (8 inputs / 8 outputs, female, inch format)
Input circuit Pull-up (5 V)
Output circuit Open collector
Output impedance: 10 Ω
Voltage resistance: 20 V
Maximum output current: 35 mA
Maximum supply current (5 V) 50 mA
Audio characteristics
Equivalent input noise ? -128 dBu
Frequency response (mic/line input or Dante to line output) 20 Hz - 20 kHz +0/-0.5 dB (in 48 kHz, according to JEITA)
20 Hz - 40 kHz +0/-1 dB (96 kHz, according to JEITA)
Dynamic range ? 110 dB (mic/line input to Dante output, PAD off, TRIM min., Ref(D) -20 dBFS, JEITA)
? 111 dB (Dante input to line output, 48 kHz, JEITA)
?112 dB (Dante input to line output, 96 kHz, JEITA)
Distortion rate ? 0.002% (mic/line input to Dante output, +4 dBu input signal, PAD off, TRIM min., JEITA)
? 0.002% (Dante input to line output, 0 dBFS output signal, JEITA)
Channel separation ? -100 dB (mic/line input to line output, 1 kHz sinusoidal, JEITA)
Note: 0 dBu = 0.775 Vrms Ref(D): digital reference level
Power supply and miscellaneous
Mains supply 100-240 V, 50/60 Hz
DC voltage supply DC voltage between 11 V / 4 A and 27 V / 2 A
Power consumption 44 W
Overall dimensions (W × H × D) With feet: 454 mm × 140 mm × 180 mm
With rack ears: 483 mm × 132 mm × 120 mm
Weight 4.5 kg
Operating temperature range 0-40 °C
