Kompressor/limiter gate

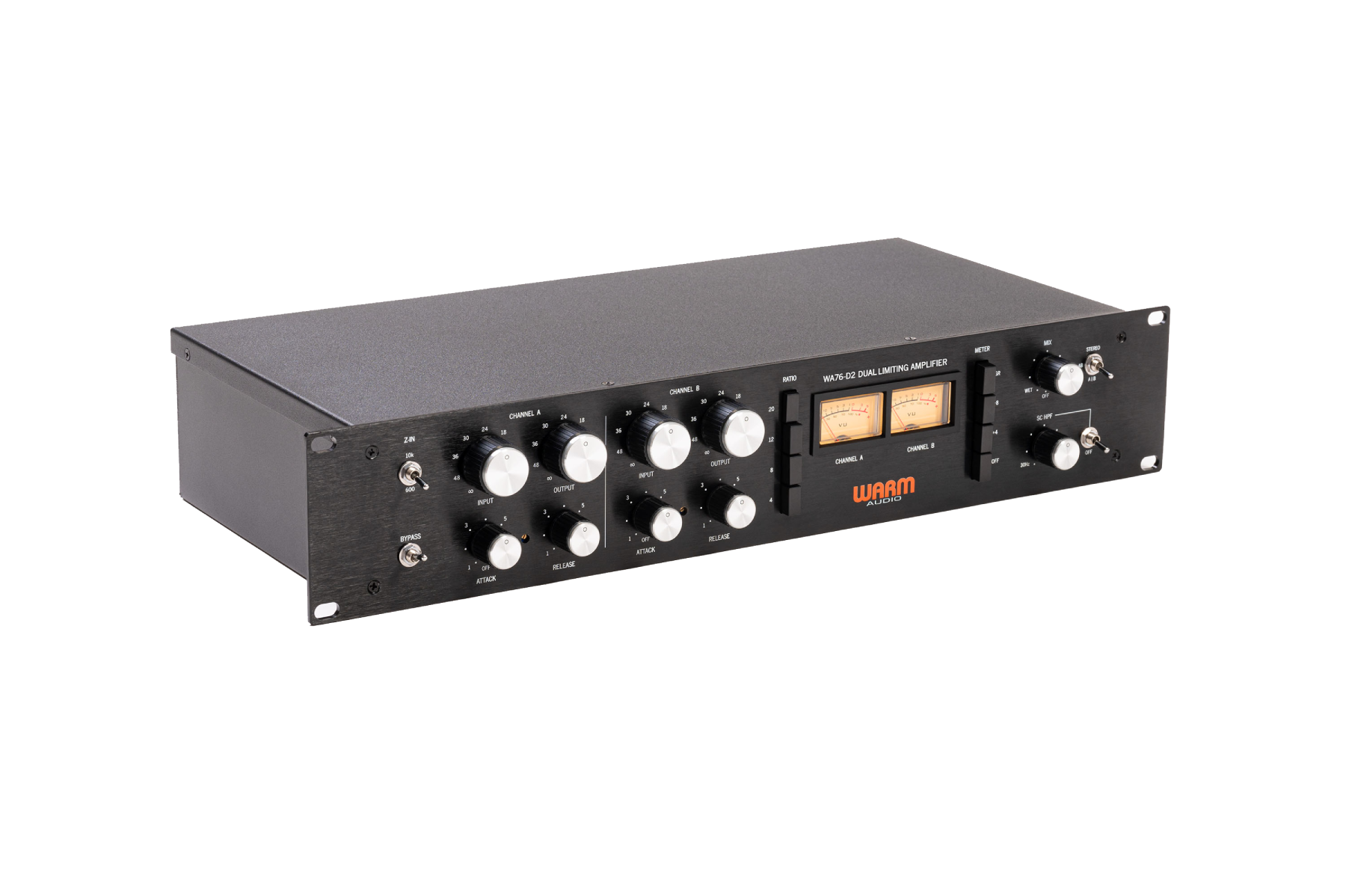

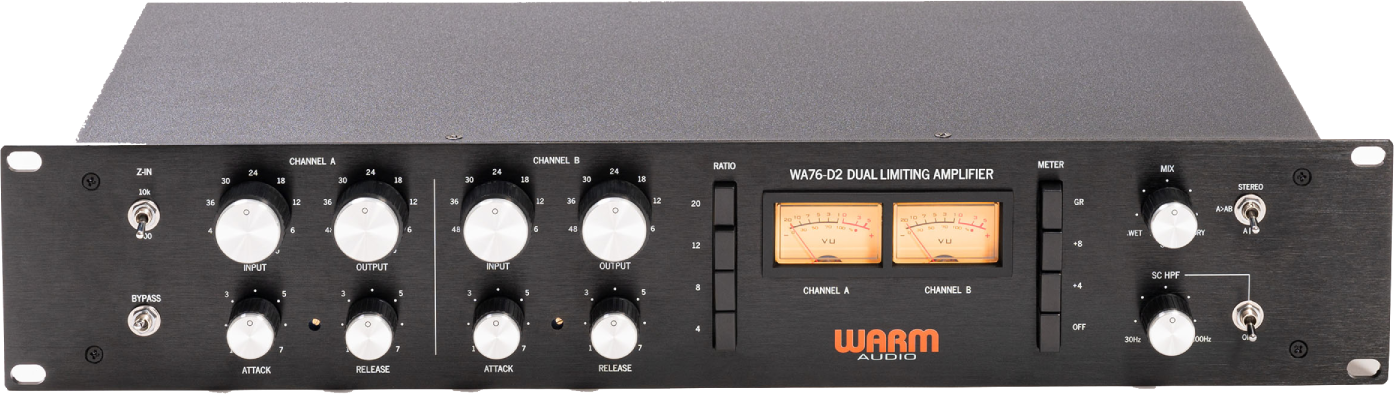

                        The WA76-D2 is the 2-channel version of the WA-76-A, with 3 operating modes: Stereo Linked - Primary / Secondary - Dual-Mono. It is a faithful reproduction of the analog FET compressor "Revision D" with additional recording features offered by the Warm Audio brand.
The WA76-D2 accurately reproduces one of the most legendary studio compressors, renowned for offering generous headroom, ultra-fast dynamic control and rich sonic texture.
Thanks to the use of high-quality components such as CineMag's O-12 input and 5002 output transformers, the WA76-D reproduces the famous 76 Rev-D compression, known for its low-noise preamp and unique analog character.
Modern controls have been incorporated, including parallel compression, bypass, input impedance selection, and flexible sidechain options.
Ideal for adding a vintage touch to contemporary recordings, the WA76-D2 recreates the iconic sound adopted by artists and producers such as Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, and Daft Punk.
                The WA76-D2 accurately reproduces one of the most legendary studio compressors, renowned for offering generous headroom, ultra-fast dynamic control and rich sonic texture.
Thanks to the use of high-quality components such as CineMag's O-12 input and 5002 output transformers, the WA76-D reproduces the famous 76 Rev-D compression, known for its low-noise preamp and unique analog character.
Modern controls have been incorporated, including parallel compression, bypass, input impedance selection, and flexible sidechain options.
Ideal for adding a vintage touch to contemporary recordings, the WA76-D2 recreates the iconic sound adopted by artists and producers such as Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, and Daft Punk.
Lire la suite
            Technisches Arbeitsblatt
- Version - 2-Kanal des WA-76-A

- Betriebsarten - Stereo Linked - Primary / Secondary - Dual-Mono

- VU-Meter - Verstärkungsreduzierung, Ausgang +8 dB, Ausgang +4 dB, "Off"-Modus zum Ausschalten des Geräts.

- Ausgangsverstärker - Klasse A für optimalen Line-Pegel

- Audiosignalpfad - 100 % diskret

- Transformatoren - Eingang CineMag USA O-12, Ausgang CineMag USA 5002.

- Eingangsimpedanz - Wählbar (600 Ω oder 10 kΩ)

- Mischen - Mischung zwischen dem trockenen und dem komprimierten Signal.

- Hochpassfilter - Variabel auf der Side-Chain (30-300 Hz, Flankensteilheit 12 dB/Oktave).

- Eingänge - Stereo Link und Insert auf 6,35 mm Klinke.

- Bypass - Aktiv für die Verwendung als Line-Verstärker, True Bypass-Option für A/B-Vergleiche.

- Attack-Zeit - Einstellbar von 20 Mikrosekunden bis 800 Mikrosekunden.

- Release-Zeit - Von 50 ms bis 1,1 s

- Kompressionsverhältnisse - 4:1, 8:1, 12:1, 20:1 und "All Buttons In"-Modus für einen begrenzenden Effekt.

- Frequenzgang - ±1 dB von 20 Hz bis 20 kHz

- Anschlüsse - Symmetrisch auf XLR und TRS-Klinke.

- Maximale Verstärkung - 53 dB

- Signal-Rausch-Abstand (SNR) - 86 dB

- Totale harmonische Verzerrung (THD) - -64 dB (bei -18 dBu)

- Format - 19-Zoll-2U-Rack
