Beschreibung

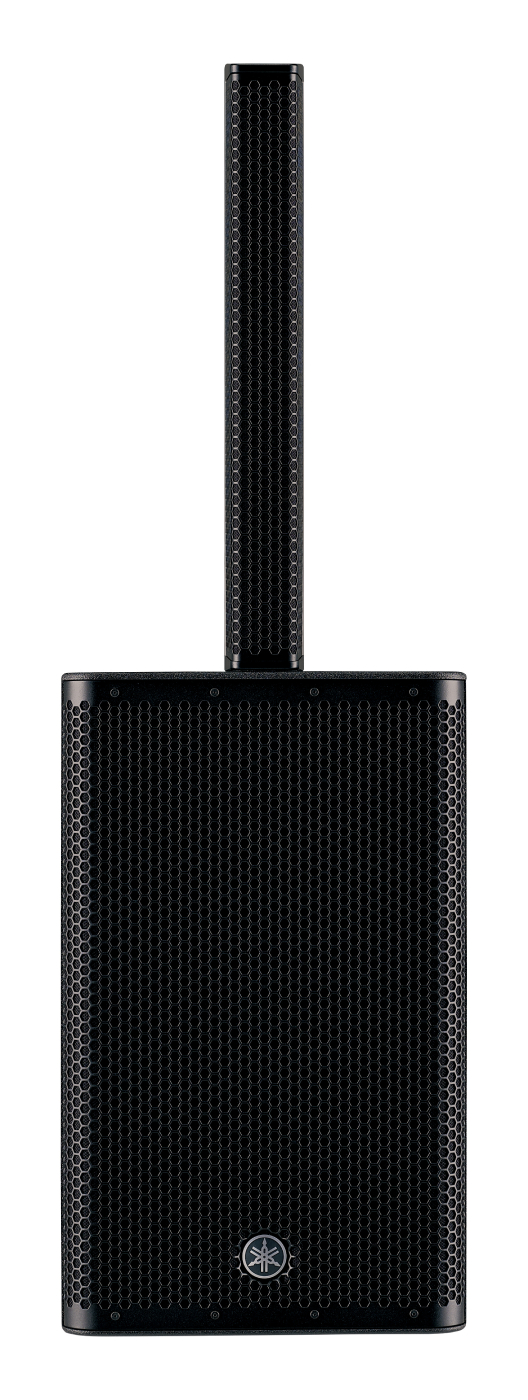

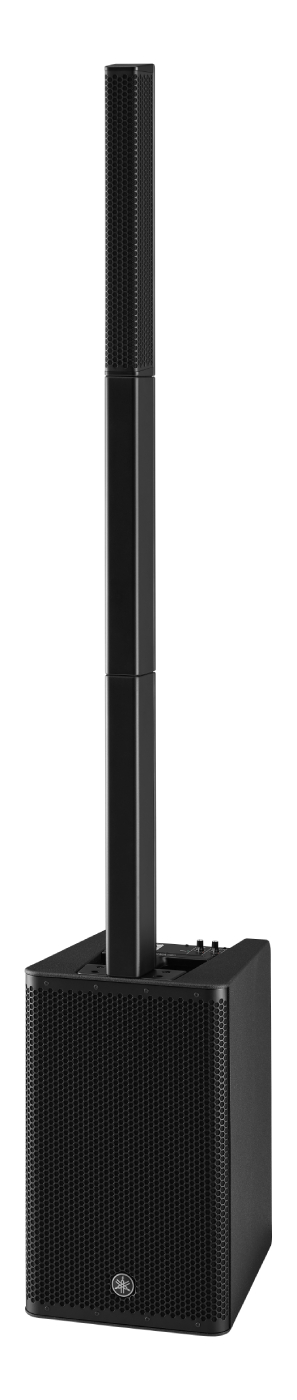

The Yamaha DXL1k is an amplified column system.
The DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output that belies its extremely portable slim body (a dedicated carrying cart is sold separately).
The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact, and high-quality PA system.
1100W power output
Biggest in the class 12-inch subwoofer for low frequency
1.5-inch x10 slim line array speaker for high frequency
Easy-to-use 2-Channel Mixer
Link in/out for expanding system

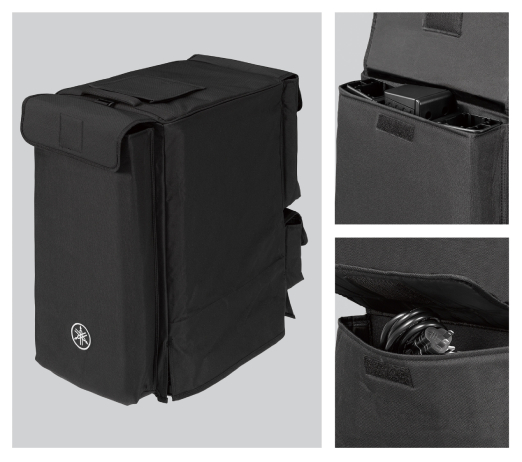

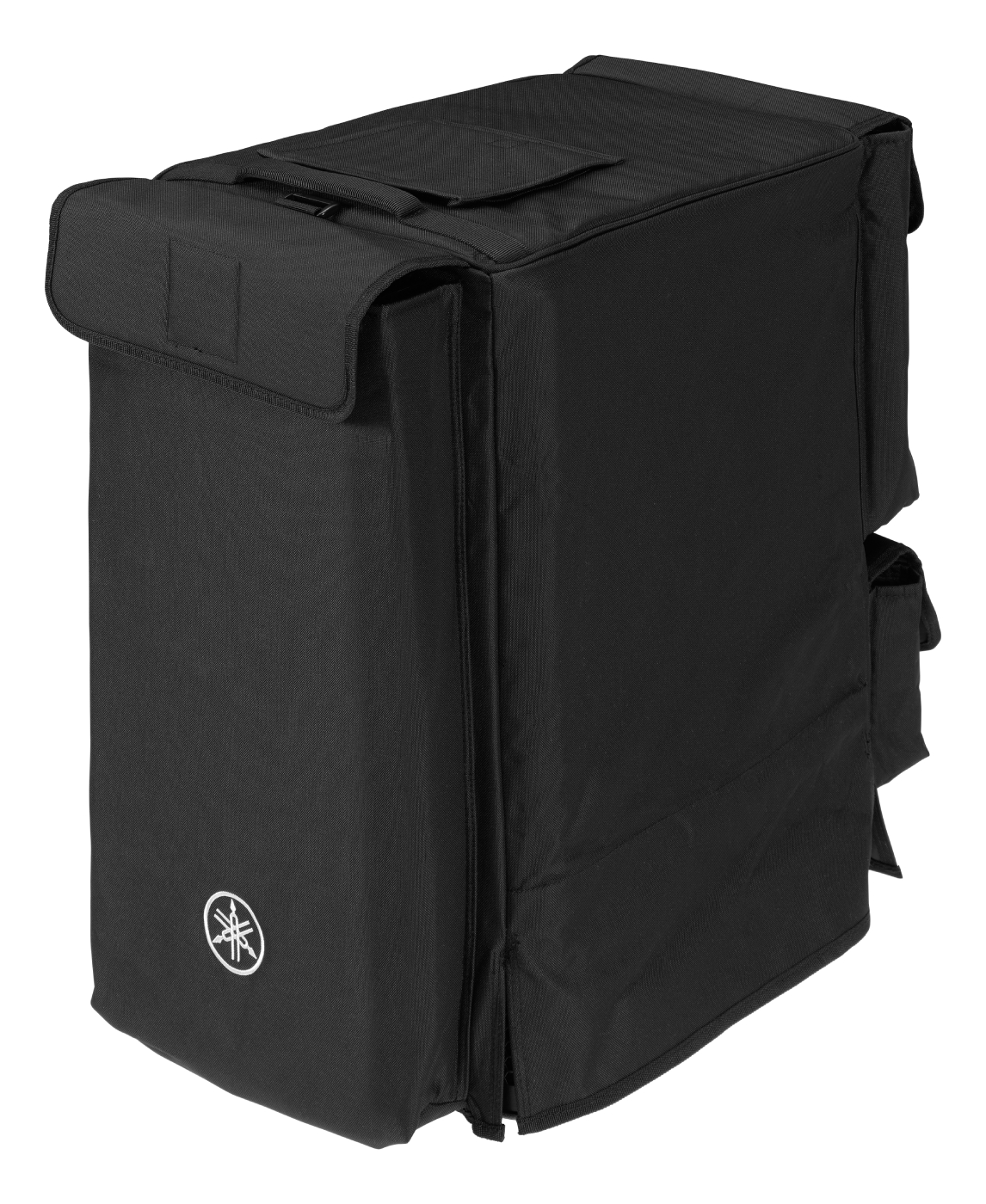

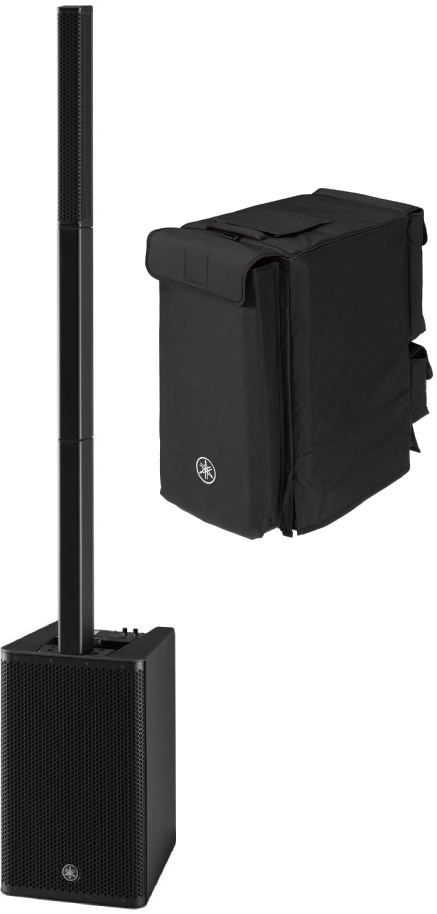

Dedicated cover included
Optional dolly (DL-SP1K) for more portability
The DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output that belies its extremely portable slim body (a dedicated carrying cart is sold separately).
The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact, and high-quality PA system.
1100W power output
Biggest in the class 12-inch subwoofer for low frequency
1.5-inch x10 slim line array speaker for high frequency
Easy-to-use 2-Channel Mixer
Link in/out for expanding system
Dedicated cover included
Optional dolly (DL-SP1K) for more portability
Lire la suite
Technisches Arbeitsblatt
- Speaker type : Powered subwoofer with a line array speaker
- Frequency range (-10dB) 37 Hz - 20 kHz
- Coverage area H170? x V30?
- Crossover 240 Hz
- Maximum output level (1m; on axis) 125 dB SPL
- Power consumption 25 W (Idle), 91 W (1/8 power)

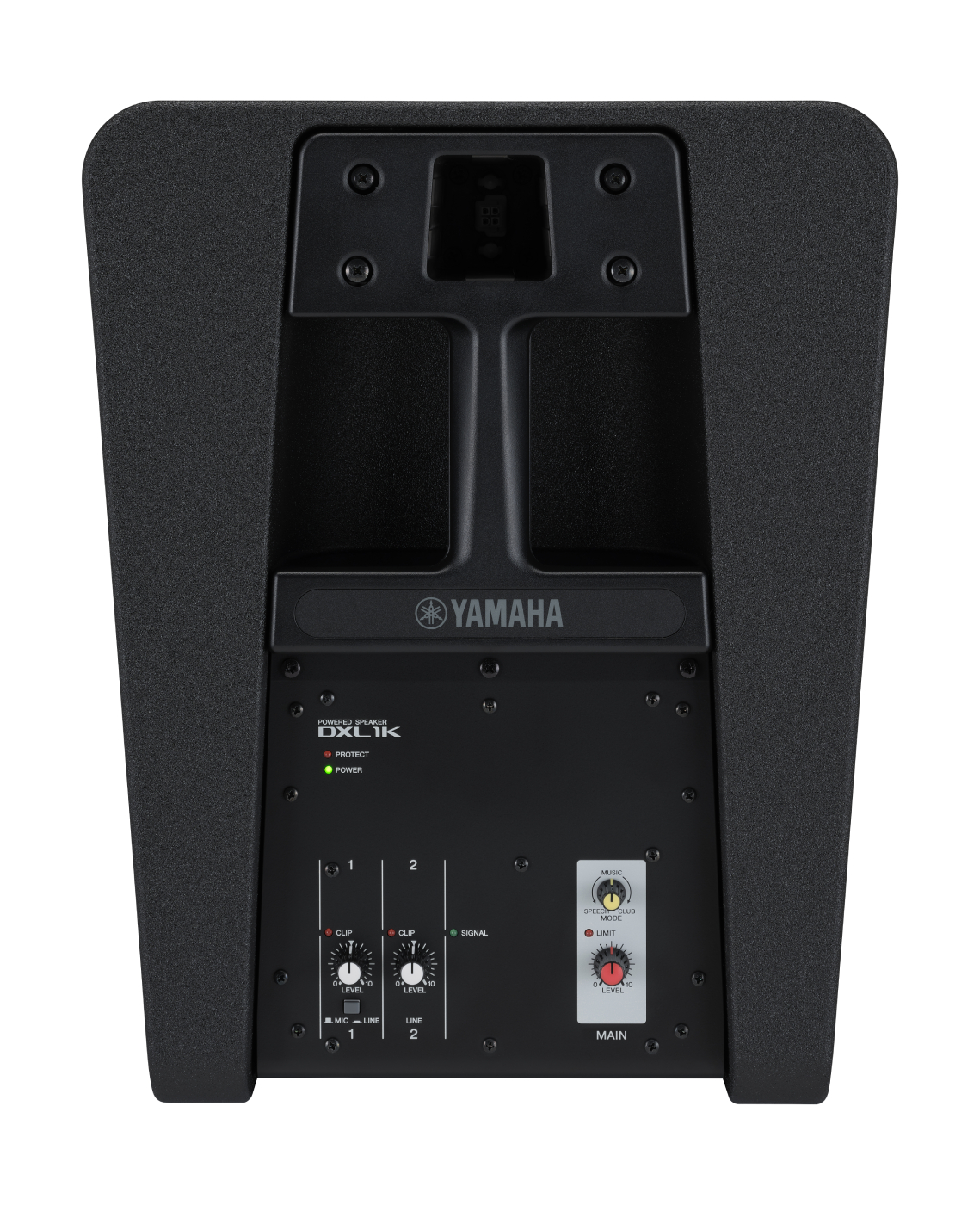

- I/O connectors INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1
- Dimensions (W x H x D) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
- Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
- Accessories Power cord x1, Cover x1
