Yamaha MG12XU

  • Bewertungen lesen (4)
  • Zugehöriges Zubehör
  • Ähnliche Produkte

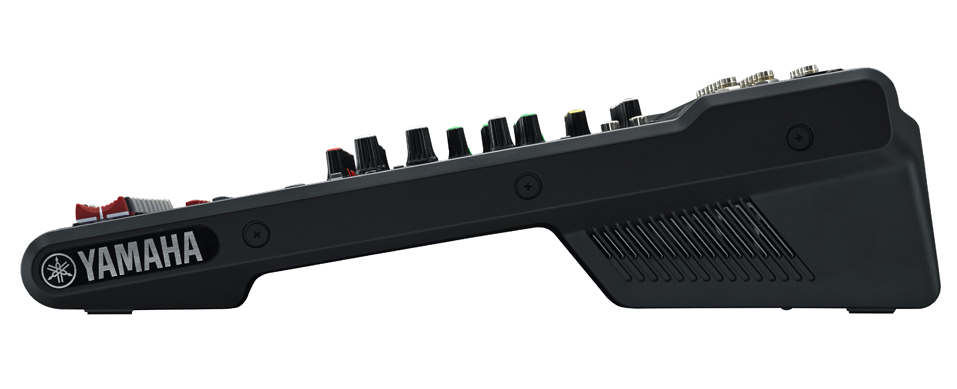

  • Yamaha Mg12xu - Analoges Mischpult - Main picture
  • Yamaha Mg12xu - Analoges Mischpult - Variation 1
  • Yamaha Mg12xu - Analoges Mischpult - Variation 2
  • Yamaha Mg12xu - Analoges Mischpult - Variation 3
VIDEO
VIDEO
604.80 €
444,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 34660
Lieferbar
innerhalb von 24 Stunden lieferbar
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Andere Version(en) oder zugehörige(s) Produkt(e)

Die Marke Yamaha

Erfahren Sie mehr über die Marke Yamaha und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Analoges mischpult

Es ist einfach der idealen Analog-Mixer, dass Yamaha uns hier mit diesem MG12XU 12-Kanäle anbietet - ein klein aber beeindruckend Analog-Mixer !

Das Yamaha MG12XU ist ein vielseitiger, robuster und fantastisch klingender Analog-Mixer mit 12 Kanälen. Es ist mit einem 2x2 USB-Interface ausgestattet.

Jeder Kanal verfügt über einen 3-Band-Equalizer, wobei das Mittenband an den ersten achte Kanälen parametrisch gestaltet ist. Diese Kanäle bieten zudem einen One-Knob-Kompressor und einen Klasse-AD Vorverstärker mit Phantomspeisung.
Lire la suite

Technisches Arbeitsblatt

  • Anzahl von Kanal des Mischpults 10 zu 22 Kanäle
  • Mischpult-Konnektivität Ohne Computerverbindung
  • Mixing capability
  • On-board processors
  • SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O
  • Phantom power: +48 V
  • Digital I/O
  • USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE]: 4
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE]: 2
  • Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 2
  • GROUP OUT: 2
  • Bus
  • Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements: AC 100 – 240 V, 50 / 60 Hz
  • Power consumption: 22 W
  • Dimensions
  • W: 308 mm (12.1")
  • H : 118 mm (4.6")
  • D : 422 mm (16.6")
  • Net weight: 4.2 kg (9.3 lbs.)
  • Accessories :
  • Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
  • Others:
  • Operating Temperature: 0 to +40?C
Weitere Spezifikationen
Weniger Spezifikationen
