Dmx controller & software

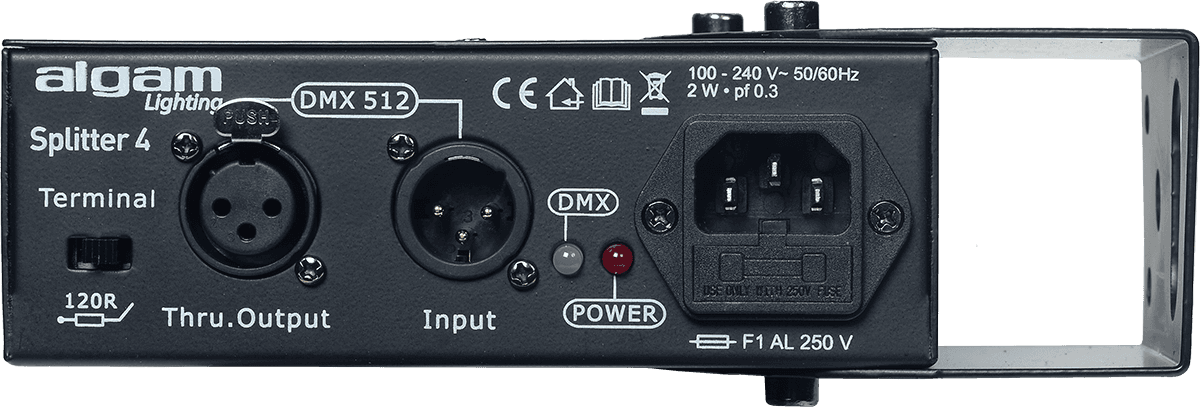

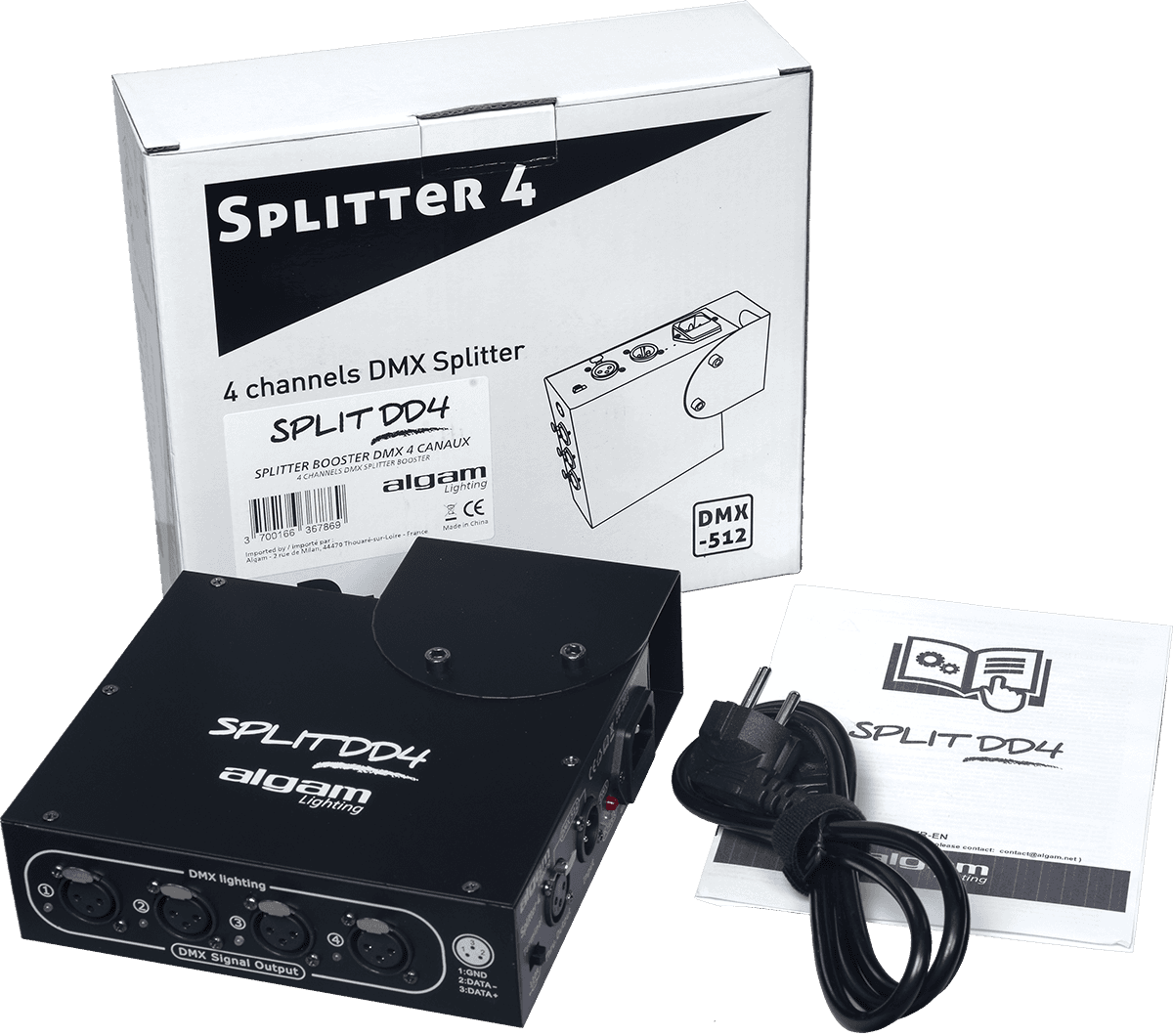

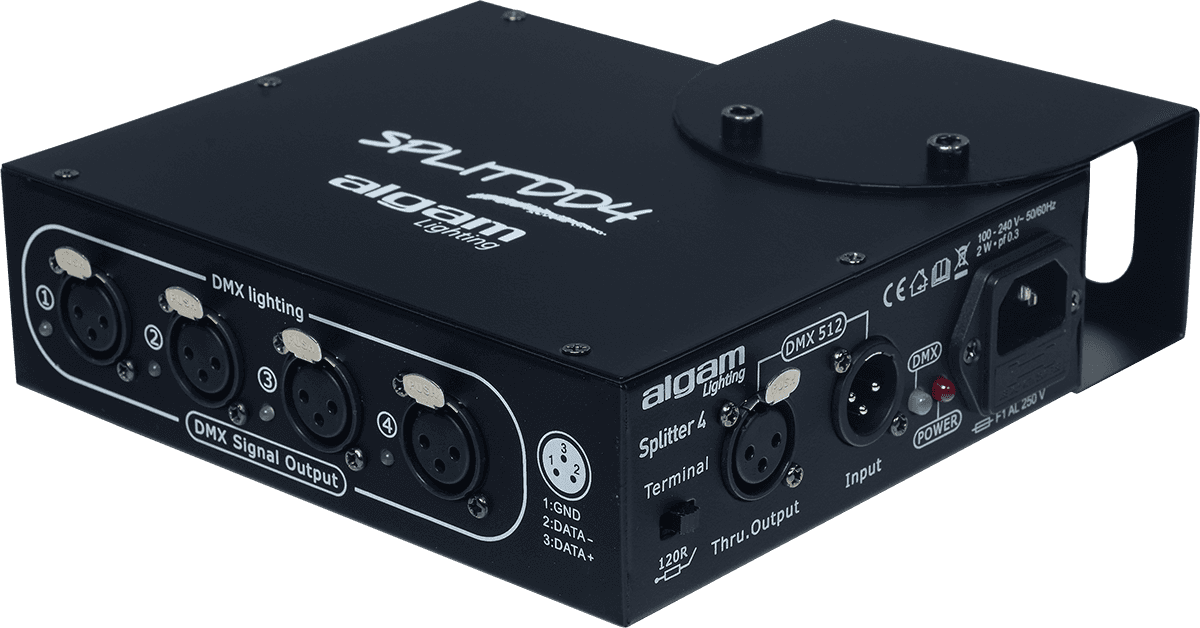

The Algam Lighting Split DD4 is a 4 channel DMX distributor.
A 4 channel DMX splitter booster for cascading your DMX devices. The SPLITDD4 allows you to avoid long DMX chains in your lighting installation, as well as a better distribution of the cable chains. The SPLITDD4 is equipped with a structure attachment to secure its installation.
A 4 channel DMX splitter booster for cascading your DMX devices. The SPLITDD4 allows you to avoid long DMX chains in your lighting installation, as well as a better distribution of the cable chains. The SPLITDD4 is equipped with a structure attachment to secure its installation.
Lire la suite
Technisches Arbeitsblatt
- Power supply: 100 - 240 V AC - 50/60 Hz
- Category: Distributor
- Number of DMX channels: 4
- DMX output: XLR
- Additional specs :
- 1 DMX input and 4 DMX outputs
- Up to 32 DMX devices connected to one output
- 100% compatible with DMX-512 (1990)
- Each DMX output is driven with its own independent driver
- Opto-electronic isolation between inputs and outputs
- Opto-electronic isolation between outputs
- Signal LED on each output
- 120Ω DMX circuit breaker switch
- Fuse (internal): F 500 MA, 250 V
