Black lion audio Revolution 6x6

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Black Lion Audio Revolution 6x6 - USB audio interface - Main picture
  • Black Lion Audio Revolution 6x6 - USB audio interface - Variation 1
  • Black Lion Audio Revolution 6x6 - USB audio interface - Variation 2
699.00 €
619,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 112758
Lieferbar
3-5 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Black lion audio

Erfahren Sie mehr über die Marke Black lion audio und entdecken Sie den gesamten Katalog.

Kaufberatung für Soundkarten Audio-Interface

In dieser Kaufberatung finden Sie alle Informationen, die Sie für Ihren ersten Kauf eines Audio-Interfaces benötigen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Usb audio interface

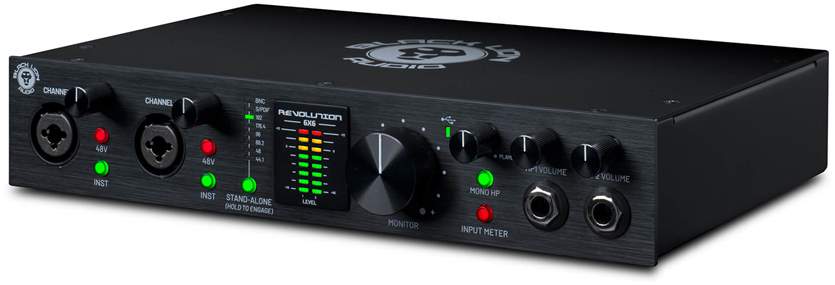

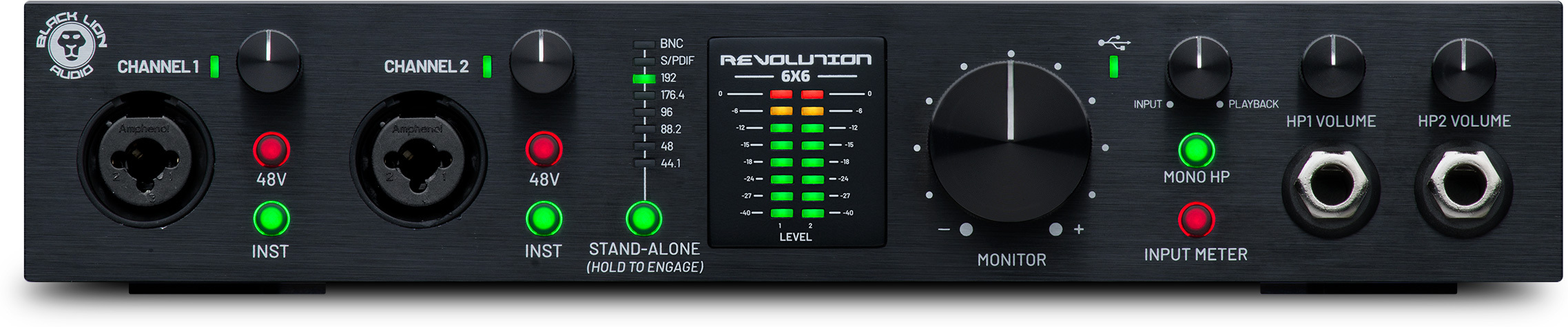

The Revolution 6x6 is a USB audio interface offered by the Black Lion Audio brand.

Beyond what you expect from an audio interface.

The Revolution 6x6 is designed to be the heart of your studio. It will serve as a master clock, a standalone digital audio converter, and a natively supported 6 I/O USB interface, with audio quality worthy of the Revolution name. Benefit from high-end clocking and low-noise conversion when recording to Studio One Artist (included). Use the USB OTG connection to sample audio from your phone or tablet, or send audio from your laptop to your mobile device and stream your performance live over the internet. Sync your other devices with our ultra-accurate Macro-MMC clock, while giving your music the best sound possible.

Audio interfaces have never been better.

The Revolution 6x6 is a native USB bus-powered USB audio interface that delivers excellent signal quality thanks to Black Lion's years of experience modifying audio interfaces. Record any mic, line or instrument signal with the balanced XLR inputs. Connect professional studio monitors or use its two powerful headphone outputs for clear, mono-switchable output with direct control of the latency-free monitoring mix. Integrate external equipment via S/PDIF and USB OTG connection.

We've built into the Revolution 6x6 everything we've learned about interfaces over our years of modifying... as we like to say, it's modified from the factory to produce the best sound. The Revolution 6x6 is equipped with a Macro-MMC clock for maximum conversion quality, minimal jitter, beautiful harmonics for perfectly detailed and crystal clear highs. Exclusive PG-i filtering technology and highly filtered power rails are combined with full-circuit power decoupling to further reduce possible noise contamination from external devices. For optimal capture and playback, the Revolution 6x6 uses high-end integrated circuits and Vishay, Nichicon and Wima capacitors, with internal gain optimized to ensure the best signal-to-noise ratio. Finally, all analog I/O is fully decoupled and balanced - right down to the very heart of the converter!

Standalone mode for using the DAC and ADC.

Not all studio tasks require a computer. The Revolution 6x6's DAC, word clock and D/A conversion functions can all be used without a computer; just press and hold the “Standalone” button. Plug in your media player via S/PDIF and enjoy classic hi-fi listening with the latest generation of high-end conversion, or add two additional output channels from another audio interface or mixer digital. Many MPCs, synthesizers and guitar processors also feature S/PDIF, which often results in better sound than using their own converters.

For recording, connect any guitar processor with an S/PDIF output and enjoy high-quality D/A conversion for your guitars. You can also connect the Revolution 6x6 to your computer via USB for hi-fi listening, bypassing the converters on your old laptop. Use S/PDIF to add two channels to an audio interface or digital mixer, all synchronized by the same master clock via BNC. As a standalone A/D converter, you add two superior channels of Black Lion-converted audio via S/PDIF to your existing recording setup.

Be mobile with USB On-The-Go.

USB On-The-Go connectivity gives the Revolution 6x6 2-in, 2-out connectivity with Android and Apple mobile devices. It's ideal for livestreamers and mobile musicians who record or stream from phones and tablets. Connect two USB devices to the Revolution 6x6 simultaneously and send audio to and from either. Record from your phone to your laptop, or stream a performance to iPad from your phone...the possibilities are endless!

An amazing clock.

The Revolution 6x6's Macro-MMC (Master Music Clock) was developed from our experience creating dedicated clocks, as well as modifying many clocks built into other recording interfaces. The Macro-MMC ensures the best possible performance from its converters, but also allows you to connect external devices via the BNC connections for maximum synchronization and ultra-low jitter - meaning all devices synchronized via the Macro-MMC communicate as accurately as possible to minimize phase distortions that can muddy your highs and transients. If you've already invested in a clock you love, that's great - the Revolution 6x6 can be synced to this clock.

All the software tools you need, included.

The Revolution software suite covers all your software needs so you can start creating from day one. For example, you'll be able to record directly into Studio One Artist, and we've also included selected plugins from Izotope, Psychic Modulation, Brainworx and Lindell: PreSonus Studio One Artist: Music recording and production DAW Izotope Elements Suite: Nectar, Neutron , Ozone and RX for shaping, mastering and repair Psychic Modulation EchoMelt3: BPM-based modulation and echo BrainWorx bx_digital: Mid/Side EQ with filter and de-esser options Lindell 6X500: Colorful preamplifier model with equalizer two-band

Specificities :

More than a 6x6 audio interface - it's also a clock, DAC/ADC with USB OTG support and standalone mode. ‘Modded out of the box’ – all the famous Black Lion Audio interface ‘mods’ integrated. 2 preamps, 2 analog outputs, 2 analog inputs, S/PDIF I/O and word clock I/O. USB OTG for production from mobile devices and mobile streaming. Ultra-precise internal clock with "Macro-MMC" clock technology. High-end Vishay, Nichicon and Wima capacitors, Melf resistors and high-end integrated circuits for incredibly low noise floor. Includes PreSonus Studio One Artist, plus Izotope, Brainworx, Psychic Modulation, and Lindell plug-ins. All inputs and outputs are fully decoupled and balanced. Internal “PG-i” technology reduces noise contamination from external equipment.
Lire la suite

Technisches Arbeitsblatt

  • DSP Ja
  • Microphone Input
    • Input Impedance: 2KΩ (balanced)
    • Gain Range: 59dB
    • Frequency Response: 20Hz - 20KHz +/- 0.25dB
    • THD + N: 0.01% (Min Gain)
    • Dynamic Range: 112dB (A-weighted)
    • Crosstalk: Less than 100dB
  • Line Input
    • Input Impedance: 15KΩ (balanced)
    • Maximum Input: 21dBu
    • Gain Range: 59dB
    • Frequency Response: 20Hz - 20KHz +/- 0.25dB
    • THD + N: 0.01% (Min Gain)
    • Dynamic Range: 112dB (A-weighted)
    • Crosstalk: Less than 100dB
  • Line Outputs
    • Output Impedance: 47Ω (balanced)
    • Maximum Output Level: 12dBu
    • Frequency Response: 20Hz - 20KHz +/- 0.25dB
    • THD + N: 0.005% (@ +10dBu)
    • Dynamic Range: 106dB
  • Instrument Input
    • Input Impedance: 1MΩ (unbalanced)
    • Gain Range: 59dB
    • Frequency Response: 20Hz - 20KHz +/- 0.25dB
    • THD + N: 0.02% (Minimum Gain)
    • Dynamic Range: 103dB (A-weighted)
    • Crosstalk: Less than 100dB
  • Headphone Outputs
    • Output Impedance: 10Ω
    • Maximum Signal Output: 9.3dBu
    • Frequency Response: 20Hz - 20KHz +/- 0.5dB
  • Word Clock and USB OTG Function
    • Standalone DAC Mode
    • Precise Macro MMC Clock
    • 2 stereo headphone outputs with separate volume control
    • Direct monitoring with mix control and mono switch
    • A/D and D/A Conversion up to 24 bits / 192 kHz
    • LED Level Display
    • Phantom Power: +48V switchable
    • Volume Control
    • OTG cable or OTG adapter optional, not included
  • Dimensions and Weight
    • Dimensions (H x W x D): 10.16 x 25.4 x 22.86 cm
    • Weight: 1.75 kg
  • Complete Software Bundle Included (Download)
    • Presonus Studio One Artist
    • iZotope Elements Suite
    • BrainWorx BX Digital
    • Lindell 6X500

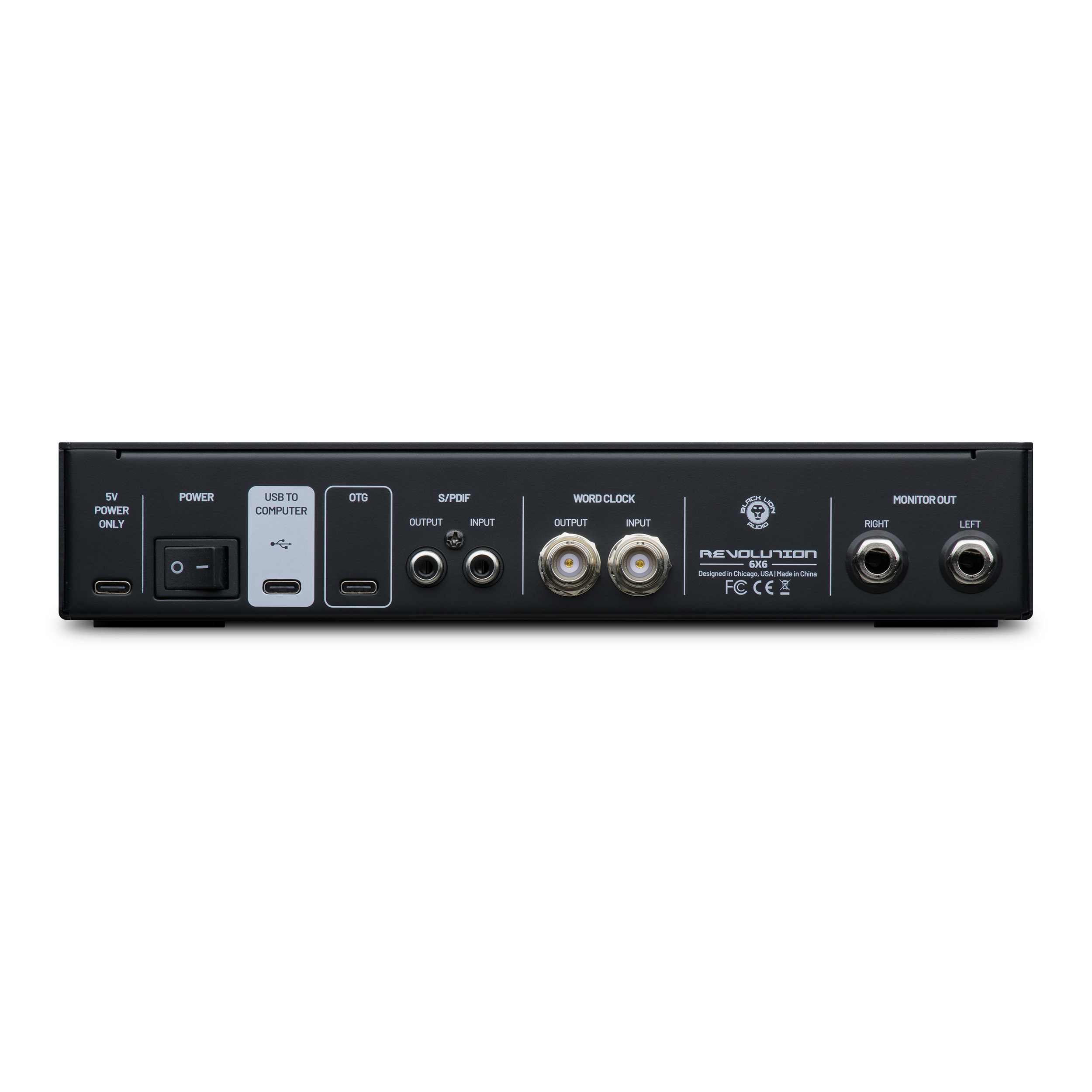

  • Connections
    • 2 microphone/line inputs on combined XLR/6.3 mm Jack
    • Word Clock input/output on BNC
    • S/PDIF input/output
    • 2 USB-OTG
    • 2 S/PDIF
    • 2 line outputs on balanced TRS 6.3 mm Jack
    • 2 headphone outputs on 6.3 mm stereo Jack
    • USB-C Port
    • Power Supply via USB-C
