Hk audio L5MKII-110XA

Bewertungen lesen (0)
Zugehöriges Zubehör
Ähnliche Produkte

1444.00 €

1190,00 €

Kostenlose Lieferung
Günstige Preise garantiert
Zufrieden oder erstattet
3 Jahre Garantie
Ref : 106346

Lieferbar

3-5 Tage Versand

Lagerbestand

Nicht im Geschäft erhältlich

Andere Version(en) oder zugehörige(s) Produkt(e)

Die Marke Hk audio

Erfahren Sie mehr über die Marke Hk audio und entdecken Sie den gesamten Katalog.

Entdecken

Shopping Guide Sono Equipment

Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih

Konsultieren

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

+33 181 930 900 email

Aktive lautsprecher

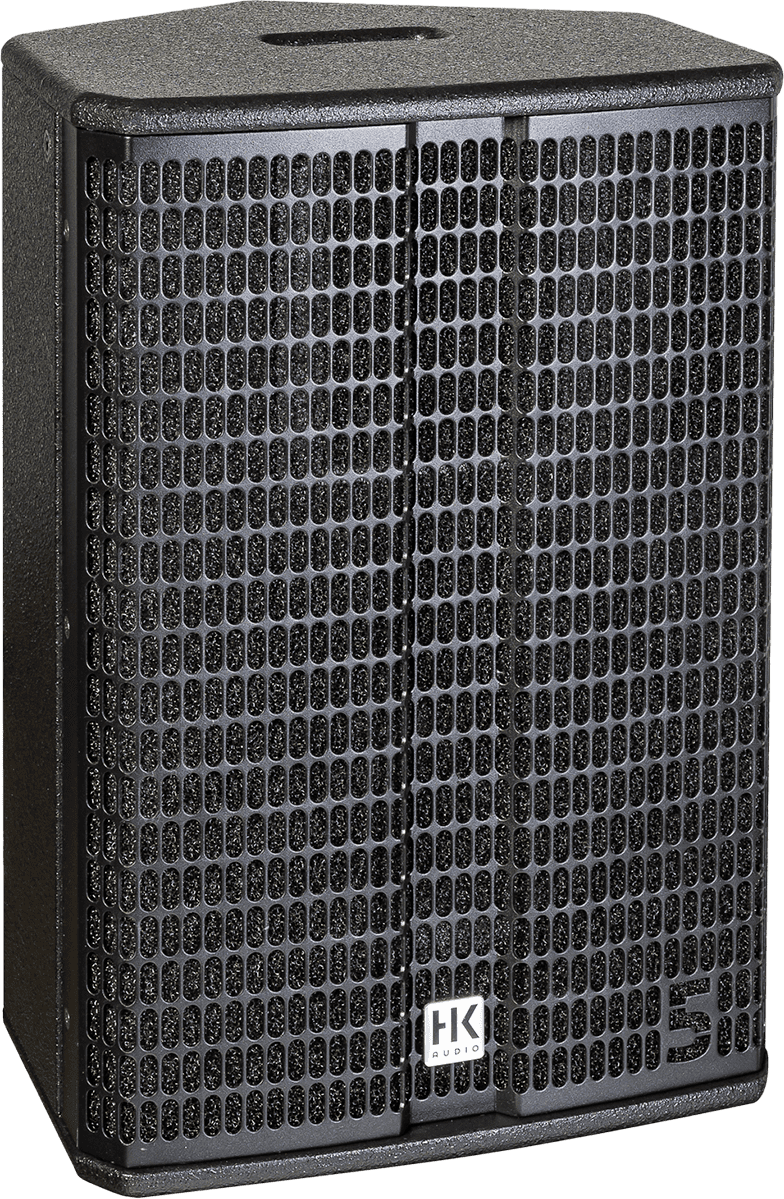

The HK audio L5 MKII-110 XA is an amplified PA speaker.

The LINEAR 5 MK II 110 XA is a compact, flexible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60°, it covers an enormously wide range of system configurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages – even without turning the horn.
In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories.

Technisches Arbeitsblatt

Leistung des PA-Lautsprechers 601 bis 1000 watts RMS
PA-Lautsprechertyp Bühnen & FOH Lautsprecher

Max. SPL @ 10 % THD 127 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD 135 dB half space*
Frequency response +/-3 dB 74 Hz – 12 kHz
Frequency response -10 dB 68 Hz – 19 kHz
Power amp output (RMS/Peak) 600 / 1,200 W
Amplifier type Class D – bi-amped
Woofer -
Low/mid speaker 1 x 10", 2" voice coil
HF driver 1", 1.4" voice coil
Horn characteristics 80° x 60° CD horn, rotatable
Active x-over frequency 2.1 kHz FIR X-over with 72 dB/oct.
Maximum input level 20 dBu

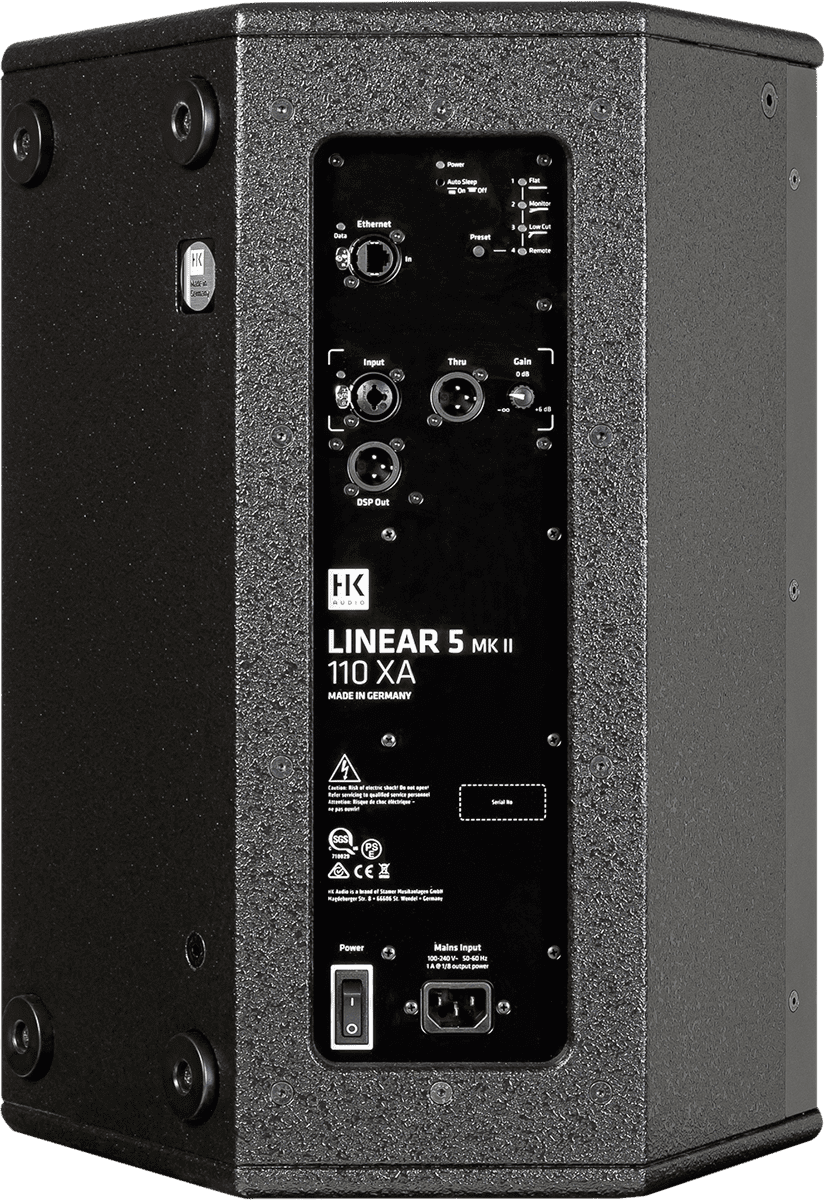

Analogue inputs 1 x XLR combo balanced
Analogue Thru 1 x XLR balanced
DSP Out 1 x XLR balanced
Network port EtherCON RJ45, 1 x In
Filter presets Flat, Monitor, Low Cut, Remote
Remote software DSP CONTROL (Windows, macOS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter,
Mute
Sample rate 48 kHz
System latency Less than 2 ms
Mains connection 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption 1 A / 100–240 V nominal according to EN 62368-1
Set-up angle (Monitor mode) 31°
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 1 x SingleGrip
Housing Hybrid (birch multiplex/MDF)
Surface Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 36 x 52.5 x 30 cm
14-1/16 x 20-43/64 x 11-13/16"
Weight 14.9 kg / 32.85 lbs
