Ld systems MIX 10 G3
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 80410
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Ld systems
Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.
Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Passive lautsprecher

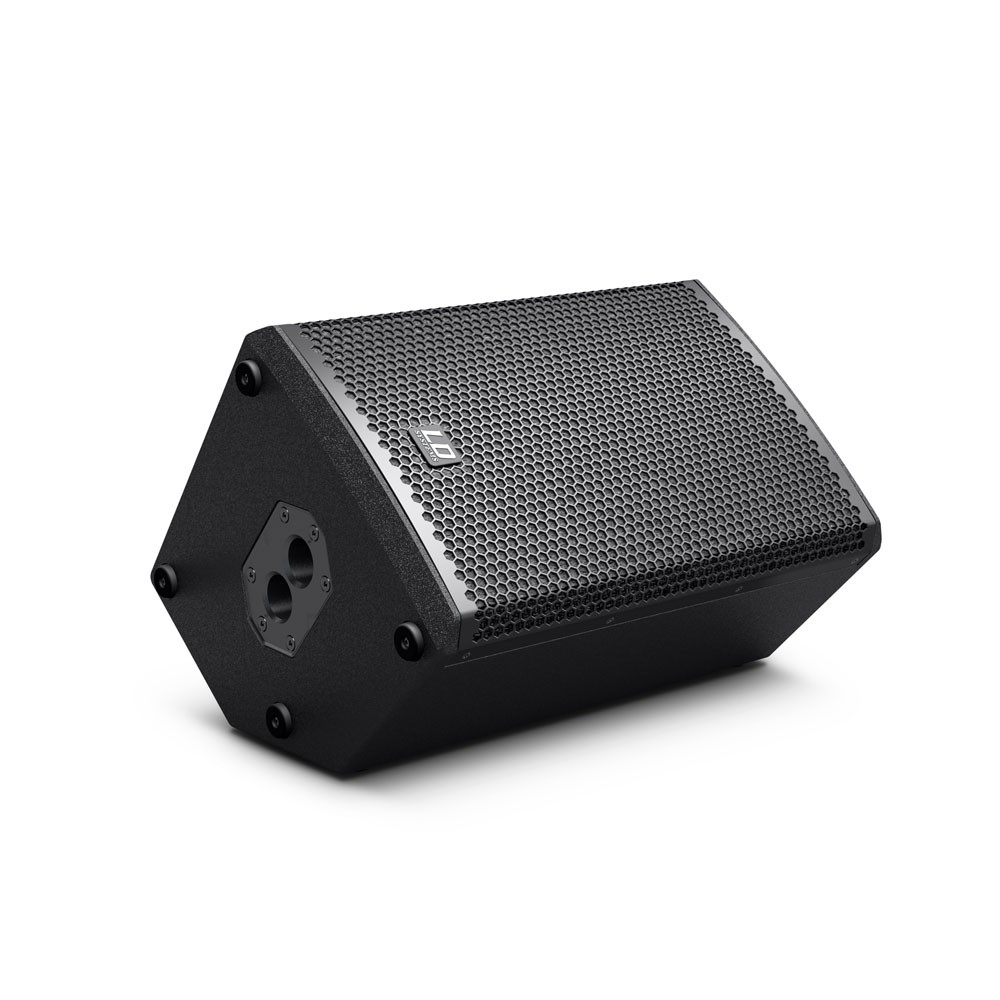

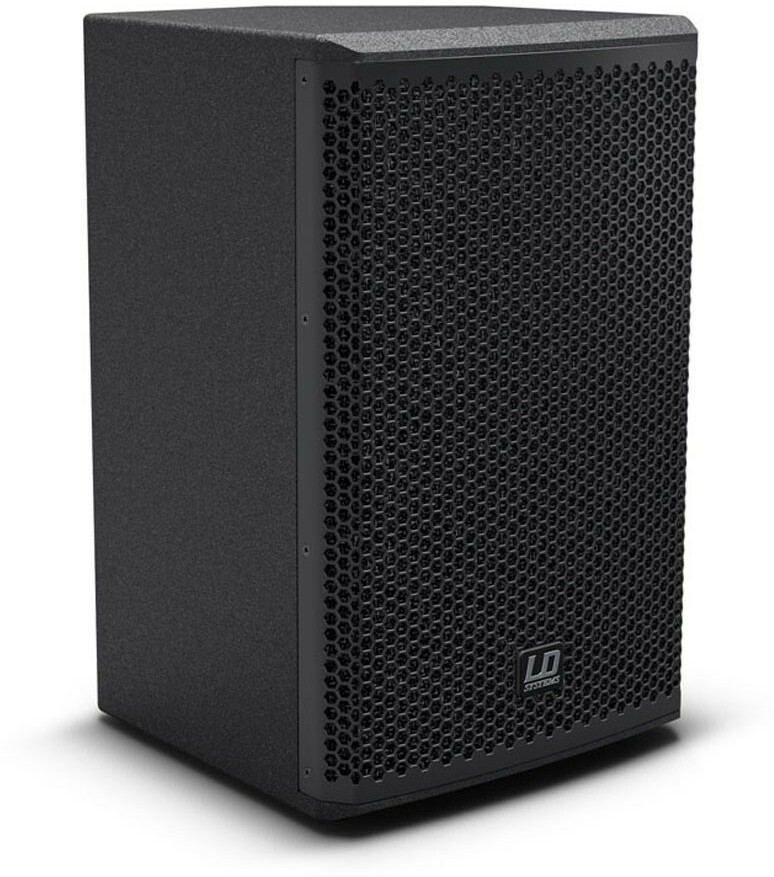

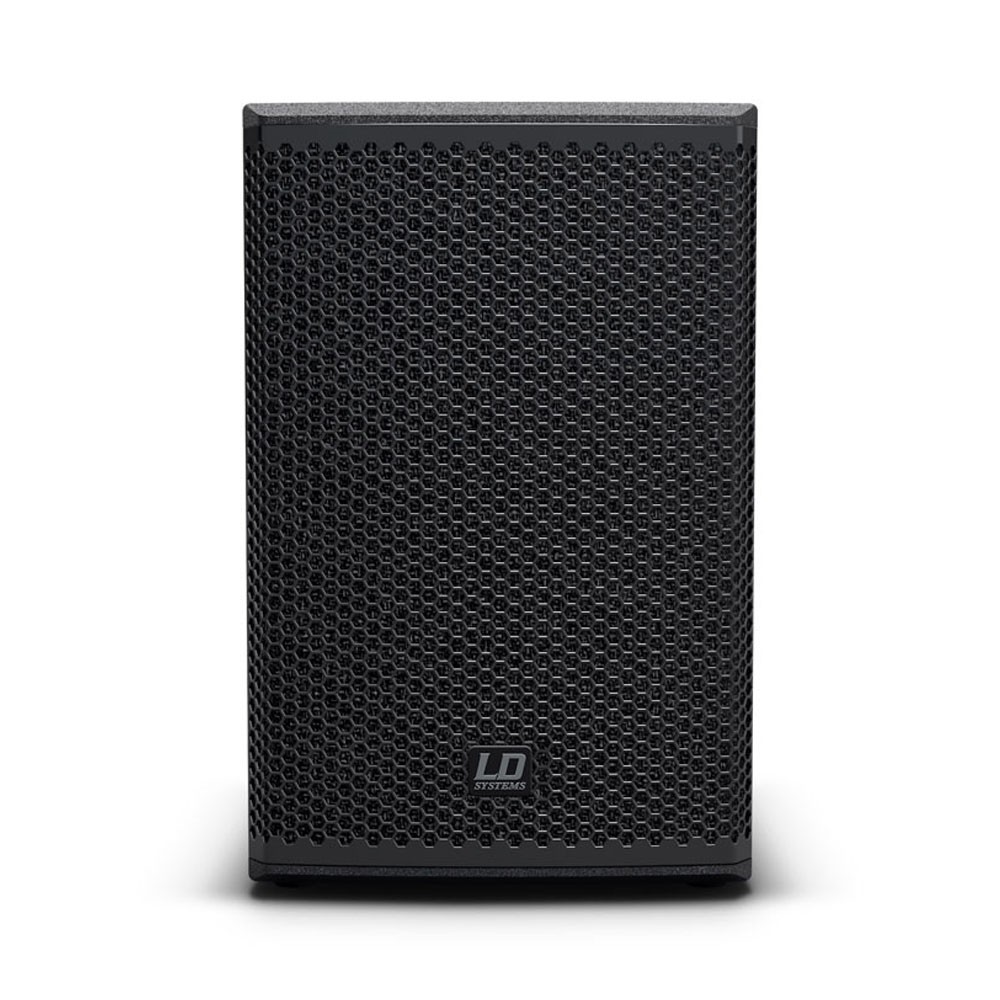

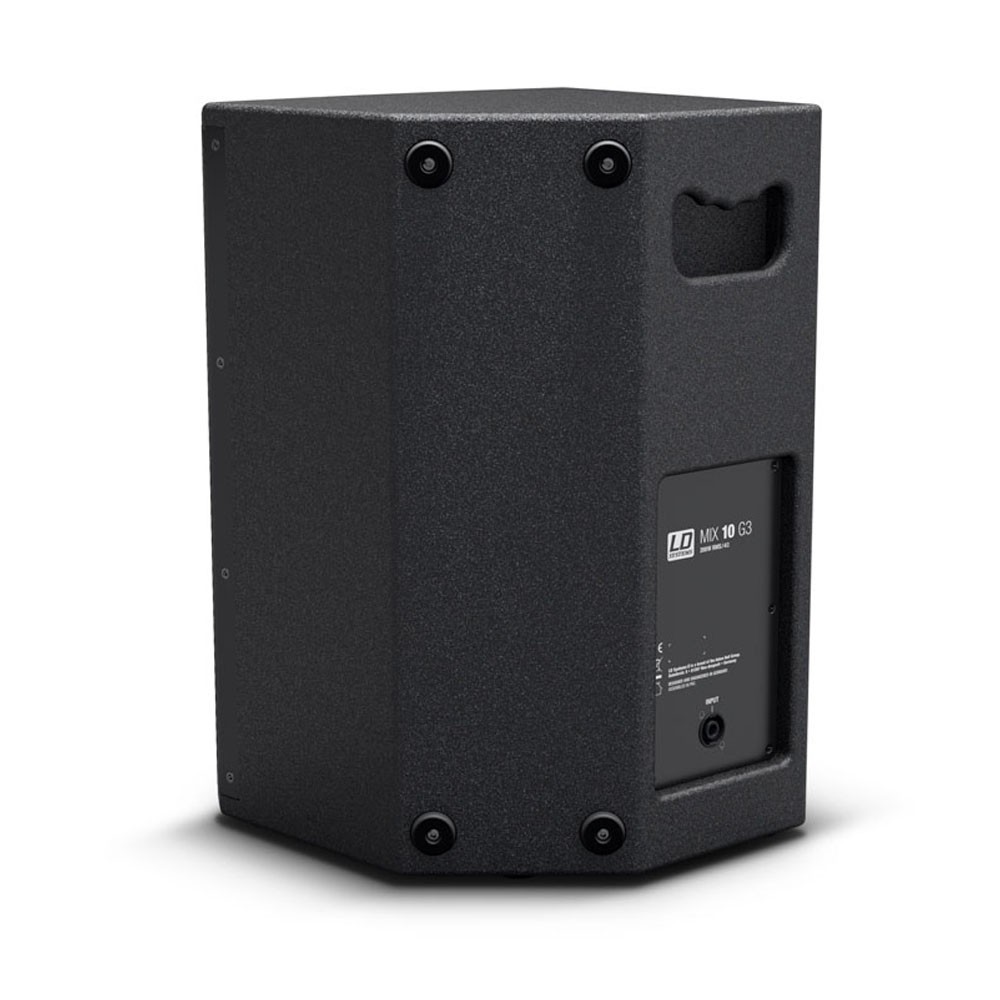

LD Systems Mix 10 G3 is a 2-way passive speaker.
This passive 2-way loudspeaker is designed for small sound reinforcement and stage return applications.
It is also equipped with a 10 "subwoofer and a 1" Celestion tweeter with a frequency response of 65 to 20,000 Hz and a dispersion angle of 80 ° x 70 ° for a crystal clear and powerful sound. the highest detail.
The compact bass-reflex housing of the MIX 10 G3 is built in rugged multiplex and is equipped with a speakON-compatible input with a 50 ° monitor angle and a dual-tilt dual-tilt tripod flange for straight or inclined at 5 °. As a stereo handset with the active variant, the MIX 10 G3 offers consistently convincing performances for a low weight that facilitates transport.
This passive 2-way loudspeaker is designed for small sound reinforcement and stage return applications.
It is also equipped with a 10 "subwoofer and a 1" Celestion tweeter with a frequency response of 65 to 20,000 Hz and a dispersion angle of 80 ° x 70 ° for a crystal clear and powerful sound. the highest detail.
The compact bass-reflex housing of the MIX 10 G3 is built in rugged multiplex and is equipped with a speakON-compatible input with a 50 ° monitor angle and a dual-tilt dual-tilt tripod flange for straight or inclined at 5 °. As a stereo handset with the active variant, the MIX 10 G3 offers consistently convincing performances for a low weight that facilitates transport.
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 151 bis 300 watts RMS
- PA-Lautsprechertyp FOH-Lautsprecher
- Product Type PA Speaker
- Passive Type
- Boomer diameter / medium 10 "
- Boomer diameter 254 mm
- Ferrite Boom Magnet
- Custom made boomer brand
- 2 "woofer coil
- Boomer coil (mm) 50,8 mm
- Constant directivity pavilion (CD)
- Diameter tweeter 1 "
- Tweeter diameter 25.4 mm
- Ferrite tweeter magnet
- Brand tweeter Celestion
- 1 "tweeter coil
- 25.4mm Tweeter Mobile Reel Diameter
- Dispersion angle (H x V) 80 x 70 °
- Power (effective) 200 W
- Power (peak) 400 W
- Frequency response 65 - 20,000 Hz
- Sound pressure level (for 1 W to 1 m) 95 dB
- Maximum sound pressure level 121 dB
- Impedance 4 Ohm (s)
- Tweeter protection circuits
- Speaker Inputs 1
- Speakon Compatible Speaker Input Connectors
- Material box 16 mm Plywood
- Surface of the box Structured paint
- Bass Reflex cabinet finish
- Angle monitor 50 °
- Width 315 mm
- Height (mm) 489 mm
- Depth 307 mm
- Features Ergonomic handle, Footwell
- with tilting device (0 ° / 5 °)
- Weight 10.8 kg
