Ld systems Mon 101 A G2

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Ld Systems Mon 101 A G2 - Aktive Lautsprecher - Main picture
  • Ld Systems Mon 101 A G2 - Aktive Lautsprecher - Variation 1
  • Ld Systems Mon 101 A G2 - Aktive Lautsprecher - Variation 2
392,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 83429
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Andere Version(en) oder zugehörige(s) Produkt(e)

Die Marke Ld systems

Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.

Shopping Guide Sono Equipment

Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Aktive lautsprecher

LD Systems MON 101 A G2 is a 10 "Active Scene Return.

The LD Stinger MON101AG2 is a compact active feedback with an extended frequency response, allowing a maximum sound pressure level of 121 dB SPL, and true on-stage versatility.

Its 10 "coaxial speaker incorporates a 1" tweeter with a dispersion angle of 75 ° x75 °; enough to ensure many tasks on the scene. The coaxial arrangement of the transducers ensures a very homogeneous sound image throughout the area covered, and this ensuring a very low sensitivity to feedback. This active monitor incorporates a Class AB power amplifier with a peak power of 600 Watts, short-circuit protection and a limiter, ensuring high reliability of use.

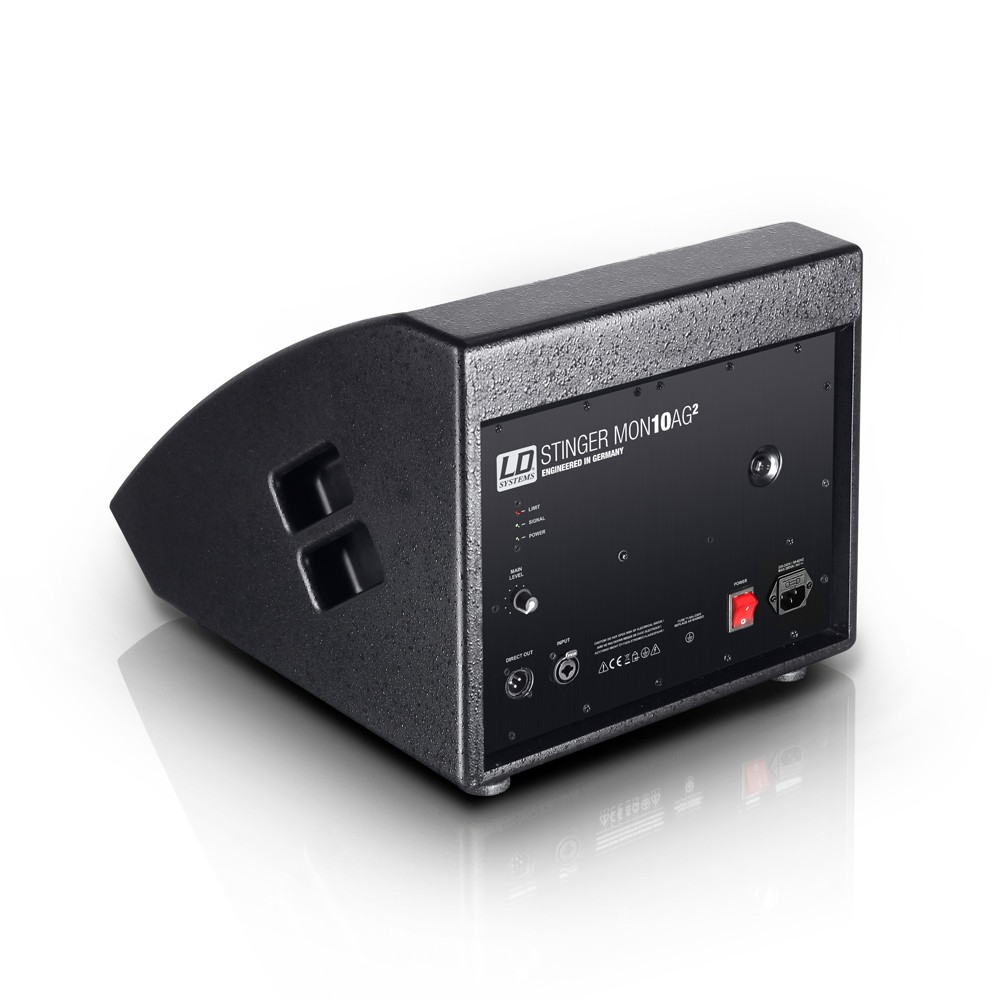

The connector panel, on the back, provides a Combo connector input (XLR / 1/4 "jack) and signal return to XLR; it also houses a volume control potentiometer, the IEC power socket and the switch, as well as LED indicators for the power supply, the presence of the signal and the activation of the limiter.

Its bass reflex cabinet, with elegant lines, is made of plywood 15 mm lacquered finish very resistant; it has ergonomically shaped recessed handles and a metal grille provides protection for the transducers. The angle of the return of scene placed on the ground is of 35 °.
Lire la suite

Technisches Arbeitsblatt

  • Leistung des PA-Lautsprechers 601 bis 1000 watts RMS
  • PA-Lautsprechertyp Bühnen & FOH Lautsprecher
  • Product Type PA Speaker
  • Active type
  • Boomer diameter / medium 10 "
  • Boomer diameter 254 mm
  • Boomer type Coaxial speaker
  • Magnet Ferrite Boomer
  • Brand Boomer Custom
  • 2 "woofer coil
  • Boom winder (mm) 50,8 mm
  • Diameter tweeter 1 "
  • Tweeter diameter 25.4 mm
  • Ferrite tweeter magnet
  • Brand tweeter Custom
  • 1 "tweeter coil
  • 25.4mm Mobile Tweeter Reel Diameter
  • Class A / B amplifier
  • Angle of dispersion (H x V) 75 x 75 °
  • Power (effective) 150 W
  • Power (peak) 600 W
  • Frequency response 90 - 20000 Hz
  • Frequency response 3300 Hz
  • Sound pressure level (for 1 W to 1 m) 99 dB
  • Maximum sound pressure level SPL (continuous) 113 dB
  • Peak SPL level (peak) 121 dB
  • Protection circuits Short circuit, Limiter
  • Settings On / Off, Volume
  • Limit, Power, Signal Indicators
  • Line level 1 inputs
  • 1/4 "XLR Jack Line Input Connectors
  • Line level 1 outputs
  • XLR Line Output Connectors
  • Transformer mains voltage
  • 230 Volts / 50-60 Hz mains voltage
  • Box material Plywood 15 mm
  • Bass reflex cabinet finish
  • 35 ° angle monitor
  • Width 380 mm
  • Depth 335 mm
  • Height (mm) 466 mm
  • Weight 15,3 kg
  • Features Ergonomically shaped handles
