Aktive lautsprecher

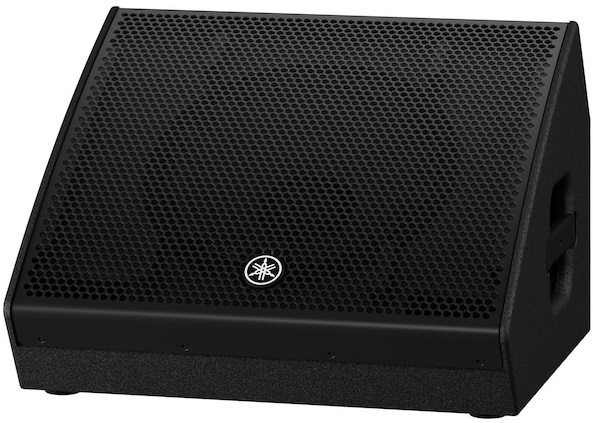

The DHR12M is a 2-way powered speaker with a 12" woofer and a 1.75" HF driver in a space-saving coaxial configuration.
Perfect for use as a floor monitor. Combining a 1000W amplifier and high-performance DSP with the same plywood construction as Yamaha's top-of-the-line DZR series, the DHR12M offers unparalleled sound quality and durability.
The coaxial driver provides a smooth and accurate phase and frequency response, ideal for monitoring applications.
The plywood enclosure provides clear sound with minimal vibration.
Compact, low-profile plywood enclosure with polyurea coating for a rugged, scratch-resistant surface.
A pole socket for use on a stand.
Exclusive FIR-X™ tuning, offering FIR filtering and corrective EQ, minimizing phase distortion.
Perfect for use as a floor monitor. Combining a 1000W amplifier and high-performance DSP with the same plywood construction as Yamaha's top-of-the-line DZR series, the DHR12M offers unparalleled sound quality and durability.
The coaxial driver provides a smooth and accurate phase and frequency response, ideal for monitoring applications.
The plywood enclosure provides clear sound with minimal vibration.
Compact, low-profile plywood enclosure with polyurea coating for a rugged, scratch-resistant surface.
A pole socket for use on a stand.
Exclusive FIR-X™ tuning, offering FIR filtering and corrective EQ, minimizing phase distortion.
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 601 bis 1000 watts RMS
- PA-Lautsprechertyp Bühnen Monitor
- Speaker type : 2-way, Bi-amped Powered Speaker, Bass-reflex.
- Frequency range (-10dB) :55 Hz - 20 kHz
- Coverage area :HH90? x V90?
- Crossover :1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
- Maximum Output Level (Measured peak, IEC noise@1m) :129 dB SPLAmplifier class :Class-D
- A/D D/A Converters

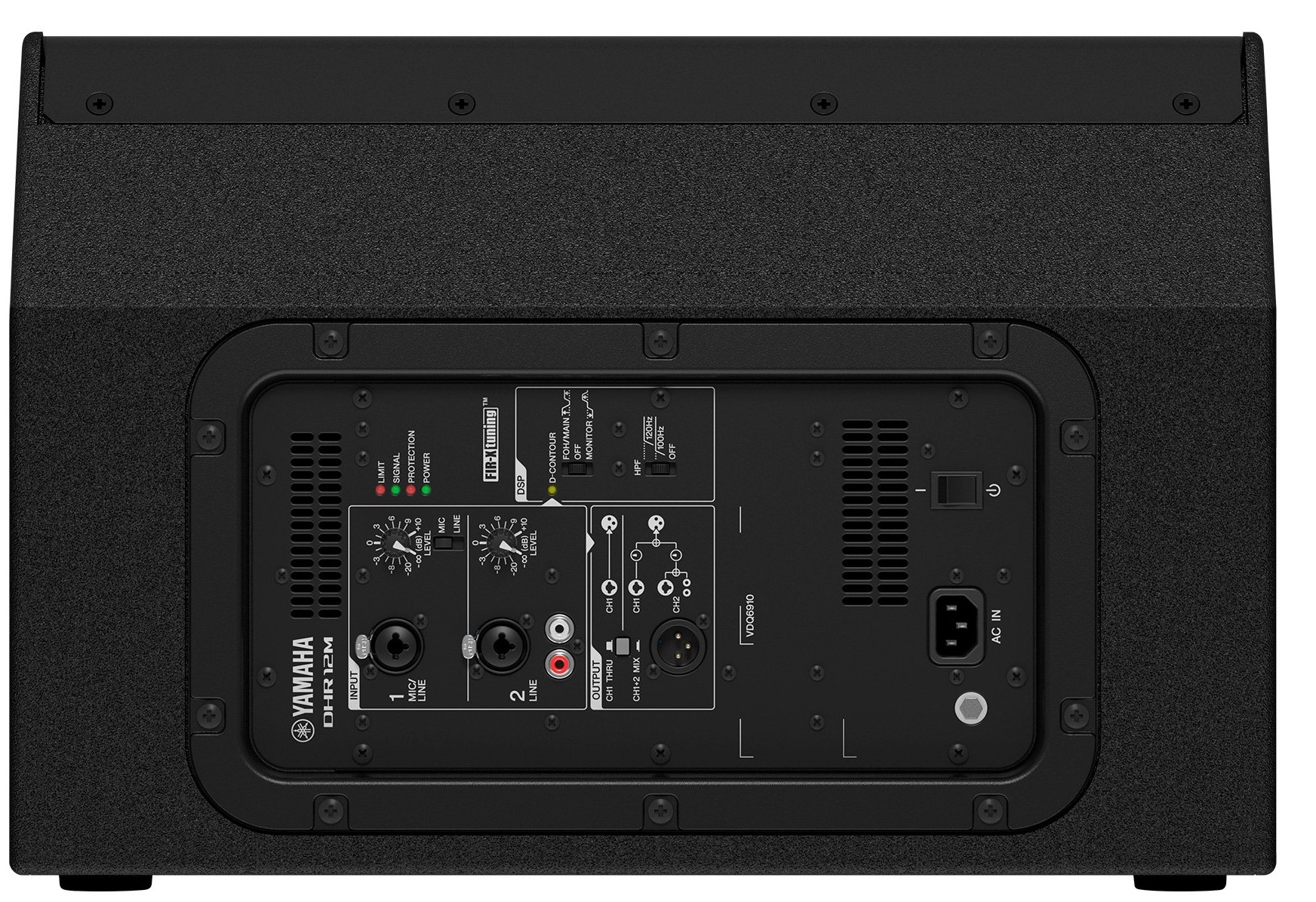

- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Dimensions
- 500 mm (19.7")
- 343 mm (13.5") (with rubber feet)
- 454 mm (17.9")
- 16.5 kg (36.4 lbs)
