Ld systems MON 12 A G3 W
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
Vorbestellen
kontaktieren Sie uns
Lagerbestand
Nicht im Geschäft erhältlich
INFORMIEREN SIE MICH ÜBER SEINEN EINTRAG AUF LAGER
Ich möchte per E-Mail benachrichtigt werden
Go
Die Marke Ld systems
Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.
Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Aktive lautsprecher
The MON 12 A G3 W is part of an entirely new family of high-performance powered stage monitors.

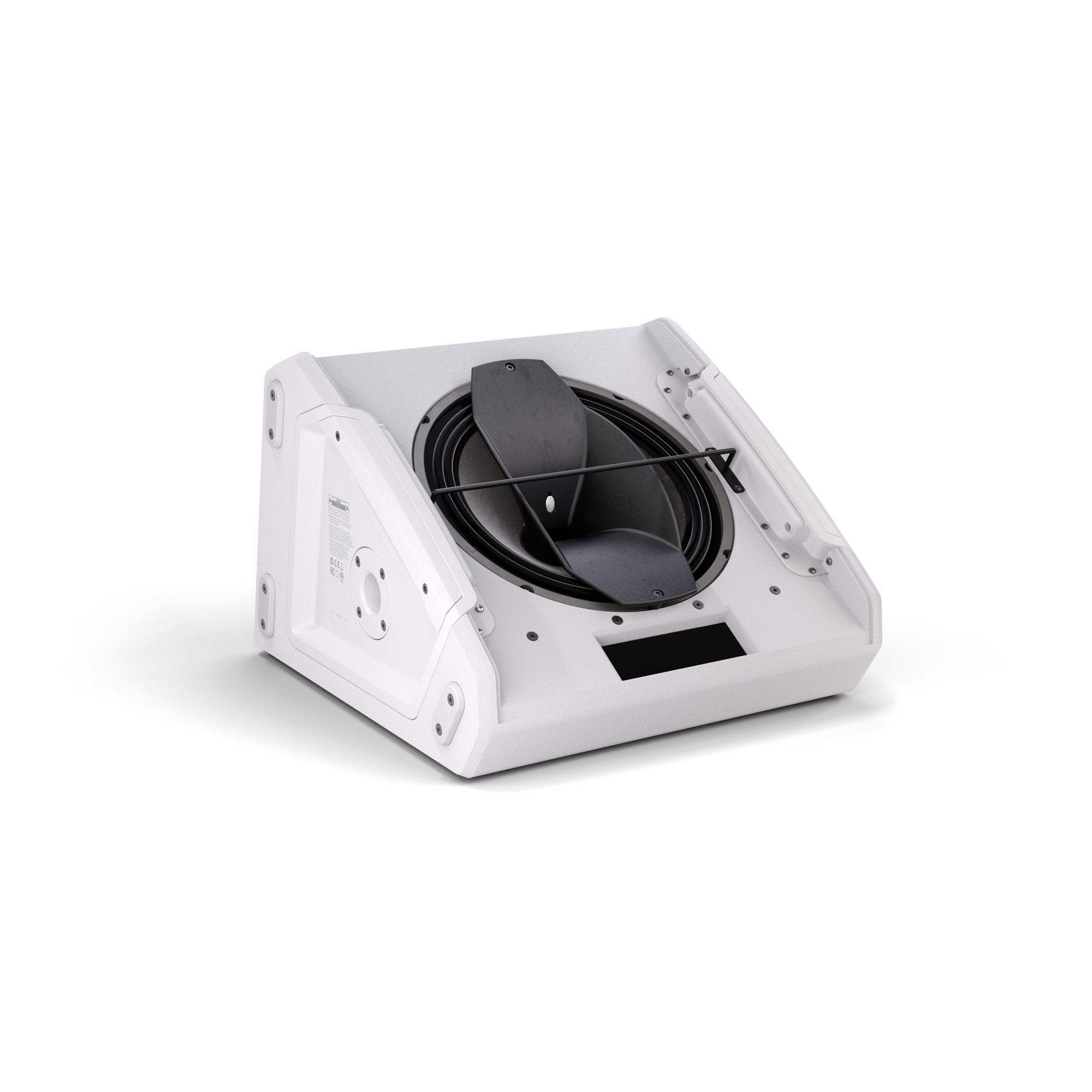

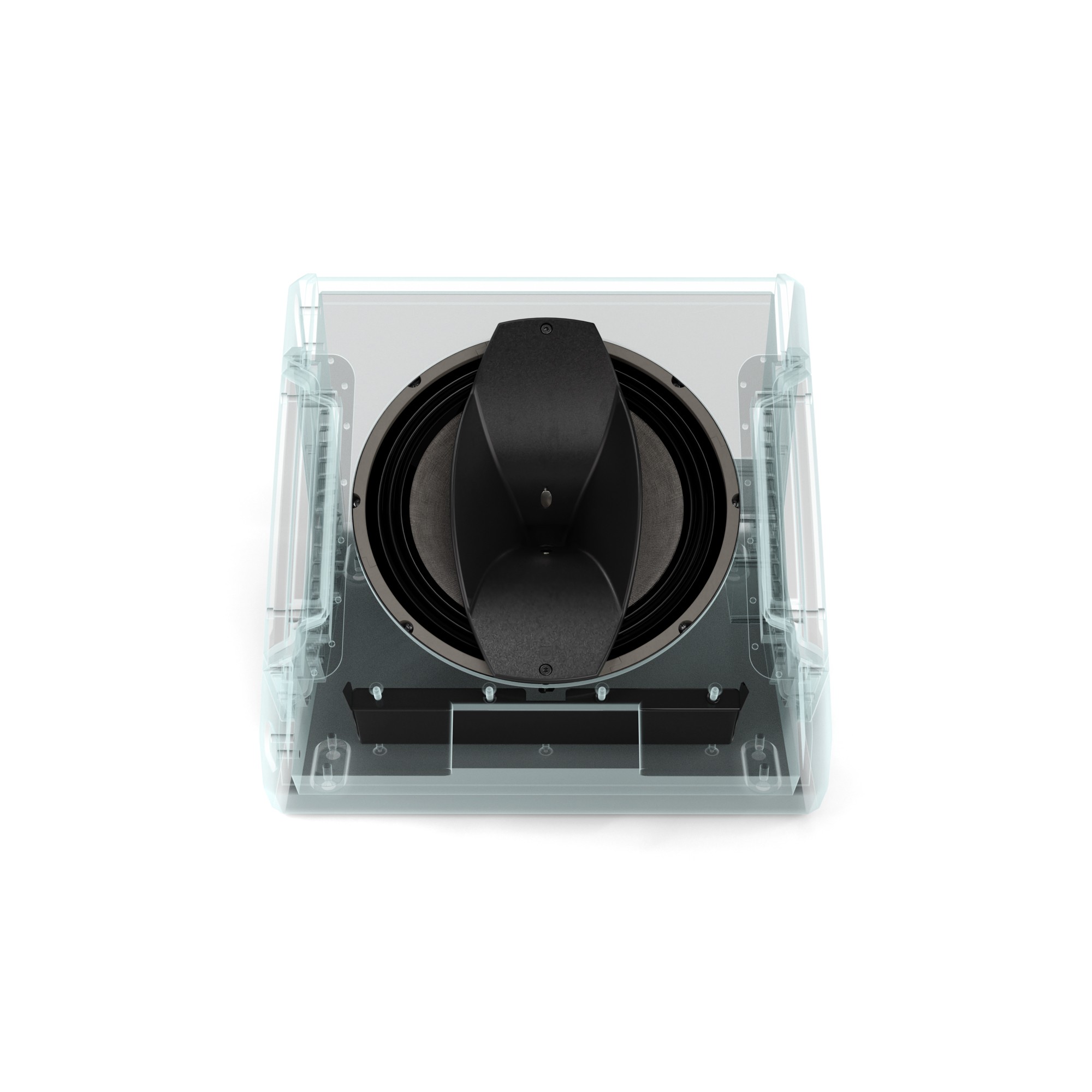

The MON G3 series takes the cutting-edge technology and uncompromising materials found in high-end rental monitors typically used by professionals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close listening situations. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

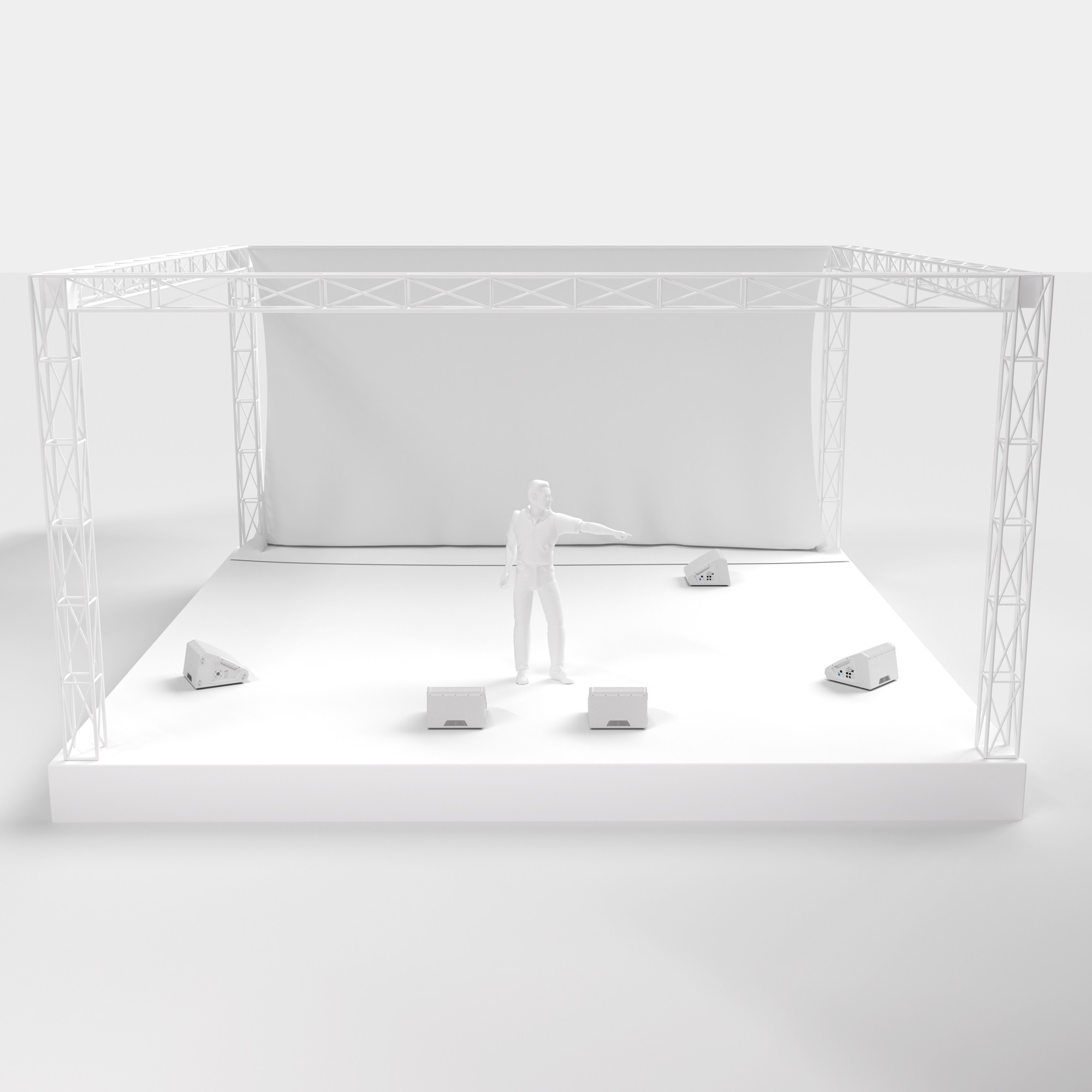

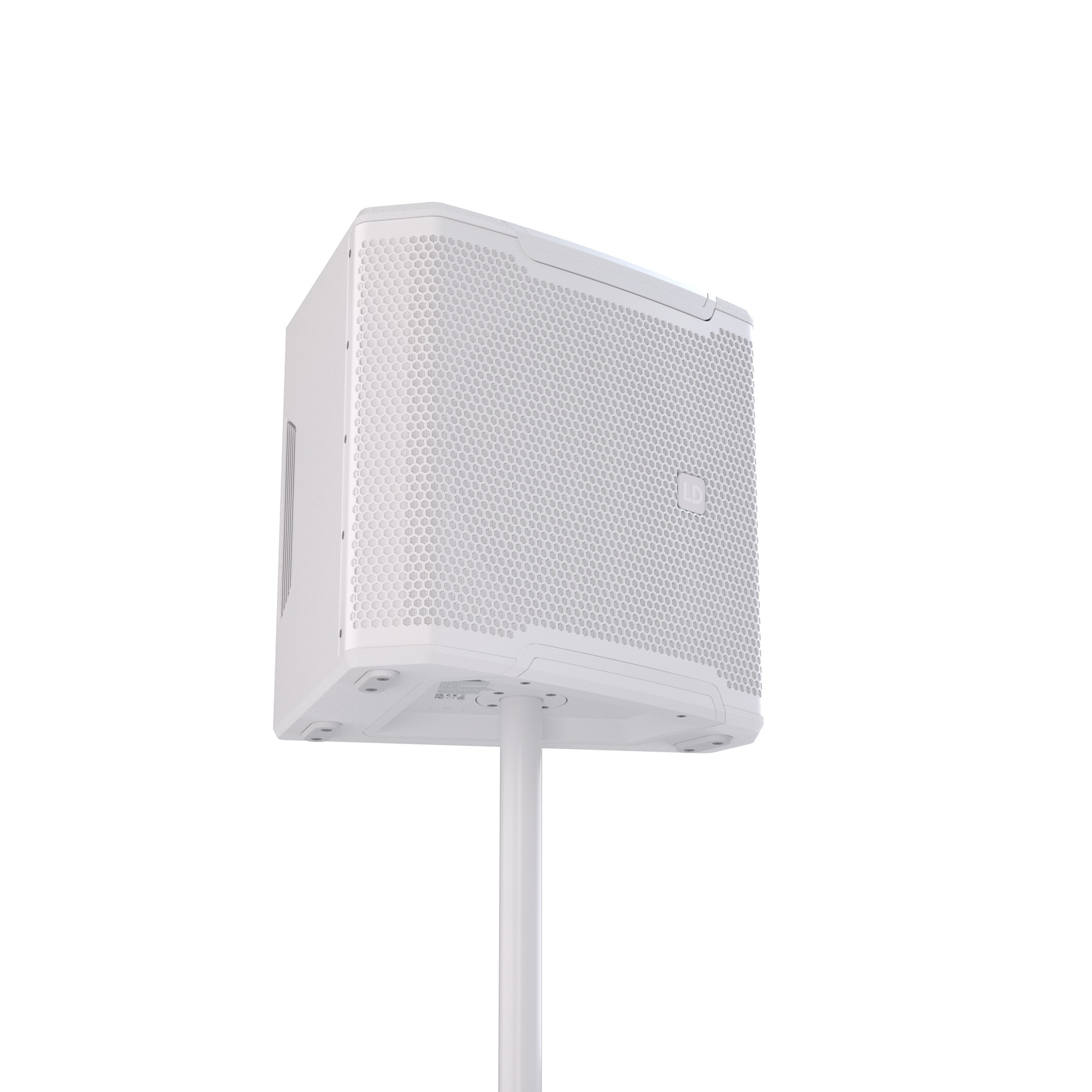

For decades, 12"/1" stage monitors have set the standard for sound quality, sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 W brings this concept into the "modern era". The ideal dispersion of 50° x 90° (stage monitor use) or 90° x 50° (front of house use) makes it a versatile tool that is always the right solution for many different tasks.

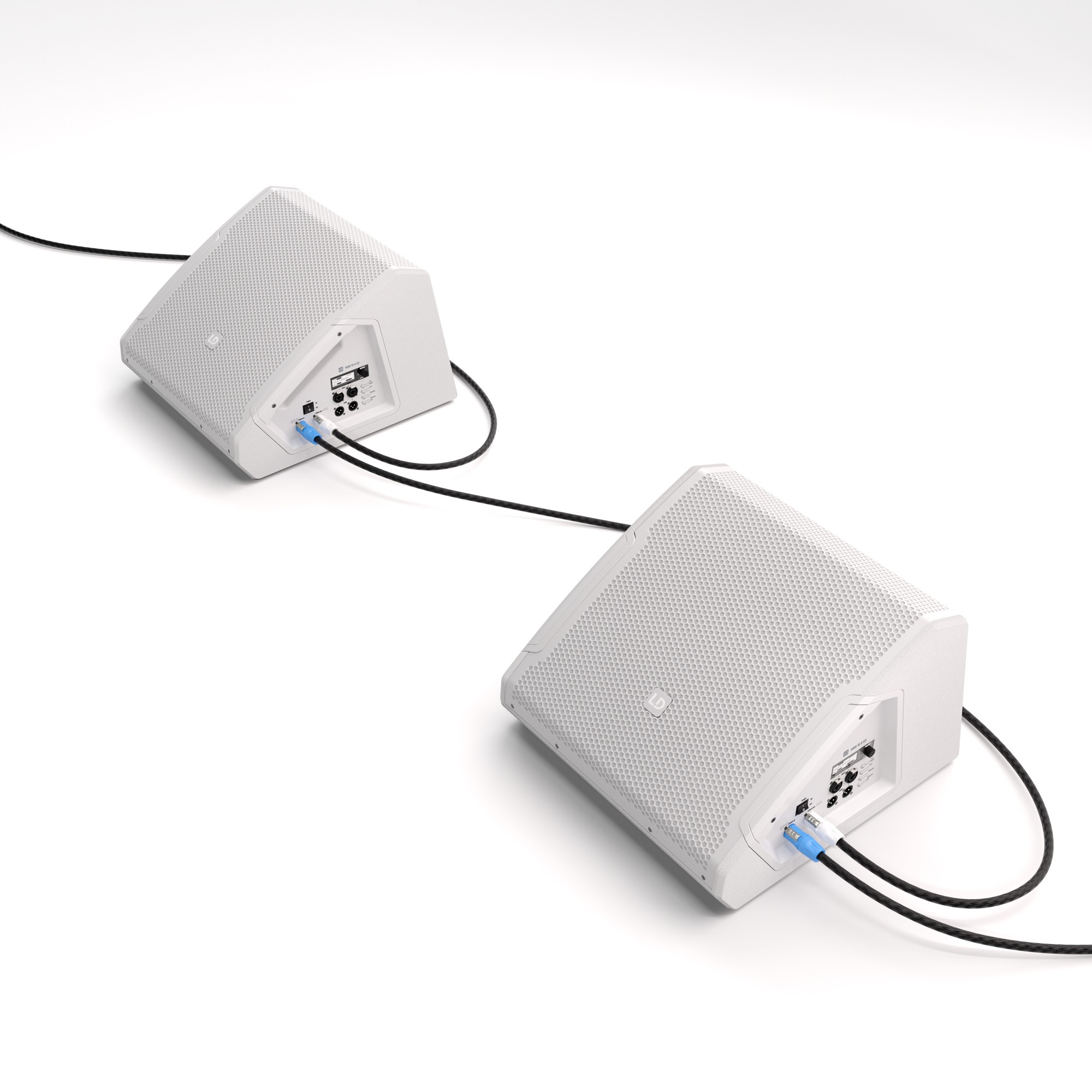

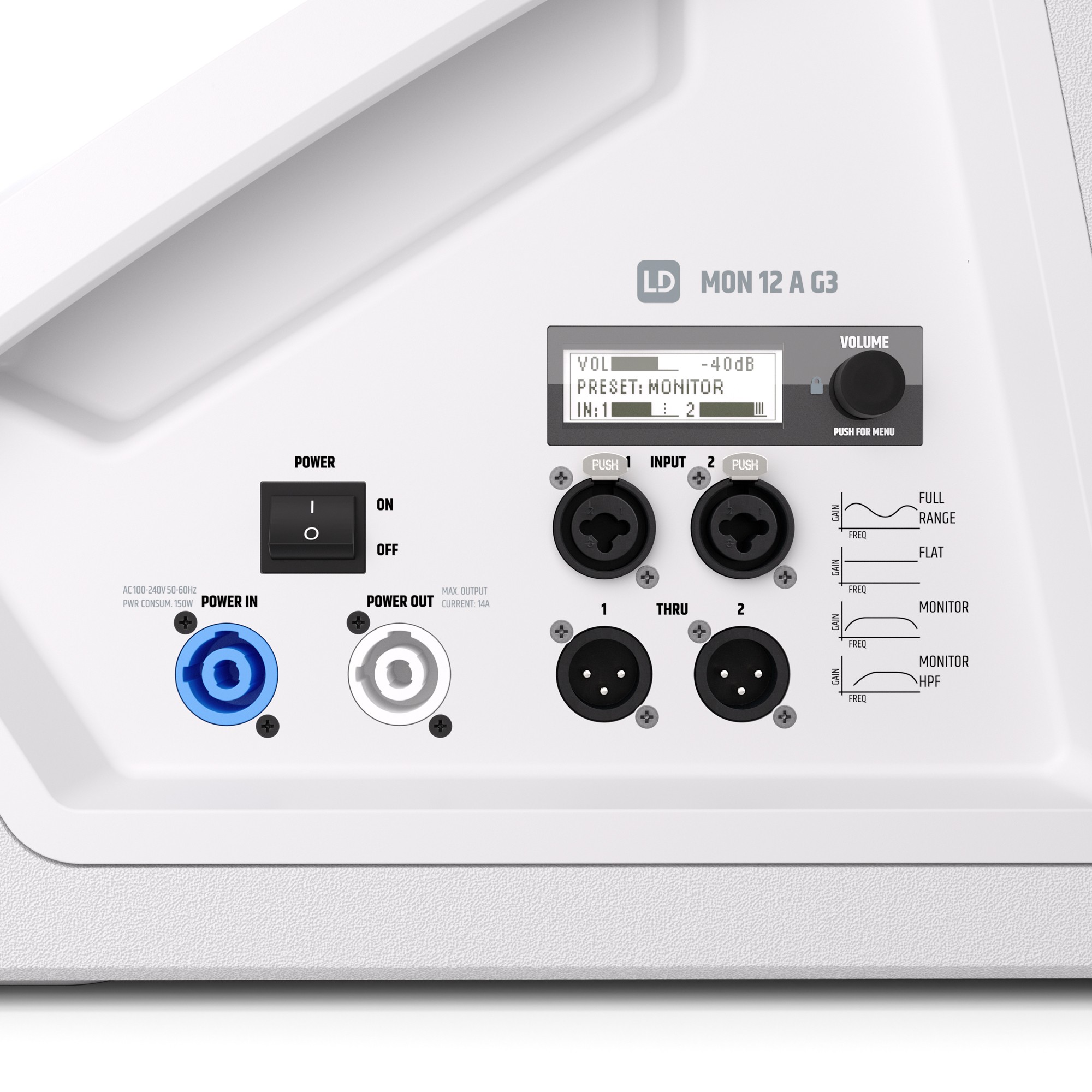

Loopback connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution installations.
The MON G3 series takes the cutting-edge technology and uncompromising materials found in high-end rental monitors typically used by professionals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close listening situations. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
For decades, 12"/1" stage monitors have set the standard for sound quality, sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 W brings this concept into the "modern era". The ideal dispersion of 50° x 90° (stage monitor use) or 90° x 50° (front of house use) makes it a versatile tool that is always the right solution for many different tasks.
Loopback connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution installations.
Lire la suite
Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 1001 bis 1500 watts RMS
- PA-Lautsprechertyp Bühnen Monitor
- Art des Produkts
- Bühnenrückwand
- Typ
- Aktiv
- Farbe
- Weiß
- Leistung System
- Eff. : 300 W
- Peak: 1200 W
- SPL-Pegel max.
- Average (sine burst): 120 dB (100 Hz - 12 kHz, Vollraum, 1 m, 10 % THD).
- Peak (sine burst): 127 dB (Vollraum, 1 m, 10 % THD).
- Frequenzgang
- -3 dB: 68 Hz - 18 kHz
- -10 dB: 55 Hz - 20 kHz
- Trennfrequenz
- 1400 Hz
- Winkel des Monitors
- 33°
- Streuung (H x V)
- 50° x 90°
- Abmessungen
- Breite: 425 mm
- Tiefe: 453 mm
- Höhe: 315 mm
- Gewicht
- 17,4 kg
- Funktionen
- 4 Voreinstellungen für Anwendungen
- Delay Line
- 3-Band-Equalizer (High, Mid, Low)
- Notch-Filter
- Lautsprecher

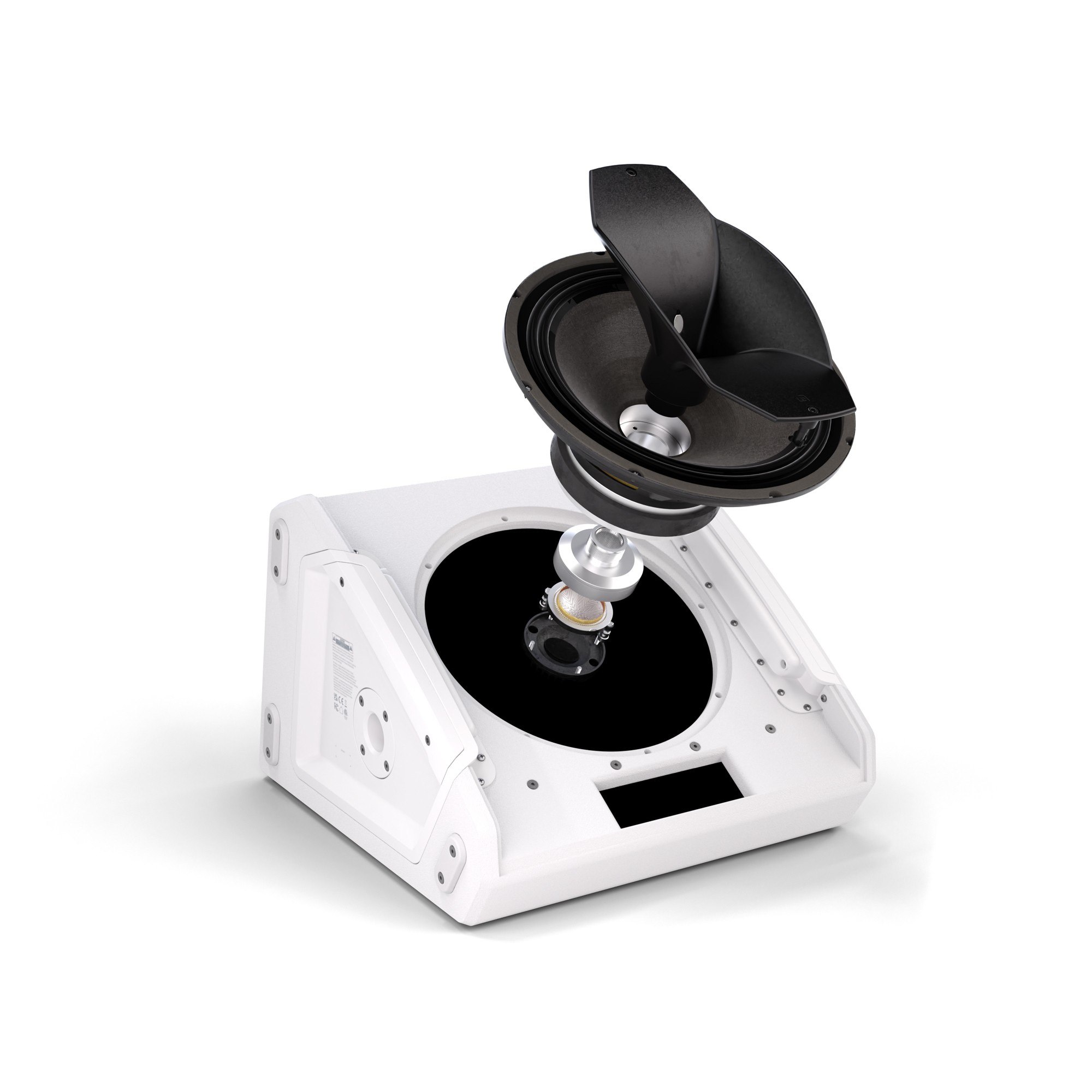

- Tieftöner / Mitteltöner: Durchmesser: 12" (304,8 mm), Magnet: Ferrit, Marke: Kundenspezifisch, Typ: Koaxial, Spule: 2,5" (65 mm)
- Hochtöner: Durchmesser: 1" (25,4 mm), Magnet: Ferrit, Marke: Kundenspezifisch, Spule: 1,75" (44,45 mm)
- Konstruktion und Materialien
- Art des Gehäuses: Bass Reflex
- Material: 15 mm Birkensperrholz, 15 mm MDF.
- Integriertes Verstärkermodul
- Verstärkertyp: Klasse D
- Schutzschaltungen: Mehrbandbegrenzer, Überlastschutz, Überhitzungsschutz, Überspannungsschutz.
- Stromverbrauch: 150 W
- Netzspannung: 100 - 240 V (50-60 Hz).
- Netzteil: SMPS (PowerCON-kompatibel).
- Sicherung: T4AL 250 V
- Temperatur bei der Verwendung: 0 bis 40 °C.
- Luftfeuchtigkeit: < 80 % (nicht kondensierend).

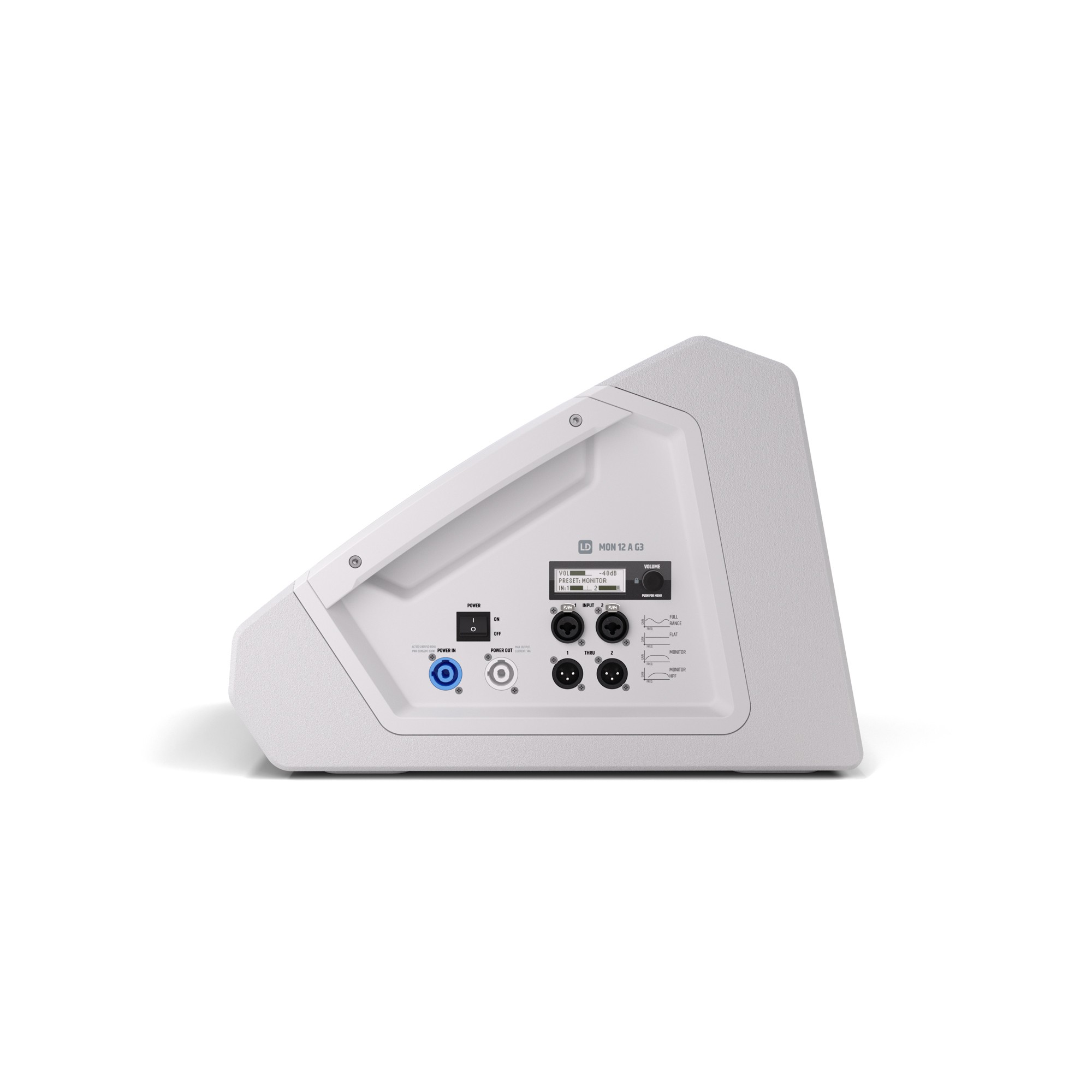

- Anschlüsse
- Line-Eingänge: 2 (6,35 mm Klinke, XLR Combo)
- Leitungsdurchführung: 2 (XLR)
- Bedienelemente und Anzeigen
- Einstellungen: Dreh-/Druckcodierer
- Ein/Aus-Schalter
- Anzeigen: LC-Display
