				Ld systems MON 15 A G3 W
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
                                Im moment nicht verfügbar

                                kontaktieren Sie uns

                                Lagerbestand

                                        Nicht im Geschäft erhältlich
                                                             INFORMIEREN SIE MICH ÜBER SEINEN EINTRAG AUF LAGER

                        Ich möchte per E-Mail benachrichtigt werden


                Go
                    Die Marke Ld systems
                                Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.
                        Shopping Guide Sono Equipment
Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih

                    Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Aktive lautsprecher

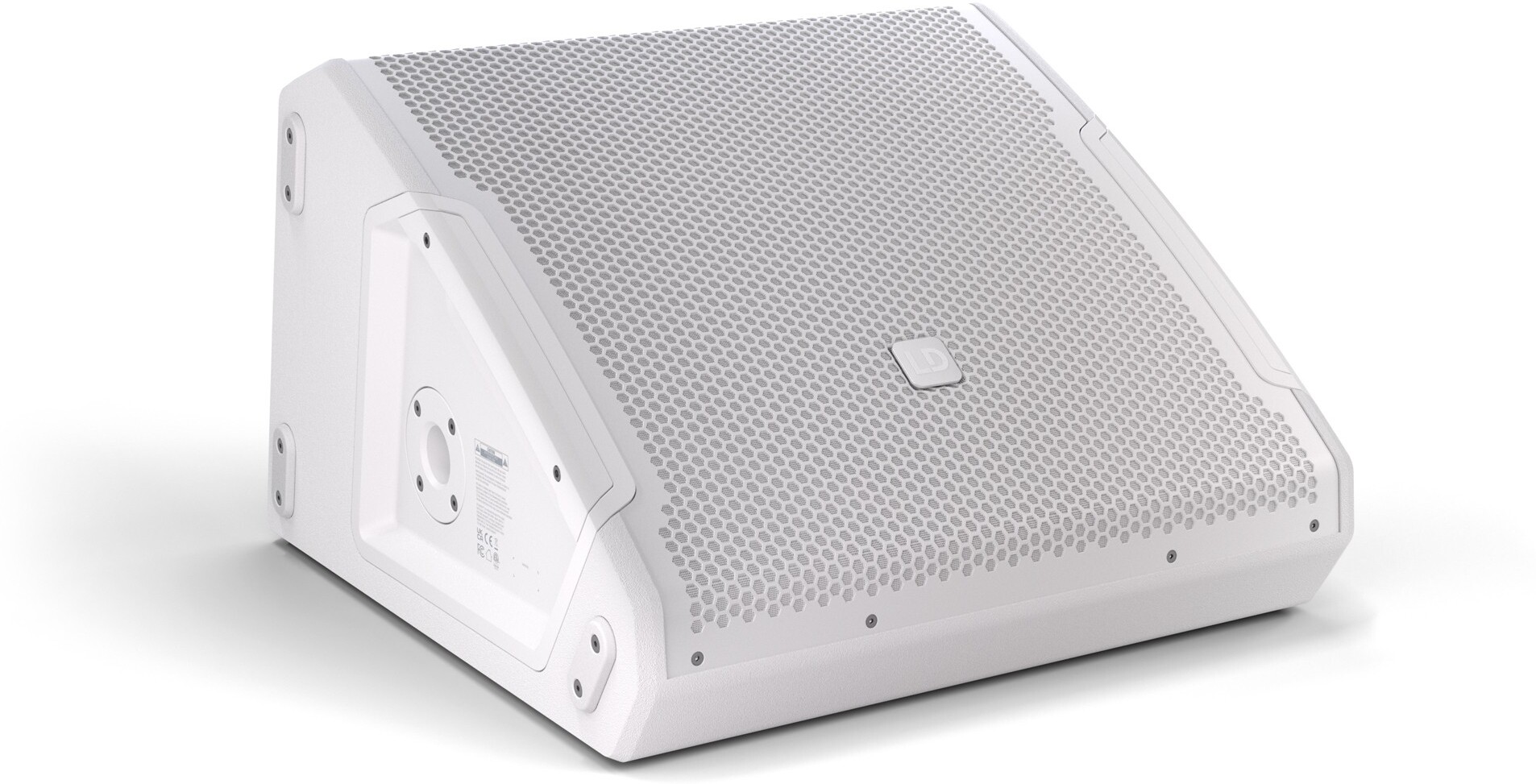

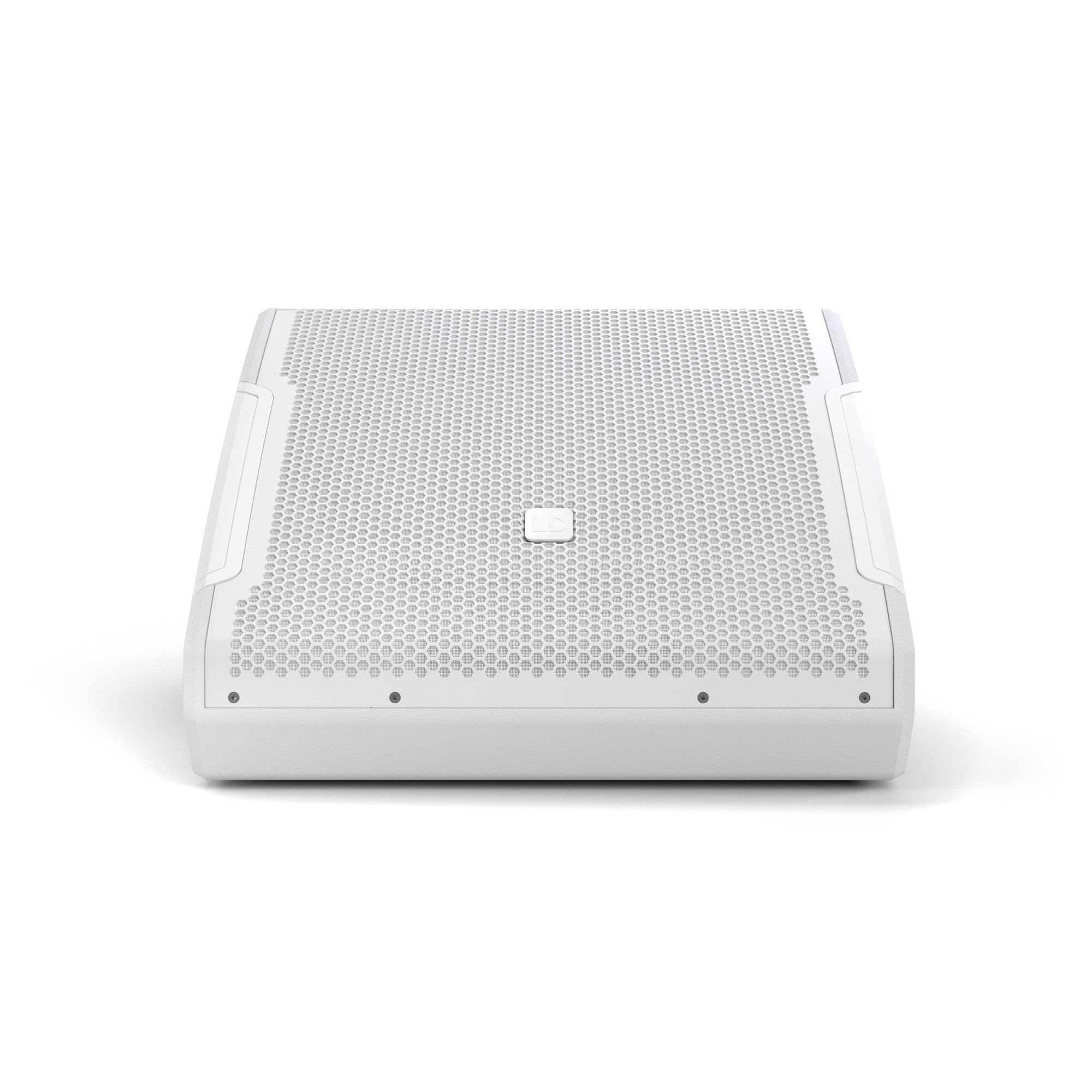

                        The MON 15 A G3 W is part of a completely new family of high-performance powered stage monitors.

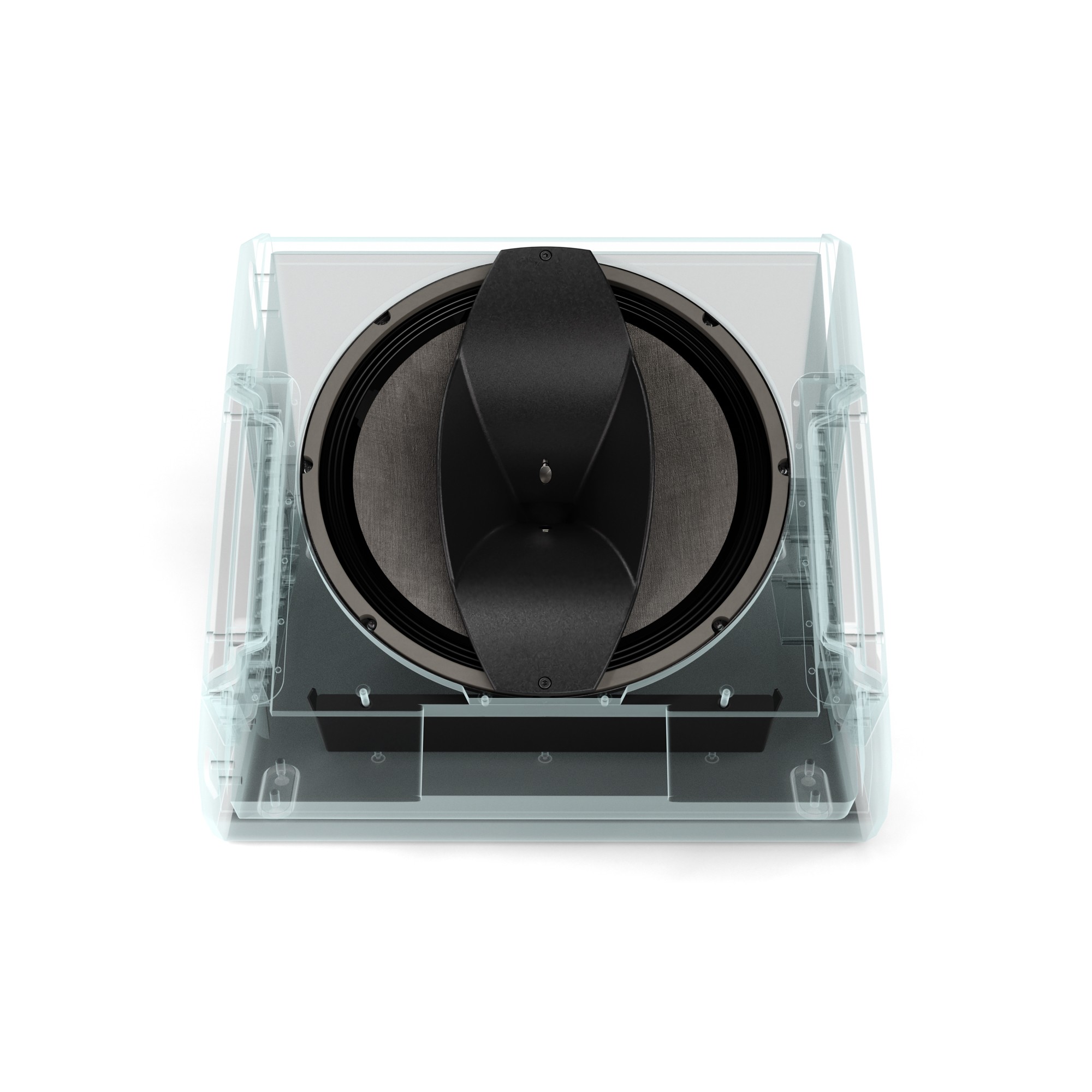

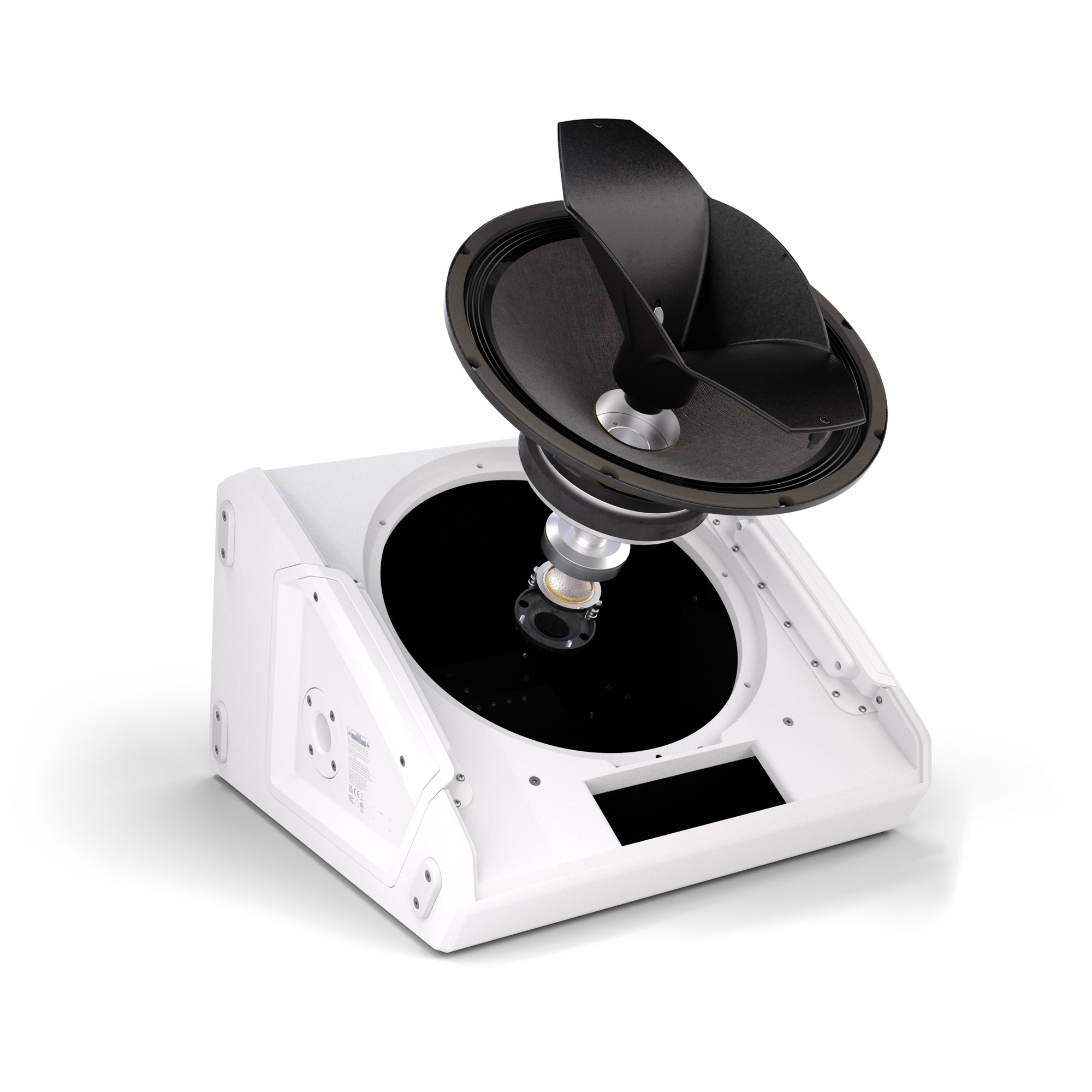

The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close-range listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
A maximum sound pressure level of 129 dB SPL and excellent bass reproduction make the MON 15 A G3 W the best choice for loud bands, drum fills or for stand-alone use as a compact front-of-house PA system without an additional subwoofer. For a 15-inch woofer stage monitor, it is exceptionally compact and elegant, and remains visually discreet while delivering impressive performance.

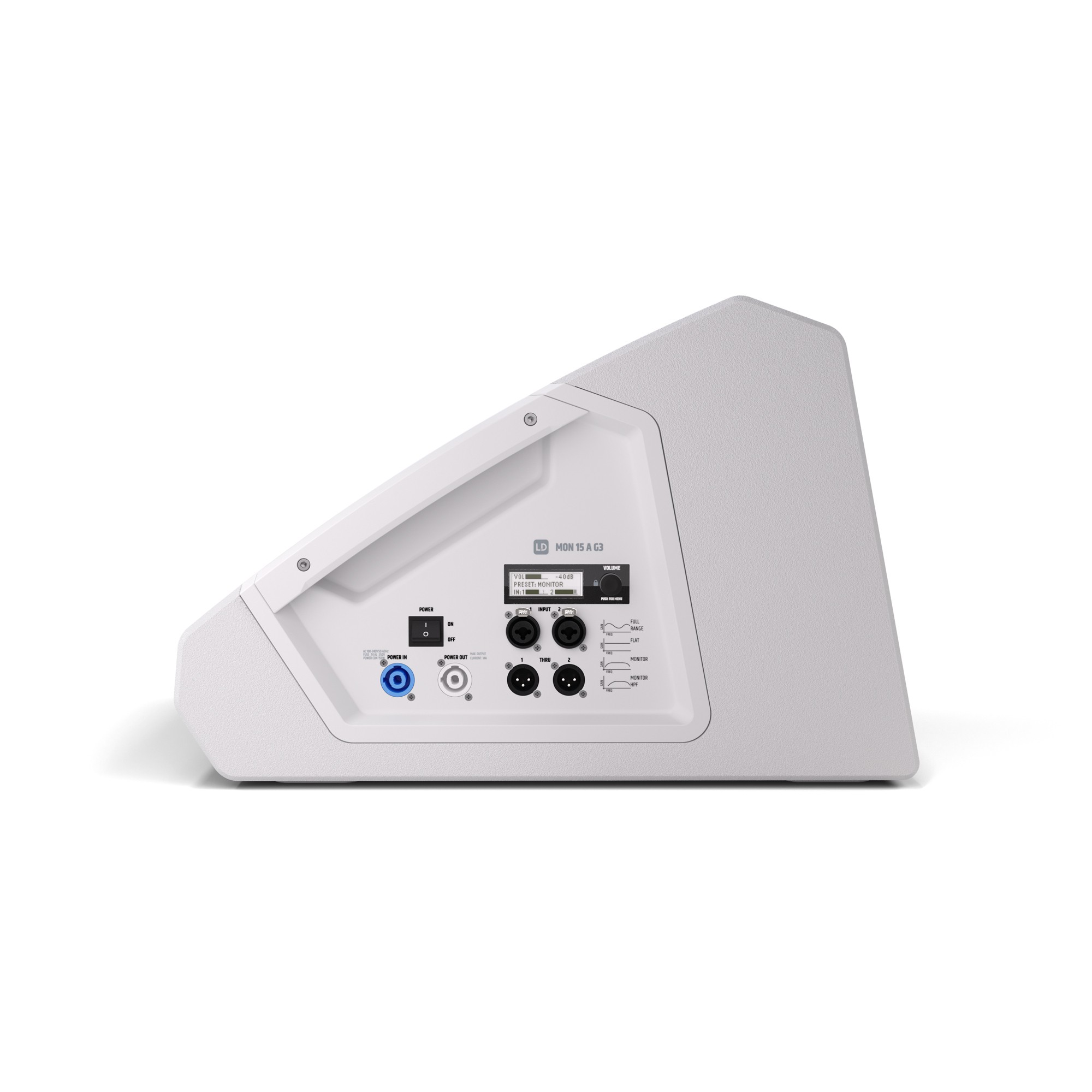

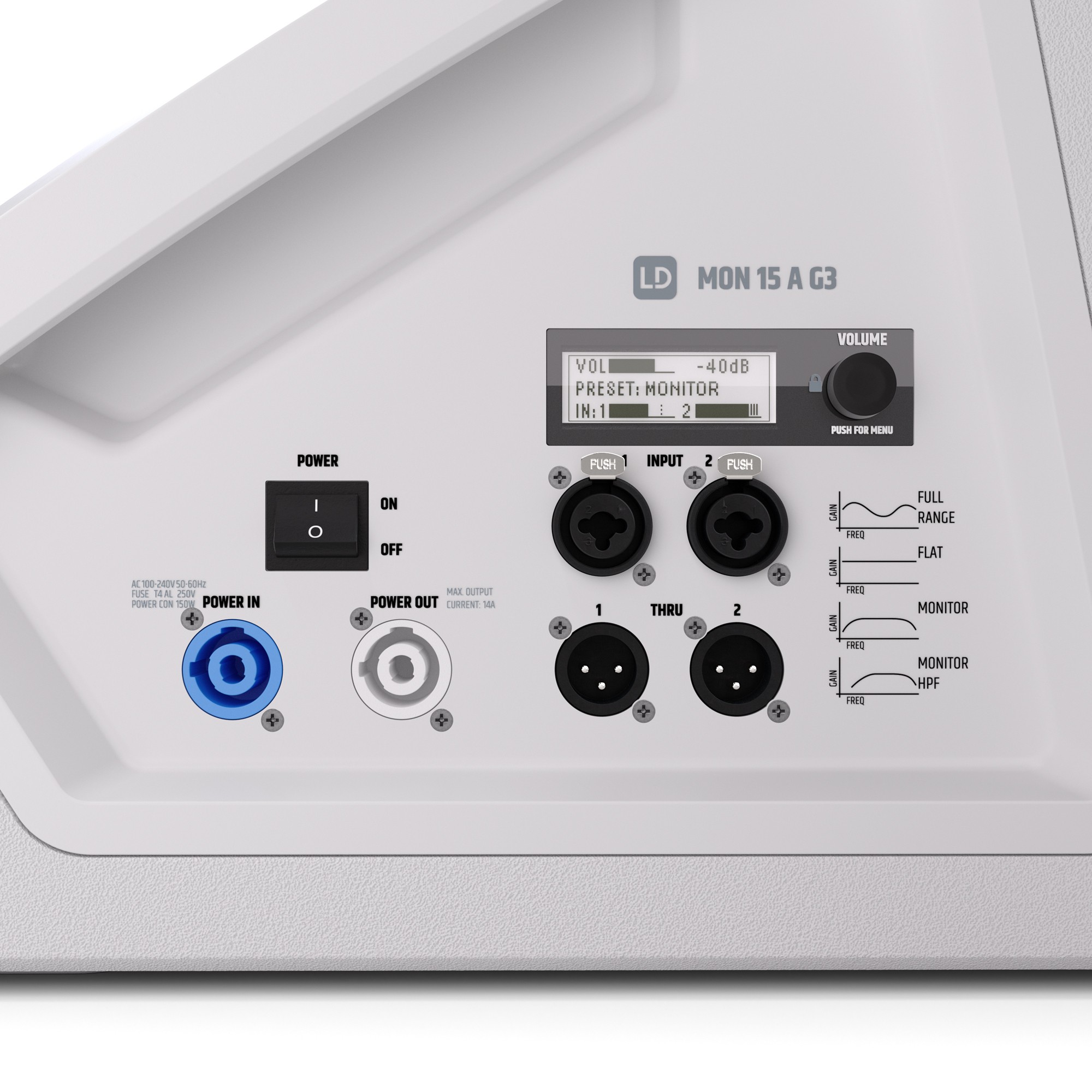

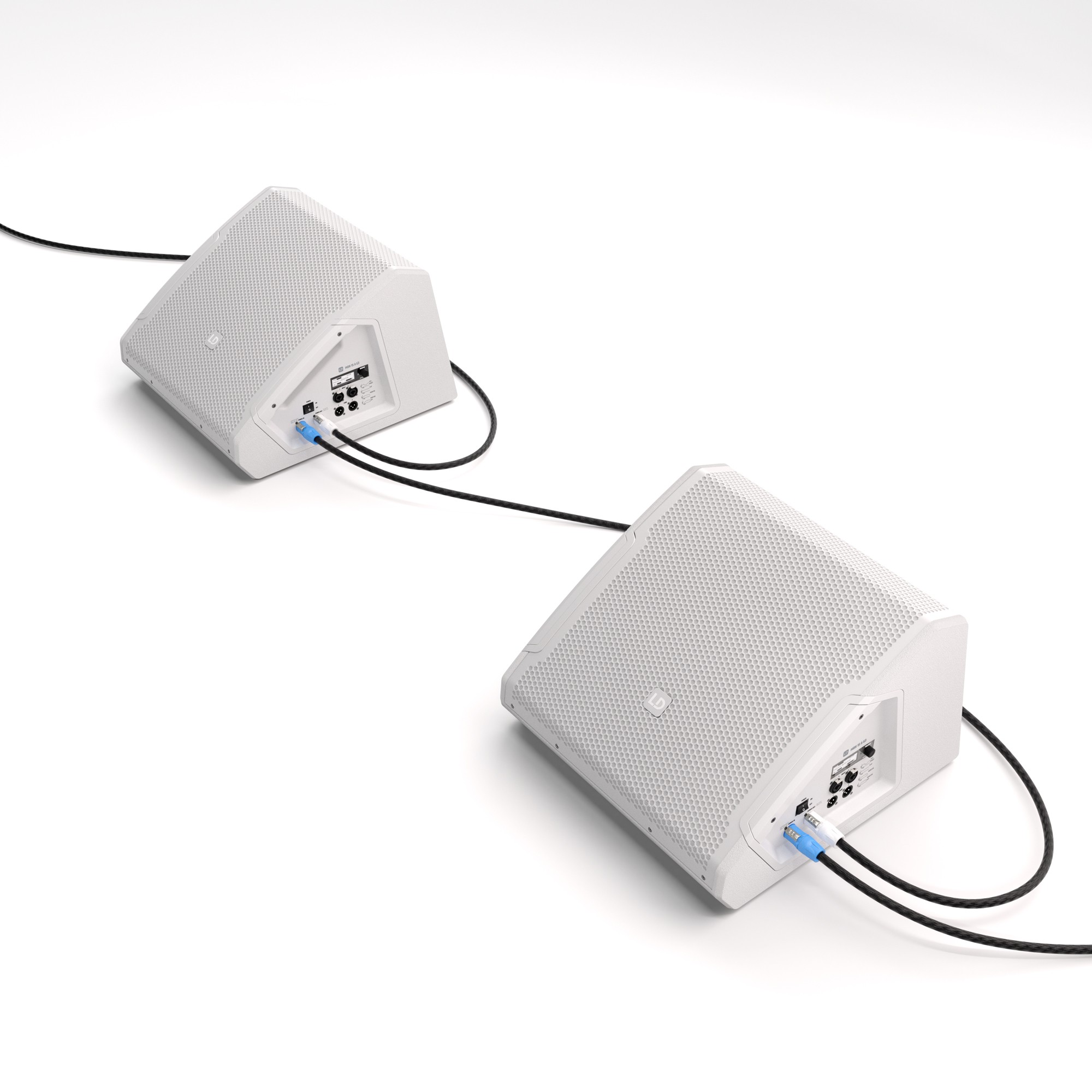

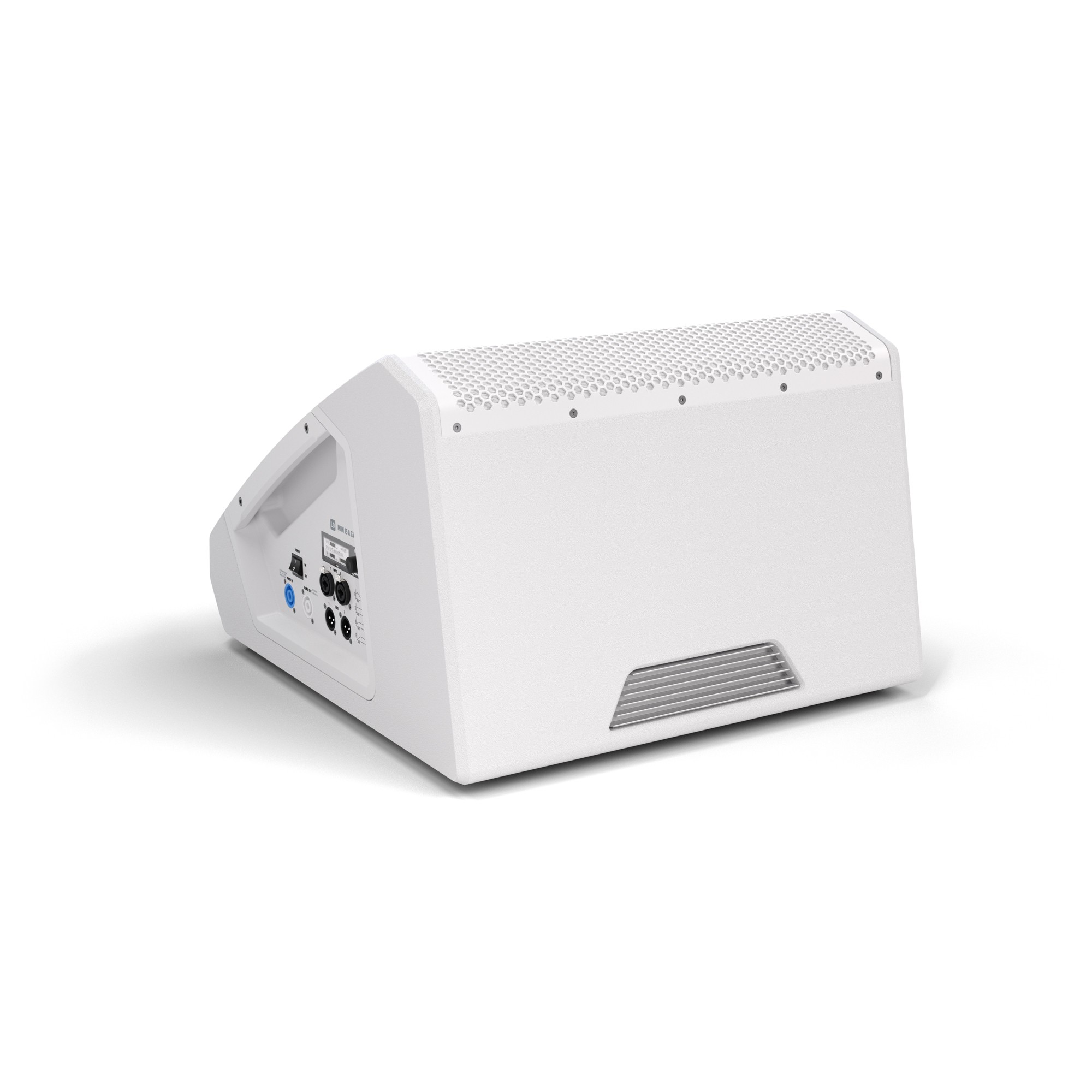

Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and clean wiring in multi-monitor or sound distribution installations.
                The MON G3 series integrates the cutting-edge technology and uncompromising materials used in high-end monitors typically used in professional rentals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close-range listening. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
A maximum sound pressure level of 129 dB SPL and excellent bass reproduction make the MON 15 A G3 W the best choice for loud bands, drum fills or for stand-alone use as a compact front-of-house PA system without an additional subwoofer. For a 15-inch woofer stage monitor, it is exceptionally compact and elegant, and remains visually discreet while delivering impressive performance.
Return connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and clean wiring in multi-monitor or sound distribution installations.
Lire la suite
            Technisches Arbeitsblatt
- Leistung des PA-Lautsprechers 1001 bis 1500 watts RMS
- PA-Lautsprechertyp Bühnen Monitor
- Allgemeines - Art des Produkts : Aktives Bühnenmonitoring
- Farbe: Weiß

- Leistung und Performance - Systemleistung (effektiv): 300 W
- Systemleistung (Spitze): 1200 W
- Max. Mittlerer SPL (Sine Burst): 122 dB (100 Hz - 12 kHz, freier Raum @1m, 10% THD).
- Max. Spitzen-SPL (Sine burst): 129 dB (freier Raum @1m, 10% THD).
- Frequenzgang (-3 dB): 58 - 18.000 Hz.
- Frequenzgang (-10 dB): 48 - 20.000 Hz
- Übergangsfrequenz: 1.300 Hz

- Design und Dispersion - Winkel des Monitors: 33°.
- Abstrahlwinkel (H x V): 50° x 90°.

- Abmessungen und Gewicht - Abmessungen (B x T x H): 505 x 517 x 340 mm.
- Gewicht: 23,15 kg.

- Integrierte Funktionen - Voreinstellungen: 4 Anwendungsvoreinstellungen.
- Bedienelemente: 3-Band-Equalizer (High, Mid, Low), Notch-Filter.
- Weitere Funktionen: Delay Line

- Lautsprecher - Woofer
- Durchmesser: 15" (381 mm)
- Typ: Koaxialer Lautsprecher
- Schwingspule: 3" (75 mm)
- Magnet: Ferrit
- Marke: Maßgeschneidert
- Hochtöner
- Durchmesser: 1" (25,4 mm)
- Spule: 1,75" (44,45 mm)
- Magnet : Ferrit
- Marke: Maßgeschneidert
- Schalltrichter: Konstante Richtwirkung (CD)

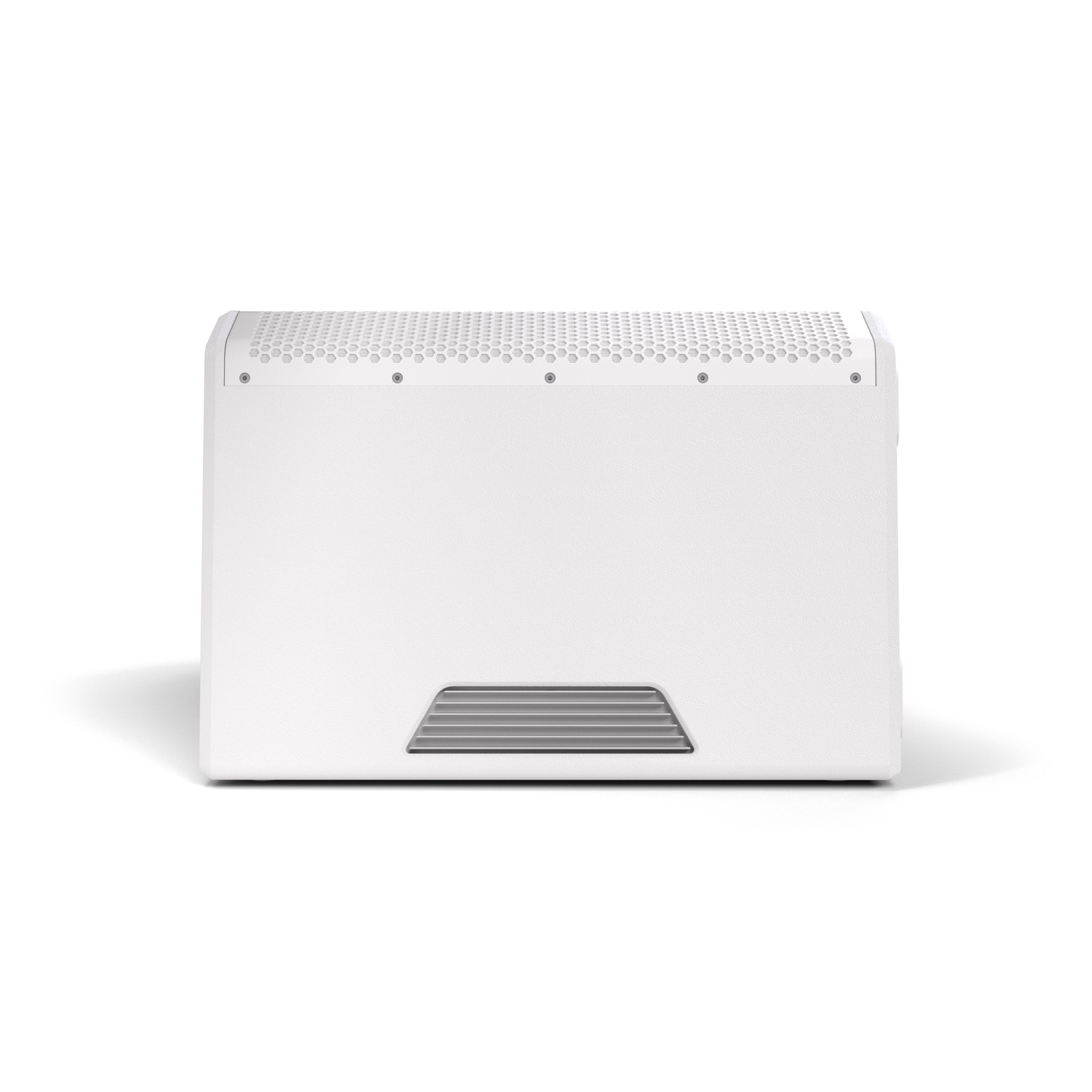

- Gehäuse - Typ: Bassreflexrohr
- Material: 18 mm Birkensperrholz, 15 mm MDF.

- Verstärker und Stromversorgung - Verstärkertyp: Klasse D
- Schutzschaltungen: Mehrbandbegrenzer, Überlast, Überhitzung, Überspannung.
- Betriebstemperatur: 0 bis 40 °C
- Zulässige Luftfeuchtigkeit: < 80 % (nicht kondensierend).
- Stromversorgung: SMPS, 100 - 240 V, 50 - 60 Hz.
- Stromverbrauch: 150 W
- Netzanschluss: PowerCON-kompatibel.

- Anschlussmöglichkeiten - Line-Eingänge: 2 (6,35 mm Klinke, XLR - Combo)
- Leitungsdurchführung: 2 (XLR)
