Ld systems PPA 2

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ld Systems Ppa 2 - Vorverstärker - Main picture
  • Ld Systems Ppa 2 - Vorverstärker - Variation 1
  • Ld Systems Ppa 2 - Vorverstärker - Variation 2
  • Ld Systems Ppa 2 - Vorverstärker - Variation 3
24,90 €
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 80835
Lieferbar
innerhalb von 24 Stunden lieferbar
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Paris
Star's Music Toulouse

Die Marke Ld systems

Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Vorverstärker

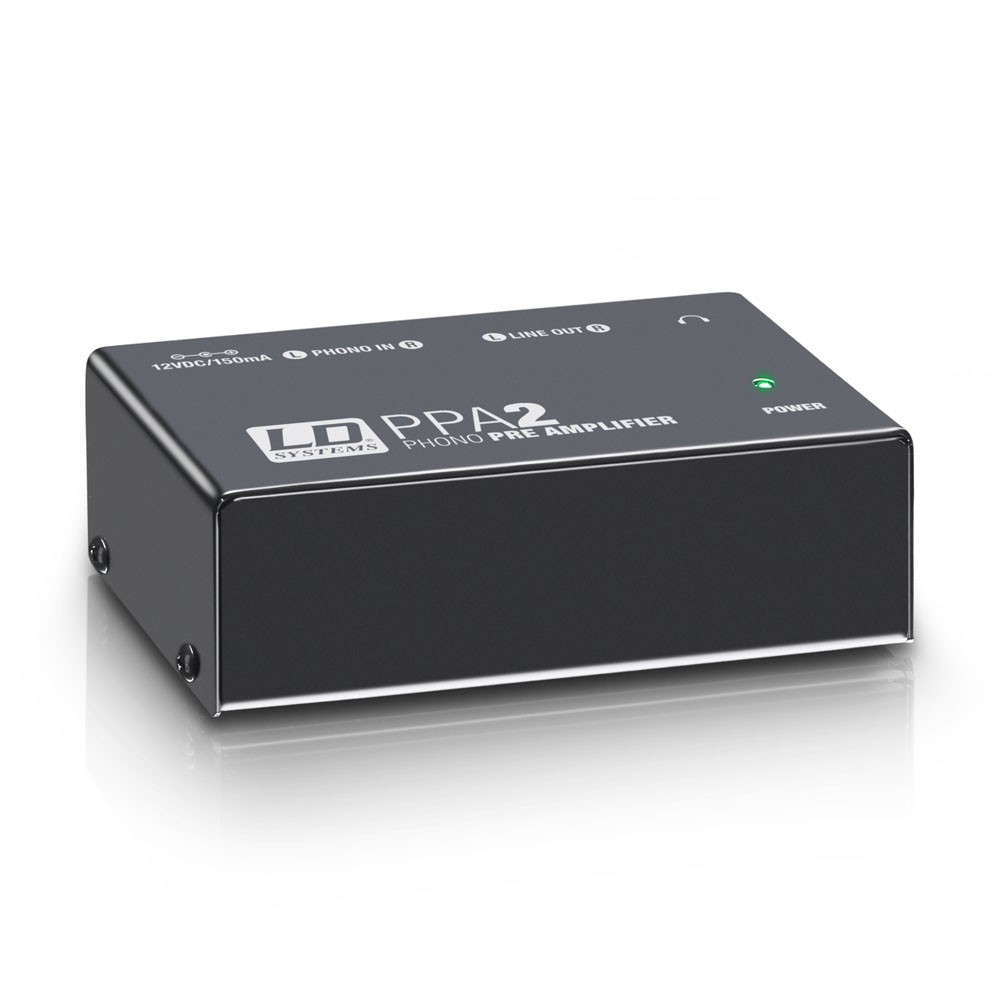

The LD Systems PPA 2 is an exceptionally compact phono preamplifier that corrects the low output signal from the cartridge of a classic vinyl turntable according to the RIAA curve. It allows you to connect your turntable to devices lacking a phono input, such as a mixer, a sound reinforcement amplifier, a sound card/audio interface...

Features of the LD Systems PPA 2:

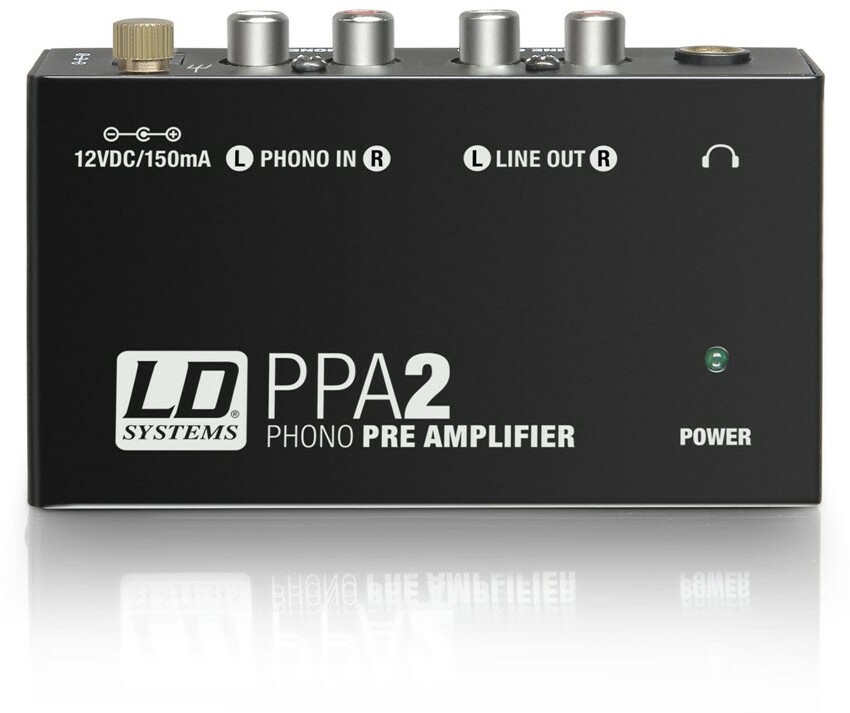

  • Phono inputs are made, like line outputs, on RCA/cinch connectors.

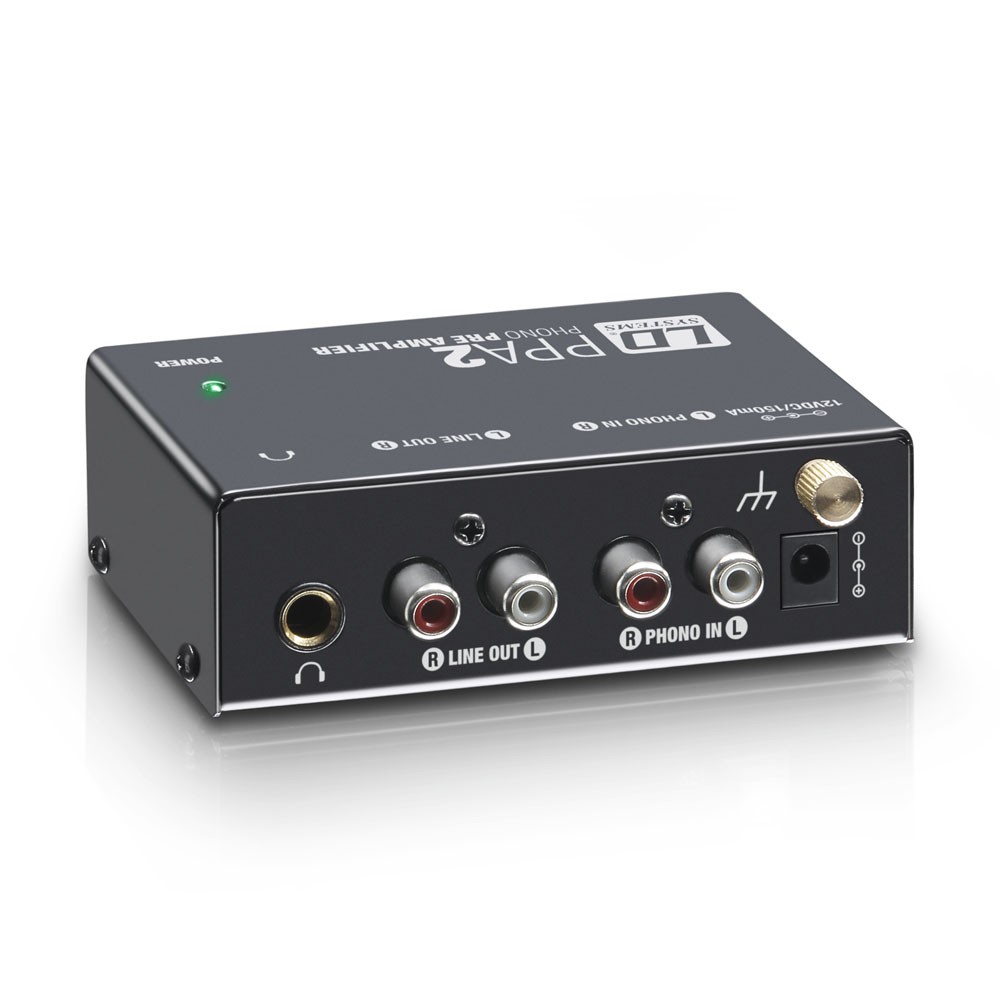

  • The PPA 2 offers a screw terminal for grounding the turntable and a 6.35mm stereo jack socket for connecting headphones.
  • The preamplifier's distortion rate is less than 0.05% and crosstalk is less than -75 dB.

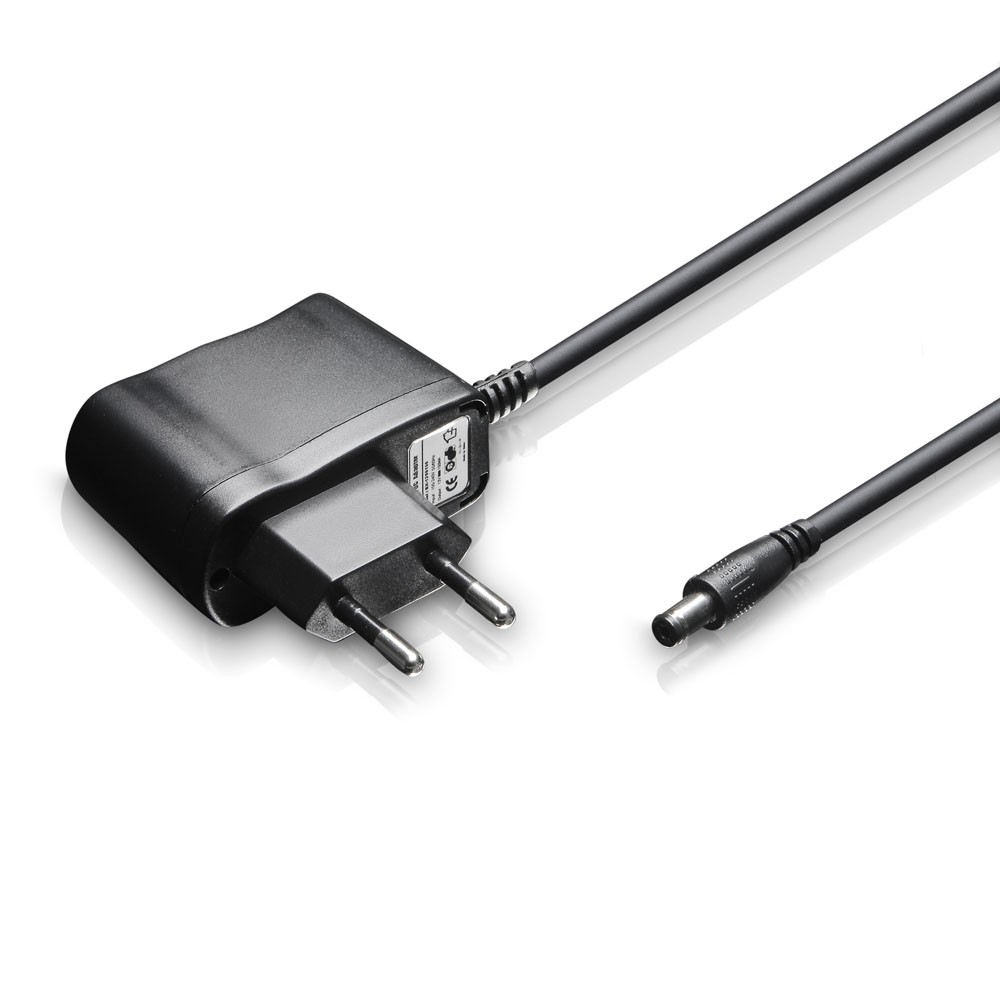

The LD Systems PPA 2 is powered via an external 12-volt power supply unit; its power status is indicated by an LED located on the top of the sturdy metal housing of the device.

Lire la suite

Technisches Arbeitsblatt

  • Vorverstärkungtyp Transistor
  • Product Type: Other studio and recording equipment
  • Finish: Stereo input and stereo output
  • Frequency Response: RIAA curve compliant Hz
  • Signal-to-Noise Ratio: 70 dB
  • Total Harmonic Distortion (THD): <0.05%
  • Crosstalk: -75 dB
  • Maximum Input Level: -23.5 dBV
  • Maximum Output Level: +10 dBV
  • Input Impedance (kohms): 47 kohms
  • Output Impedance: 50 Ohm(s)
  • Indicators: LED Power
  • Inputs: 1 x Phono, stereo
  • Input Connectors: 2 x Cinch (RCA), ground terminal
  • Line Outputs: Headphones, stereo line
  • Line Output Connectors: 2 x Cinch (RCA), 6.35 mm stereo Jack
  • Mains Voltage: External power supply
  • Mains Voltage: 12 V DC
  • Power Consumption: 0.15 A
  • Width: 104 mm
  • Height: 36 mm
  • Depth: 67 mm
  • Weight: 0.28 kg
