Ld systems Stinger 12 A G3

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Main picture
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Variation 1
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Variation 2
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Variation 3
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Variation 4
  • Ld Systems Stinger 12 A G3 - Aktive Lautsprecher - Variation 5
911,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 83416
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Ld systems

Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.

Shopping Guide Sono Equipment

Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Aktive lautsprecher

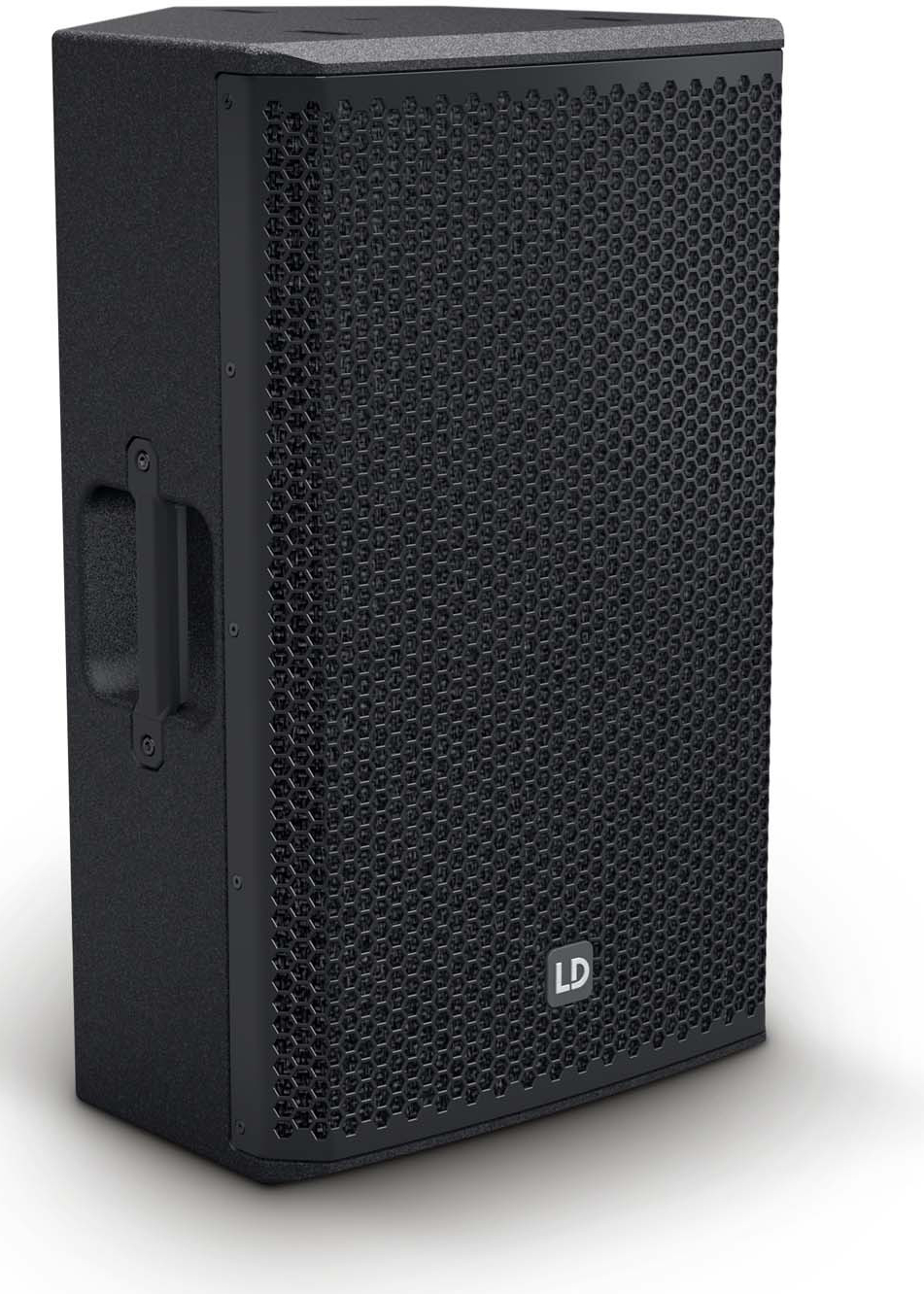

LD Systems Stinger 12A G3 is a 2-way active bass reflex speaker, 12-inch woofer.

This ultra-professional 2-way active loudspeaker has been designed and manufactured to ensure absolute reliability over time.
Thanks to its multifunction bass reflex box and its user-friendly and carefully optimized presets, the speaker is equally suitable for full-range use as well as satellite or back-stage use.
The Stinger® 12 A G3 is powered by a highly efficient digital amplifier, working in Class D, high power (500 W continuous). Its 12-inch boomer, developed specifically, and its tweeter BMS ensure a low downward restitution in the bass and treble fresh and natural. The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy.

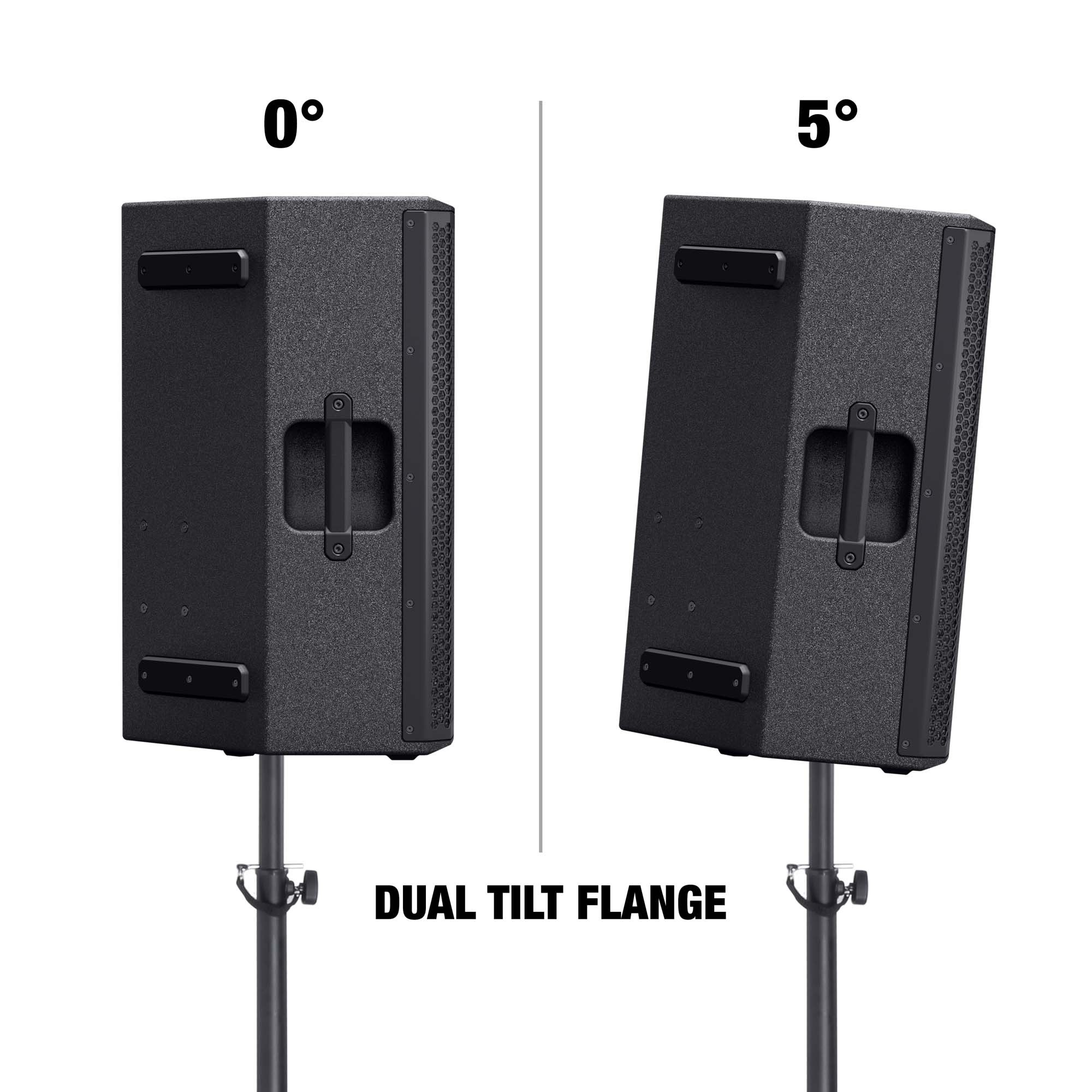

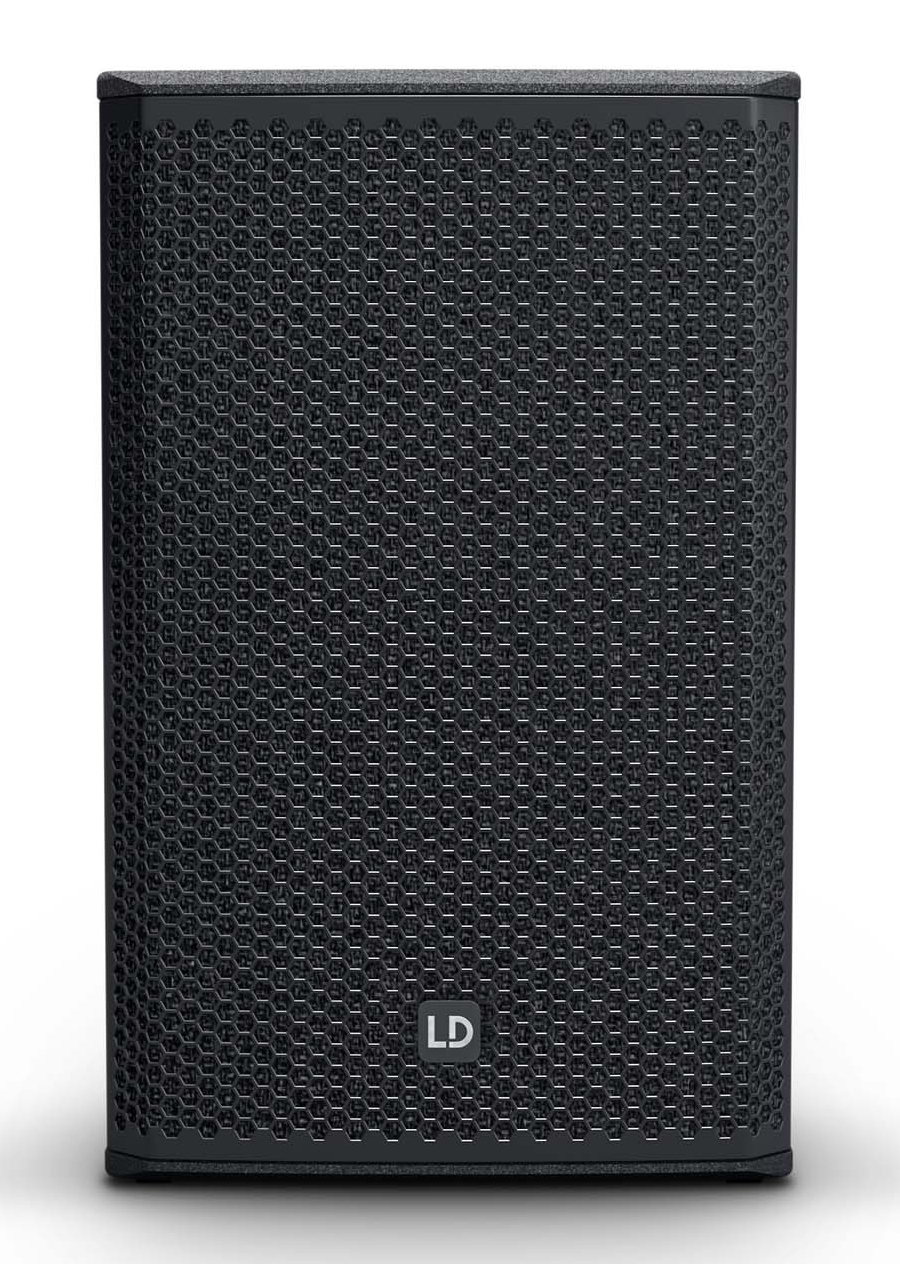

It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion. Thanks to LD Systems DynX® proprietary DSP technology, the Stinger® 12 A G3 provides excellent performance under all conditions with maximum clarity and projection. The signal conditioning filtering / frequency distribution and the multiband limiter provides maximum longevity and a total absence of distortion. Designed to foolproof, its reinforced bass reflex box is made of robust birch plywood. Its extremely durable Polyurea finish provides exceptional stability and durability. The enclosure is equipped with a steel front grille, a Dual-Tilt footwell, grip points and ergonomic handles. The Stinger® 12 A G3 is a professional sound solution at an attractive price; its many accessories allow to use it both on stage and fixed installation
Lire la suite

Technisches Arbeitsblatt

  • Leistung des PA-Lautsprechers 301 bis 600 watts RMS
  • PA-Lautsprechertyp Bühnen & FOH Lautsprecher
  • Product Type PA Speaker
  • Active type
  • Boomer diameter / medium 12 "
  • Diameter Boomer 304,8 mm
  • Magnet Ferrite Boomer
  • Brand Boomer Custom
  • 2.5 "woofer coil
  • Boom winder (mm) 63,5 mm
  • Horn optimized BEM horn with constant directivity
  • Diameter tweeter 1 "
  • Tweeter diameter 25.4 mm
  • Ferrite tweeter magnet
  • Brand tweeter BMS
  • 1 "tweeter coil
  • 25.4mm Mobile Tweeter Reel Diameter
  • Class D amplifier
  • Dispersion angle (H x V) 90 ° x 50 ° °
  • Power (effective) 500 W
  • Power (peak) 1000 W
  • Frequency response 58 - 20000 Hz
  • Peak SPL level (peak) 131 dB
  • Protection circuits Multiband limiter, Overload, Overheating, Overvoltage
  • Input sensitivity -5 dBu

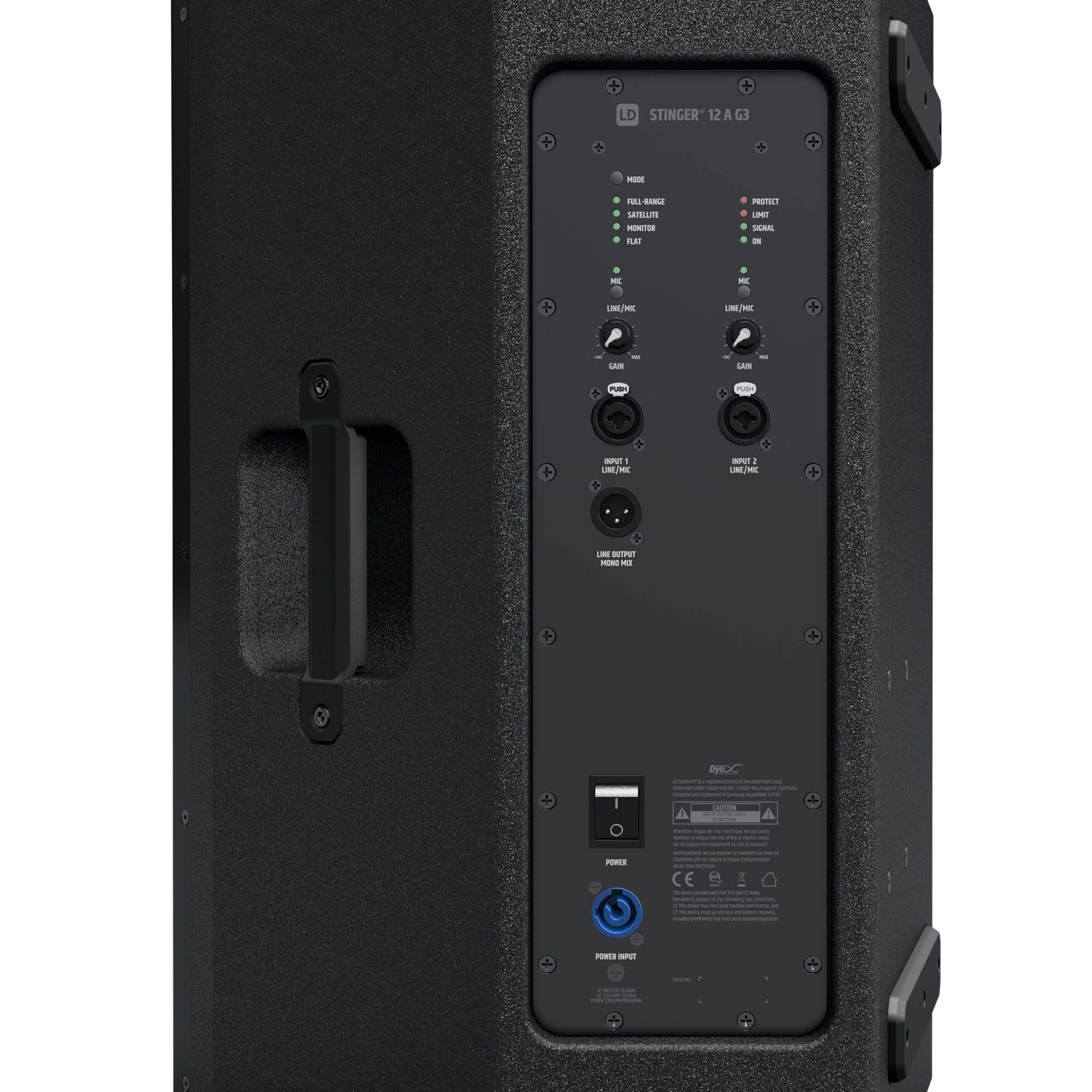

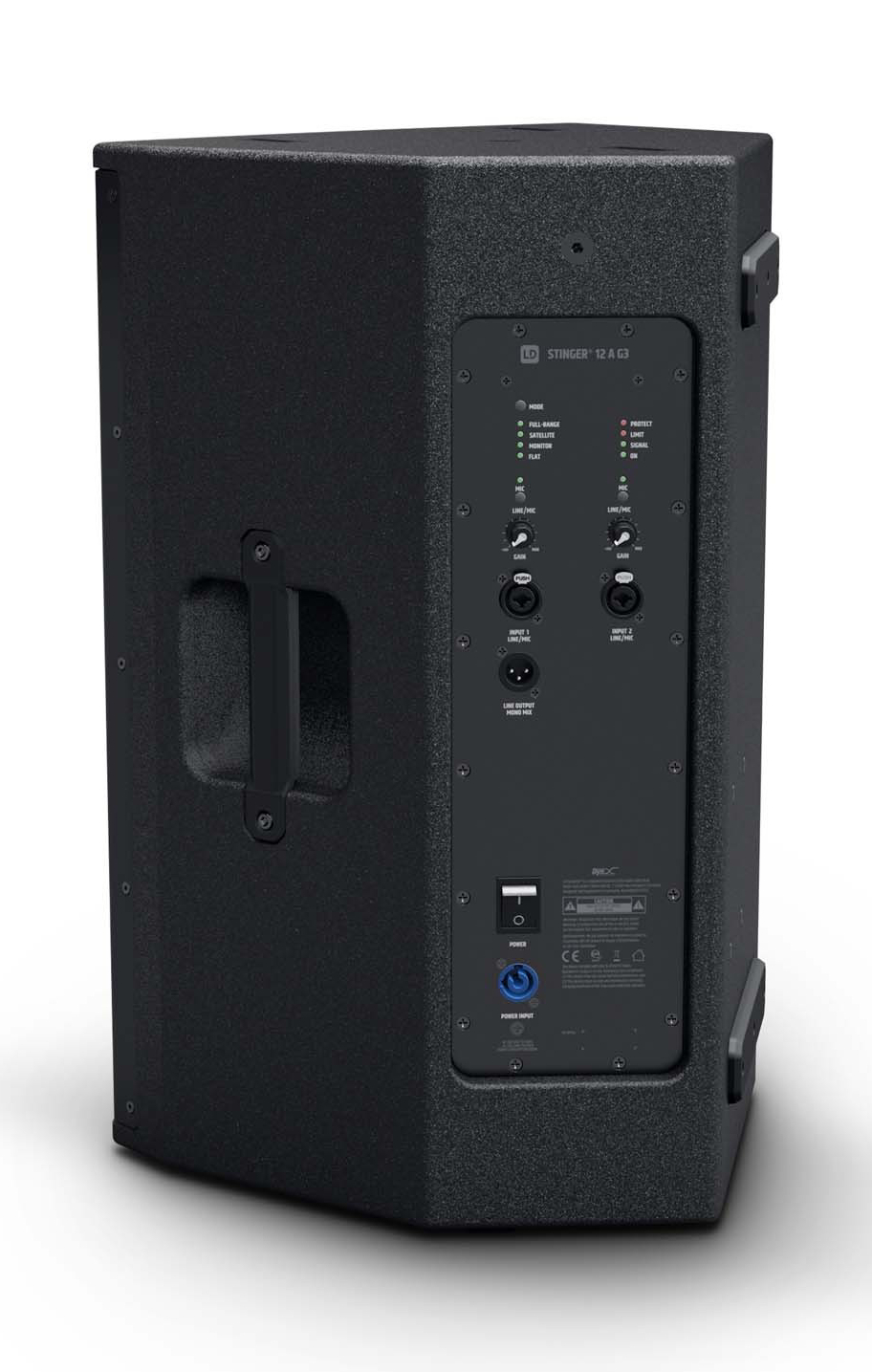

  • Settings 2 x Gain, 2 x Mic / Line, Mode
  • Indicators Limit, Microphone, Mode, On, Protect, Signal
  • Inputs line 2
  • 1/4 "XLR Jack Line Input Connectors
  • Outputs line 1
  • XLR Line Output Connectors
  • Mains voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
  • Operating temperature 0 - 40 ° C
  • Relative hygrometry rate <80%, non-condensing
  • Box material Plywood 15 mm
  • Surface of the Polyurea box
  • Bass reflex cabinet finish

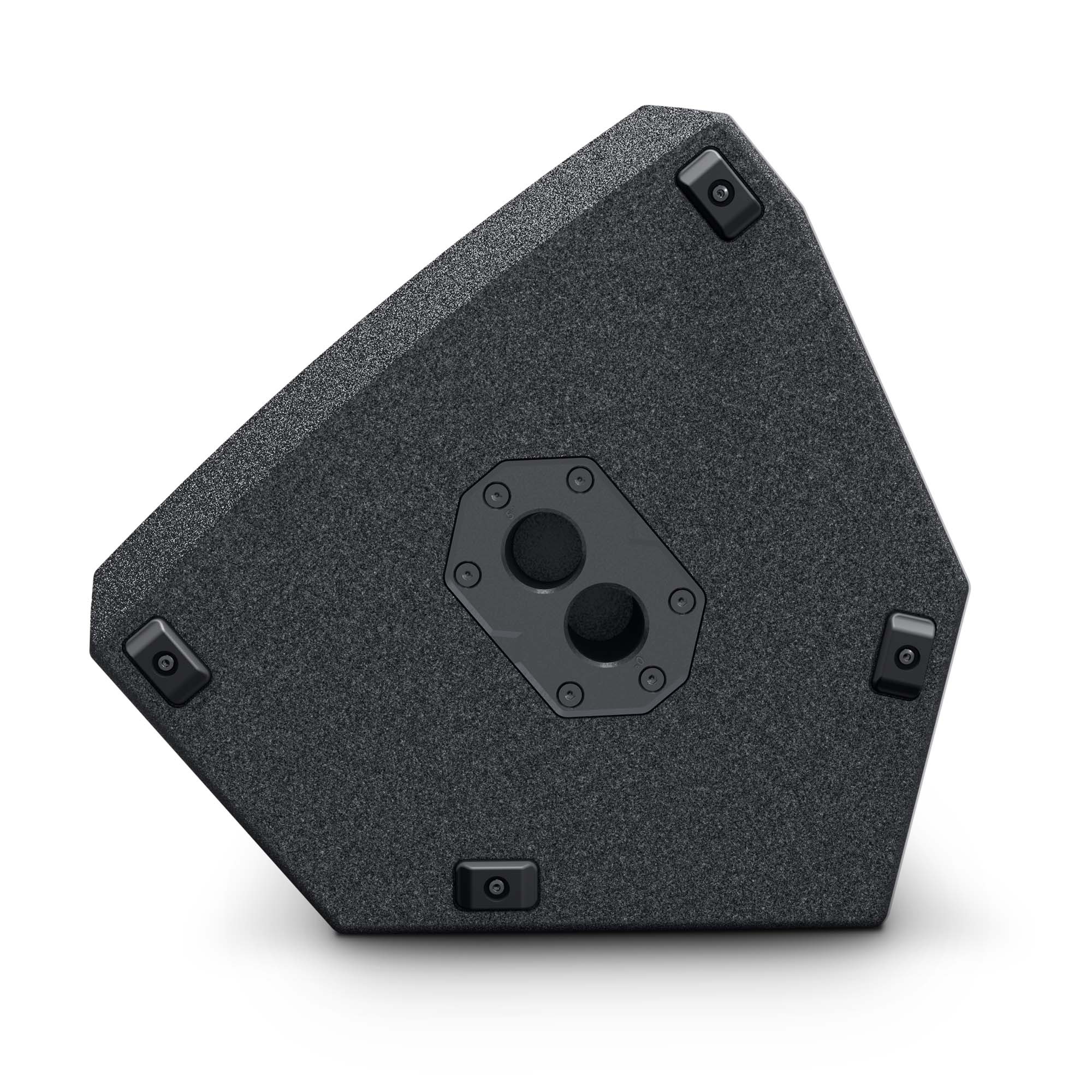

  • 54 ° angle monitor
  • Width 390 mm
  • Height (mm) 627 mm
  • Depth 377 mm
  • Weight 20.1 kg
