Ld systems Stinger 8 G3

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte

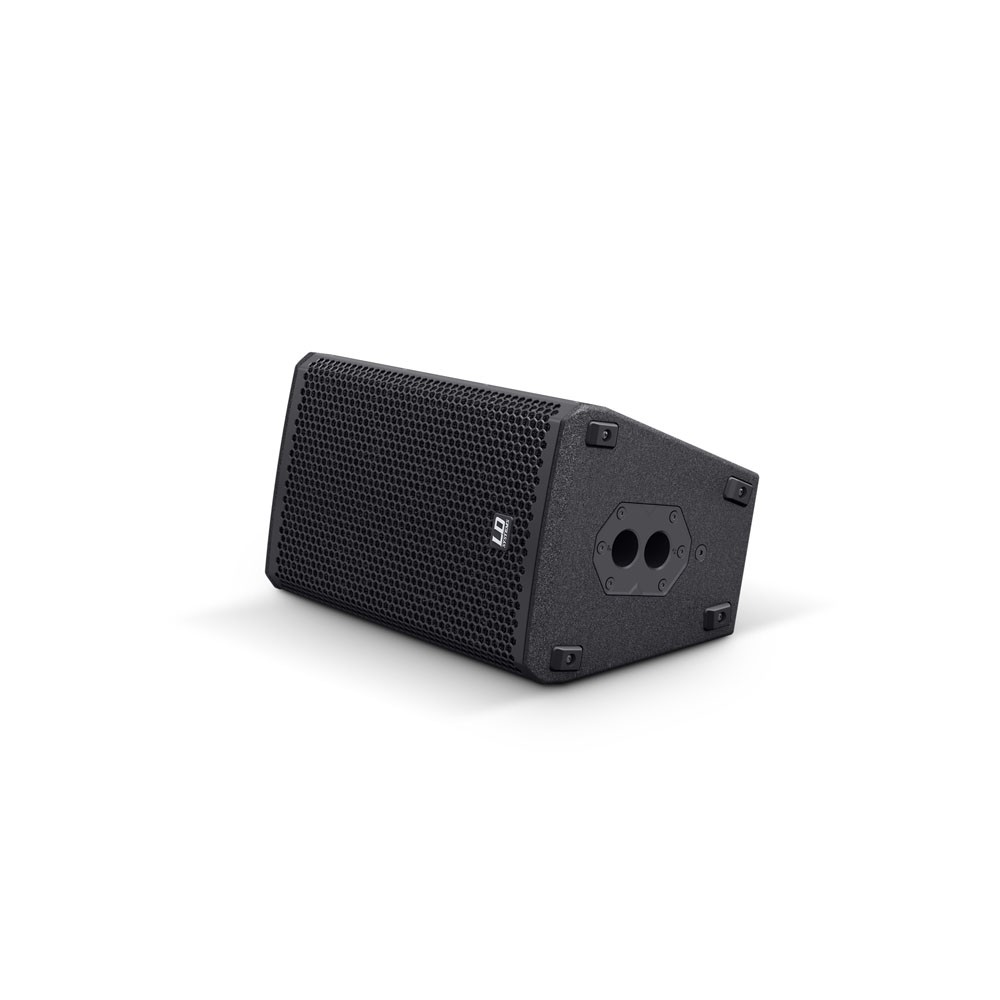

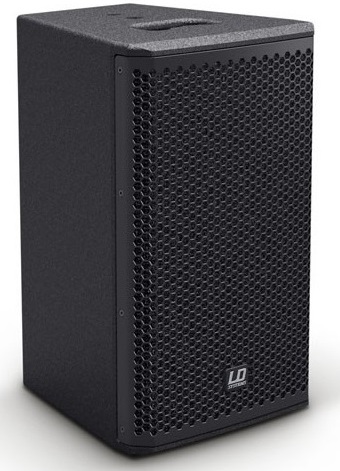

  • Ld Systems Stinger 8 G3 - Passive Lautsprecher - Main picture
  • Ld Systems Stinger 8 G3 - Passive Lautsprecher - Variation 1
  • Ld Systems Stinger 8 G3 - Passive Lautsprecher - Variation 2
  • Ld Systems Stinger 8 G3 - Passive Lautsprecher - Variation 3
  • Ld Systems Stinger 8 G3 - Passive Lautsprecher - Variation 4
351,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 83430
Lieferbar
8-10 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich

Die Marke Ld systems

Erfahren Sie mehr über die Marke Ld systems und entdecken Sie den gesamten Katalog.

Shopping Guide Sono Equipment

Leistung, Lautsprechergröße, Preis, Abmessungen, passive oder aktive Version.... Die Wahl eines Lautsprechers ist keine leichte Aufgabe! Die Fülle an Modellen und Technologien verwirrt oft uneingeweih

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Passive lautsprecher

The LD Sytems Stinger 8 G3 is a 2-way passive speaker.

This ultra-professional 2-way speaker has been designed and manufactured to ensure absolute reliability over time.
Thanks to its multifunction bass reflex cabinet, the speaker is suitable for use as Full Range satellite or back stage, mobile configuration or fixed installation.

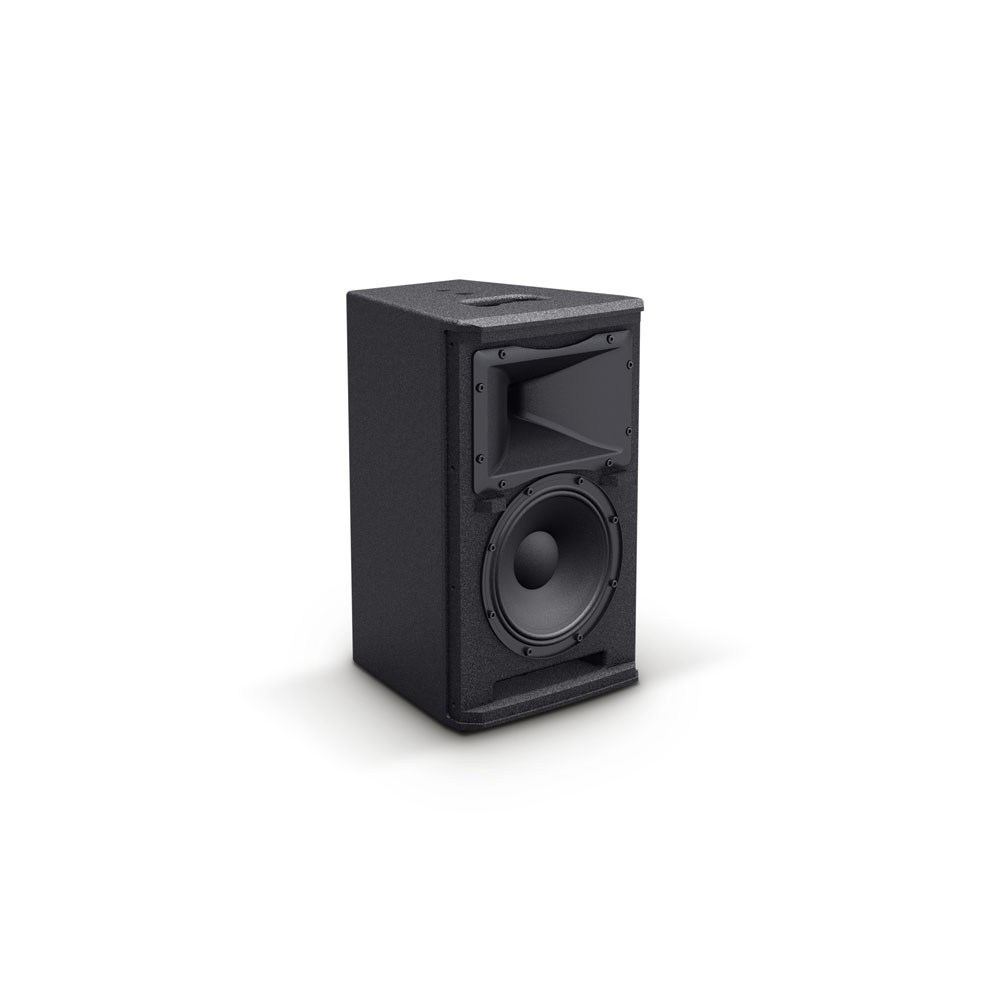

The Stinger® 8 G3 has a continuous power rating of 250 watts, and reaches a maximum sound pressure level of 118 dB SPL. Its 8-inch boomer, developed specifically, and its tweeter BMS ensure a low downward restitution in the bass and treble fresh and natural. The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion. The Stinger® 8 G3 is designed for any challenge. Its rugged bass reflex case is made of robust birch plywood, and its extremely durable Polyurea finish provides exceptional stability and durability. The enclosure is equipped with a steel front grille, a Dual-Tilt footwell, grip points and ergonomic handles. The Stinger® 8 G3 loudspeaker is an attractive professional sound solution, and a wide range of accessories for both stage and fixed installation.
Lire la suite

Technisches Arbeitsblatt

  • Leistung des PA-Lautsprechers 151 bis 300 watts RMS
  • PA-Lautsprechertyp Bühnen & FOH Lautsprecher
  • Product Type PA Speaker
  • Passive Type
  • Boomer diameter / medium 8 "
  • Boomer diameter 203.2 mm
  • Magnet Ferrite Boomer
  • Brand Boomer Custom
  • 2 "woofer coil
  • Boom winder (mm) 50,8 mm
  • Horn optimized BEM horn with constant directivity
  • Diameter tweeter 1 "
  • Tweeter diameter 25.4 mm
  • Ferrite tweeter magnet
  • Brand tweeter BMS
  • 1 "tweeter coil
  • 25.4mm Mobile Tweeter Reel Diameter
  • Dispersion angle (H x V) 90 ° x 50 ° °
  • Power (effective) 250 W
  • Power (peak) 500 W
  • Frequency response 70 - 20000 Hz
  • Sound pressure level (for 1 W to 1 m) 95 dB
  • Maximum sound pressure level 119 dB
  • Impedance 8 Ohm (s)
  • Tweeter protection circuits

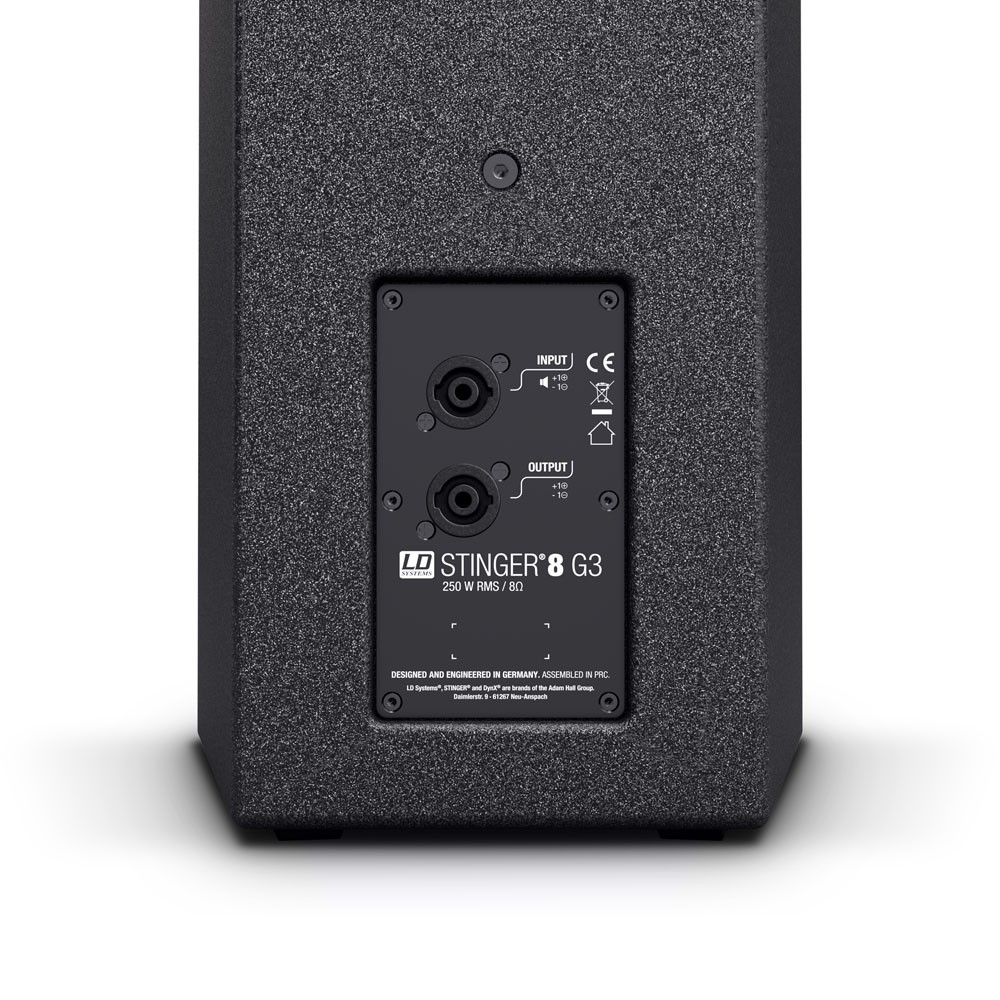

  • Speaker Inputs 1
  • Speakon Compatible Speaker Input Connectors
  • Speaker outputs 1
  • Speakon Compatible Speaker Output Connectors
  • Box material Plywood 12 mm
  • Surface of the Polyurea box
  • Bass reflex cabinet finish
  • Width 270 mm
  • Height (mm) 457 mm
  • Depth 290 mm
  • Features M10 thread for SuperClamp, ergonomic handles
  • Weight 9.9 kg
