Mobile recorder

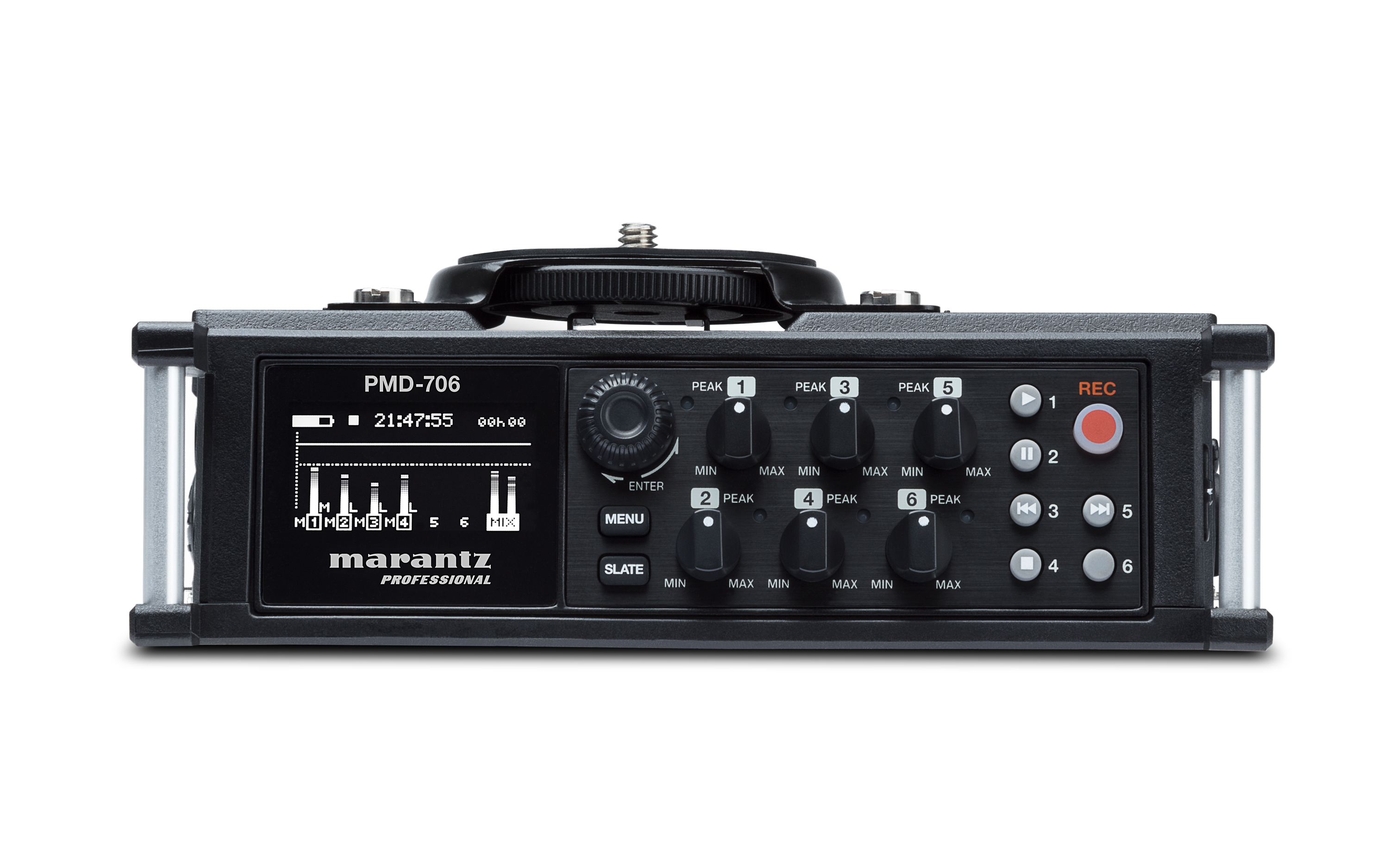

Marantz PM706 is a 6-channel camera recorder.
Designed for advanced digital SLR professionals, this 6-channel recorder connects to a camera, camera, or when used in a bag as a field recorder.
It includes four XLR combo jacks for MIC and LINE level sources, and two 1/4 "TRS jacks to support the LINE / MIC level, six high quality audio tracks can be recorded at the same time.
It also has a 3.5mm TRS input for added versatility.
the Dual-Record function is used to create a duplicated track at a reduced level, up to 3 safety tracks can be created for critical applications.
Designed for advanced digital SLR professionals, this 6-channel recorder connects to a camera, camera, or when used in a bag as a field recorder.
It includes four XLR combo jacks for MIC and LINE level sources, and two 1/4 "TRS jacks to support the LINE / MIC level, six high quality audio tracks can be recorded at the same time.
It also has a 3.5mm TRS input for added versatility.
the Dual-Record function is used to create a duplicated track at a reduced level, up to 3 safety tracks can be created for critical applications.
Lire la suite
Technisches Arbeitsblatt

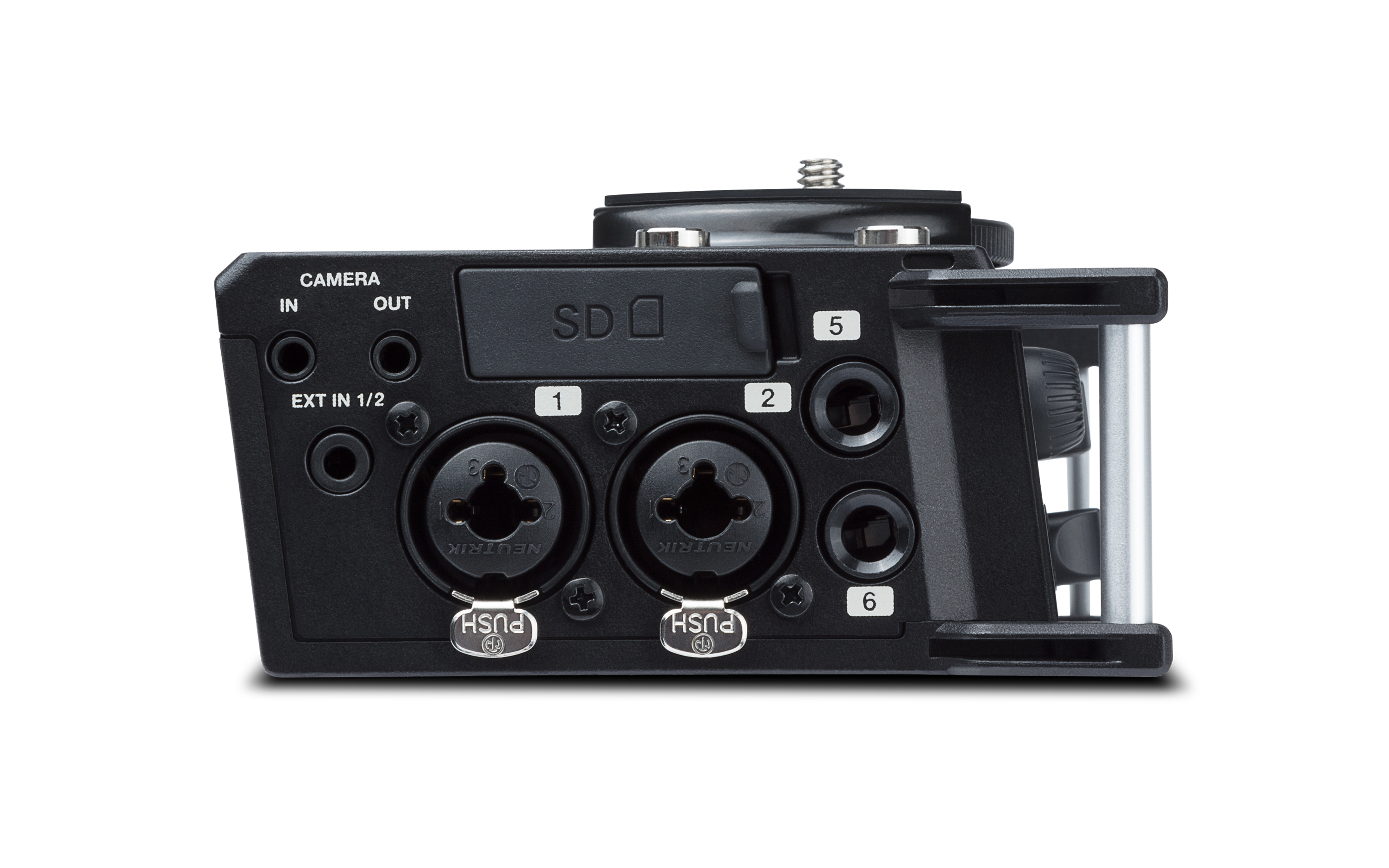

- Connectors
- (4) XLR + 1/4 "(6.35mm) Inputs
- (2) 1/4 "TRS Inputs (6.35mm)
- (2) Inputs 1/8 "(3.5mm)
- (3) Outputs of 1/8 "(3.5 mm)
- (1) Micro-USB port, type B
- Battery life: up to 5.5 hours (with -
- phantom power off)
- SD Support Supported
- SD Card (64 MB - 2 GB)
- SDHC card (4 - 32 GB)
- SDXC card (48 - 128 GB)
- Recording Channels: 6 channels (stereo x 3, mono x 6), 4 channels in Dual Stereo mode, 4 channels maximum with a sampling rate of 96 kHz.
- Recording formats: WAV (44.1, 48 or 96 kHz, 16 or 24 bit)
- : BWF (44.1, 48 or 96 kHz, 16 or 24 bits)
- Recording Modes: Mono, Stereo, Dual Mono, Dual Stereo, Mid / Side Recording, Mix
- Audio performance
- Signal to noise: 93 dB (Line In -> Line Out)
- 88 - 90 dB (Mic In -> Line Out)
- 93 dB (Ext In -> Line Out)
- 93 dB (Camera In -> Line Out)
- 92 dB (Line In -> Headphone Output)
- 92 dB (Line In -> Camera Out)
- Frequency response: 20 Hz - 20 kHz (± 1.0 dB)
- Input impedance: 2 kΩ
- Phantom power: 48 V (± 4 V, 10 mA / channel), 24 V (± 4 V, 10 mA / channel)
- Audio channels
- Inputs 1, 2, 3, 4 (set to MIC or MIC + phantom power)
- Input impedance: 4.7 kΩ
- Maximum input level: -8 dBu
- Mic input gain: +28 dB (low), +47 dB (medium), +59 dB (high), +64 dB (high)
- Inputs 1, 2, 3, 4, 5, 6 (on LINE)
- Input impedance: 4.7 kΩ
- Standard input level: 0 dBu
- Maximum input gain: +12 dBu
- Line input gain: +0 dB (Low), +10 dB (Mid), +20 dB (High), +30 dB (Hi Plus)
- External inputs 1 and 2
- Input impedance: 10 kΩ
- Maximum input level: -1 dBV
- Low +9 dB, Medium +20 dB, High +35 dB, Hi Plus +45 dB
- Camera input
- Input impedance: 1 kΩ
- Standard input level: -10 dBV
- Maximum input level: +3 dBV
- Line output 1/8 "(3.5mm)
- Output impedance: 1 kΩ
- Maximum output level: +3 dBV
- 1/8 "(3.5mm) camera output
- Output impedance: 100 Ω
- Maximum output level: -4 dBV
- Dimensions (width x depth x height): 4.3 "x 6.5" x 2.0 "(10.9 x 16.5 x 5.1 cm)
- Weight: 0.54 kg
