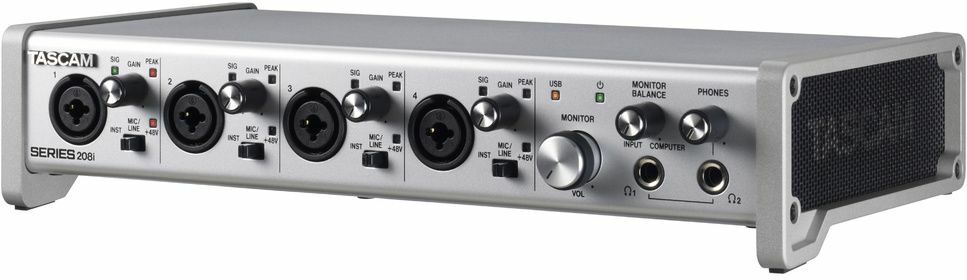

Tascam Series 208I

the Tascam Series208I is a USB audio interface.


Provides up to 20 audio inputs and 2 audio outputs to your computer under MacOS or Windows or to your device under iOS
- Audio resolution up to 192 kHz / 24 bit
- USB Audio Compliance 2.0 for use under iOS
4 analog mic/line inputs on balanced Combo connectors (mixed XLR/ TRS jacks)
- High-end microphone preamps, using Ultra-HDDA (High Definition Discrete Architecture) technology, for ultra-low background noise (EIN : -127 dBu)
- High quality audio input circuits for low background noise on recordings
- 48-volt phantom power supply can be switched separately to XLR inputs
- Each TRS input can be switched to instrument position for direct recording of an electric guitar or bass
- Gain adjustment and signal presence and clipping indicators on each analog input
- Two multi-channel optical audio inputs for up to 16 additional inputs,
ideal for use with one or two Tascam SERIES 8p Dyna microphone preamplifiers
S/MUX format with support for high sampling rates (ADAT compatible)
16 inputs at 44.1/48 kHz
8 inputs at 88.2/96 kHz
4 inputs at 176.4/192 kHz

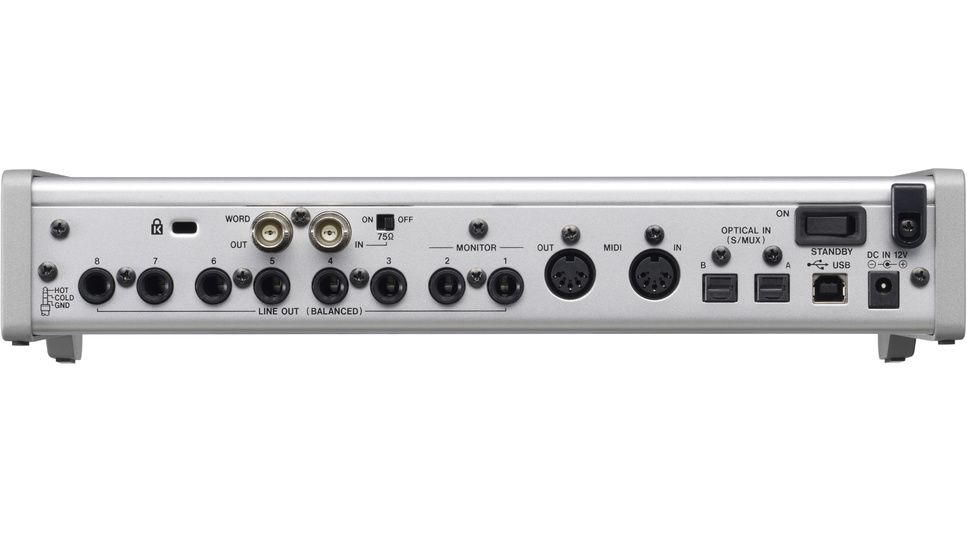

- Eight line outputs (on TRS balanced jack). Line outputs 1 and 2 are used as Monitor outputs, with level control
- Direct Monitor option, for low latency listening
- Monitor Balance potentiometer to mix the live input signals with the signal read on the computer
- Two headphone outputs on 6.35 mm stereo jack, with volume control (power 2 x 45 mW)
- Wordclock input/output for integration with other digital devices
- MIDI Input/Output
- Connection to the computer via USB 2.0
- Mains power supply, via dedicated PS-P1220E power supply unit (delivered)
- Robust metal frame
