Thorens MM-008 ADC
- Bewertungen lesen (0)
- Zugehöriges Zubehör
- Ähnliche Produkte
- Kostenlose Lieferung
- Günstige Preise garantiert
- Zufrieden oder erstattet
- 3 Jahre Garantie
- Ref : 107055
Lieferbar
5-7 Tage Versand
Lagerbestand
Nicht im Geschäft erhältlich
Die Marke Thorens
Erfahren Sie mehr über die Marke Thorens und entdecken Sie den gesamten Katalog.
Das größte Filialnetz in Frankreich
Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.
Wenden Sie sich an einen Experten
Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.
Vorverstärker

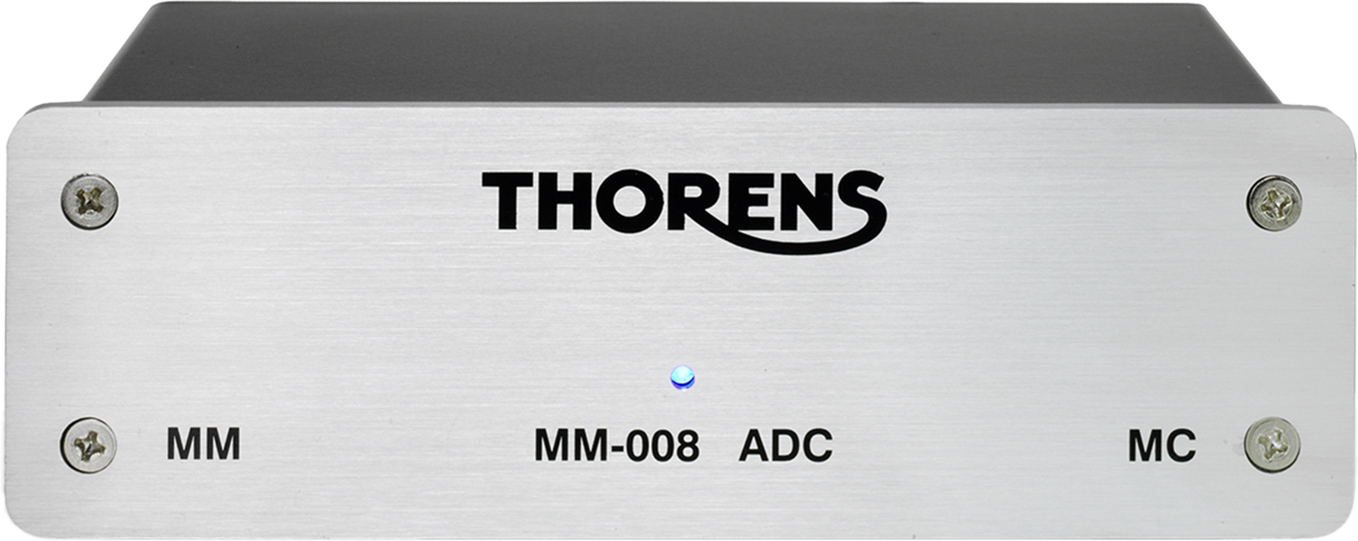

The Thorens MM-008 ADC is an RIAA Pre-Amplifier.
The MM-008 ADC phono pre-amplifier is the successor of the famous MM-008, and thus remains an easy to use and connect product, and also very efficient. In the form of a metal case with a brushed aluminium front panel, the MM-008 remains sober and discreet, but above all very functional: designed for MM and MC cells, it offers both an external power supply, but above all - its strong points - an analogue/digital converter and a USB output for digitising vinyl records on a computer.
The MM-008 ADC phono pre-amplifier is the successor of the famous MM-008, and thus remains an easy to use and connect product, and also very efficient. In the form of a metal case with a brushed aluminium front panel, the MM-008 remains sober and discreet, but above all very functional: designed for MM and MC cells, it offers both an external power supply, but above all - its strong points - an analogue/digital converter and a USB output for digitising vinyl records on a computer.
Lire la suite
Technisches Arbeitsblatt
- Vorverstärkungtyp Transistor
- General
- Anti-resonance and anti-interference enclosure
- Aluminium front panel
- Mode: MM/MC (switchable)
- Built-in A/D converter (Tenor TE7022L 24Bit Delta Sigma)
- Sampling: 8, 16, 32, 44.1, 48, 96 kHz
- Compatible operating systems: Windows® 8, Windows® 7, Vista, XP, Mac OS®, etc.
- Measurements
- Amplification at 1 kHz: 40 dB (MM) / 60 dB (MC)
- Input impedance (MM): 47 kΩ + 220 pF fixed
- Input impedance (MC): 47 kΩ + 1 nF (changeable with external load plugs)
- Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
- Frequency response (-3 dB): 10 hZ - 50 kHz
- RIAA compliance: ±0.3 dB
- Signal-to-noise ratio : >86 dB (MM) / >72 dB (MC)
- Crosstalk: ?40 dB
- Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
- Input sensitivity (MC): 0.325 mVrms at -10 dBV output (316 mVrms)
- Max. output voltage 482 mVrms at 5 mVrms input (1 kHz)
- Output impedance: 47 Ω

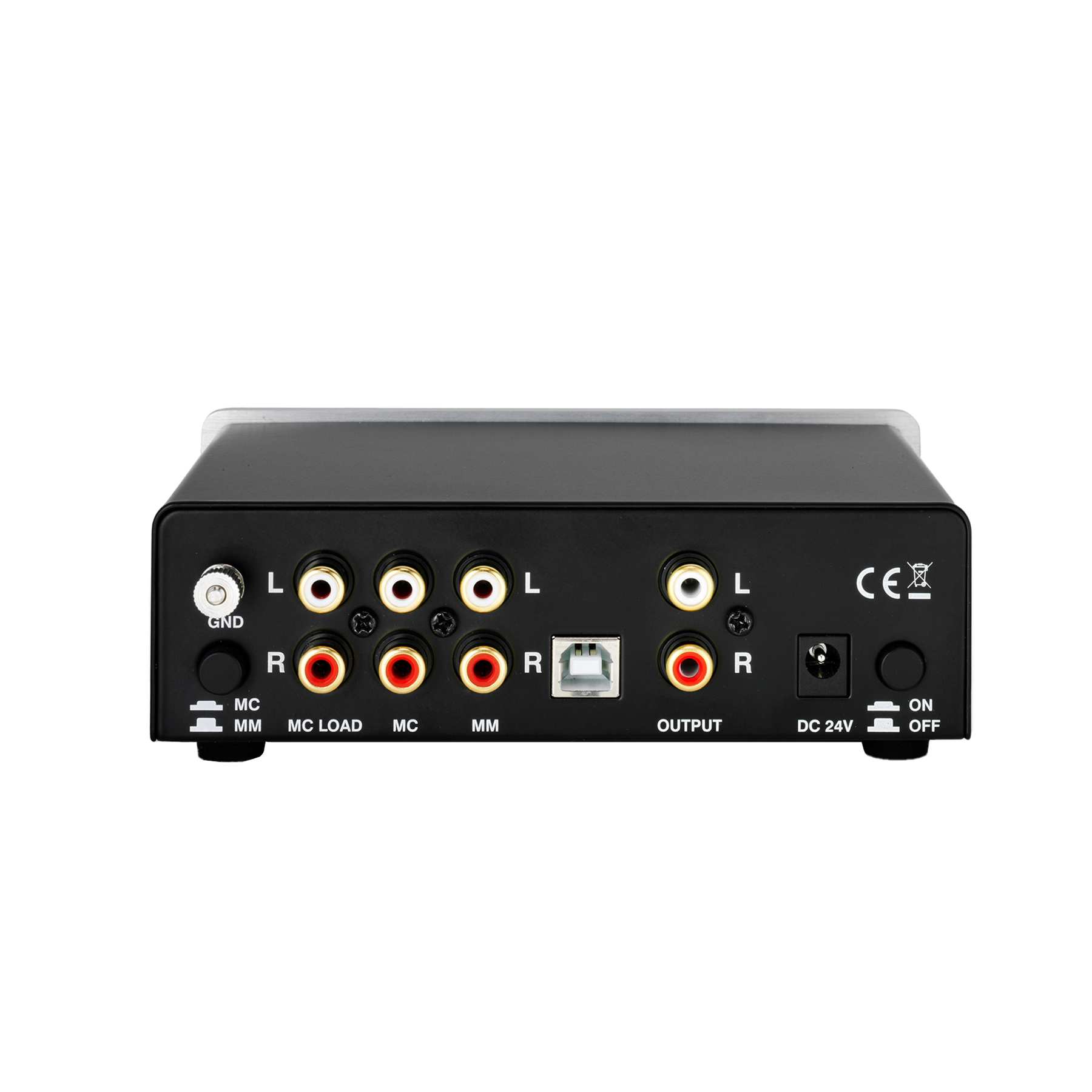

- Connections
- 1 MM input (RCA left/right)
- 1 MC input (RCA left/right)
- 1 grounding terminal
- 1 MC Load input (RCA left/right)
- 1 stereo line output (RCA left/right)
- USB 2.0 output, USB 1.1 backwards compatible
- Power supply
- Power supply: 24 V DC
- Power consumption: 3.4 W/15 mA
- Supplied accessories
- External power supply
- 3 pairs of external load plugs for MC cell (10 Ω, 100 Ω, 1 kΩ)
- Logistic data
- Dimensions (W x H x D): 150 x 50 x 117 mm
- Weight: 511 g (excluding power supply)
