Warm audio WA273-EQ

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Warm Audio Wa273-eq - Vorverstärker - Main picture
  • Warm Audio Wa273-eq - Vorverstärker - Variation 1
  • Warm Audio Wa273-eq - Vorverstärker - Variation 2
2326.80 €
1555,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 78677
Lieferbar
1 Zimmer frei.
2-3 Tage Versand
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Paris

Die Marke Warm audio

Erfahren Sie mehr über die Marke Warm audio und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Vorverstärker

If there’s one style of preamp that professional engineers would unanimously agree has defined the tone of pop/rock records for decades, it would most definitely be the venerable '73-style of mic pre. '73-style preamps have been massively used in recording and live applications for many years and are still considered to be the “Holy Grail” of preamp choices today. The Warm Audio “WA73 Family” consists of single and dual channel '73-style preamps (with & w/out EQ), that each pay careful homage to British audio history.



When we at Warm Audio decided to release the WA273-EQ it was imperative that it met vintage expectation in both design and performance. The tone and sweet character that vintage '73-style mic preamps impart is so unique and familiar, that we had only the pure desire to release sonically accurate reproductions. After years of R&D, careful reverse-engineering, and countless hours of auditioning, the WA273-EQ has been born!
The WA273-EQ is a “Desert Island” boutique preamp, but it can also be classified as a studio and live work-horse. Classic '73-style preamps are known for being versatile tools that work with all kinds of microphones from Condenser, to Dynamic, to Ribbon. The WA273-EQ equally shines on all types of microphones and sources including; vocals, acoustic/electric guitars, bass, drums, percussion, orchestras, keyboards, and even as a tone shaping tool to run partial or complete mixes through. With 80dB of gain and a fully discrete Carnhill Transformer balanced signal path, there’s no recording, mixing or engineering task that the WA273-EQ can’t handle.
Lire la suite

Technisches Arbeitsblatt

  • Vorverstärkungtyp Transistor

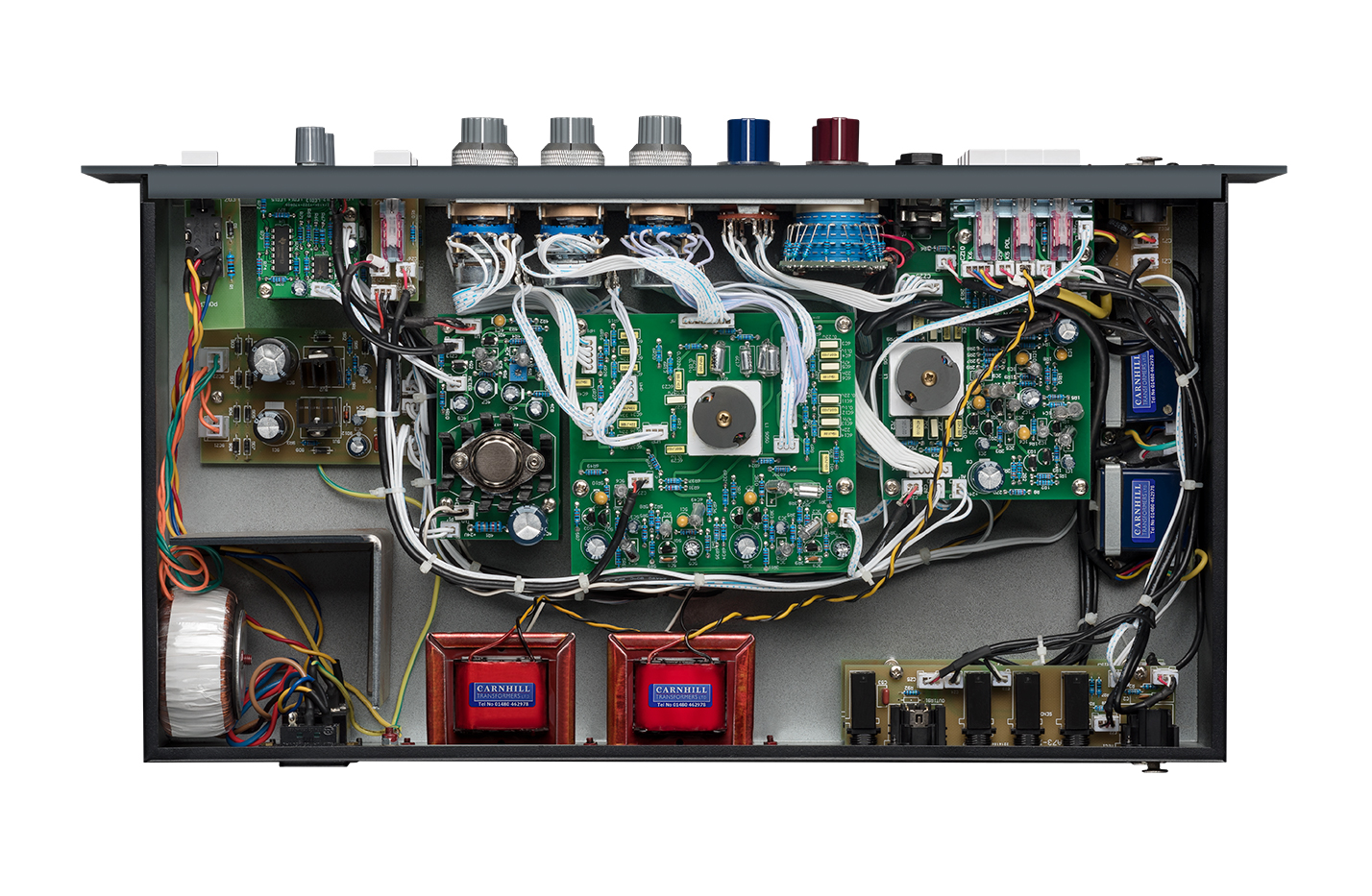

  • Assembled and wired by hand with discrete components
  • Carnhill transformer made in England
  • Potentiometer / Concentric Switch Blore Edwards Made in England
  • 80 dB gain, adjustable by rotary switch
  • Tone switch, changes the input impedance of the transformer
  • Polarity switch
  • Switch for 48V phantom power supply
  • 3-band inductance EQ
  • Low boost / cut: 35, 60, 110, 220 Hz
  • Medium boost / cut: 360, 700, 1600, 3200, 4800, 7200 Hz
  • Acute boost / cut: 10, 12, 16 kHz (additional frequencies compared to 1073 Vintage)
  • High-pass filter with 4-position switchable inductance (50, 80, 160, 300 Hz)
  • XLR microphone input (on the back and on the front)
  • Line input in balanced 1/4 "jack
  • Insert Send and Receive in 1/4 "unbalanced jack
  • Instrument input (DI) in front
  • Control of the output level
  • Level LED indicator
  • Frequency response 20 Hz - 20 kHz (+/- 0.5 dB)
  • Rackable 19 "
  • Ground lift switch
  • 115V / 230V internal power supply
