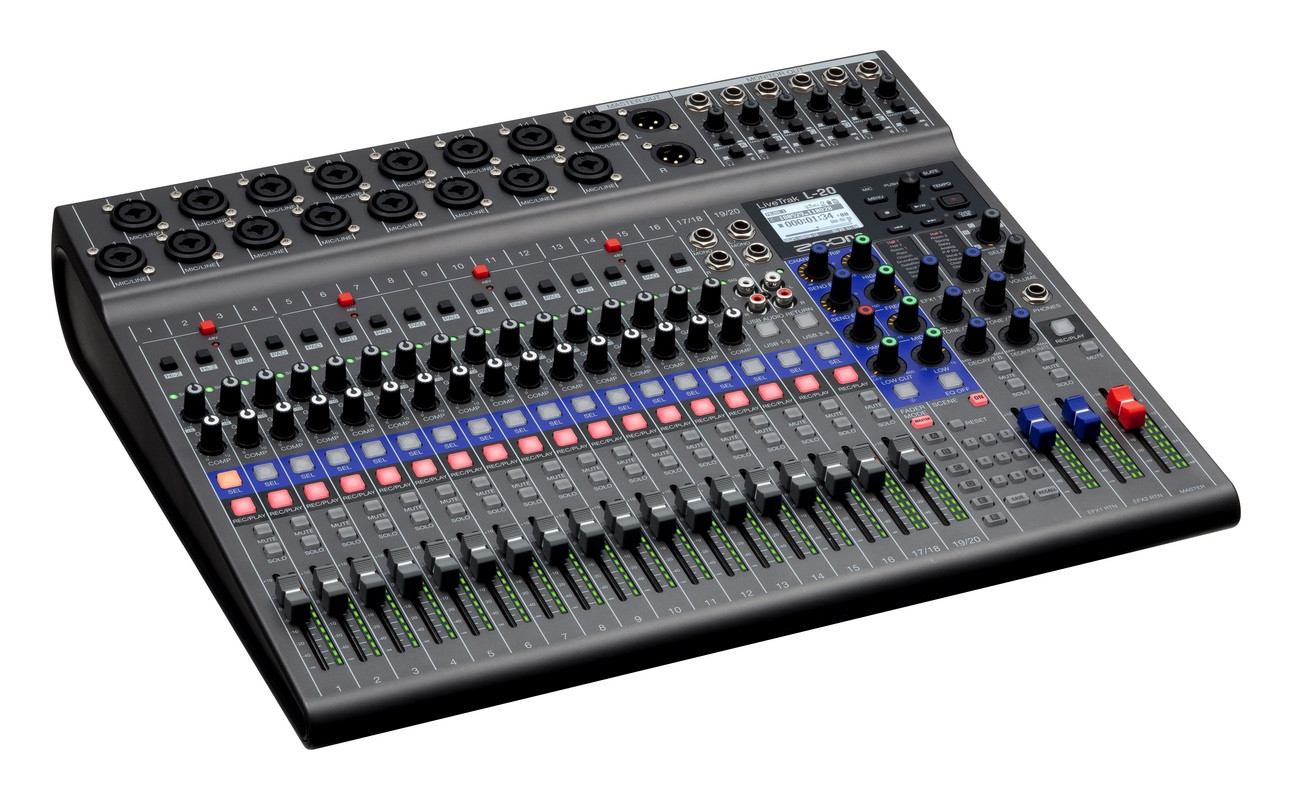

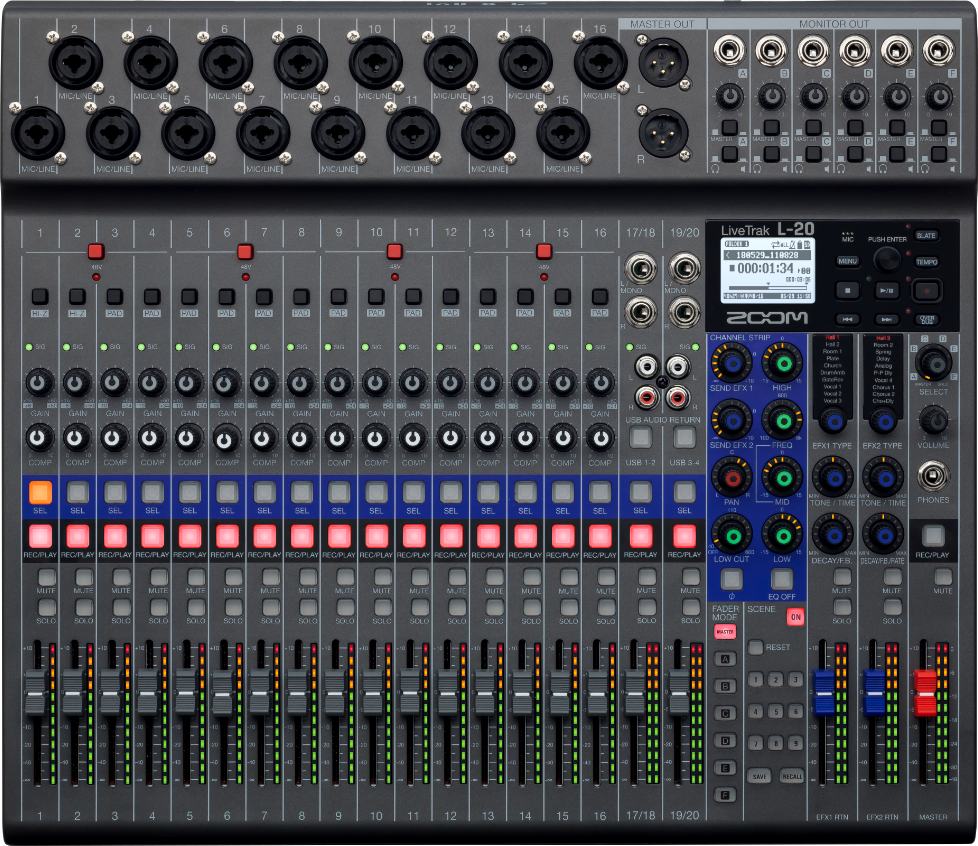

Zoom Livetrack L-20

  • Bewertungen lesen (0)
  • Zugehöriges Zubehör
  • Ähnliche Produkte
  • Zoom Livetrack L-20 - Mehrspur-Recorder - Main picture
  • Zoom Livetrack L-20 - Mehrspur-Recorder - Variation 1
  • Zoom Livetrack L-20 - Mehrspur-Recorder - Variation 2
  • Zoom Livetrack L-20 - Mehrspur-Recorder - Variation 3
VIDEO
VIDEO
1306.80 €
949,00 €
  • Kostenlose Lieferung
  • Günstige Preise garantiert
  • Zufrieden oder erstattet
  • 3 Jahre Garantie
  • Ref : 83688
Lieferbar
innerhalb von 24 Stunden lieferbar
Lagerbestand
Siehe Verfügbarkeit. Speichern
Star's Music Bordeaux
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse

Die Marke Zoom

Erfahren Sie mehr über die Marke Zoom und entdecken Sie den gesamten Katalog.

Das größte Filialnetz in Frankreich

Hier finden Sie alle Informationen zu unseren Superstores und unseren Fachboutiquen.

Wenden Sie sich an einen Experten

Unsere musikbegeisterten und begeisterten Teleberater sind hier, um alle Ihre Fragen zu beantworten.

Mehrspur-recorder

The Livetrack l-20 is a 20-channel digital audio console.

It has 20 entries.
Each incorporates a 3-band equalizer with parametric midrange.
You can record 20 separate channels plus a stereo mix directly to an SD card.

The LiveTrak L-20 captures flawless sound at resolutions up to 24-bit / 96 kHz *.
With 128 dBu input input noise (EIN) and +60 dB gain, the LiveTrak boasts the quietest and most advanced preamps we've ever produced.
Make the final mix of your songs on the L-20 or transfer your independent tracks to a digital audio station for tweaking.

Each of the six independent monitor-monitoring outputs allows musicians to have their own custom mix, with effects, and can easily switch from a powerful headphone output to a balanced line-out for stage returns.
Lire la suite

Technisches Arbeitsblatt

  • inputs:
  • Mono (MIC / LINE): 16
  • Stereo (LINE): 2
  • Exits:
  • MASTER OUT: 1
  • MONITOR OUT: 6
  • HEADSET: 1
  • ENTRIES
  • Mono (MIC / LINE):
  • Type: Mixed XLR / TRS jacks (XLR: hot spot on pin 2, TRS: hot spot on the tip)
  • Input gain
  • Attenuator (PAD) disabled: +16 - +60 dB
  • Attenuator (PAD) enabled:? 10 - +34 dB
  • Hi-Z (high impedance) enabled: +6 - +50 dB
  • Input impedance
  • XLR: 3 kΩ?
  • TRS: 10 kΩ / 1 MΩ (with Hi-Z enabled)
  • Maximum entry level
  • Attenuator (PAD) disabled: 0 dBu (at 0 dB FS)
  • Attenuator (PAD) enabled: +26 dBu (at 0 dB FS)
  • +48 V phantom power
  • EXITS
  • MASTER OUT:
  • Type: XLR (symmetrical)
  • Maximum output level: +14.5 dBu
  • Output impedance: 100 Ω
  • MONITOR OUT A-F (with balanced output) connected to return monitors:
  • Type: TRS (balanced) sockets
  • Maximum output level: +14.5 dBu
  • Output impedance: 100 Ω
  • MONITOR OUT A-F (with unbalanced output) connected to a headset:
  • Type: Standard Stereo 6.35mm Sockets
  • Maximum output level: 42 mW + 42 mW in 60 Ω
  • Output impedance: 100 Ω
  • PHONES (headphones):
  • Type: Standard 6.35 mm stereo jack
  • Maximum output level: 42 mW + 42 mW in 60 Ω
  • Output impedance: 100 Ω
  • BUS
  • MASTER 1
  • MONITOR: 6
  • SEND EFX: 2
  • CHANNEL STRIP
  • COMP: LOW CUT: 40 - 600 Hz, 12 dB / OCT
  • equalizer:
  • HIGH: 10 kHz, ± 15 dB, in set
  • MID: 100 Hz - 8 kHz, ± 15 dB, bell
  • LOW: 100 Hz, ± 15 dB, in tray
  • PHASE:
  • LEVEL METERS
  • Level indicators: 12
  • SEND EFFECTS
  • RECORDER
  • Maximum number of simultaneously recordable tracks:
  • 22 to 44.1 / 48/96 kHz
  • Maximum number of simultaneously readable tracks:
  • 20
  • Recording format:
  • WAV 44.1 / 48/96 kHz, 16/24 bit, mono / stereo
  • Recording media:
  • 16 MB SD cards - 2 GB
  • 4 GB SDHC cards - 32 GB
  • 64GB SDXC cards - 512 GB
  • AUDIO INTERFACE
  • 44.1 / 48 kHz:
  • Recording: 22 channels
  • Reading: 4 channels
  • Bit resolution:
  • 24 bits
  • Interface:
  • USB 2.0
  • CARD READER
  • Class:
  • Mass storage: USB 2.0 high speed
  • USB HOST SOCKET
  • Class:
  • USB 2.0 high speed
  • Sampling frequency:
  • 44.1 / 48/96 kHz
  • Frequency characteristics:
  • 44.1 kHz:? 1.0 dB, 20 Hz - 20 kHz
  • 96 kHz: 3.0 dB, 20 Hz - 40 kHz
  • Noise reported at the entrance (EIN):
  • Actual measurements:? 128 dB EIN (IHF-A) with input at +60 dB / 150 Ω
  • Screen:
  • Backlit LCD (128x64 resolution)
  • Food:
  • AC adapter AD-19 (DC 12 V, 2 A)
  • Power consumption:
  • 24 W maximum
  • External dimensions:
  • 445 mm (W) × 388.4 mm (W) × 82.6 mm (H)
  • Weight (CPU only):
  • 3.71 kg
